User Manual for Cool-Lux LK2052 Accessorized AC DC MINI-COOL Kit Click to enlarge the picture
Contents of the user manual for the Cool-Lux LK2052 Accessorized AC DC MINI-COOL
- Product category: On Camera Lights Cool-Lux
- Brand: Cool-Lux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cool-Lux On Camera Lights
|
User manual for the Cool-Lux LK2052 Accessorized AC DC MINI-COOL contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cool-Lux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cool-Lux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cool-Lux product will considerably shorten its lifespan!
|

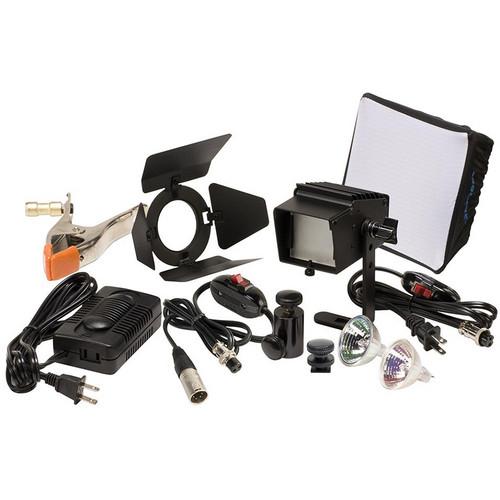

Product description The Cool-Lux LK2052 Accessorized AC/DC MINI-COOL Kit provides required illumination for your video footage in any location. With a compact design, the AC/DC kit can be used for HD and HD DSLR arrangements. The accessory kit includes a Mini-Cool Light, Mini-Cool AC power cord (CC8230), 4-pin XLR DC power cord (CC8231), 150W AC Lamp, 120V (FOS-011), 75W DC Lamp, 12V (FOS-009), MD5000 Camera adaptor, MD5050 Stand adaptor, MD5250 Spring clamp (2”), LC7101 Mini-Cool barn doors, LC7150 AC dimmer (600W), and a LC7171 Mini-Cool soft box with holder. - LK-2000 Mini Cool 120 VAC On Camera Light The LK-2000 is the basic Mini-Cool AC package. It features the famous light teamed up with a 150 Watt AC lamp and mounting devices. This package will work with a variety of professional video cameras and with any stand that has a 5/8" stud.
- LK2020 Housing
- Made of aircraft aluminum, this housing is vented and made to cool fast and protect the lamp. It can support a variety of lamps and adapt to many mounting situations with the proper optional equipment.
- Coiled AC Cable
- The coiled AC cable is 5 feet in length and features an in line switch.
- Light Stand Adapter
- This adapter works with stands that use a 5/8" stud; the 1/4-20 screw can be used in an on camera situation that utilize that specific mount.
- Diffusion Glass
- The frosted glass softens the flood beam for a desired effect.
UPC: 054096020008 - CC8230 Mini-Cool AC Power Cord The Cool-Lux CC8230 is an AC power cord for the Mini-Cool light housing. This power cord is coiled four feet long and features an off on switch within the cable. UPC: 054090482307
- CC-8231 Coiled DC Power Cord w/4-Pin XLR The CC-8231 is a coiled power cord that is made to work with the Mini Cool light housing. It features a 4-Pin XLR connector for power supply connection and a two pin connector with a threaded collar that attaches to the Mini Cool. UPC: 054090482314
- Lamp - 150 watts/120 volts - for Mini Cool This is 150 watt, 120 volt projector style, MR-16 Replacement Bulb for Cool-Lux Mini-Cool fixture.Alternative: GBJCR120fwuywxdbbcerecxrrte UPC: 689670180719
- Lamp - 75 watts/12 volts - for Mini-Cool 12V, 50W Spot bulb for Mini-Cool fixture, various projectors, dental curing equipment, fiber optic units. If out of stock, order: GBEYC. UPC: 689670180702
- MD-5000 Camera Shoe Mount Adapter The MD-5000 is an adapter that allows the Mini Cool and the Micro lux to mount to a camera shoe. UPC: 054090450009
- MD-5050 Light Stand Adapter for Mini Cool The MD-5050 is an adapter that is connected to the Mini Cool or Micro Lux light housings; it then allows these lights to be attached to light stands with 5/8" stud mounts. UPC: 054090450504
- MD-5250 Original Spring Clamp Light Mount The MD-5250 is Cool lux's original spring clamp mount. It features all metal construction and soft vinyl tips to protect the clamping surface. The 5/8" stud mounted on the handle allows lights to be attached. This unit will clamp to objects up to 2 inches thick. UPC: 689670181372
- Rotating 4-Leaf Barndoor Set for Mini-Cool Light This Cool-Lux Rotating 4-Leaf Barndoor Set for Mini-Cool Light acts as a great mounting device for gels; the main purpose is to shape the light. With the ability to rotate, the light can be shaped or flagged in a variety of ways that other barndoors are not capable. UPC: 054090471011
- LC-7150 500 Watt AC Photo Dimmer The 500W maximum capability LC-7150 AC Photo Dimmer can operate two Mini Cools and dim from full on to off. It has an on-board indicator to let the user know the percentage of dimming and the Kelvin temperature at that percentage.
- Interference Suppression
- This unit has circuitry that suppresses radio interference so signals will not affect dimming capability.
- Smooth Slider
- Ease of operation with the smooth slider function through all levels of brightness.
- Touch Fastener
- This unit can be attached to your belt or camera with the touch fastener attachment.
- Indicator
- Shows the Kelvin temperature and the brightness level.
UPC: 054090471509 - LC-7171 Soft Box for Mini Cool The LC-7171 is a small soft box that fits on the Mini Cool light housing. The size of this unit enables it to be utilized in "on camera" applications but, can also be used with a light stand. It mounts fast and easy and diffuses the light for that smooth look. UPC: 010170171714
In the Box Bundle Items LK-2000 Mini Cool 120 VAC On Camera Light fwuywxdbbcerecxrrte - LK2020 Housing and Bracket
- FOS-011, 120 VAC, 150 Watt Lamp
- MD5050 5/8" Light Stand Adapter
- LC7071 Diffusion Lens (frosted glass)
- Coiled Power Cable with In line Switch
CC8230 Mini-Cool AC Power Cord CC-8231 Coiled DC Power Cord w/4-Pin XLR Lamp - 150 watts/120 volts - for Mini Cool Lamp - 75 watts/12 volts - for Mini-Cool MD-5000 Camera Shoe Mount Adapter MD-5050 Light Stand Adapter for Mini Cool MD-5250 Original Spring Clamp Light Mount Rotating 4-Leaf Barndoor Set for Mini-Cool Light LC-7150 500 Watt AC Photo Dimmer LC-7171 Soft Box for Mini Cool fwuywxdbbcerecxrrte
Also Includes User Manual PDF 5.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux LK2052 Accessorized AC DC MINI-COOL Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LK-2000 Mini Cool 120 VAC On Camera Light
| | | AC Input Power | 120 VAC, 60 Hz | | Max Power Consumption | 150 W | | Power Source | AC Adapter | | | | Mount Type | 1/4"-20 Female Thread, 5/8" Stud | | Dimensions | 2.2 x 5 x 2.2" / 5.7 x 12.8 x 5.7 cm | | Weight | 12 oz / 340 g | | | | Box Dimensions (LxWxH) | 8.0 x 7.9 x 4.0" | - CC8230 Mini-Cool AC Power Cord
| | | Box Dimensions (LxWxH) | 6.0 x 3.25 x 1.5" | - CC-8231 Coiled DC Power Cord w/4-Pin XLR
| | | Box Dimensions (LxWxH) | 5.9 x 4.9 x 1.0" | - Lamp - 150 watts/120 volts - for Mini Cool
| Code | EZK-120V | | Application | Stage and studio fixtures, projectors | | Watts | 150 | | Volts | 120 | | Color Temperature | 3050°K | | Average Life Hours | 150 | | Approx. Lumens | 7000 | | Base Type | GY5.3 - 2-pin; flat .7mm x 2mm; 5.3mm centered | | Filament Type | CC8 | | Length | 1.75" (44mm) | | | | Box Dimensions (LxWxH) | 2.35 x 2.3 x 2.3" | - Lamp - 75 watts/12 volts - for Mini-Cool
| Code | EFSOS009, EYC | | Application | Lighting fixture, projector | | Watts | 75 | | Volts | 12 | | Color Temperature | 3050°K | | Average Life Hours | 4000 | | Approx. Lumens | Not specified by manufacturer | | Base Type | GX5.3 2- pin | | Filament Type | CC-6 | | Length | 44.5mm | | | | Box Dimensions (LxWxH) | 2.6 x 2.5 x 2.3" | - MD-5000 Camera Shoe Mount Adapter
| | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" | - MD-5050 Light Stand Adapter for Mini Cool
| | | Box Dimensions (LxWxH) | 9.7 x 5.1 x 1.2" | - MD-5250 Original Spring Clamp Light Mount
| Bottom Mount | 1 x Clamp Mount | | Top Mount | 1 x 5/8" Stud | | | | Box Dimensions (LxWxH) | 7.0 x 5.3 x 0.7" | - Rotating 4-Leaf Barndoor Set for Mini-Cool Light
| | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 1.75" | - LC-7150 500 Watt AC Photo Dimmer
| Operating Voltage | 110/120 VAC | | | | Box Dimensions (LxWxH) | 6.9 x 4.5 x 1.3" | - LC-7171 Soft Box for Mini Cool
| | | Box Dimensions (LxWxH) | 8.2 x 6.3 x 3.4" |
