Product description

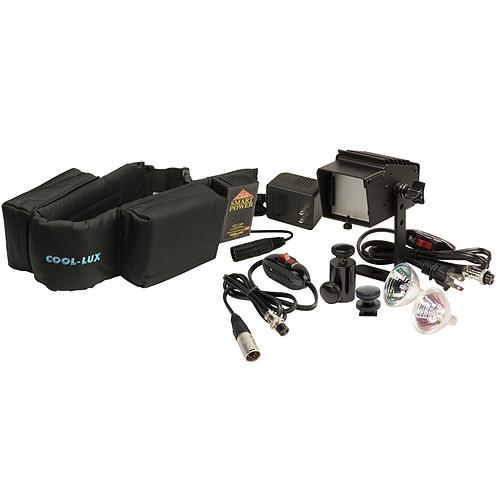

• LK-2000 Mini Cool 120 VAC On Camera Light The LK-2000 is the basic Mini-Cool AC package. It features the famous light teamed up with a 150 Watt AC lamp and mounting devices. This package will work with a variety of professional video cameras and with any stand that has a 5/8" stud.
  LK2020 Housing
  • Made of aircraft aluminum, this housing is vented and made to cool fast and protect the lamp. It can support a variety of lamps and adapt to many mounting situations with the proper optional equipment.
  Coiled AC Cable
  • The coiled AC cable is 5 feet in length and features an in line switch.
  Light Stand Adapter
  • This adapter works with stands that use a 5/8" stud; the 1/4-20 screw can be used in an on camera situation that utilize that specific mount.
  Diffusion Glass
  • The frosted glass softens the flood beam for a desired effect.
  UPC: 054096020008
• CC8230 Mini-Cool AC Power Cord The Cool-Lux CC8230 is an AC power cord for the Mini-Cool light housing. This power cord is coiled four feet long and features an off on switch within the cable. UPC: 054090482307
• CC-8231 Coiled DC Power Cord w/4-Pin XLR The CC-8231 is a coiled power cord that is made to work with the Mini Cool light housing. It features a 4-Pin XLR connector for power supply connection and a two pin connector with a threaded collar that attaches to the Mini Cool. UPC: 054090482314
• Lamp - 150 watts/120 volts - for Mini Cool This is 150 watt, 120 volt projector style, MR-16 Replacement Bulb for Cool-Lux Mini-Cool fixture.Alternative: GBJCR120rtvzytfxubzecsaqxwbqeqetrf UPC: 689670180719
• Lamp - 75 watts/12 volts - for Mini-Cool 12V, 50W Spot bulb for Mini-Cool fixture, various projectors, dental curing equipment, fiber optic units. If out of stock, order: GBEYC. UPC: 689670180702
• MD-5000 Camera Shoe Mount Adapter The MD-5000 is an adapter that allows the Mini Cool and the Micro lux to mount to a camera shoe. UPC: 054090450009
• MD-5050 Light Stand Adapter for Mini Cool The MD-5050 is an adapter that is connected to the Mini Cool or Micro Lux light housings; it then allows these lights to be attached to light stands with 5/8" stud mounts. UPC: 054090450504
• BC-3054 Battery Belt, LCE 12V/84WH The BC-3054 Smart Power battery pack offers a 12V high performance Lead-Calcium Electrolyte (Lead Acid) battery. Heavy-duty 16-gauge wiring is utilized with slip-proof connectors to ensure a long, reliable operating life. The BC-3054 includes an adjustable shoulder strap with a heavy-duty quick-release buckle.
  Cell Chemistry
  • The BC-3054 utilizes Lead-Calcium also known as Lead Acid, Gel-Cell or Starved Electrolyte.
  • Advantages:
    Low cost, high per cell voltage, no memory effect and good capacity life.
  Output
  • The BC-3054 utilizes a single professional 4-Pin XLR connector output. Heavy-duty 16-gauge wiring is utilized with a slip-proof connector to ensure a long, reliable operating life.
  Operator Comfort
  • The outer casing is constructed of a virtually indestructible, rugged and lightweight material; 1000-denier Cordura.
  UPC: 054096011006
• BC3354 12 VDC 1.2-amp Fast Charger with 4-Pin XLR Connector The Cool-Lux BC-3352 is a 12-volt fast charger for MAX power belts. This particular charger works with the 12 VDC belts with a 4-Pin XLR connector.
  Fast Charge Technology
  • With the high efficiency of the Cool-Lux battery cells, a reliable fast charge can be accomplished without any long-term damage to the battery. This is the 4-Pin XLR connector charger.
  UPC: 689670180245
• 12V LCE Battery Belt Power Source (12Ah) The Cool-Lux 12V LCE Battery Belt Power Source (12Ah) with dual 4-pin XLR connectors offers a run-time of 90 minutes at 75W. The portable and easy to wear belt has an LED power gauge to monitor voltage. It includes a BC3354 XLR battery charger.
  • Dual 4-pin XLR connectors
  • Offers a run-time of 90 minutes at 75W
  • Portable and easy to wear
  • LED power gauge to monitor voltage
  • Includes a BC3354 XLR battery charger
  • Made from rugged and lightweight 1,000-denier nylon, this power belt firmly hold your cells
  • High-density foam padding for added comfort
  UPC: 689670160780

• LK2020 Housing and Bracket

• FOS-011, 120 VAC, 150 Watt Lamp

• MD5050 5/8" Light Stand Adapter

• LC7071 Diffusion Lens (frosted glass)

• Coiled Power Cable with In line Switch

• Limited 3-Year Warranty

• 1 Year Warranty

• Standard Battery Charger

• Lifetime Warranty Against Material Defects, Parts and/or Construction

• One Year Manufacturers Limited Warranty on Battery Cells

• 1 Year Warranty

• 3-Year Warranty

Also Includes

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LK-2000 Mini Cool 120 VAC On Camera Light

  AC Input Power	120 VAC, 60 Hz
  Max Power Consumption	150 W
  Power Source	AC Adapter

  Mount Type	1/4"-20 Female Thread, 5/8" Stud
  Dimensions	2.2 x 5 x 2.2" / 5.7 x 12.8 x 5.7 cm
  Weight	12 oz / 340 g

  Box Dimensions (LxWxH)	8.0 x 7.9 x 4.0"

• CC8230 Mini-Cool AC Power Cord

  Box Dimensions (LxWxH)	6.0 x 3.25 x 1.5"

• CC-8231 Coiled DC Power Cord w/4-Pin XLR

  Box Dimensions (LxWxH)	5.9 x 4.9 x 1.0"

• Lamp - 150 watts/120 volts - for Mini Cool

  Code	EZK-120V
  Application	Stage and studio fixtures, projectors
  Watts	150
  Volts	120
  Color Temperature	3050°K
  Average Life Hours	150
  Approx. Lumens	7000
  Base Type	GY5.3 - 2-pin; flat .7mm x 2mm; 5.3mm centered
  Filament Type	CC8
  Length	1.75" (44mm)

  Box Dimensions (LxWxH)	2.35 x 2.3 x 2.3"

• Lamp - 75 watts/12 volts - for Mini-Cool

  Code	EFSOS009, EYC
  Application	Lighting fixture, projector
  Watts	75
  Volts	12
  Color Temperature	3050°K
  Average Life Hours	4000
  Approx. Lumens	Not specified by manufacturer
  Base Type	GX5.3 2- pin
  Filament Type	CC-6
  Length	44.5mm

  Box Dimensions (LxWxH)	2.6 x 2.5 x 2.3"

• MD-5000 Camera Shoe Mount Adapter

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"

• MD-5050 Light Stand Adapter for Mini Cool

  Box Dimensions (LxWxH)	9.7 x 5.1 x 1.2"

• BC-3054 Battery Belt, LCE 12V/84WH

  Chemistry	Lead Calcium (Lead Acid, Gel Cell)
  Output Voltage	12V
  Connection	4-Pin XLR
  Capacity	84WH 7AH
  Weight	2.7kg 6lbs
  Dimensions	Fits waist sizes 34" to 56"

  Box Dimensions (LxWxH)	7.165 x 5.748 x 5.433"

• BC3354 12 VDC 1.2-amp Fast Charger with 4-Pin XLR Connector

  Power Supply	No
  Battery Bays	1
  Type of Charging	Single Only
  Diagnostics	None
  Connections/Interface	4-Pin XLR Connector (x 1)
  Power Requirements	120-240 VAC
  Dimensions (WxHxD)	2 x 2.75 x 1.5" 50.8 x 69.85 x 38.1mm
  Weight	0.75 lbs 340 g

  Box Dimensions (LxWxH)	4.8 x 4.3 x 2.5"

• 12V LCE Battery Belt Power Source (12Ah)

  Power	12Ah
  Adaptor	4-pin XLR (dual female)
  Extra	LED power gauge
  Run Time	90 minutes (rated @ 75W)
  Size	39-52" (990-1320 mm)waist adjustment
  Weight	9 lb (4 kg)

  Box Dimensions (LxWxH)	18.0 x 6.6 x 6.4"
