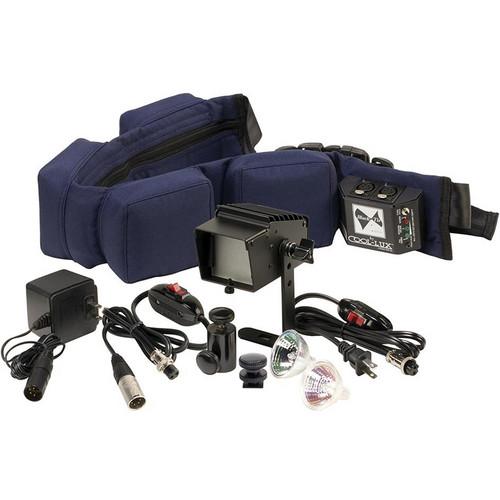

Cool-Lux LK2065 Mini-Cool Pro Kit II

User Manual for Cool-Lux LK2065 Mini-Cool Pro Kit II AC DC

• Product category: On Camera Lights Cool-Lux
• Brand: Cool-Lux
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cool-Lux On Camera Lights

Product description

• LK-2000 Mini Cool 120 VAC On Camera Light The LK-2000 is the basic Mini-Cool AC package. It features the famous light teamed up with a 150 Watt AC lamp and mounting devices. This package will work with a variety of professional video cameras and with any stand that has a 5/8" stud.
  LK2020 Housing
  • Made of aircraft aluminum, this housing is vented and made to cool fast and protect the lamp. It can support a variety of lamps and adapt to many mounting situations with the proper optional equipment.
  Coiled AC Cable
  • The coiled AC cable is 5 feet in length and features an in line switch.
  Light Stand Adapter
  • This adapter works with stands that use a 5/8" stud; the 1/4-20 screw can be used in an on camera situation that utilize that specific mount.
  Diffusion Glass
  • The frosted glass softens the flood beam for a desired effect.
  UPC: 054096020008
• CC8230 Mini-Cool AC Power Cord The Cool-Lux CC8230 is an AC power cord for the Mini-Cool light housing. This power cord is coiled four feet long and features an off on switch within the cable. UPC: 054090482307
• CC-8231 Coiled DC Power Cord w/4-Pin XLR The CC-8231 is a coiled power cord that is made to work with the Mini Cool light housing. It features a 4-Pin XLR connector for power supply connection and a two pin connector with a threaded collar that attaches to the Mini Cool. UPC: 054090482314
• Lamp - 150 watts/120 volts - for Mini Cool This is 150 watt, 120 volt projector style, MR-16 Replacement Bulb for Cool-Lux Mini-Cool fixture.Alternative: GBJCR120vusdwzyeuuxrbstbvryvrcztsvdzabrtbuzvbt UPC: 689670180719
• Lamp - 75 watts/12 volts - for Mini-Cool 12V, 50W Spot bulb for Mini-Cool fixture, various projectors, dental curing equipment, fiber optic units. If out of stock, order: GBEYC. UPC: 689670180702
• MD-5000 Camera Shoe Mount Adapter The MD-5000 is an adapter that allows the Mini Cool and the Micro lux to mount to a camera shoe. UPC: 054090450009
• MD-5050 Light Stand Adapter for Mini Cool The MD-5050 is an adapter that is connected to the Mini Cool or Micro Lux light housings; it then allows these lights to be attached to light stands with 5/8" stud mounts. UPC: 054090450504
• 12V Maxpower Belt The Cool-Lux 12V Maxpower Belt is a NiCd (Nickel-Cadmium) 12V, 7Ah battery belt that offers a control box with two 4-pin XLR plugs. The belt has an LED power gauge to monitor voltage and includes the NC3912 charger. Made of rugged, lightweight 1,000-denier nylon where each is precisely cut and stitched with durable, condensed, heavy-duty thread, the Maxpower belt ensures a smooth and tight surface with the cells firmly encased.
  • NiCd (Nickel-Cadmium) 12V, 7Ah battery belt
  • Control box with two 4-pin XLR plugs
  • LED power gauge to monitor voltage
  • Includes NC3912 charger
  • Made of rugged, lightweight 1,000-denier nylon where each is precisely cut and stitched with durable, condensed, heavy-duty thread
  • Ensures a smooth and tight surface with the cells firmly encased
  UPC: 689670185929
• NC3912 12v, 600mA Charger with XLR Connector The NC3912 12v, 600mA Charger with XLR Connector from Cool-Lux is the standard overnight Cool-Lux charger for 12-volt batteries, 5, 8 or 10Ah, 600mA output. It is the least expensive and most reliable method of charging NiCd chemistry batteries.
  Low Heat Charging
  • The Cool-Lux overnight charger uses a very stable charging method that inserts resistance between the charger and the battery. This prevents heat generation and keeps the battery cells at optimum performance.
  UPC: 689670181518

• LK2020 Housing and Bracket

• FOS-011, 120 VAC, 150 Watt Lamp

• MD5050 5/8" Light Stand Adapter

• LC7071 Diffusion Lens (frosted glass)

• Coiled Power Cable with In line Switch

• Limited 3-Year Warranty

• 1 Year Warranty

• NC3912 Charger

• 3-Year Warranty

• 1 Year Manufacturer's Warranty

Also Includes

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LK-2000 Mini Cool 120 VAC On Camera Light

  AC Input Power	120 VAC, 60 Hz
  Max Power Consumption	150 W
  Power Source	AC Adapter

  Mount Type	1/4"-20 Female Thread, 5/8" Stud
  Dimensions	2.2 x 5 x 2.2" / 5.7 x 12.8 x 5.7 cm
  Weight	12 oz / 340 g

  Box Dimensions (LxWxH)	8.0 x 7.9 x 4.0"

• CC8230 Mini-Cool AC Power Cord

  Box Dimensions (LxWxH)	6.0 x 3.25 x 1.5"

• CC-8231 Coiled DC Power Cord w/4-Pin XLR

  Box Dimensions (LxWxH)	5.9 x 4.9 x 1.0"

• Lamp - 150 watts/120 volts - for Mini Cool

  Code	EZK-120V
  Application	Stage and studio fixtures, projectors
  Watts	150
  Volts	120
  Color Temperature	3050°K
  Average Life Hours	150
  Approx. Lumens	7000
  Base Type	GY5.3 - 2-pin; flat .7mm x 2mm; 5.3mm centered
  Filament Type	CC8
  Length	1.75" (44mm)

  Box Dimensions (LxWxH)	2.35 x 2.3 x 2.3"

• Lamp - 75 watts/12 volts - for Mini-Cool

  Code	EFSOS009, EYC
  Application	Lighting fixture, projector
  Watts	75
  Volts	12
  Color Temperature	3050°K
  Average Life Hours	4000
  Approx. Lumens	Not specified by manufacturer
  Base Type	GX5.3 2- pin
  Filament Type	CC-6
  Length	44.5mm

  Box Dimensions (LxWxH)	2.6 x 2.5 x 2.3"

• MD-5000 Camera Shoe Mount Adapter

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"

• MD-5050 Light Stand Adapter for Mini Cool

  Box Dimensions (LxWxH)	9.7 x 5.1 x 1.2"

• 12V Maxpower Belt

  Volts	12V
  Power	7Ah
  Adaptor	4-pin XLR (dual female)
  Extra	LED power gauge
  Size	35-56" (889-1422 mm) waist adjustment
  Weight	4.9 lb (2.2 kg)

  Box Dimensions (LxWxH)	18.5 x 6.1 x 5.9"

• NC3912 12v, 600mA Charger with XLR Connector

  Power Supply	No
  Battery Bays	1
  Type of Charging	Single Only
  Diagnostics	Overnight Charger
  Connections/Interface	XLR
  Power Requirements	120-240 Volts AC
  Dimensions (WxHxD)	2 x 2.75 x 1.5 inches 50.8 x 69.85 x 38.1mm
  Weight	0.75 lbs. 340g

  Box Dimensions (LxWxH)	5.0 x 3.6 x 3.5"
