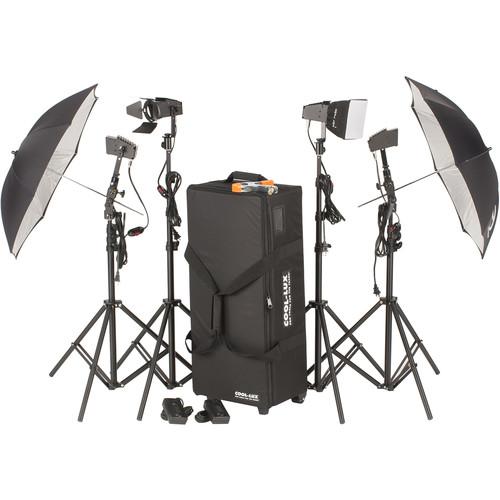

Cool-Lux LK2246 AC Studio Kit

User Manual for Cool-Lux LK2246 AC Studio Kit

• Product category: Tungsten Lights Cool-Lux
• Brand: Cool-Lux
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cool-Lux Tungsten Lights

Product description

• CC8230 Mini-Cool AC Power Cord The Cool-Lux CC8230 is an AC power cord for the Mini-Cool light housing. This power cord is coiled four feet long and features an off on switch within the cable. UPC: 054090482307
• Lamp - 150 watts/120 volts - for Mini Cool This is 150 watt, 120 volt projector style, MR-16 Replacement Bulb for Cool-Lux Mini-Cool fixture.Alternative: GBJCR120zbqtabtwbu UPC: 689670180719
• MD-5000 Camera Shoe Mount Adapter The MD-5000 is an adapter that allows the Mini Cool and the Micro lux to mount to a camera shoe. UPC: 054090450009
• MD-5050 Light Stand Adapter for Mini Cool The MD-5050 is an adapter that is connected to the Mini Cool or Micro Lux light housings; it then allows these lights to be attached to light stands with 5/8" stud mounts. UPC: 054090450504
• MD-5250 Original Spring Clamp Light Mount The MD-5250 is Cool lux's original spring clamp mount. It features all metal construction and soft vinyl tips to protect the clamping surface. The 5/8" stud mounted on the handle allows lights to be attached. This unit will clamp to objects up to 2 inches thick. UPC: 689670181372
• Rotating 4-Leaf Barndoor Set for Mini-Cool Light This Cool-Lux Rotating 4-Leaf Barndoor Set for Mini-Cool Light acts as a great mounting device for gels; the main purpose is to shape the light. With the ability to rotate, the light can be shaped or flagged in a variety of ways that other barndoors are not capable. UPC: 054090471011
• LC-7150 500 Watt AC Photo Dimmer The 500W maximum capability LC-7150 AC Photo Dimmer can operate two Mini Cools and dim from full on to off. It has an on-board indicator to let the user know the percentage of dimming and the Kelvin temperature at that percentage.
  Interference Suppression
  • This unit has circuitry that suppresses radio interference so signals will not affect dimming capability.
  Smooth Slider
  • Ease of operation with the smooth slider function through all levels of brightness.
  Touch Fastener
  • This unit can be attached to your belt or camera with the touch fastener attachment.
  Indicator
  • Shows the Kelvin temperature and the brightness level.
  UPC: 054090471509
• LC-7171 Soft Box for Mini Cool The LC-7171 is a small soft box that fits on the Mini Cool light housing. The size of this unit enables it to be utilized in "on camera" applications but, can also be used with a light stand. It mounts fast and easy and diffuses the light for that smooth look. UPC: 010170171714
• MD-5300 Adjustable Light and Umbrella Mount The MD-5300 is an accessory designed to fit on a standard light stand with 5/8" stud, use the Mini Cool light and a reflective umbrella to create a smooth softlight. This unit will operate at a variety of angles for excellent user control. UPC: 689670181419
• MD-5500 Collapsible Light Stand (8') This 8' MD-5500 Collapsible Light Stand Cool-Lux is a lightweight, compact light stand for supporting small light heads or reflectors. UPC: 000000002325
• RP0035 Hollywood Travel Case Hold multiple lights, such as two CL1000s or a variety of hot lights, along with stands and accessories with the RP0035 Hollywood Travel Case from Cool-Lux. This double-zippered Cordura nylon soft case features a two level main compartment with a bottom area with three dividers making four areas and foam padding. These dividers can easily be adjusted with hook-and-loop fasteners in order to customize the case to your specific needs. The top compartment has space for light stands as well as one long and three small dividers for making separate areas for holding accessories, such as batteries and cables. Additionally, it has two top strap handles with hook-and-loop fasteners to make one handle, two side foam grab handles and a carrying strap for convenience and comes equipped with two wheels and two hard plastic legs for smooth moving and standing. UPC: 689670192743

• 1 Year Warranty

• 6' Extension Cable

• Touch Fastener

• Limited 1-Year Warranty

Also Includes

• 4 x Mini-Cool Fixtures
• 2 x 32" Umbrellas (EC32BC)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CC8230 Mini-Cool AC Power Cord

  Box Dimensions (LxWxH)	6.0 x 3.25 x 1.5"

• Lamp - 150 watts/120 volts - for Mini Cool

  Code	EZK-120V
  Application	Stage and studio fixtures, projectors
  Watts	150
  Volts	120
  Color Temperature	3050°K
  Average Life Hours	150
  Approx. Lumens	7000
  Base Type	GY5.3 - 2-pin; flat .7mm x 2mm; 5.3mm centered
  Filament Type	CC8
  Length	1.75" (44mm)

  Box Dimensions (LxWxH)	2.35 x 2.3 x 2.3"

• MD-5000 Camera Shoe Mount Adapter

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"

• MD-5050 Light Stand Adapter for Mini Cool

  Box Dimensions (LxWxH)	9.7 x 5.1 x 1.2"

• MD-5250 Original Spring Clamp Light Mount

  Bottom Mount	1 x Clamp Mount
  Top Mount	1 x 5/8" Stud

  Box Dimensions (LxWxH)	7.0 x 5.3 x 0.7"

• Rotating 4-Leaf Barndoor Set for Mini-Cool Light

  Box Dimensions (LxWxH)	6.0 x 5.0 x 1.75"

• LC-7150 500 Watt AC Photo Dimmer

  Operating Voltage

  110/120 VAC

  Box Dimensions (LxWxH)	6.9 x 4.5 x 1.3"

• LC-7171 Soft Box for Mini Cool

  Box Dimensions (LxWxH)	8.2 x 6.3 x 3.4"

• MD-5300 Adjustable Light and Umbrella Mount

  Bottom Mount	1 x 5/8" Female
  Top Mount	1 x 5/8" Female

  Box Dimensions (LxWxH)	5.65 x 2.95 x 2.55"

• MD-5500 Collapsible Light Stand (8')

  Load Capacity	3 lb / 1.3 kg
  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Maximum Working Height	8' / 2.4 m
  Minimum Working Height	24" / 61 cm
  Collapsed Height	26" / 66 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	36.0 x 3.5 x 3.5"

• RP0035 Hollywood Travel Case

  Interior Dimensions	8 x 12.5 x 30" / 20.3 x 31.8 x 76.2 cm
  Compartment Dimensions (W x H x D)	6 x 12.5" / 15.2 x 31.8 cm 6 x 30" / 15.2 x 76.2 cm 4 x 6.5" / 10.2 x 16.5 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Hand Strap Shoulder Strap
  Casters	2
  Material of Construction	Cordura Nylon
  Exterior Dimensions (W x H x D)	9.5 x 14 x 32" / 24.1 x 35.6 x 81.3 cm
