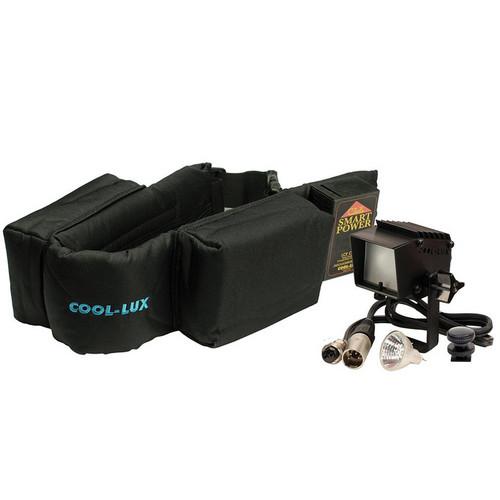

User Manual for Cool-Lux LK2507 Campack DV Kit I Click to enlarge the picture
Contents of the user manual for the Cool-Lux LK2507 Campack DV Kit I
- Product category: On Camera Lights Cool-Lux
- Brand: Cool-Lux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cool-Lux On Camera Lights
|
User manual for the Cool-Lux LK2507 Campack DV Kit I contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cool-Lux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cool-Lux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cool-Lux product will considerably shorten its lifespan!
|
Product description The Cool-Lux LK2507 Campack DV Kit I provides required illumination for your video footage in any location. The DV Kit I package includes a Micro-Lux Light, CC8234 4-pin XLR DC power cord, FTF 35W DC lamp (12V), MD5000 Camera adaptor, BC3054 LCE battery pack w/ XLR (12V), BC3354 XLR battery charger, and a BC4112 battery pack.
With a lightweight design (0.3 lb / 0.13kg), the Micro-lux light is suitable for use with HD and
HD DSLR cameras. Equipped with a mounting bracket, the light can be raised 2” (5cm) above the camera to reduce the bomb blast effect and red eye produced by other lights. Built-in glass diffuser offers proper light distribution. The Micro-lux light can operate on 14.4V, 13.2V, and 12V batteries. In addition, it offers a maximum lamp rating of up to 50W (DC). - LK-2100 Micro Lux On Camera Light The LK2100 is part of the Micro-Lux series of lights. This unit is smaller than the Mini-Cool and works well with smaller cameras; it uses 35 Watt lamps and is made of light weight sheet aluminum.
- Lightweight, Compact Size
- Very useful for small cameras or any situation where a larger on camera light is not an option.
- Uses Low Watt Lamps
- This unit uses lamps from 20 to 35 Watts; therefore works well with low lux cameras.
- MD5000 Camera Adapter
- The MD5000 fits nicely into a female camera shoe and also will work with a 1/4-20 mount by using the tightening knob as a separate mounting device.
- CC-8234 DC Power Cable U3 to 4-Pin XLR The CC-8234 coiled power cable connects the U3 light housing to a 4-Pin XLR power source. It features a two pin connector with a threaded collar that securely attaches to the U3 and the other end is a male 4-Pin XLR connector. UPC: 054090482345
- FTF 35W 12V MR11 DC Lamp The Cool-Lux FTF 35W 12V MR11 DC Lamp is a 35W 12V lamp for use with Cool-Lux Micro-Lux, Digi-Lux, or U3 on-camera video lights.
The FTF produces a spot 20° beam angle, 530 lux at 5 feet, and features a 3000K color temperature. UPC: 689670160766 - MD-5000 Camera Shoe Mount Adapter The MD-5000 is an adapter that allows the Mini Cool and the Micro lux to mount to a camera shoe. UPC: 054090450009
- 12V Maxpower Belt The Cool-Lux 12V Maxpower Belt is a NiCd (Nickel-Cadmium) 12V, 7Ah battery belt that offers a control box with two 4-pin XLR plugs. The belt has an LED power gauge to monitor voltage and includes the NC3912 charger. Made of rugged, lightweight 1,000-denier nylon where each is precisely cut and stitched with durable, condensed, heavy-duty thread, the Maxpower belt ensures a smooth and tight surface with the cells firmly encased.
- NiCd (Nickel-Cadmium) 12V, 7Ah battery belt
- Control box with two 4-pin XLR plugs
- LED power gauge to monitor voltage
- Made of rugged, lightweight 1,000-denier nylon where each is precisely cut and stitched with durable, condensed, heavy-duty thread
- Ensures a smooth and tight surface with the cells firmly encased
UPC: 689670185929 - NC3912 12v, 600mA Charger with XLR Connector The NC3912 12v, 600mA Charger with XLR Connector from Cool-Lux is the standard overnight Cool-Lux charger for 12-volt batteries, 5, 8 or 10Ah, 600mA output. It is the least expensive and most reliable method of charging NiCd chemistry batteries.
- Low Heat Charging
- The Cool-Lux overnight charger uses a very stable charging method that inserts resistance between the charger and the battery. This prevents heat generation and keeps the battery cells at optimum performance.
UPC: 689670181518 In the Box Bundle Items LK-2100 Micro Lux On Camera Light barfeevesquqrxxutbucwb - Cigarette Lighter Connecting Cable
- Formed Glass Diffusion Lens
CC-8234 DC Power Cable U3 to 4-Pin XLR FTF 35W 12V MR11 DC Lamp MD-5000 Camera Shoe Mount Adapter 12V Maxpower Belt NC3912 12v, 600mA Charger with XLR Connector - 1 Year Manufacturer's Warranty
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux LK2507 Campack DV Kit I in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LK-2100 Micro Lux On Camera Light
| Lamp Type | 12 VDC, 35 Watt, U3035F (FTH) | | Mount Type | MD5000 for a female camera shoe
or 1/4-20 screw type mount | | Power Source | 12 VDC | | Power Consumption | Up to 35 Watts | | Power Connector | 38" coiled cord with cigarette
lighter plug connection | | Dimensions (WxDxH) | 1.5 x 3.25 x 2"
3.8 x 8.3 x 5cm | | Weight | 7 oz
200 gram | - CC-8234 DC Power Cable U3 to 4-Pin XLR
| | | Box Dimensions (LxWxH) | 6.75 x 4.0 x 0.8" | - FTF 35W 12V MR11 DC Lamp
| Compatibility | For use with Cool-Lux Micro-Lux, Digi-Lux, or U3 on-camera video lights | | Watts | 35 | | Volts | 12 | | Beam Angle | 20° | | Color Temperature | 3000K | | Illuminance | 530 lux @ 5' (@ 1.5m) | | | | Box Dimensions (LxWxH) | 2.2 x 2.2 x 2.0" | - MD-5000 Camera Shoe Mount Adapter
| | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" | - 12V Maxpower Belt
| Volts | 12V | | Power | 7Ah | | Adaptor | 4-pin XLR (dual female) | | Extra | LED power gauge | | Size | 35-56" (889-1422 mm) waist adjustment | | Weight | 4.9 lb (2.2 kg) | | | | Box Dimensions (LxWxH) | 18.5 x 6.1 x 5.9" | - NC3912 12v, 600mA Charger with XLR Connector
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Single Only | | Diagnostics | Overnight Charger | | Connections/Interface | XLR | | Power Requirements | 120-240 Volts AC | | Dimensions (WxHxD) | 2 x 2.75 x 1.5 inches
50.8 x 69.85 x 38.1mm | | Weight | 0.75 lbs.
340g | | | | Box Dimensions (LxWxH) | 5.0 x 3.6 x 3.5" |
