User Manual for Cool-Lux Lux Gear Kit for Zeiss Classic Nikon Mount Lenses Click to enlarge the picture
Contents of the user manual for the Cool-Lux Lux Gear Kit for Zeiss
- Product category: Lens Gear Rings Cool-Lux
- Brand: Cool-Lux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cool-Lux Lens Gear Rings
|
User manual for the Cool-Lux Lux Gear Kit for Zeiss contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cool-Lux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cool-Lux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cool-Lux product will considerably shorten its lifespan!
|

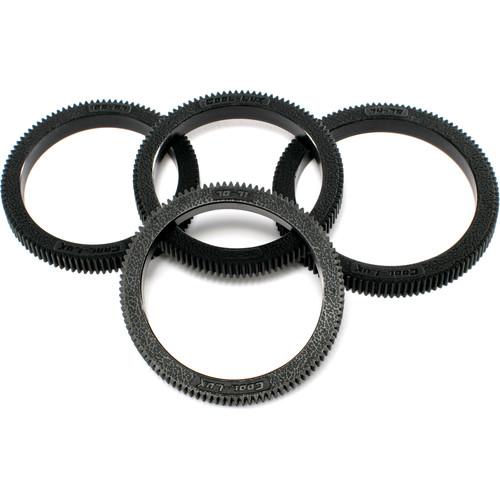

Product description The Lux Gear Kit from Cool-Lux comes with four Lux gears to fit a set of Zeiss Classic Nikon Mount ZF/ZF.2 lenses. It includes one 66 to 67mm gear for the Planar T* 1.4/50mm lens, two 70 to 71mm gear rings for Distagon T* 2/25mm and Planar T* 1.4/85mm lenses, and one 74 to 75mm gear for the Distagon T* 1.4/35mm lens. These seamless gear rings feature standard 0.8-mod / 32-pitch geared teeth, making them compatible with standard follow focus systems. - LuxGear Follow Focus Gear Ring (66 to 67.9mm) The LuxGear Follow Focus Gear Ring from Cool-Lux is a seamless lens gear for lenses with a focus-barrel diameter of 66 to 67.9mm. It features standard 0.8-mod/32-pitch geared teeth that makes it compatible with cine-style follow focus systems. The gear slides onto your focus ring from the front or back of the lens and holds securely without the clamps, screws or zip ties that can interfere with your follow focus and limit your lens's rotation.
This gear is precision molded in high-durometer silicone and is available in 16 sizes, each designed to fit lenses within a two-millimeter diameter range, ensuring a tight compression fit on the focus barrel. To find the appropriate sized gear for your lens, please see the lens compatibility chart and sizing tools accessible by clicking on "Guides & Manuals." - Compatibility
- Lenses with focus barrel diameter of 66 to 67.9mm, such as
Zeiss Planar T* 50mm f/1.4 ZF & ZF.2
Nikon 105mm f/2.8 AIS
Nikon 35mm f/1.4 AIS - 0.8-mod/32-pitch geared teeth for compatibility with any standard follow focus system
- Precision-molded, high-durometer silicone construction
- Securely fits on the lens' focus barrel
- Compression fit allows for easy tool-less installation and removal
- Continuous 360° of rotation
UPC: 689670194655 - LuxGear Follow Focus Gear Ring (70 to 71.9mm) The LuxGear Follow Focus Gear Ring from Cool-Lux is a seamless lens gear for lenses with a focus-barrel diameter of 70 to 71.9mm. It features standard 0.8-mod/32-pitch geared teeth that makes it compatible with cine-style follow focus systems. The gear slides onto your focus ring from the front or back of the lens and holds securely without the clamps, screws or zip ties that can interfere with your follow focus and limit your lens's rotation.
This gear is precision molded in high-durometer silicone and is available in 16 sizes, each designed to fit lenses within a two-millimeter diameter range, ensuring a tight compression fit on the focus barrel. To find the appropriate sized gear for your lens, please see the lens compatibility chart and sizing tools accessible by clicking on "Guides & Manuals." - Compatibility
- Lenses with focus barrel diameter of 70 to 71.9mm, such as
Zeiss Planar T* 85mm f/1.4 ZF & ZF.2
Zeiss Makro-Planar T* 50mm f/2 ZF & ZF.2
Zeiss Distagon T* 18mm f/3.5 ZE
Zeiss Distagon T* 21mm f/2.8 ZE
Zeiss Distagon T* 25mm f/2 ZF.2
Zeiss Planar T* 50mm f/1.4 ZE
Nikon 60mm f/2.8D Micro - 0.8-mod/32-pitch geared teeth for compatibility with any standard follow focus system
- Precision-molded, high-durometer silicone construction
- Securely fits on the lens' focus barrel
- Compression fit allows for easy tool-less installation and removal
- Continuous 360° of rotation
UPC: 689670194679 - LuxGear Follow Focus Gear Ring (74 to 75.9mm) The LuxGear Follow Focus Gear Ring from Cool-Lux is a seamless lens gear for lenses with a focus-barrel diameter of 74 to 75.9mm. It features standard 0.8-mod/32-pitch geared teeth that makes it compatible with cine-style follow focus systems. The gear slides onto your focus ring from the front or back of the lens and holds securely without the clamps, screws or zip ties that can interfere with your follow focus and limit your lens's rotation.
This gear is precision molded in high-durometer silicone and is available in 16 sizes, each designed to fit lenses within a two-millimeter diameter range, ensuring a tight compression fit on the focus barrel. To find the appropriate sized gear for your lens, please see the lens compatibility chart and sizing tools accessible by clicking on "Guides & Manuals." - Compatibility
- Lenses with focus barrel diameter of 74 to 75.9mm, such as
Zeiss Distagon T* 35mm f/1.4 ZF.2
Zeiss Distagon T* 35mm f/1.4 ZE
Zeiss Makro-Planar T* 50mm f/2 ZE - 0.8-mod/32-pitch geared teeth for compatibility with any standard follow focus system
- Precision-molded, high-durometer silicone construction
- Securely fits on the lens' focus barrel
- Compression fit allows for easy tool-less installation and removal
- Continuous 360° of rotation
UPC: 689670194693 In the Box Bundle Items LuxGear Follow Focus Gear Ring (66 to 67.9mm) arzyfubeccvbbadbabutuuuqcbddddfbtf 2 x LuxGear Follow Focus Gear Ring (70 to 71.9mm) LuxGear Follow Focus Gear Ring (74 to 75.9mm)
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux Lux Gear Kit for Zeiss Classic Nikon Mount Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LuxGear Follow Focus Gear Ring (66 to 67.9mm)
| Material | High-durometer silicone rubber | | Gear Pitch | 0.8 mod / 32 pitch | | Dimensions | Outer Diameter: 3.1" (78.7"mm)
Thickness: 0.375" (9.5 mm) | | | | Box Dimensions (LxWxH) | 7.35 x 5.95 x 0.7" | - LuxGear Follow Focus Gear Ring (70 to 71.9mm)
| Material | High-durometer silicone rubber | | Gear Pitch | 0.8 mod / 32 pitch | | Dimensions | Outer Diameter: 3.3" (83.8 mm)
Thickness: 0.375" (9.5 mm) | | | | Box Dimensions (LxWxH) | 7.35 x 5.85 x 0.65" | - LuxGear Follow Focus Gear Ring (74 to 75.9mm)
| Material | High-durometer silicone rubber | | Gear Pitch | 0.8 mod / 32 pitch | | Dimensions | Outer Diameter: 3.5" (88.9 mm)
Thickness: 0.375" (9.5 mm) | | | | Box Dimensions (LxWxH) | 7.35 x 5.85 x 0.65" |
