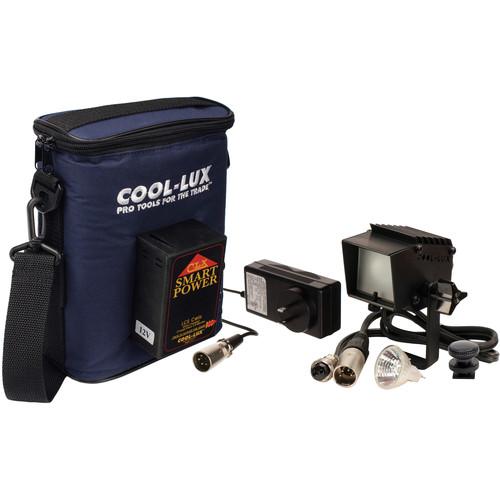

User Manual for Cool-Lux Micro-Lux On-Camera Light CamPack DV Kit Click to enlarge the picture
Contents of the user manual for the Cool-Lux Micro-Lux On-Camera Light CamPack DV
- Product category: On Camera Lights Cool-Lux
- Brand: Cool-Lux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cool-Lux On Camera Lights
|
User manual for the Cool-Lux Micro-Lux On-Camera Light CamPack DV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cool-Lux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cool-Lux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cool-Lux product will considerably shorten its lifespan!
|
Product description The Cool-Lux Micro-Lux On-Camera Light CamPack DV Kit includes the Micro-Lux on-camera light, 35W DC lamp, waist pack power pack with wall charger, XLR cable, and shoe mount adapter. The Micro-Lux is a rugged, very compact and lightweight light featuring a riser-type mounting bracket. This bracket attaches the light 2" above the camera, decreasing the common bomb blast and red eye effects. It also features a built-in glass diffuser that allows even light distribution.
For power, the Micro-Lux light has a 2-pin XLR input connector allowing you to connect the included power pack using the included XLR cable. The power pack is supplied with a U.S. wall outlet charger that connects into an XLR output on the power pack. Other than the power pack, the light can also be powered by other power supply packs or brick batteries using the included XLR cable or optional converter cables. The light supports connection to 12V, 13.2V, and 14.4V batteries. - LK-2104 Micro Lux On Camera Light The LK2104 is part of the Micro-Lux series of lights. This unit is smaller than the Mini-Cool and works well with smaller cameras; it uses 35 Watt lamps and is made of light weight sheet aluminum.
- Lightweight, Compact Size
- Very useful for small cameras or any situation where a larger on camera light is not an option.
- Uses Low Watt Lamps
- This unit uses lamps from 20 to 35 Watts; therefore works well with low lux cameras.
- MD5000 Camera Adapter
- The MD5000 fits nicely into a female camera shoe and also will work with a 1/4-20 mount by using the tightening knob as a separate mounting device.
UPC: 689670181082 - BC-3054 Battery Belt, LCE 12V/84WH The BC-3054 Smart Power battery pack offers a 12V high performance Lead-Calcium Electrolyte (Lead Acid) battery. Heavy-duty 16-gauge wiring is utilized with slip-proof connectors to ensure a long, reliable operating life. The BC-3054 includes an adjustable shoulder strap with a heavy-duty quick-release buckle.
- Cell Chemistry
- The BC-3054 utilizes Lead-Calcium also known as Lead Acid, Gel-Cell or Starved Electrolyte.
- Advantages:
Low cost, high per cell voltage, no memory effect and good capacity life. - Output
- The BC-3054 utilizes a single professional 4-Pin XLR connector output. Heavy-duty 16-gauge wiring is utilized with a slip-proof connector to ensure a long, reliable operating life.
- Operator Comfort
- The outer casing is constructed of a virtually indestructible, rugged and lightweight material; 1000-denier Cordura.
UPC: 054096011006 In the Box Bundle Items LK-2104 Micro Lux On Camera Light - 4-Pin XLR Connecting Cable
- MD-5000 Camera Shoe Mount Adapter
- Formed Glass Diffusion Lens
- Limited Lifetime Warranty
BC-3054 Battery Belt, LCE 12V/84WH - Lifetime Warranty Against Material Defects, Parts and/or Construction
- One Year Manufacturers Limited Warranty on Battery Cells
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux Micro-Lux On-Camera Light CamPack DV Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LK-2104 Micro Lux On Camera Light
| | | DC Input Power | 12 VDC | | Max Power Consumption | 35 W | | Power Input Connector | 4-Pin XLR | | | | Dimensions | 1.5 x 3.2 x 2" / 3.8 x 8.3 x 5 cm | | Weight | 7 oz / 200 g | | | | Box Dimensions (LxWxH) | 12.25 x 8.5 x 8.25" | - BC-3054 Battery Belt, LCE 12V/84WH
| Chemistry | Lead Calcium (Lead Acid, Gel Cell) | | Output Voltage | 12V | | Connection | 4-Pin XLR | | Capacity | 84WH
7AH | | Weight | 2.7kg
6lbs | | Dimensions | Fits waist sizes 34" to 56" | | | | Box Dimensions (LxWxH) | 7.165 x 5.748 x 5.433" |
