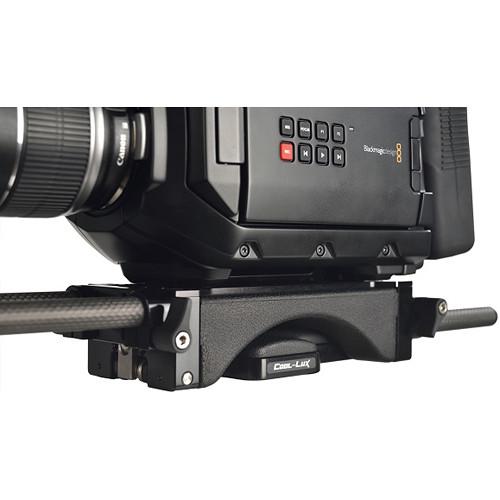

Product description The Cool-Lux SHIFT Baseplate is a multi-purpose shoulder mount rig designed for large and mid-size cameras. Attach a handgrip, and you have a full solution. Different handgrips (telescoping and walnut) are available from Cool-Lux. But, you can also upgrade it with cheeseplates and counterweights from Cool-Lux, for standard, cine, and ENG applications.

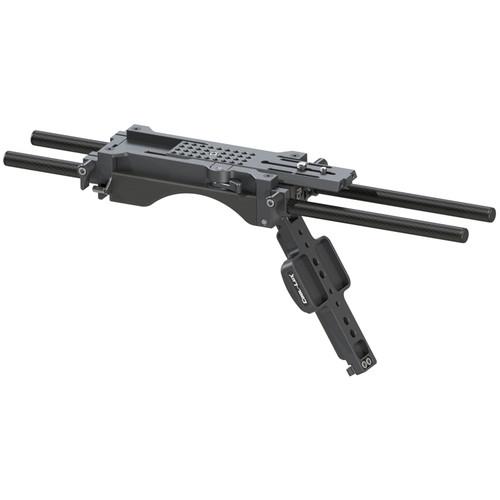

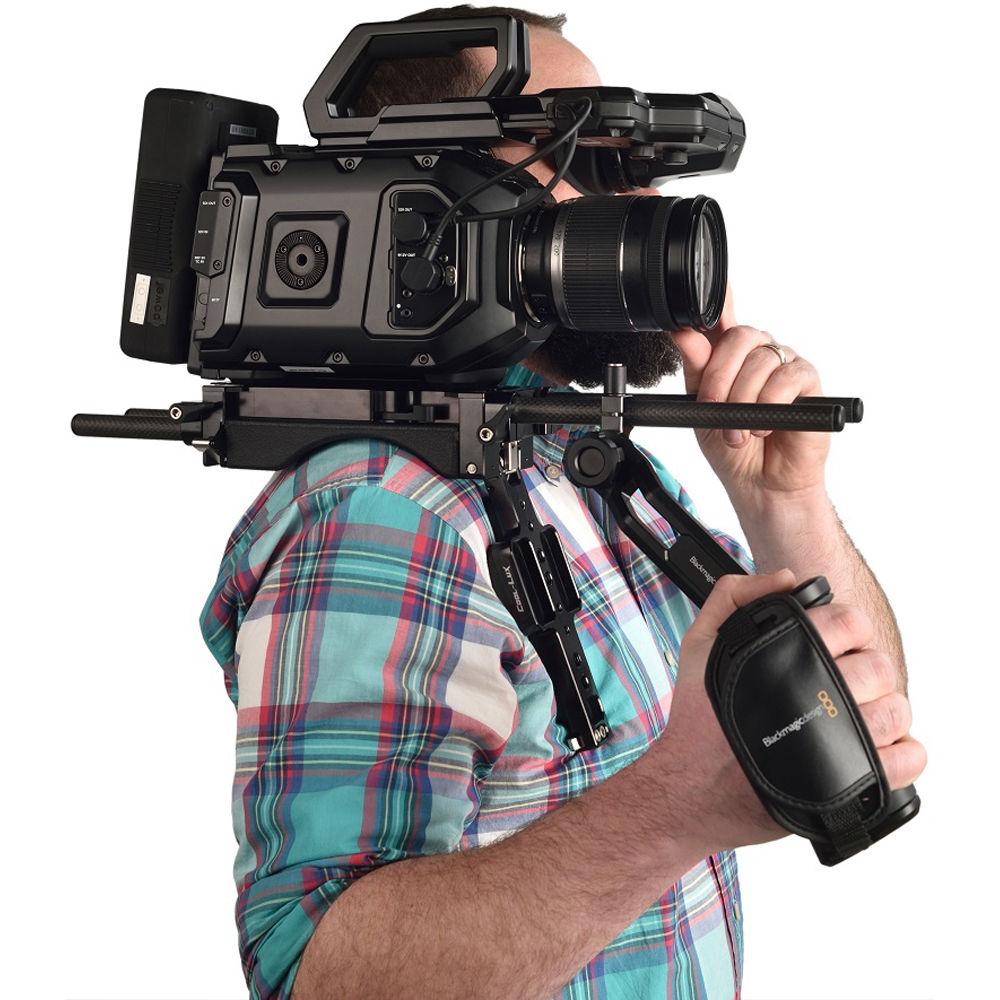

At the press of a button, the SHIFT Baseplate releases a flip-out chest support bar that helps balance the rig. When the bar is released, a soft and durable shoulder pad is also made available. When you fold it back up, it provides 1/4"-20 and 3/8"-16 threaded tripod mount holes. The resting position of the bar is adjustable to different body types.

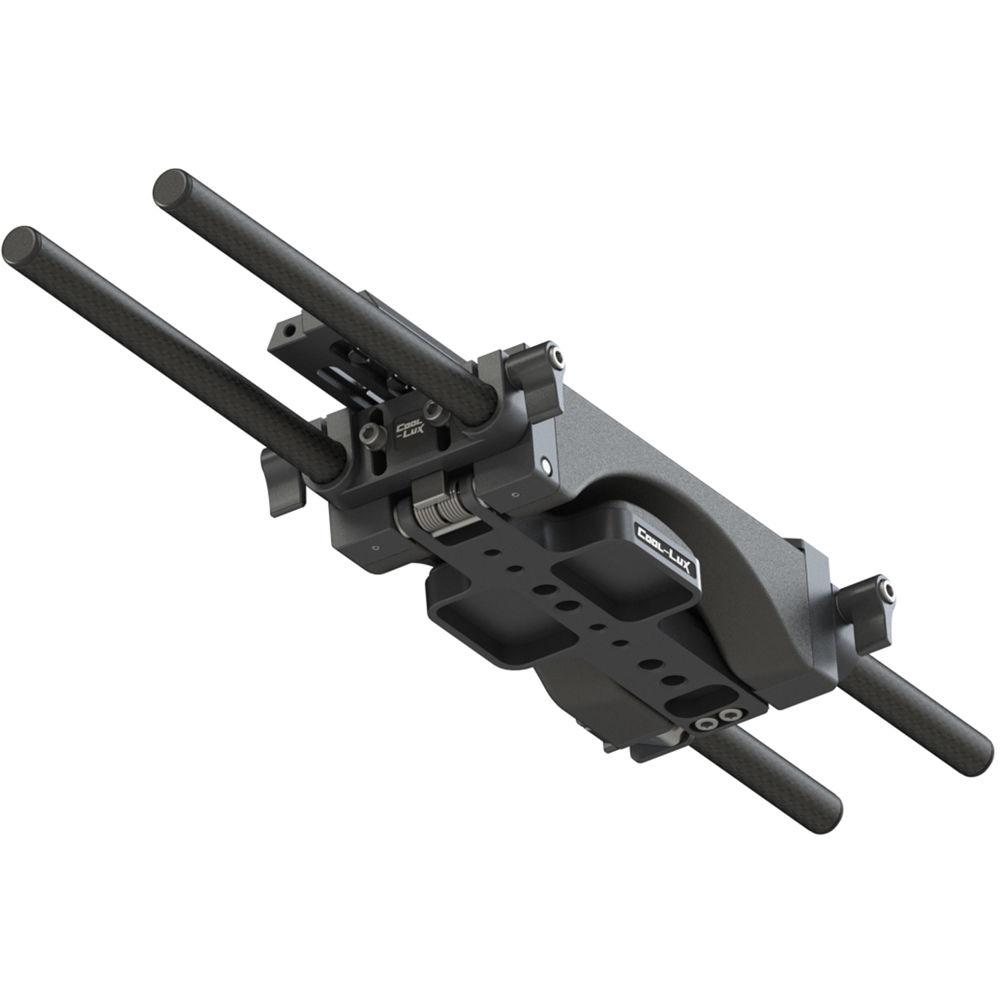

The SHIFT Baseplate offers front and rear 15mm rod ports with 1.9" of vertical adjustment on both sets, and it comes with 8" and 4" pairs of carbon fiber 15mm rods. The camera plate is adjustable 4.5" along a dovetail for properly balancing your camera. Note: Some DSLRs/small cameras with lenses that sit close to the bottom surface of the camera will require an optional spacer or quick-release plate to properly center the rods. - Key Features
-
- Compact shoulder rig for large and mid-size cameras
- Flip-out chest support bar
- Front and rear rod ports with 1.9" of vertical adjustment
- 8" and 4" carbon fiber 15mm rods
- Soft, durable, silicone foam shoulder pad
- 1/4"-20 and 3/8"-16 tripod mount holes
- 4.5" of sliding dovetail camera plate travel
- Upgradeable with handgrips, cheeseplates, and counterweights from Cool-Lux
UPC: 689670194969 In the Box Cool-Lux SHIFT Baseplate Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux SHIFT Baseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCool-Lux 951000 Specs | Rods | 15 mm LWS rod ports on front and rear; 8" (20 cm) and 4" (10 cm) 15 mm carbon fiber rods included | | Mount Types | 1/4"-20 and 3/8"-16 camera mount screws included; 1/4"-20 and 3/8"-16 tripod mount holes | | Camera Plate Sliding Range | Allows 4.5" (11 cm) of camera travel | | Material of Construction | Precision milled aluminum and stainless steel | | Rod Adjustment | 1.9" (5 cm) vertical adjustment | | Dimensions | 8.5 x 4.5 x 2.0" (21.5 x 11.5 x 5 cm) (without rods) | | Weight | 2.5 lb (1 kg) (without rods) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 9.7 x 9.4 x 4.4" |
