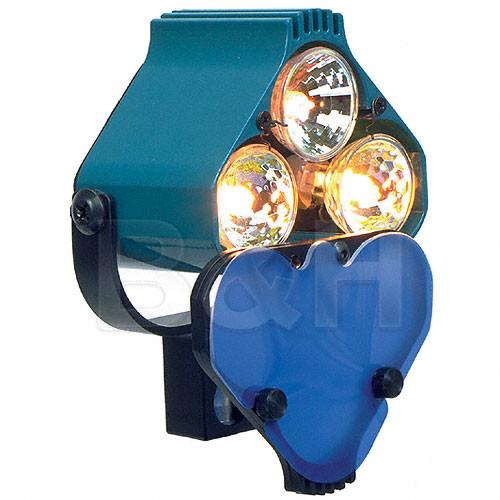

User Manual for Cool-Lux U3 Tri-Lite On-Camera Light - with 4-pin XLR Connector Click to enlarge the picture
Contents of the user manual for the Cool-Lux U3 Tri-Lite On-Camera Light -
- Product category: On Camera Lights Cool-Lux
- Brand: Cool-Lux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cool-Lux On Camera Lights
|
User manual for the Cool-Lux U3 Tri-Lite On-Camera Light - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cool-Lux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cool-Lux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cool-Lux product will considerably shorten its lifespan!
|
Product description Three individual independent light sources give you multiple lighting options without stopping the action. Comes complete with three lamps, gel holder, diffusion and daylight gels, and camera shoe and stud. Made from one piece of extruded aluminum, 2-1/2 inches deep. - Versitile
- A choice of 3 lamps allows use of 20 or 35 watt bulbs flood or spot in any combination. One, two or all three lamps can be illuminated from a simple control panel on the back of the U-3.
- Adaptable
- Lighting intensity can be varied without sacrificing color temperature. Lamp switches can be individually preset or controlled by the U-3's master switch. LEDs on the back of indicate which lamps are in use.
- Light Control
- Daylight balanced and diffusion gels come standard with the U3 for professional light control.
UPC: 689670181631 In the Box Cool-Lux U3 Tri-Lite On-Camera Light - with 4-pin XLR Connector Daylight and Diffusion Gels Three 35 Watt DC lamps MD5002 Camera Mount Power Cable
With 4-Pin XLR connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux U3 Tri-Lite On-Camera Light - with 4-pin XLR Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCool-Lux 944741 Specs | | | Cable Length | 5' / 1.5 m | | DC Input Power | 12 to 14.4 VDC | | Max Power Consumption | 35 W
70 W
105 W | | Power Input Connector | 4-Pin XLR | | | | Mount Type | 5/8" Stud, Cold Shoe | | Dimensions | 3.8 x 2.5 x 3" / 9.6 x 6.4 x 7.6 cm | | Weight | 10 oz / 280 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.9 x 4.6 x 4.3" |
