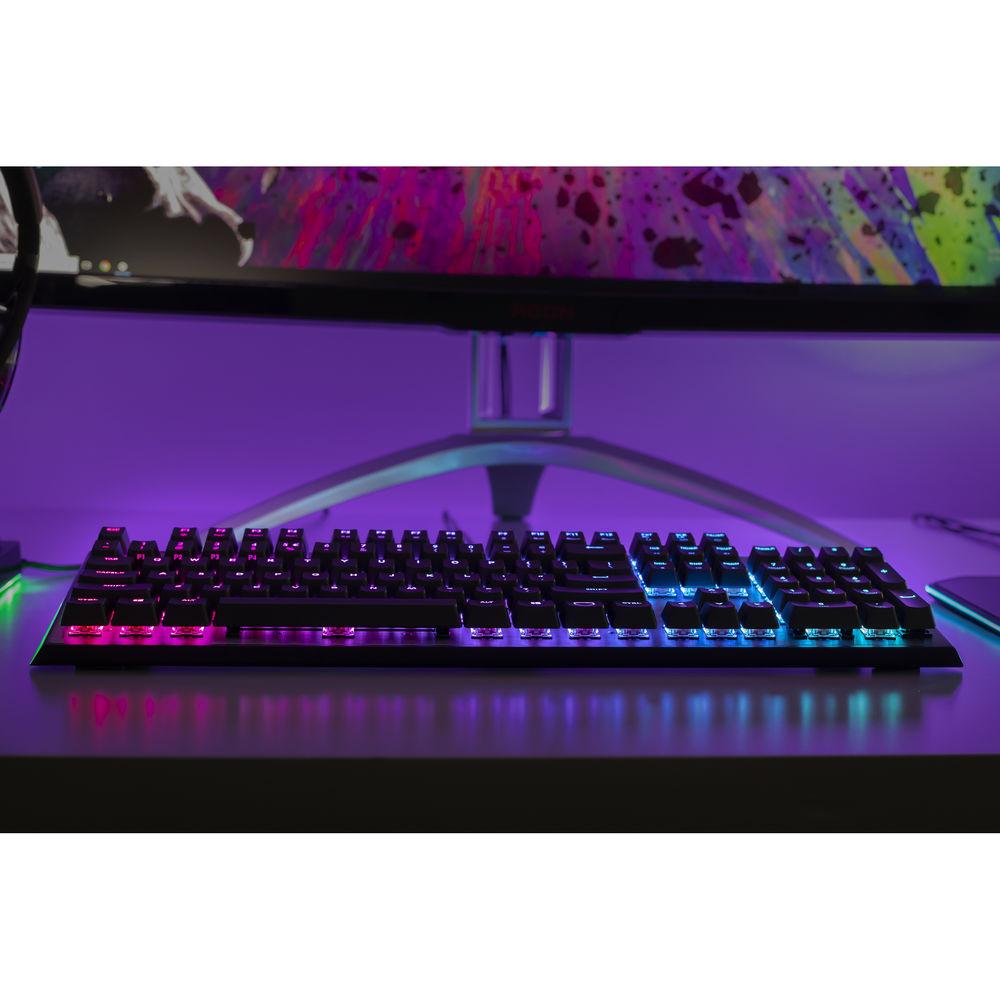

User Manual for Cooler Master CK550 Backlit Mechanical Keyboard Click to enlarge the picture
Contents of the user manual for the Cooler Master CK550 Backlit Mechanical Keyboard
- Product category: Keyboards Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Keyboards
 |
User manual for the Cooler Master CK550 Backlit Mechanical Keyboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

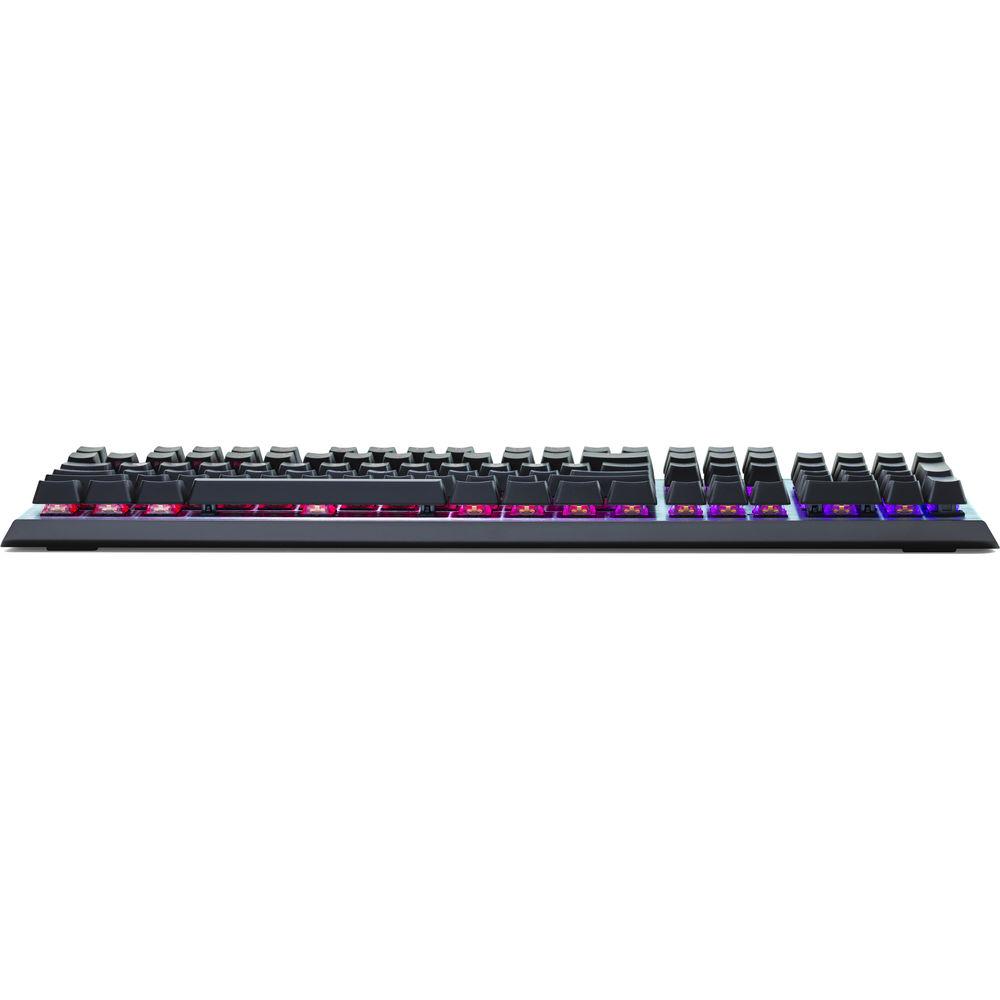

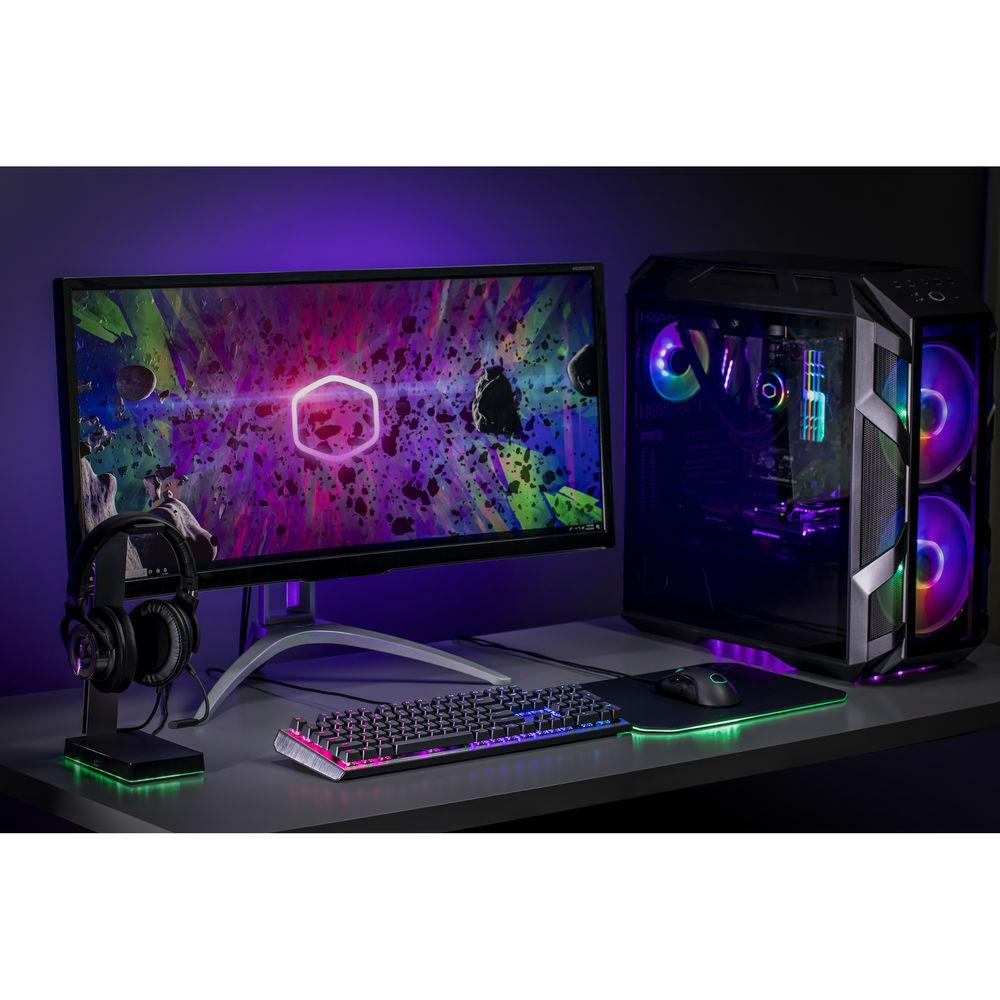

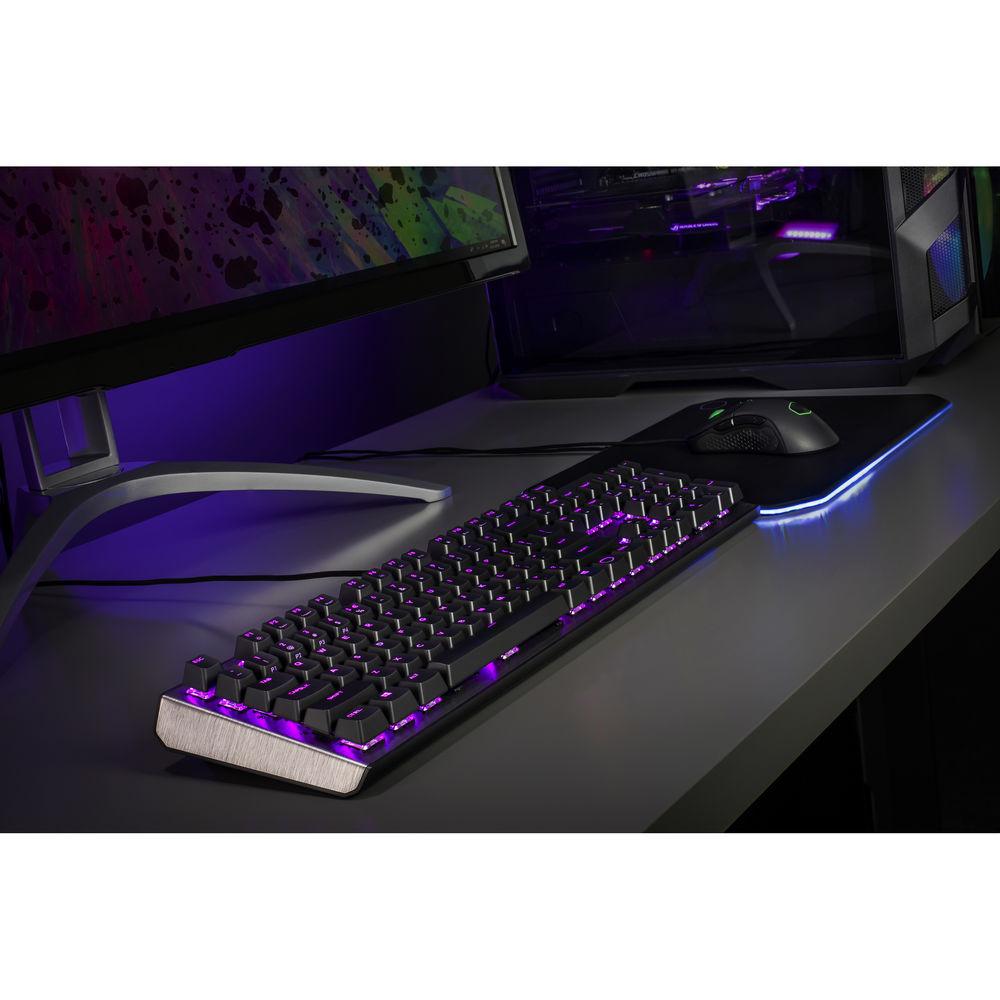

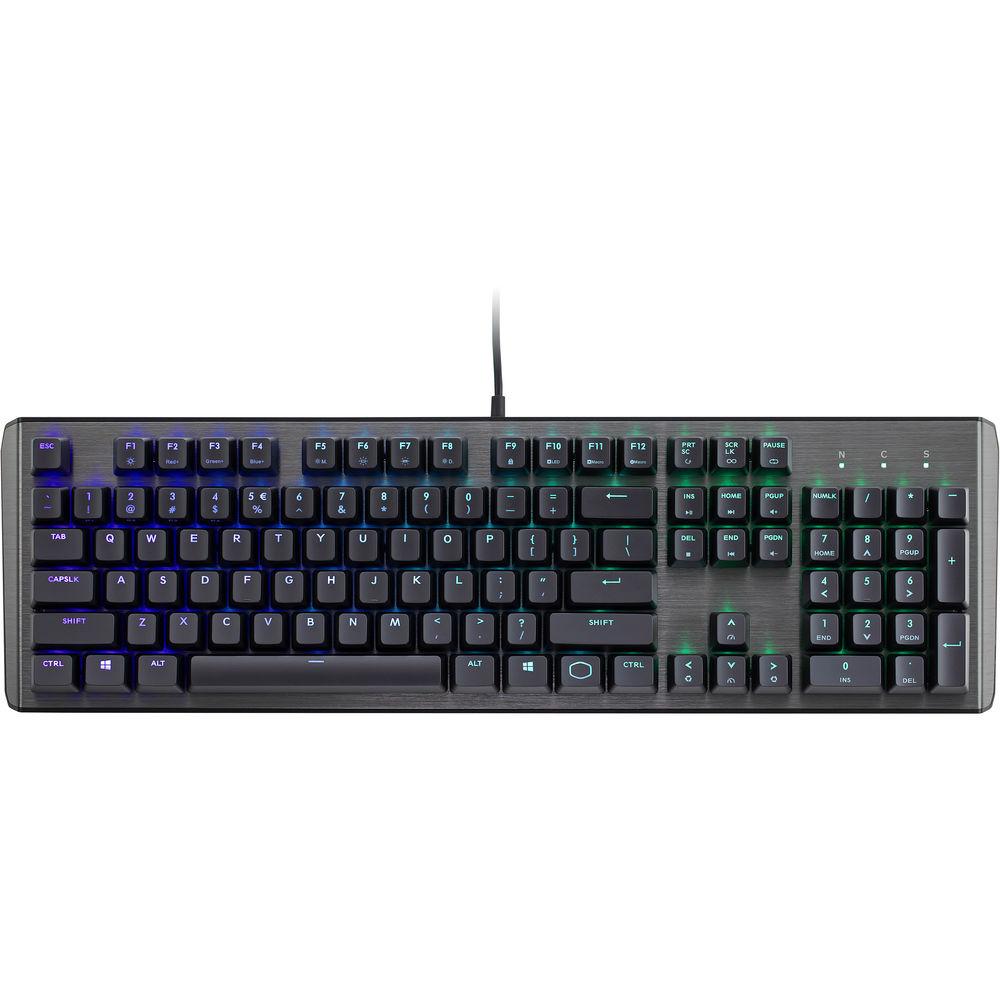

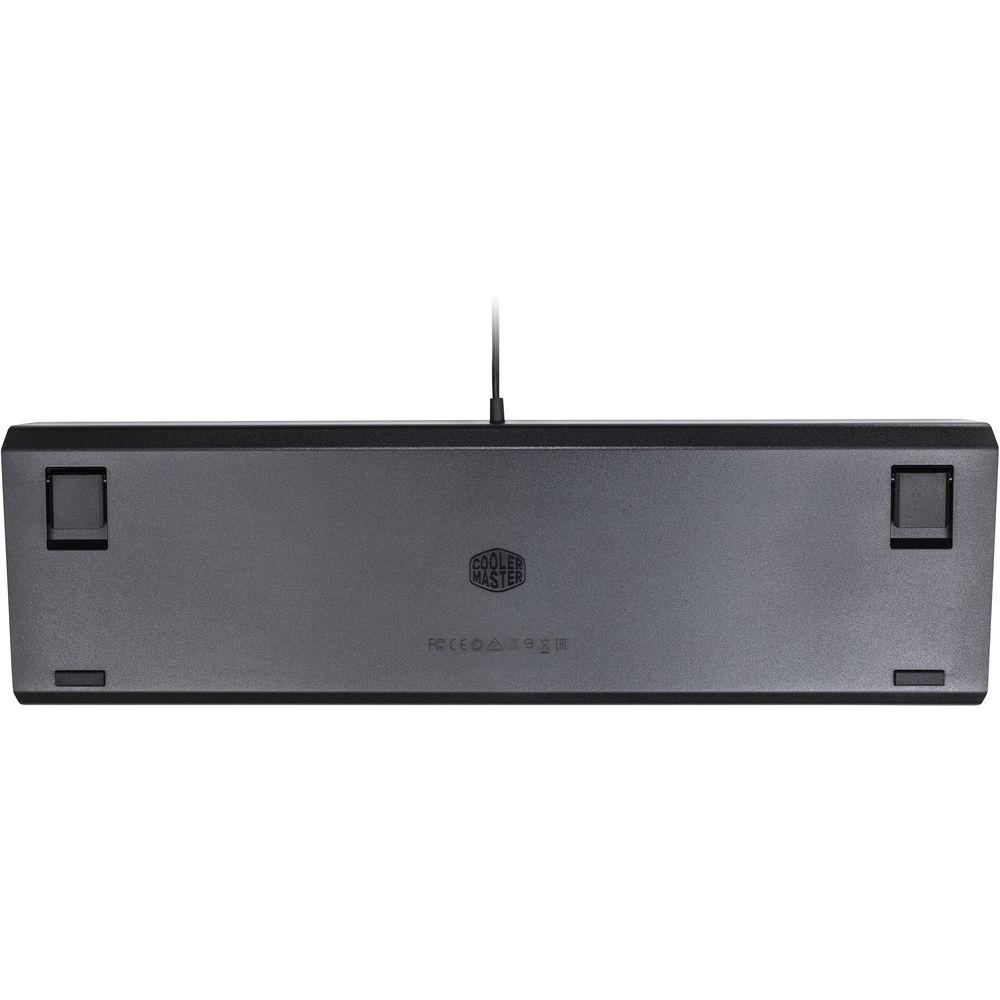

Product description The CK550 Backlit Mechanical Keyboard from Cooler Master features a minimalistic design with a brushed aluminum top cover and customizable RGB backlighting. It's built with Gateron Red switches for a different typing experience and supports on-the-fly controls for lighting and macros. By downloading the optional software, you'll have access to more in-depth options. - Gateron Red Switches
- Mechanical keyboards utilize a different type of key switch technology for a more durable and unique typing experience. The Gateron Red switch has an actuation force of 45 g and features a linear travel with no tactile bump. This can be beneficial for users who don't need the tactility of other switches. Additionally, with close actuation and release points, Gateron Red switches allow for easier double-tapping. Unlike Blue switches, these do not have an audible "click" mechanism, allowing for a quieter operation. Noise generated from this keyboard will be from the key either springing back into place or "bottoming out" – making contact with the back plate after a particularly hard press.
- On-the-Fly Controls
- On-the-fly controls enable you to make real-time lighting and macro adjustments without having to access the software.

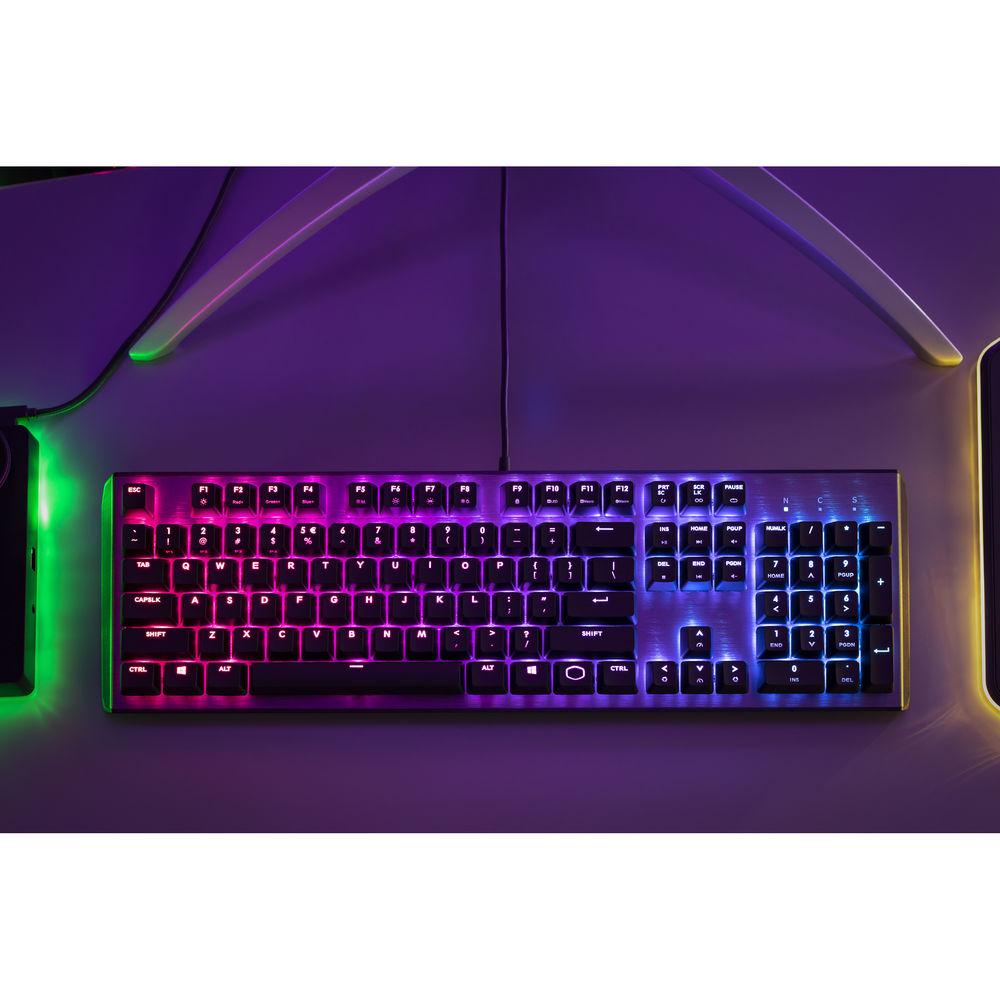

- RGB Backlighting
- Each key is illuminated with customizable RGB backlighting. Choose from a variety of colors and lighting effects to match your setup's aesthetics.

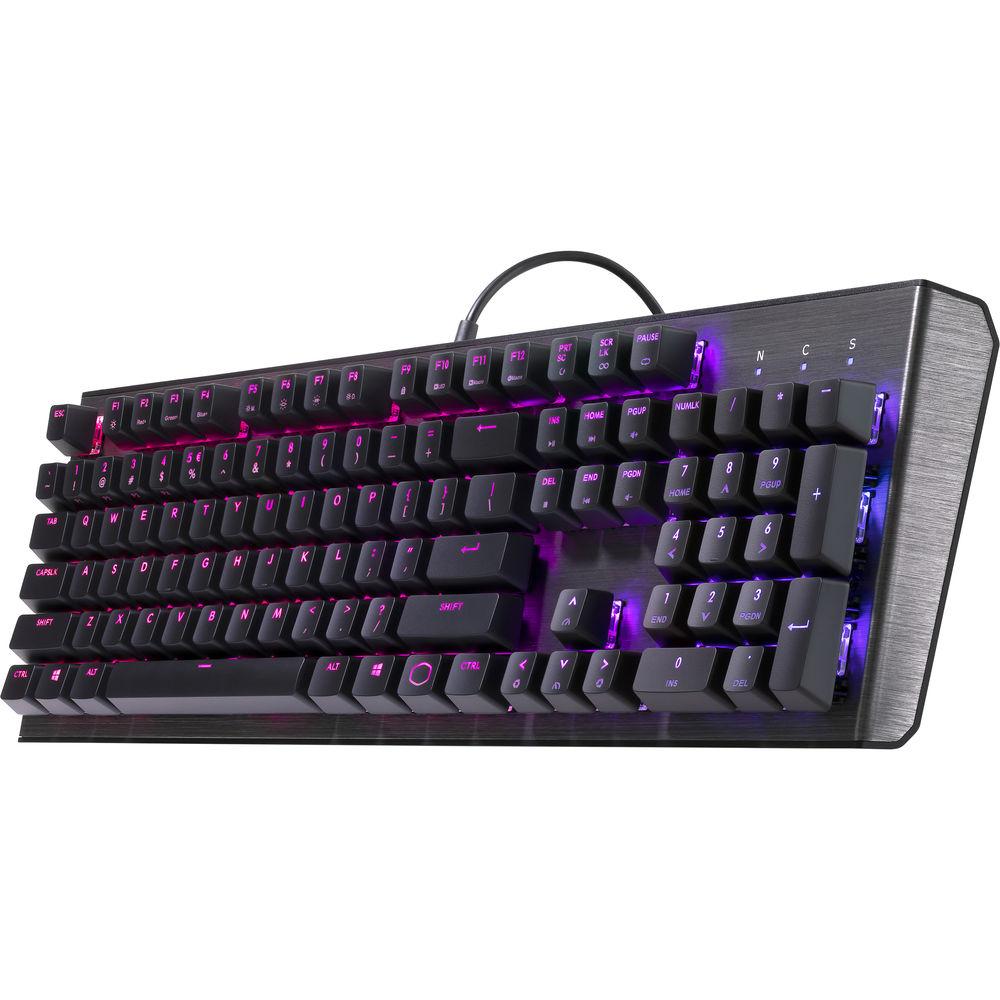

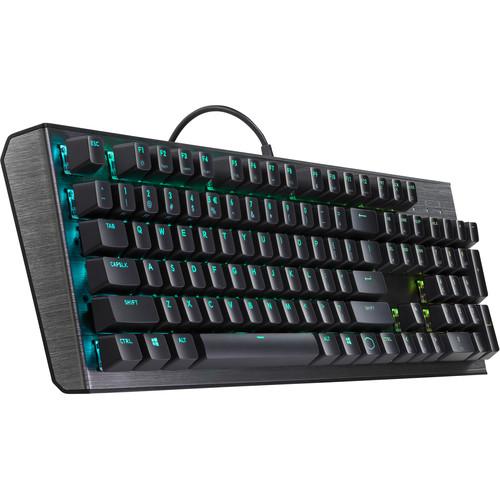

- Brushed Aluminum Design
- The CK550 features a curved brushed aluminum top plate with floating keycaps and a minimalistic design.
- Easy-to-Use Software
- The updated customization software is easy-to-use and includes lighting and macro settings.
UPC: 884102039966 In the Box Cooler Master CK550 Backlit Mechanical Keyboard (Gateron Red) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master CK550 Backlit Mechanical Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master CK550 Specs | | | Number of Keys | 104 | | Switch Type | Mechanical | | Mechanical Switch Type | Gateron Red Linear | | Actuation Force | 45 g | | Dedicated Multimedia Keys | No | | Dedicated Macro Keys | None | | On-the-Fly Recording | Yes | | Windows Lock Key | No | | Keystroke Life Span | 50 Million | | Polling Rate | 1000 Hz | | Response Time | 1 ms | | | | Connection Type | Wired | | System Connection | USB Type-A | | USB Ports | None | | Audio | None | | | | Backlight | Yes, Individually Lit | | LED Colors | RGB | | Onboard Memory | 512 kB | | Built-In Control Device | None | | Wrist Rest | None | | | | Cable Length | 5.91' / 1.8 m | | Cable Type | Straight | | Cable Management Channel | No | | Dimensions (L x W x H) | 18.1 x 5.3 x 1.6" / 460.0 x 135.0 x 41.0 mm | | Weight | 1.9 lb / 850 g | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 18.75 x 7.5 x 2.0" |
