Cooler Master Cosmos C700M Full Tower

Search your instruction manual in PDF to download

User Manual for Cooler Master Cosmos C700M Full Tower Case

Click to enlarge the picture
Cooler Master Cosmos C700M Full Tower Case Contents of the user manual for the Cooler Master Cosmos C700M Full Tower
  • Product category: Desktop Computer Cases Cooler Master
  • Brand: Cooler Master
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Cooler Master Desktop Computer Cases

Cooler Master Cosmos C700M Full Tower Case Cooler Master Cosmos C700M Full Tower Case Cooler Master Cosmos C700M Full Tower Case Cooler Master Cosmos C700M Full Tower Case Cooler Master Cosmos C700M Full Tower Case Cooler Master Cosmos C700M Full Tower Case Cooler Master Cosmos C700M Full Tower Case Cooler Master Cosmos C700M Full Tower Case Cooler Master Cosmos C700M Full Tower Case
User manual for the Cooler Master Cosmos C700M Full Tower contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Cooler Master product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!



Product description

Boasting a curved tempered-glass side panel, addressable RGB lighting, and four included cooling fans, the Cosmos C700M Full Tower Case from Cooler Master is built with a steel frame and supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards. The C700M packs in eight expansion slots, a 5.25" drive bay, and four 3.5"/2.5" drive bays. I/O options include a single USB-C 3.1 Gen 2 port, four USB 3.0/USB 3.1 Gen 1 ports, a combo audio jack, and a dedicated microphone jack. The C700M also comes with four 140mm fans plus support for a liquid cooling system, as well as the option to mount your graphics card vertically or horizontally.
    Multiple Layout Options
  • The C700M's frame design and multi-functional brackets support a conventional, chimney, inverse layout, or a fully customized layout.

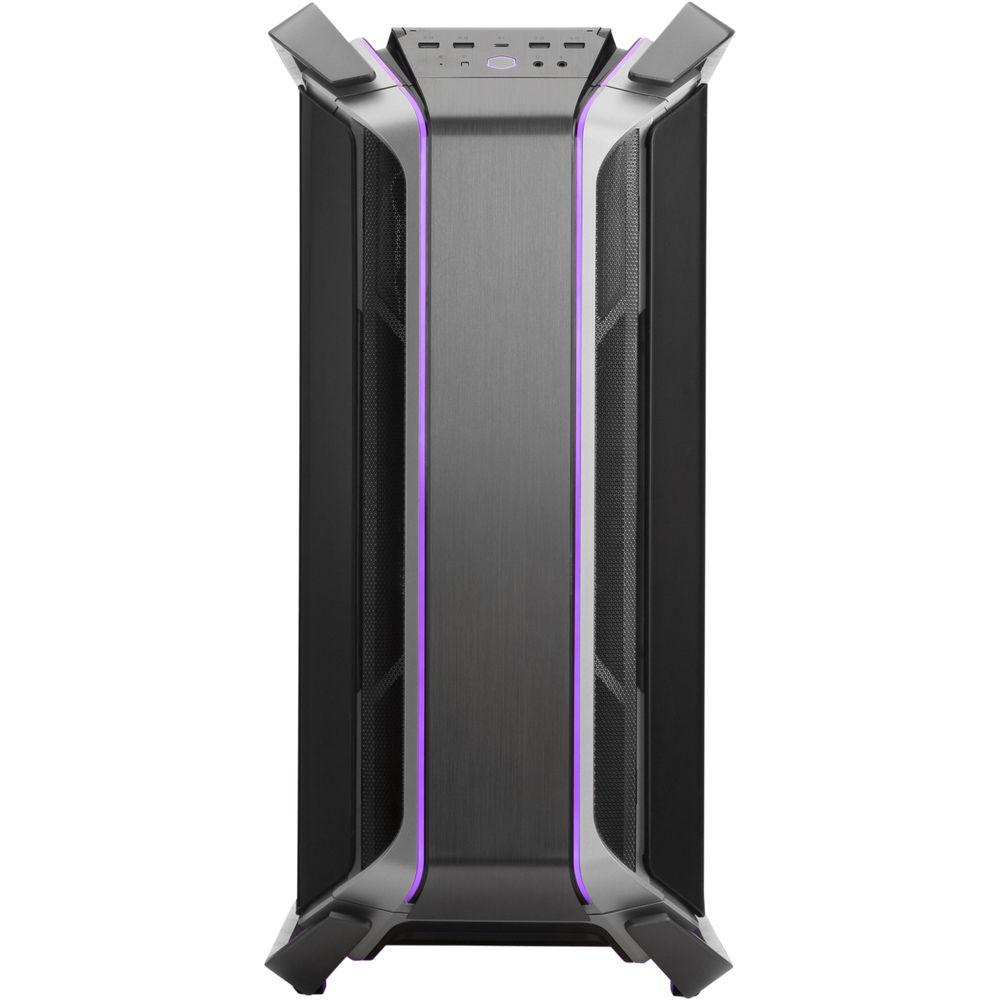

    Addressable RGB Lighting
  • Two parallel strips of addressable RGB lighting run continuously from the top panel to the front panel, with ambient ARGB lighting on the bottom that reflects against the aluminum bars.

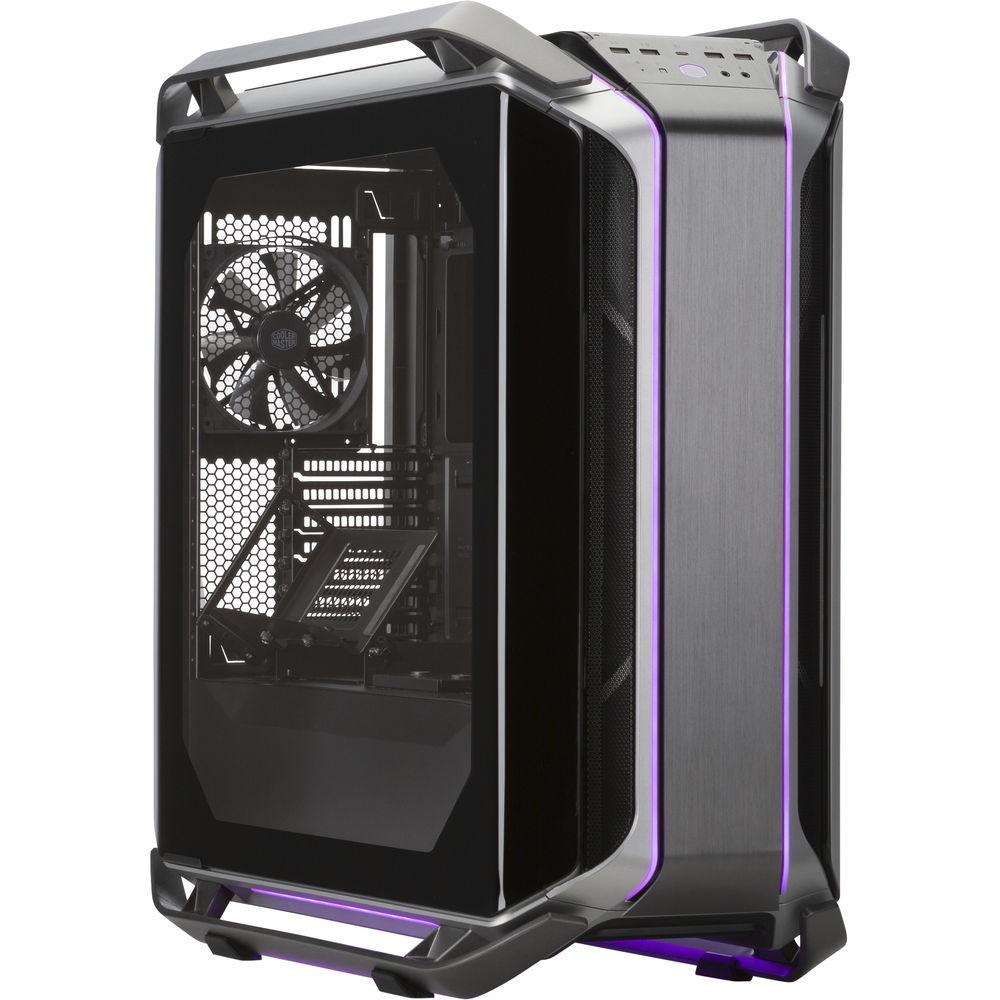

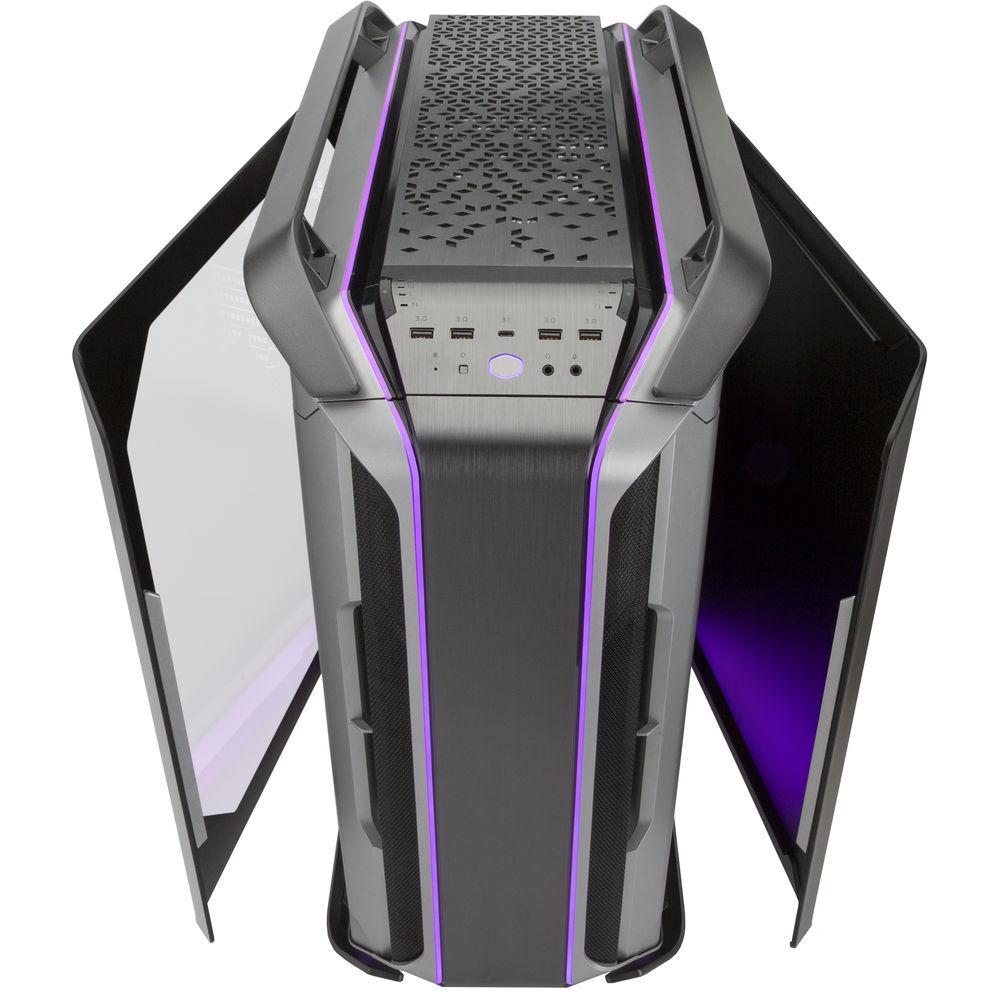

    Curved Tempered Glass Side Panel
  • A tempered glass side panel with two curved edges offers a wide view of the system build.
    Graphics Card Mounting with Riser Cable
  • The graphics card bracket can be mounted vertically or horizontally on either the PSU midplate or on the M. Port, a modular mounting system that expands mounting options for hardware and brackets. The bracket can be rotated from 0 to 90°. Also included is a 400mm riser cable for connecting a vertically mounted graphics card to the motherboard.

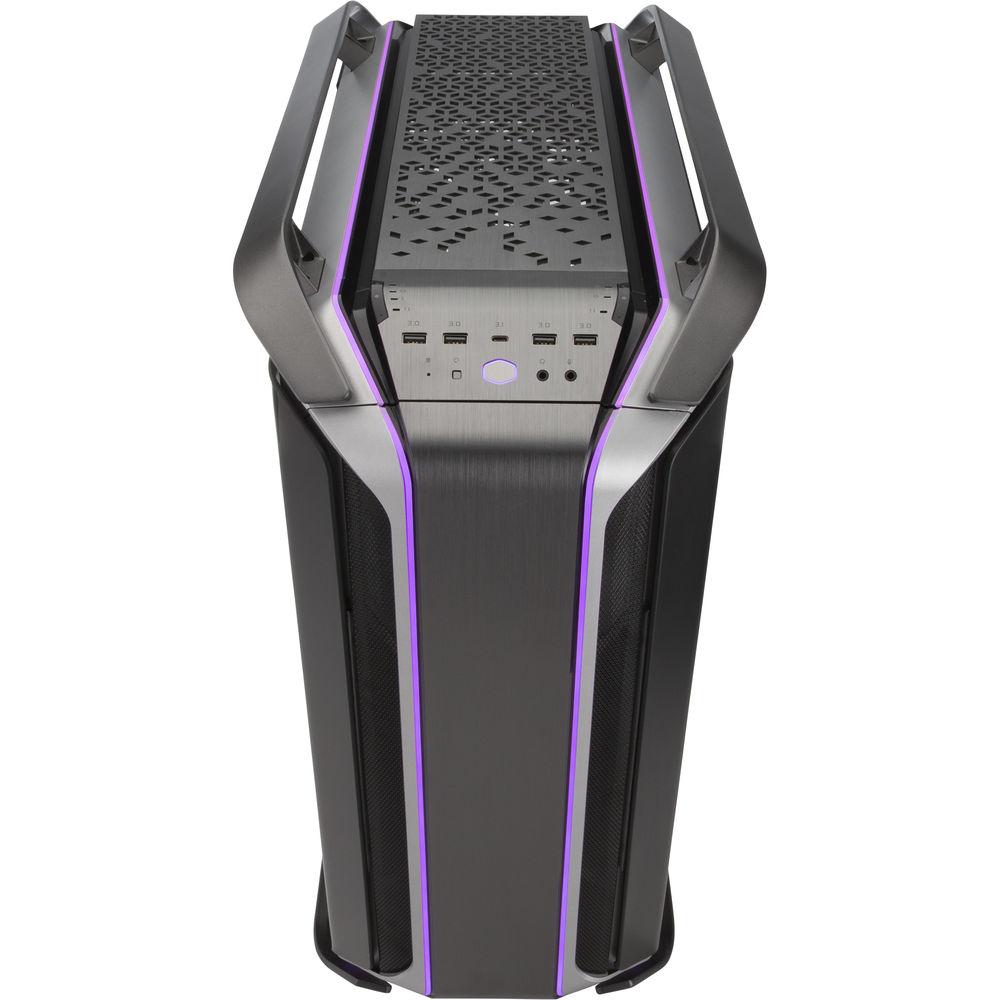

    USB and I/O Options
  • The C700M's I/O panel comes with a USB 3.1 Gen 2 Type-C port, which supports data transfers up to 10 Gb/s, plus four USB 3.1 Gen 1/3.0 ports (USB 3.1 Gen 1 and USB 3.0 are synonymous), which each offer a maximum throughput of 5 Gb/s. Also included is a four-pole combo audio jack, a dedicated mic jack, a PWM (pulse-width modulation) fan speed button, and an addressable RGB control button.

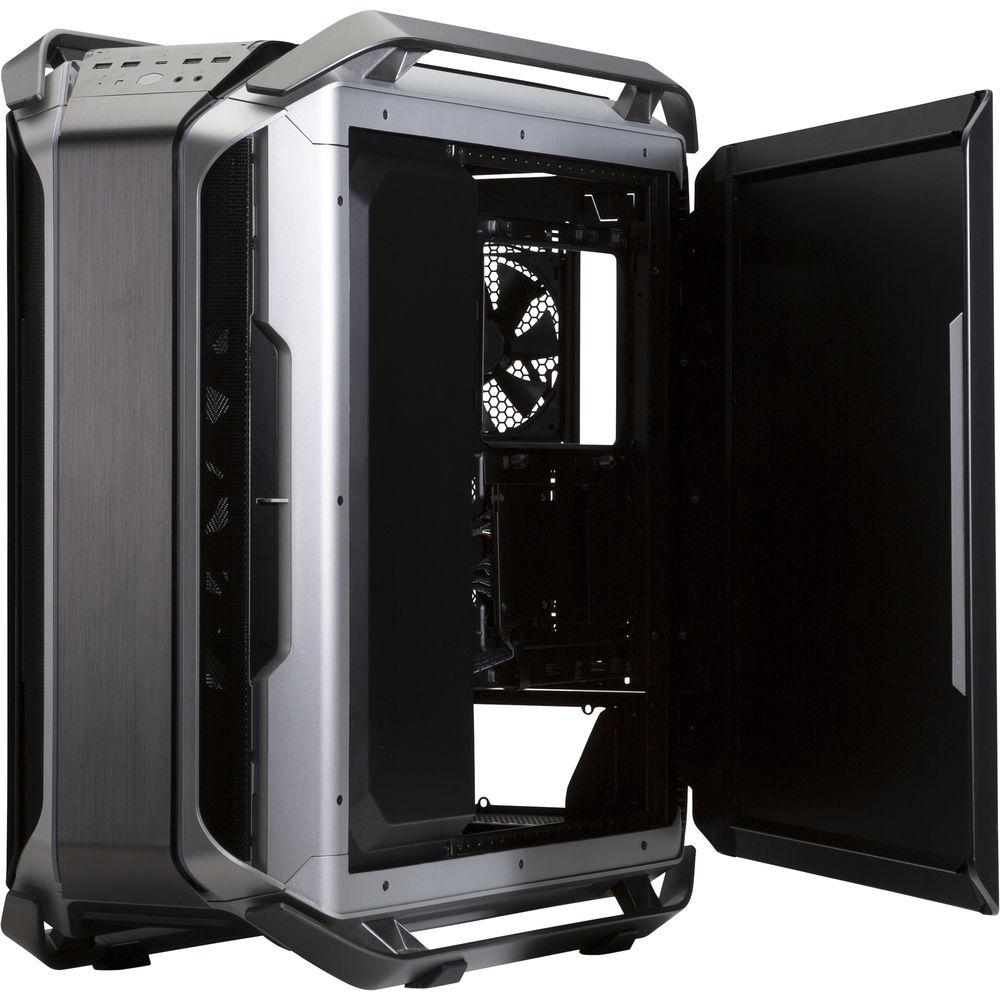

    Cable Cover System
  • The three included covers can be placed on either the M. Port or on the mid-plate, with the ability to mount SSD storage or a reservoir.

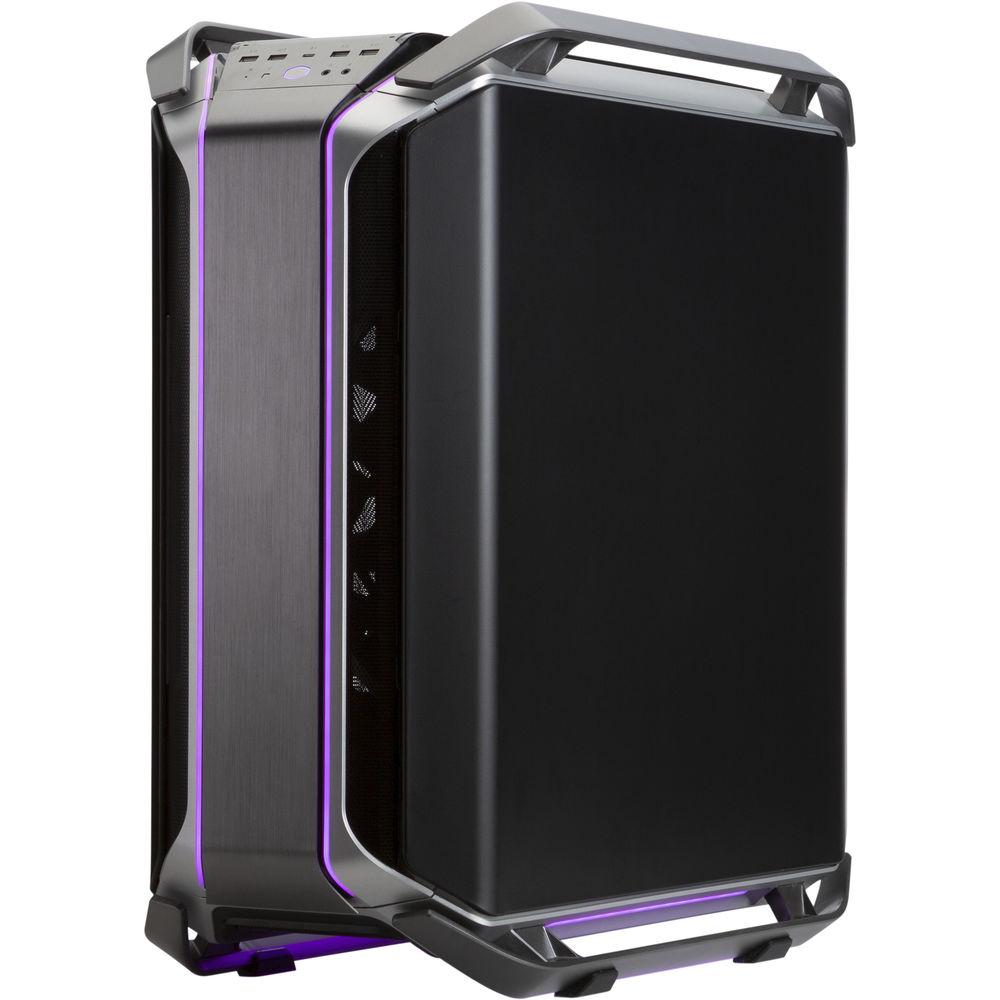

    Aluminum Panels and Handles
  • Brushed aluminum spans the top panel and front panel, with cast aluminum handles and feet that provide protection and support for carrying the case.
    Liquid Cooling Support
  • A flat radiator bracket design lets you mount liquid cooling on the top, front, or bottom of the frame. The two included brackets can each support a 420mm radiator, with the ability to mount fans and a radiator on either side of the bracket.
UPC: 884102047527 In the Box Cooler Master Cosmos C700M Full Tower Case (Gray/Silver/Black)
  • 2 x 2-Bay ODD or Function Panel Bracket
  • 17 x #6-32*6 mm Screw
  • 8 x M3*5 mm Screw
  • 20 x HDD Screw
  • 12 x SSD Screw
  • 3 x Stand-Off
  • Stand-Off Socket
  • 10 x Cable Tie
  • 8 x 5*10 mm Screw
  • Cleaning Cloth
  • 20 x M3*4 mm Screw
  • 2 x // 6-32*6 mm Screw
  • HDD SSD Combo Bracket
  • A-RGB Splitter and SATA Connector
  • Riser Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Cooler Master Cosmos C700M Full Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the Cooler Master Cosmos C700M Full Tower Case can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Cooler Master Cosmos C700M Full Tower CaseDownload PDF User Manual - https://www.search-manual.com/ upload/ cooler-master-cosmos-c700m-full-tower-case-345769-user-manual.pdf
    (PDF file, 20.35 MB)


    Technical parameters

    Cooler Master Cosmos C700M Specs

    Motherboard Support ATX, E-ATX, Micro-ATX, Mini-ITX
    External Drive Bays 1 x 5.25"
    Internal Drive Bays 4 x 2.5/3.5"
    Additional Drive Mounting 1 x 2.5/3.5" (Motherboard Tray)

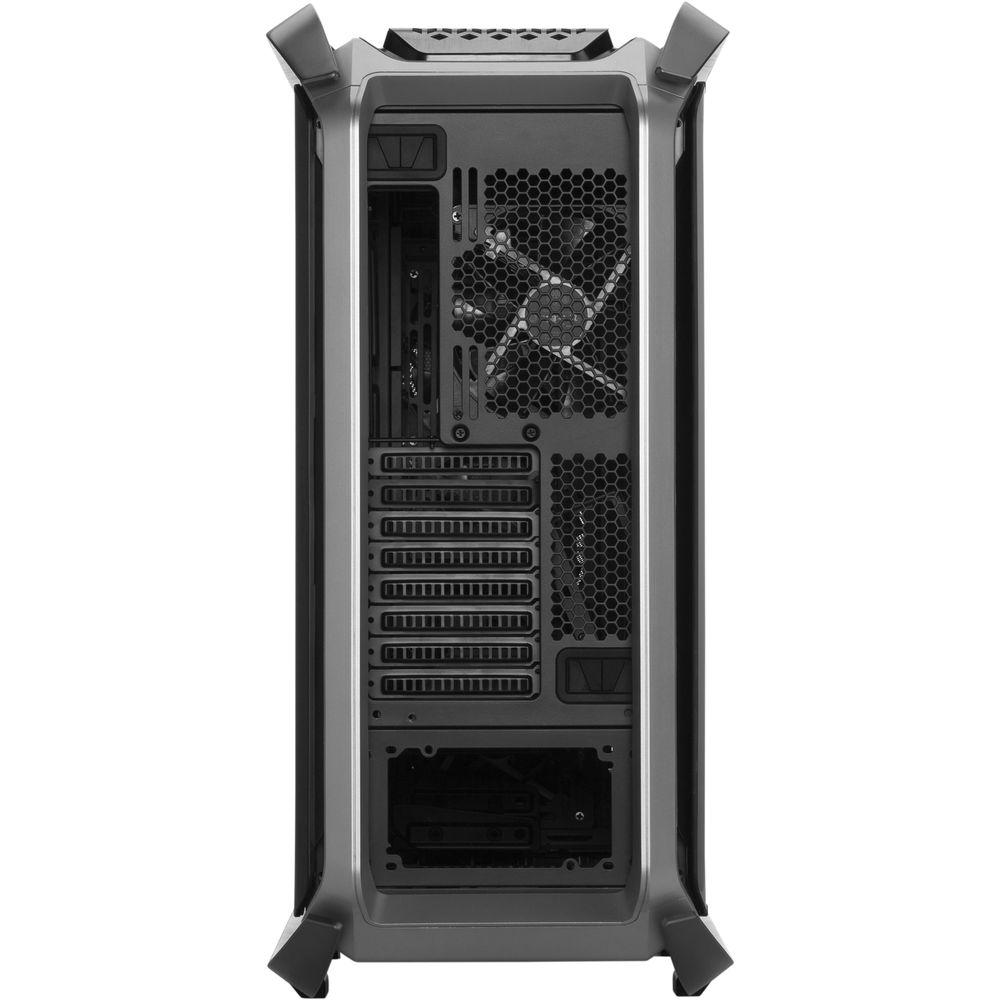

    Expansion Slots 8 x Full Height
    Maximum GPU Length 19.29" / 490 mm
    CPU Cooler Height 7.80" / 198 mm
    Fan Mounting (Front) 3 x 120 mm
    Or
    3 x 140 mm
    Fan Mounting (Rear) 1 x 120 mm
    Or
    1 x 140 mm
    Fan Mounting (Side) None
    Fan Mounting (Top) 3 x 120 mm
    Or
    3 x 140 mm
    Fan Mounting (Bottom) 2 x 120 mm
    Or
    2 x 120 mm
    Fans Included (Front) 3 x 140 mm (1200 rpm)
    Fans Included (Rear) 1 x 140 mm (1200 rpm)
    Maximum Radiator Size (Front) 1 x 420 mm
    Maximum Radiator Size (Rear) 1 x 140 mm
    Maximum Radiator Size (Top) 1 x 420 mm
    Maximum Radiator Size (Bottom) 1 x 240 mm
    Fan Mounting (Internal) None
    Fans Included (Internal) None
    Connections 4 x USB Type-A (USB 3.0)
    1 x USB Type-C (USB 3.1)
    Audio Connections 1 x 3.5 mm Input
    1 x 3.5 mm Output
    Display Connections None
    Windowed Panel Yes
    Material Steel
    Built-In Lighting Yes
    Security None
    Dimensions (W x H x D) 12.0 x 25.6 x 25.6" / 304.8 x 650.2 x 650.2 mm
    Package Weight 62.5 lb
    Box Dimensions (LxWxH) 29.75 x 29.25 x 16.25"
