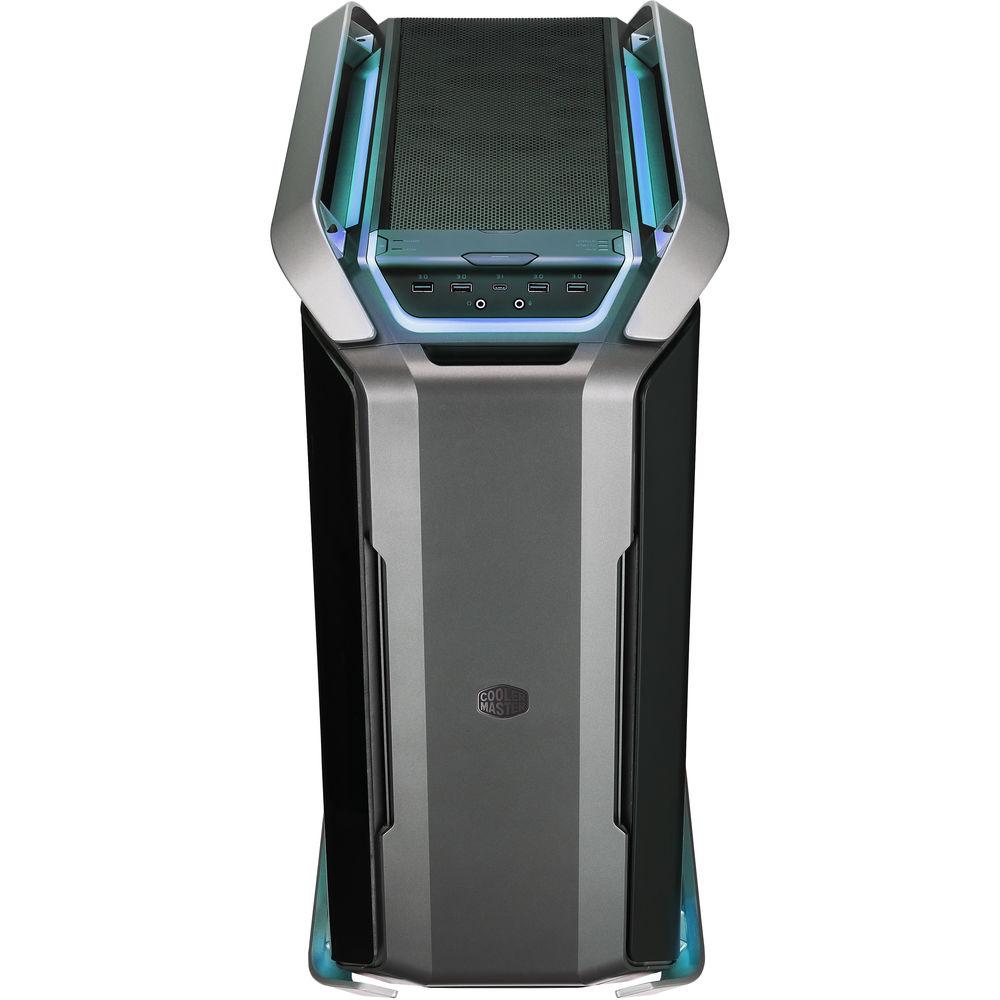

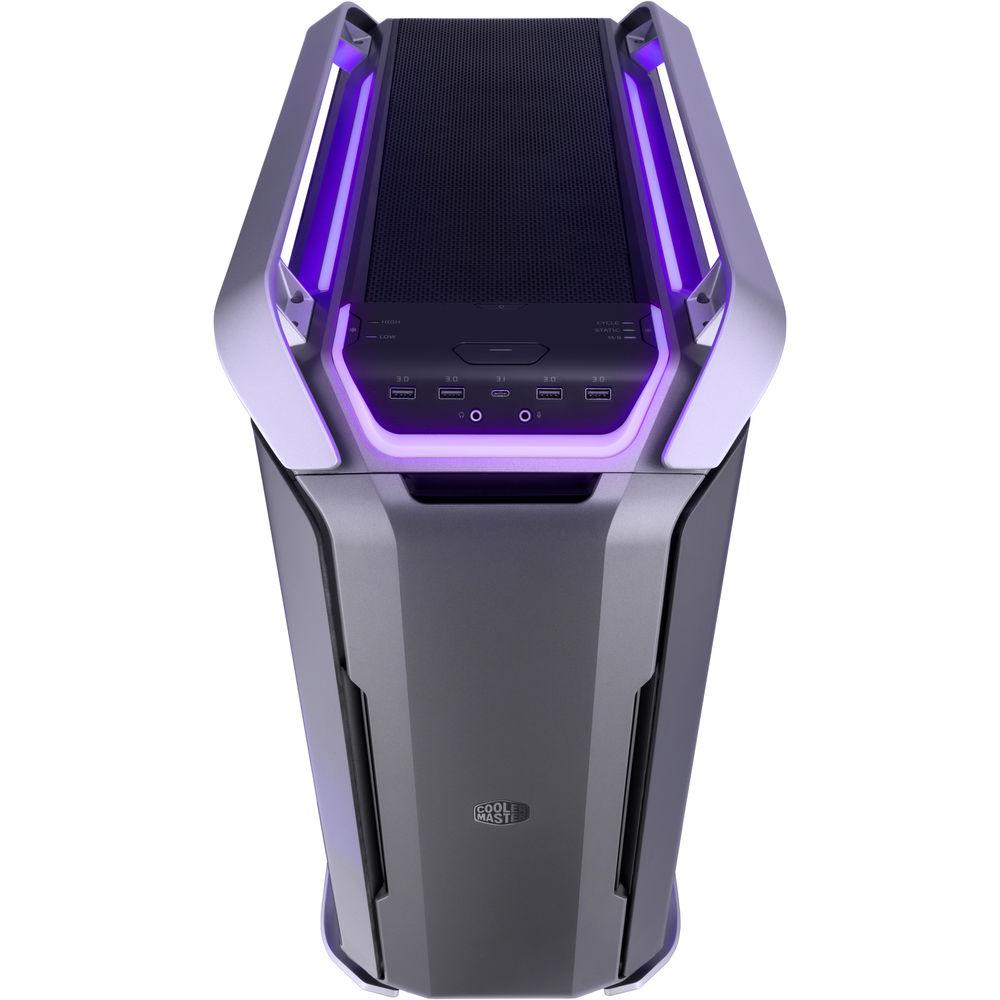

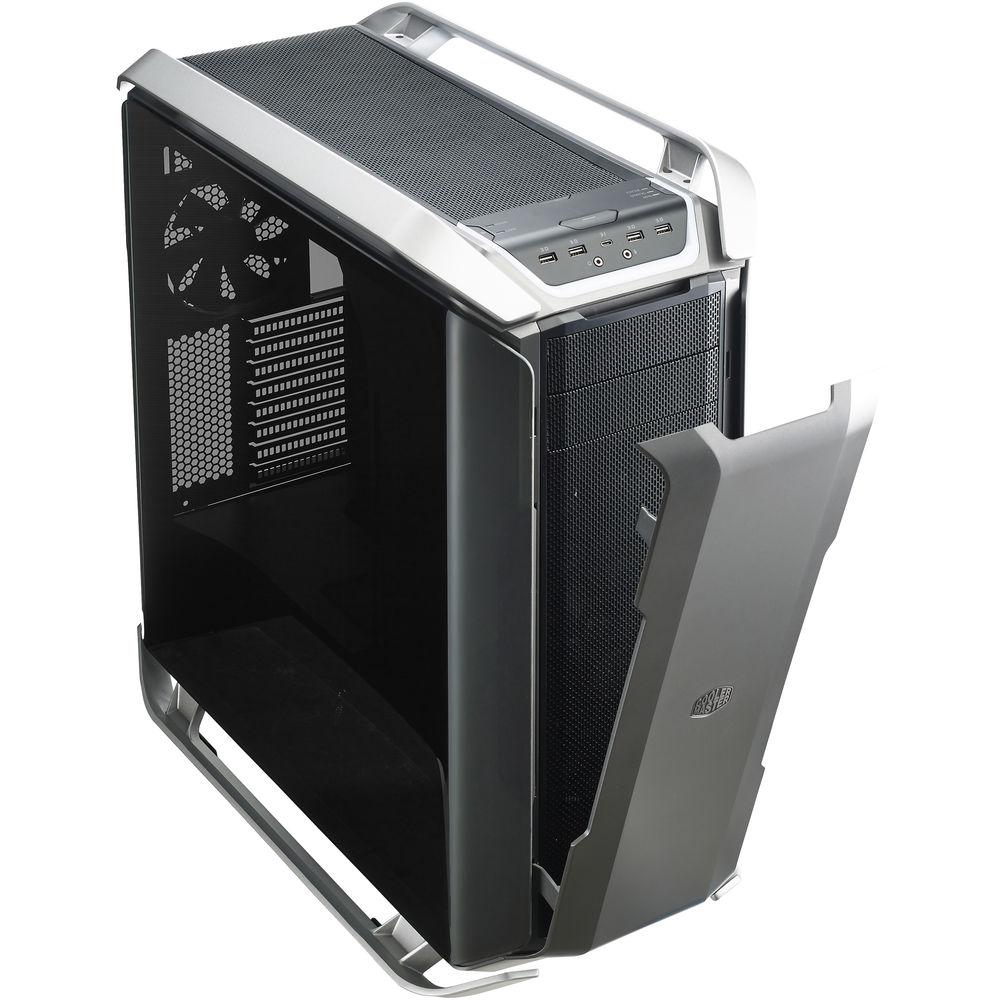

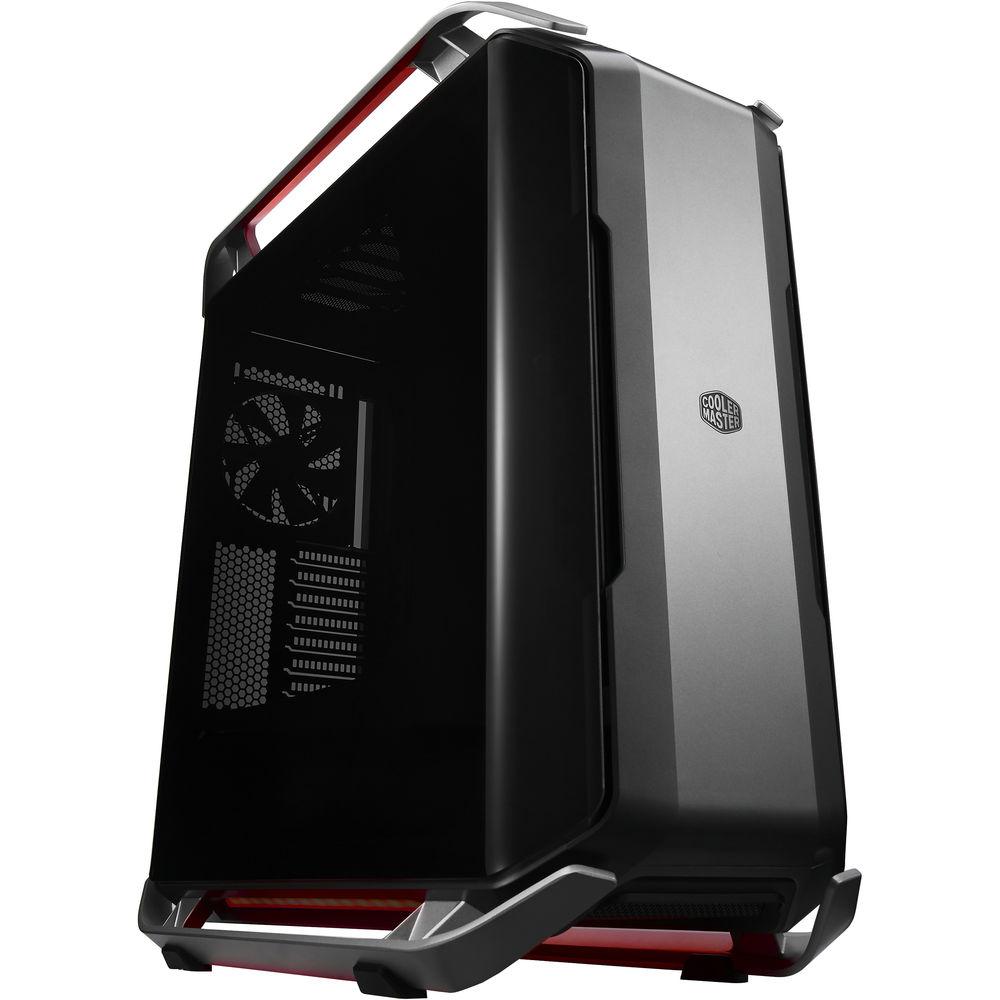

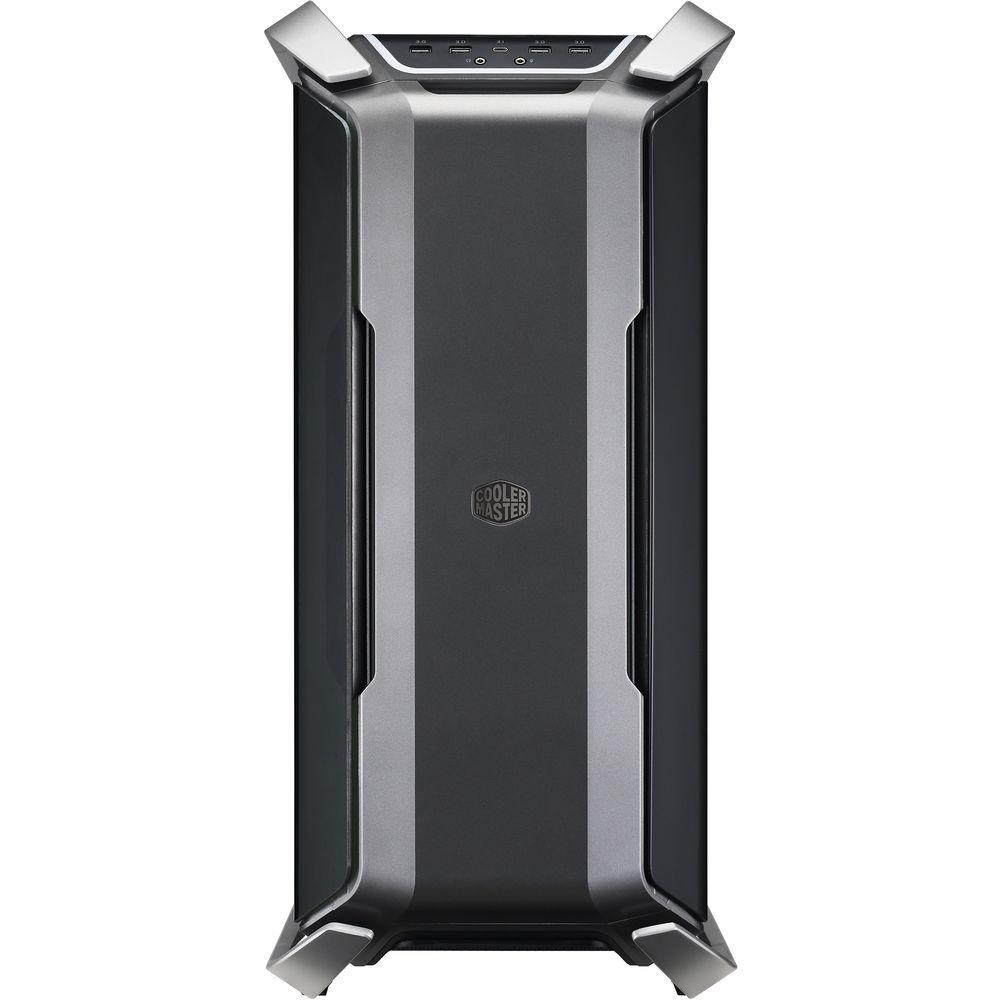

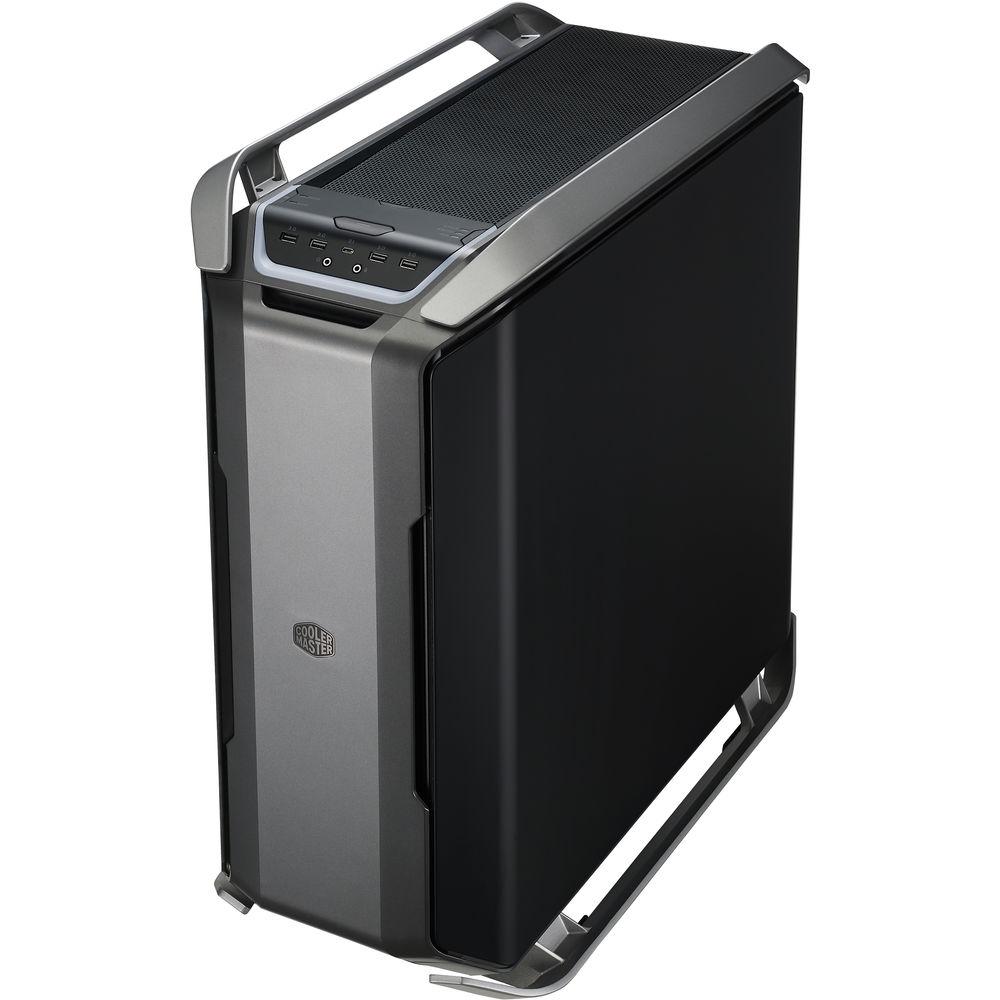

Product description The Cosmos C700P Full-Tower Case from Cooler Master is based on the iconic Cosmos design, which features handles located at the top, and now has built-in RGB LED lighting. As a full tower case, it can support up to E-ATX motherboards with room to spare for multiple expansion cards and storage drives. Thanks to its modular design and flexible layout, you can rearrange and add additional accessories as you see fit, and even change the layout to fit your cooling needs. Located at the front I/O panel are multiple USB ports, audio in/out jacks, and even fan speed and RGB control buttons. Moreover, it has dual tempered glass side panels, which let you show off your build and quickly check on components. - RGB Lighting Control & Sync
- The Cosmos C700P feature built-in LED lighting and a front I/O button that you can use to switch lighting modes. You can also even sync it with a compatible motherboard.
- Highly Flexible Layout
- The unique frame design lets your swap around your component layout for a variety of setups including regular, chimney, and inverted.
- Modular Design
- With a modular design, this case allows for complete disassembly as well as additional, separately sold accessories, so you can customize your case as you see fit.

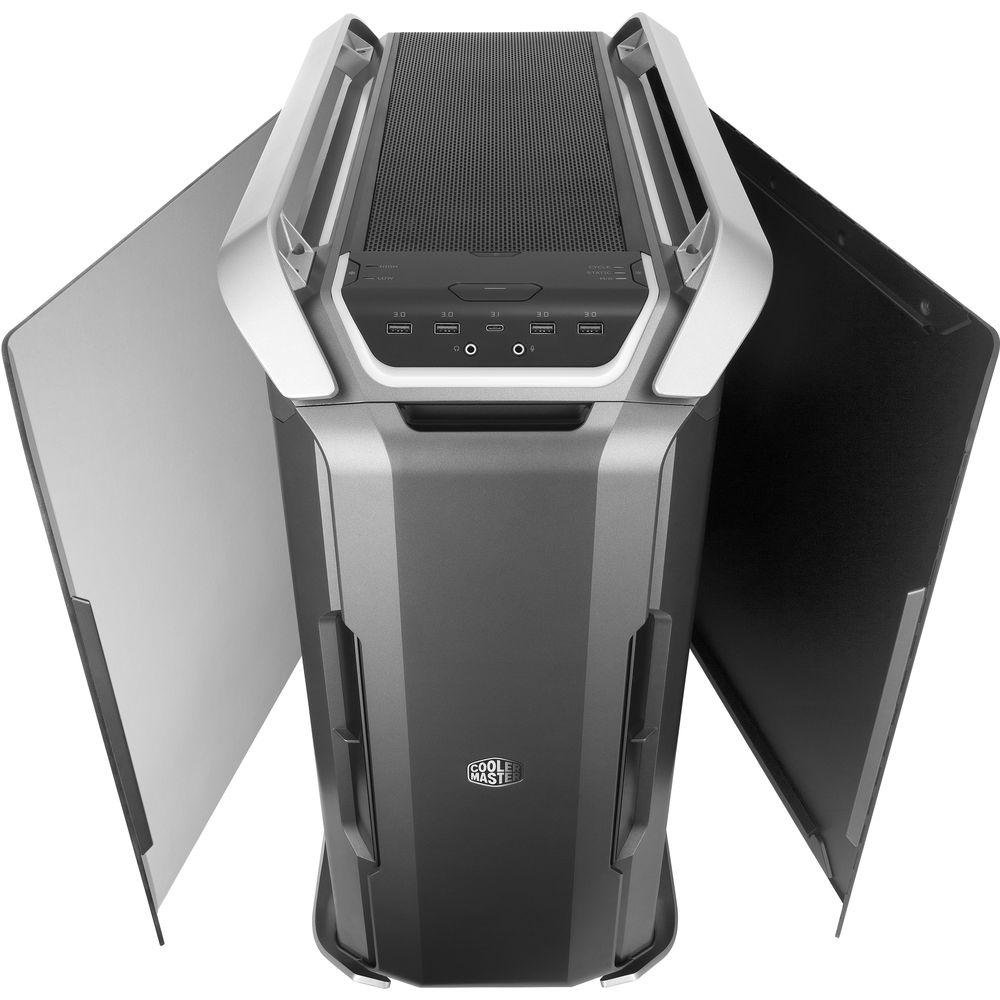

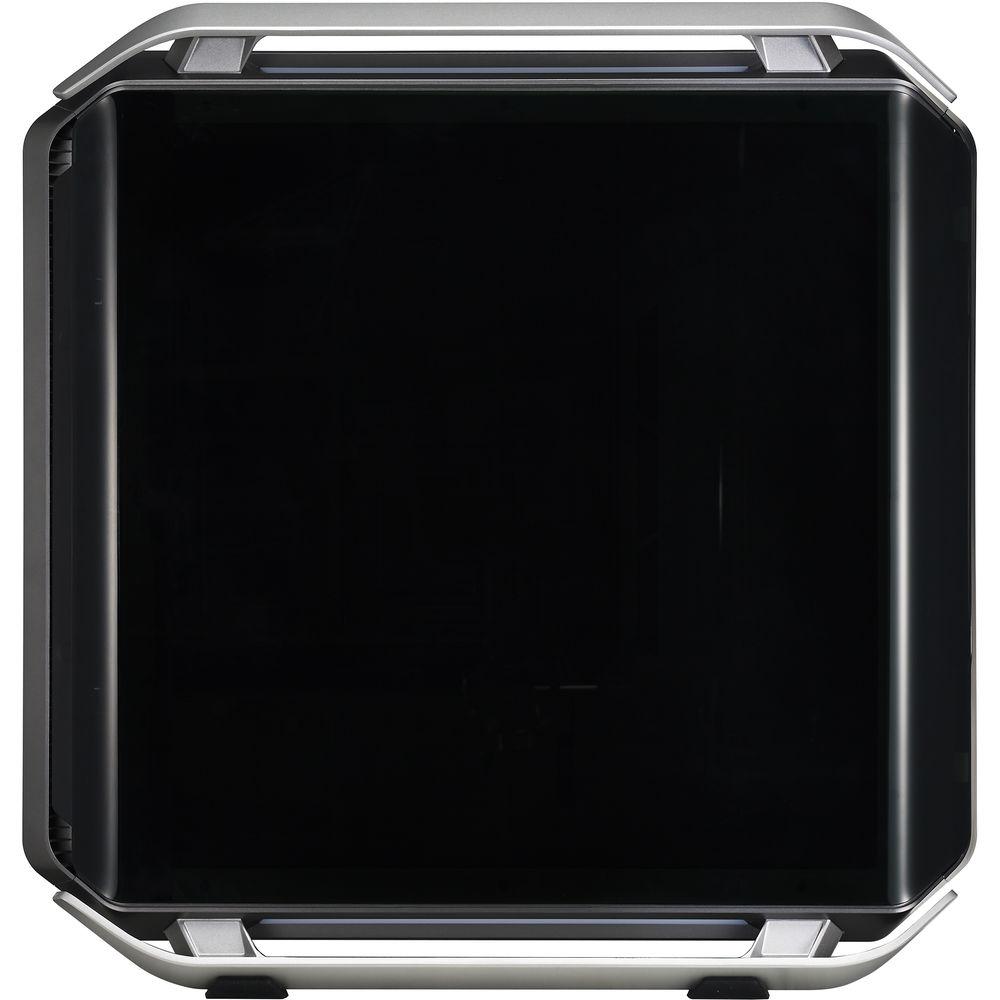

- Dual-Curved Tempered Glass Side Panels
- Both left- and right- sides of the case feature tempered glass so you can show-off your build and quickly check on components.
- Sleek & Solid Aluminum Handles
- The top of the case features two aluminum handles for an easier time moving it around.
UPC: 884102036392 In the Box Cooler Master Cosmos C700P Full-Tower Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master Cosmos C700P Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

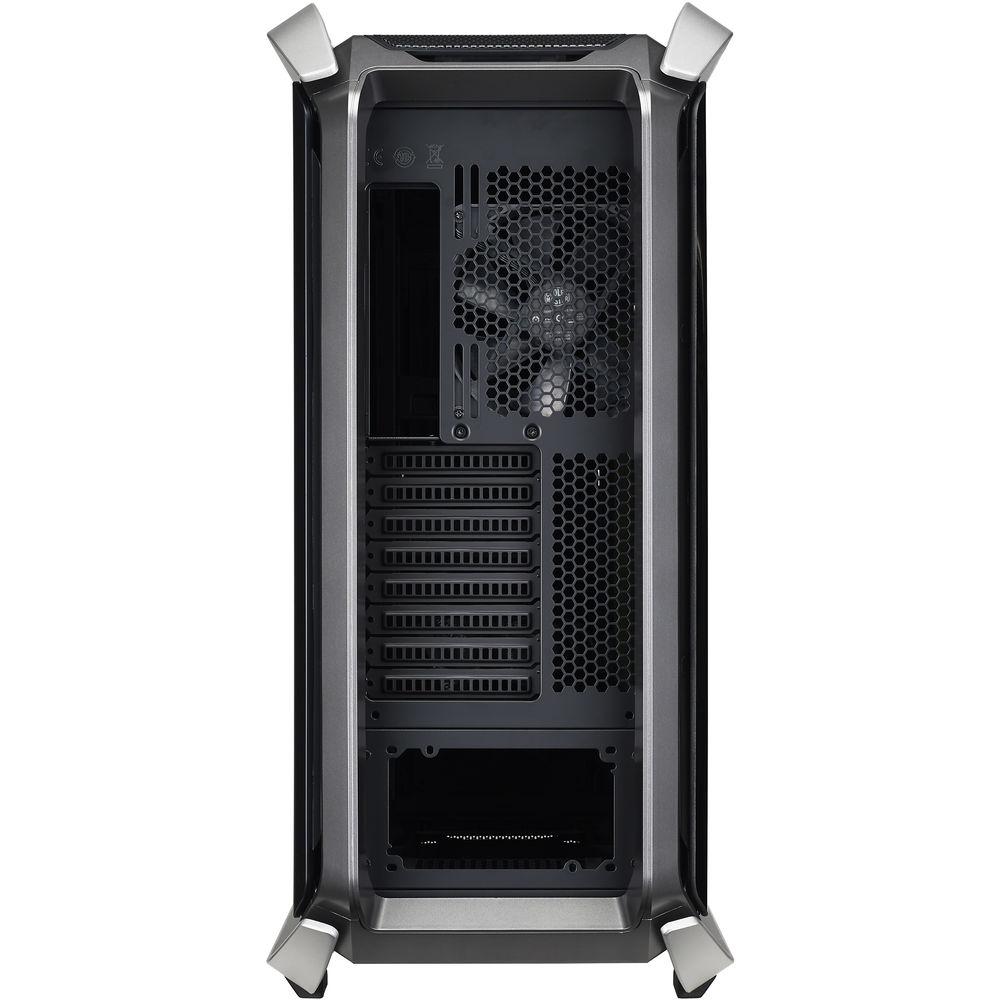

Technical parametersCooler Master COSMOS C700P Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ATX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 2 x 2.5/3.5"
2 x 2.5" | | Expansion Slots | 8 x Full Height | | Maximum GPU Length | 19.29" / 490 mm | | CPU Cooler Height | 7.80" / 198 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 3 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Bottom) | 2 x 120 mm
Or
2 x 140 mm
| | Fans Included (Front) | 2 x 140 mm (1200 rpm) | | Fans Included (Rear) | 1 x 140 mm (1200 rpm) | | Fans Included (Top) | None | | Fans Included (Bottom) | None | | Maximum Radiator Size (Front) | 1 x 420 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | Yes | | | | Connections | 1 x USB Type-C (USB 3.1)
4 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | Yes | | Security | None | | Dimensions (W x H x D) | 25.2 x 25.6 x 12.0" / 639.0 x 651.0 x 306.0 mm | | Weight | 48.9 lb / 22.2 kg | | | | Package Weight | 57.0 lb | | Box Dimensions (LxWxH) | 30.0 x 29.0 x 16.0" |
