User Manual for Cooler Master Elite 130 mini-ITX Computer Case Click to enlarge the picture
Contents of the user manual for the Cooler Master Elite 130 mini-ITX Computer
- Product category: Desktop Computer Cases Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Desktop Computer Cases
 |
User manual for the Cooler Master Elite 130 mini-ITX Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

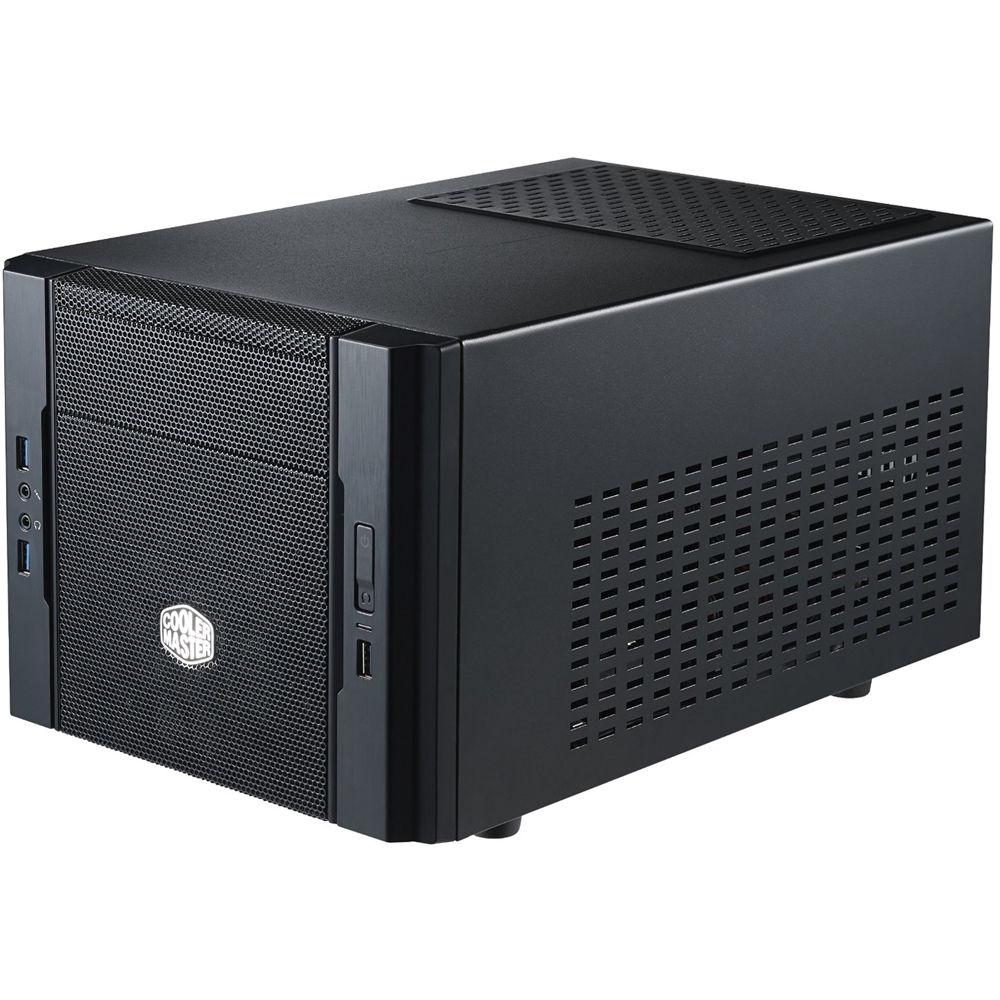

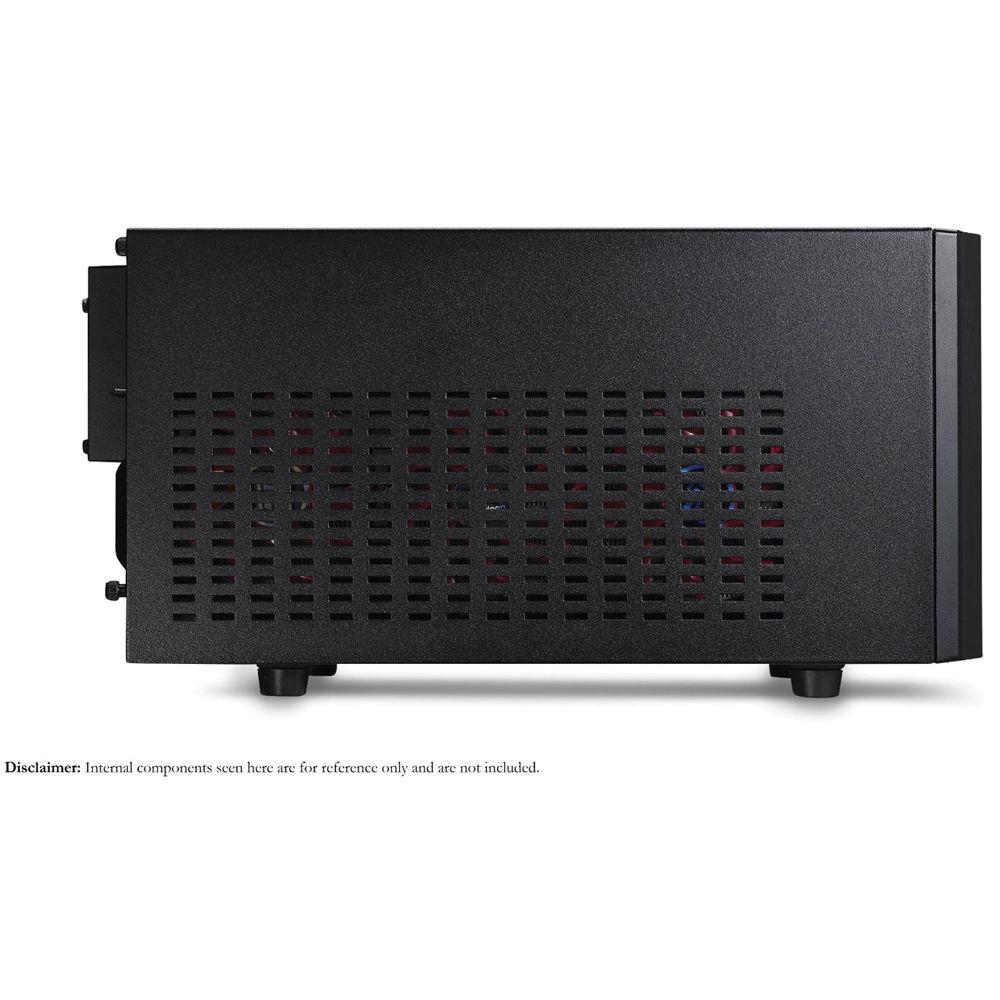

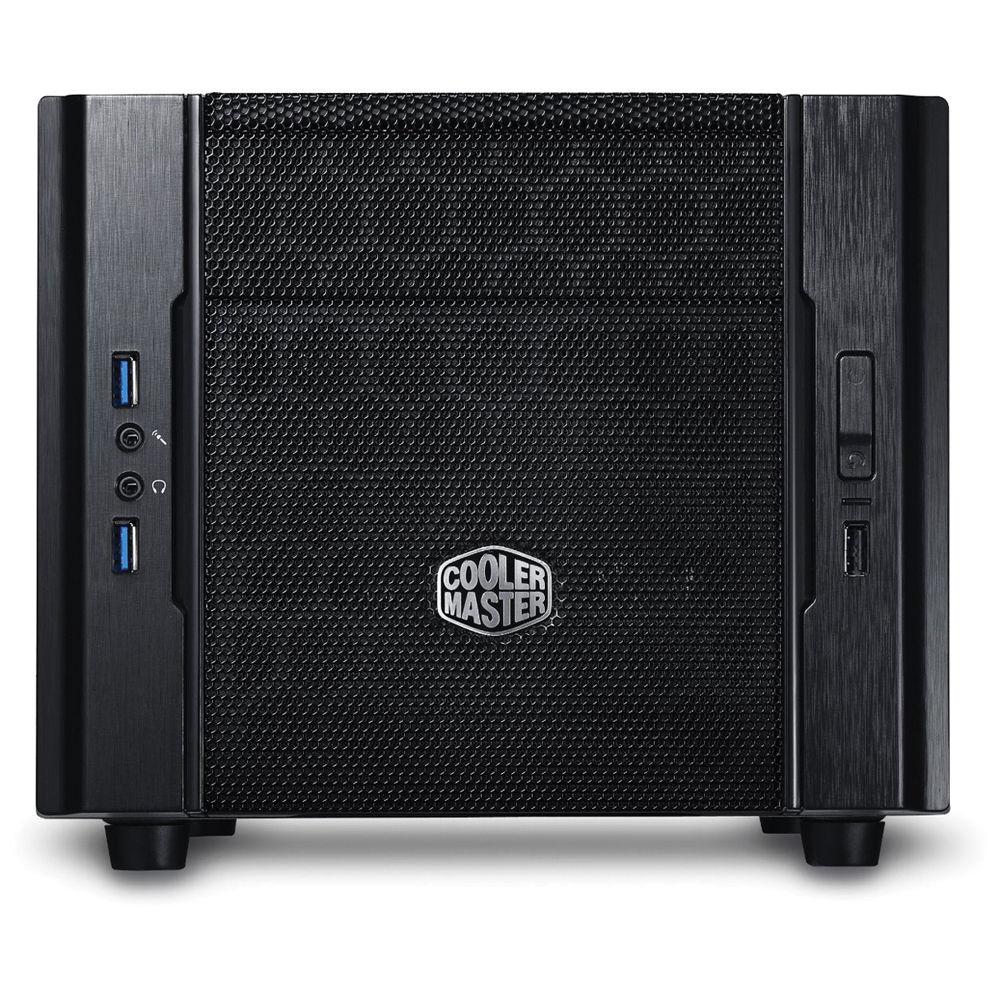

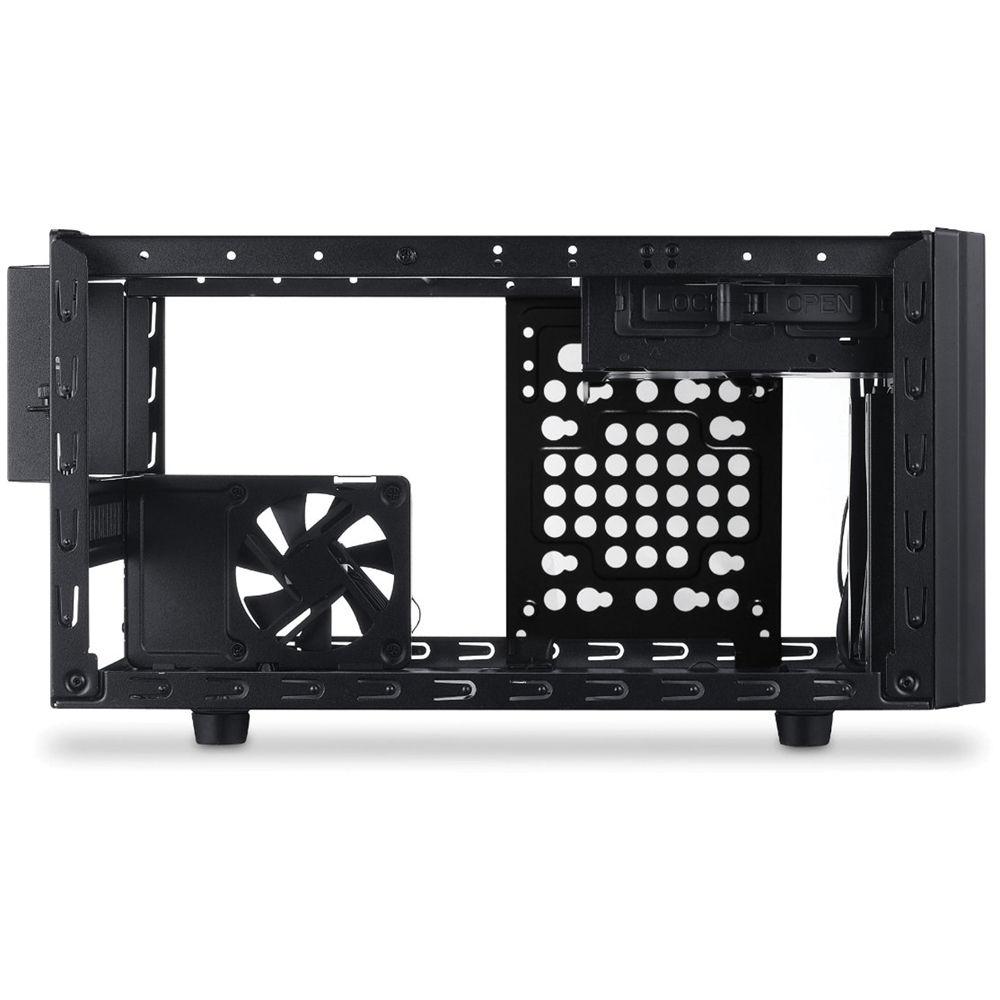

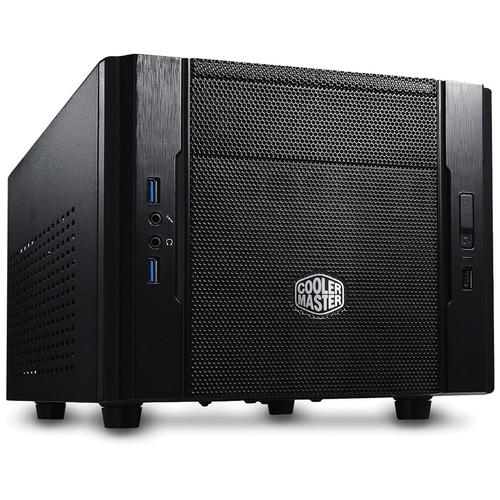

Product description The midnight black Elite 130 mini-ITX Computer Case from Cooler Master is an ultra compact case, with support for full size desktop components. The mini-ITX case comes with front mesh panel and vents on the top and side panels for better airflow. It accommodates one Optical Disk Drive (ODD), or three Hard Disk Drives (HDDs), or five Solid State Drives (SSDs). The case is pre-installed with one 120mm fan in the front and one 80mm fan at the side. It is equipped with two USB 3.0 SuperSpeed ports, one USB 2.0 port, one audio in/out, and two expansion slots. You can install one 120mm radiator in the front for cooling. The case supports standard length ATX PSU up to 180mm and graphics card length (VGA) up to 343mm. - Fits up to one ODD or three HDDs or five SSDs:
- 1 x ODD + 2 x HDDs + 1 x SSD
- 3 x HDDs + 1 x SSD
- 2 x HDDs + 3 x SSDs
- 1 x HDD + 4 x SSDs
- 5 x SSDs - Dual SuperSpeed USB 3.0 ports
- Supports a 120mm radiator in the front
- Supports standard length ATX PSU up to 180mm
- Supports graphics cards up to 343mm such as AMD HD7990 and NVIDIA GTX690
UPC: 884102024221 In the Box Cooler Master Elite 130 mini-ITX Computer Case (Midnight Black) Limited 2-Year Warranty Brochure PDF 325kbzcsvdvycwsdvduqeatdsrecuzatatcrcvxt Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master Elite 130 mini-ITX Computer Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master RC-130-KKN1 Specs | | | Motherboard Support | Mini-ITX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 2 x 3.5"
2 x 2.5" | | Additional Drive Mounting | 1 x 2.5" (Side)
1 x 2.5" (Bottom) | | Expansion Slots | 2 x Full Height | | Maximum GPU Length | 13.5" / 34.3 cm | | CPU Cooler Height | 2.5" / 6.4 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Front) | 1 x 120 mm
| | Fan Mounting (Rear) | None | | Fan Mounting (Side) | 1 x 80 mm
| | Fan Mounting (Top) | None | | Fan Mounting (Bottom) | None | | Fans Included (Front) | 1 x 120 mm | | Fans Included (Side) | 1 x 80 mm | | Maximum Radiator Size (Front) | 120 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0)
1 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 9.4 x 8.2 x 15.7" / 240.0 x 207.4 x 398.5 mm | | Weight | 6.8 lb / 3.1 kg | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 17.6 x 11.9 x 10.0" |
