User Manual for Cooler Master Elite Power 460W Power Supply Click to enlarge the picture
Contents of the user manual for the Cooler Master Elite Power 460W Power
- Product category: Power Supplies Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Power Supplies
 |
User manual for the Cooler Master Elite Power 460W Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

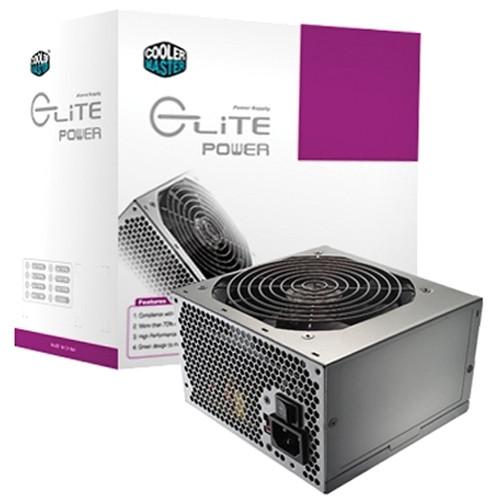

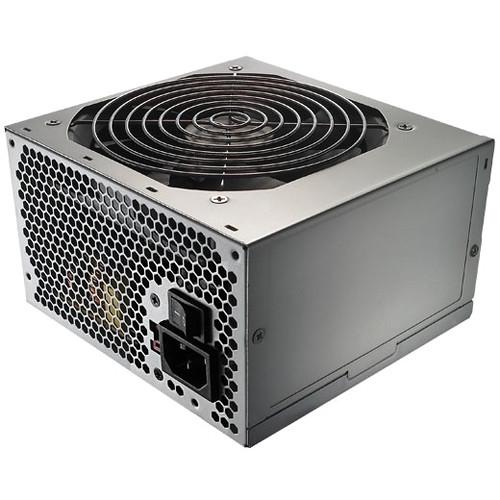

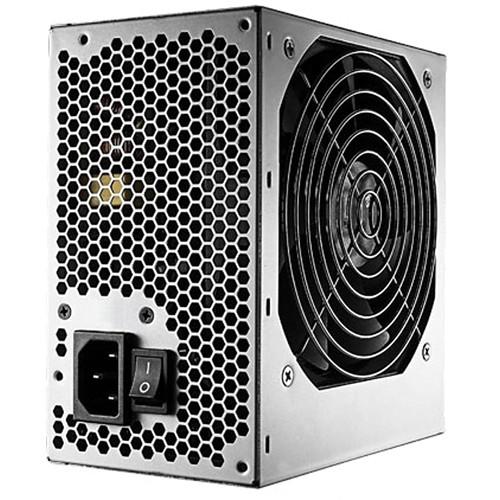

Product description Power up your desktop computer with the Elite Power 460W Power Supply from Cooler Master. It delivers up to 460W of power via two rails. This PSU meets the Intel ATX 12V v2.3 specification and sports an ATX connector as well as 4+4-pin connector. For drives, it comes armed with three molex and four SATA connectors. Powering a dedicated graphics card can be accomplished with the PSU's 6-pin PCI-E cable. There's also a connector for a floppy drive. Furthermore, the PSU is cooled with an onboard 120mm fan that spins at different speeds. - Complies with Intel standard ATX 12V V2.3
- >70% efficiency at typical load operation
- High-performance components for better reliability
- Green power design to meet ENERGY STAR and Blue Angel requirements
- Multiple protection design (OVP/OCP/OPP/SCP)
- Support dual +12V1 and +12V2 outputs for higher power usage
- One 4+4 pin 12V CPU connector for high-end CPUs
- Built-in EMI and noise filter
- Intelligent 120mm fan controller
- Honeycomb mesh increases airflow for better heat dissipation
UPC: 884102004650 In the Box Cooler Master Elite Power 460W Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master Elite Power 460W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master RS460PSARI3US Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
1 x 6+2-Pin PCIe
4 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | | | Total Wattage | 460 W | | Number of +12 V Rails | 2 | | Combined Power for +12 V | 324 W | | Max Load for +12 V | 18 A | | Combined Power for +3.3/+5 V | 130 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 9.6 W | | Max Load for -12 V | 0.8 A | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 5 to 8.5 A | | | | Efficiency Rating | None | | Efficiency | 70% | | Hold up Time | 17 ms | | Power-Good Signal | 100 to 500 ms | | | | Compliance | ATX 12 V v2.31 | | Protection | Over-Current Protection, Over-Power Protection, Over-Voltage Protection, Short-Circuit Protection | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 3.4 x 5.5" / 15.0 x 8.6 x 14.0 cm | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 8.7 x 7.7 x 3.8" |
