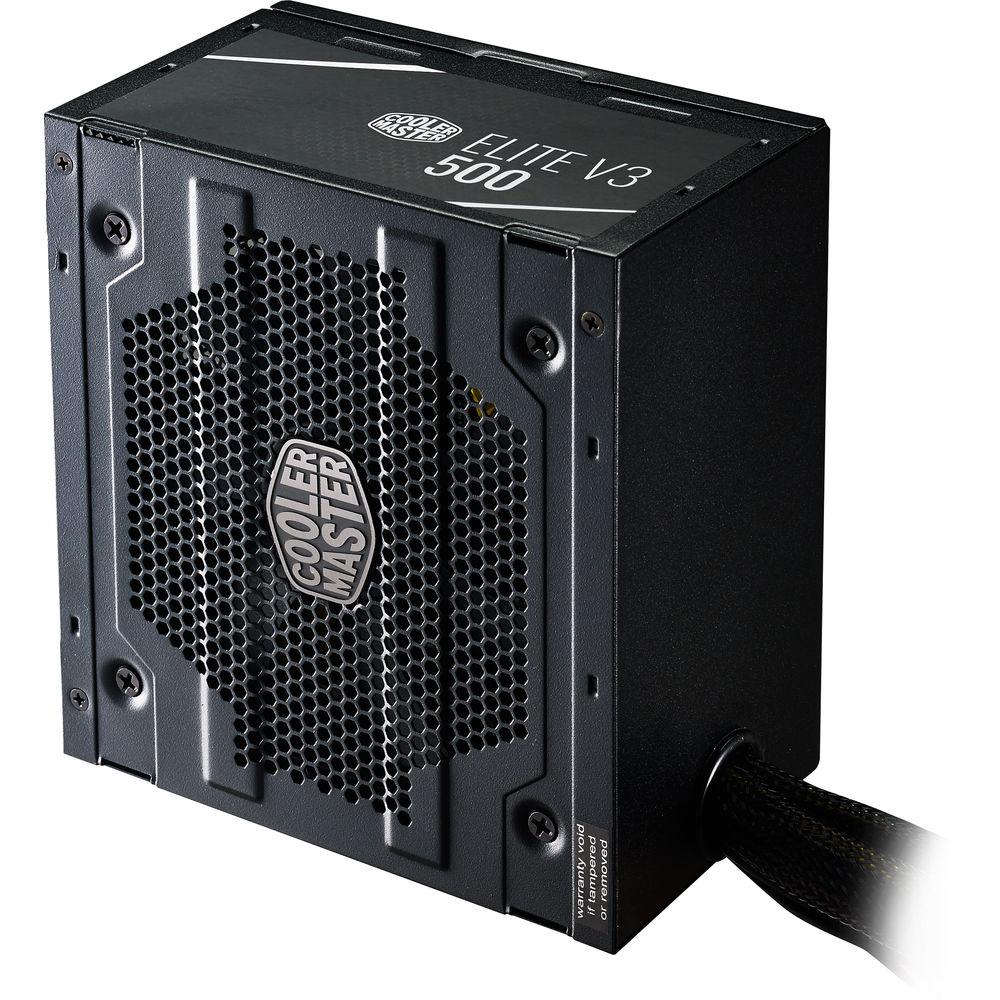

User Manual for Cooler Master Elite V3 500W Power Supply Click to enlarge the picture
Contents of the user manual for the Cooler Master Elite V3 500W Power
- Product category: Power Supplies Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Power Supplies
 |
User manual for the Cooler Master Elite V3 500W Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

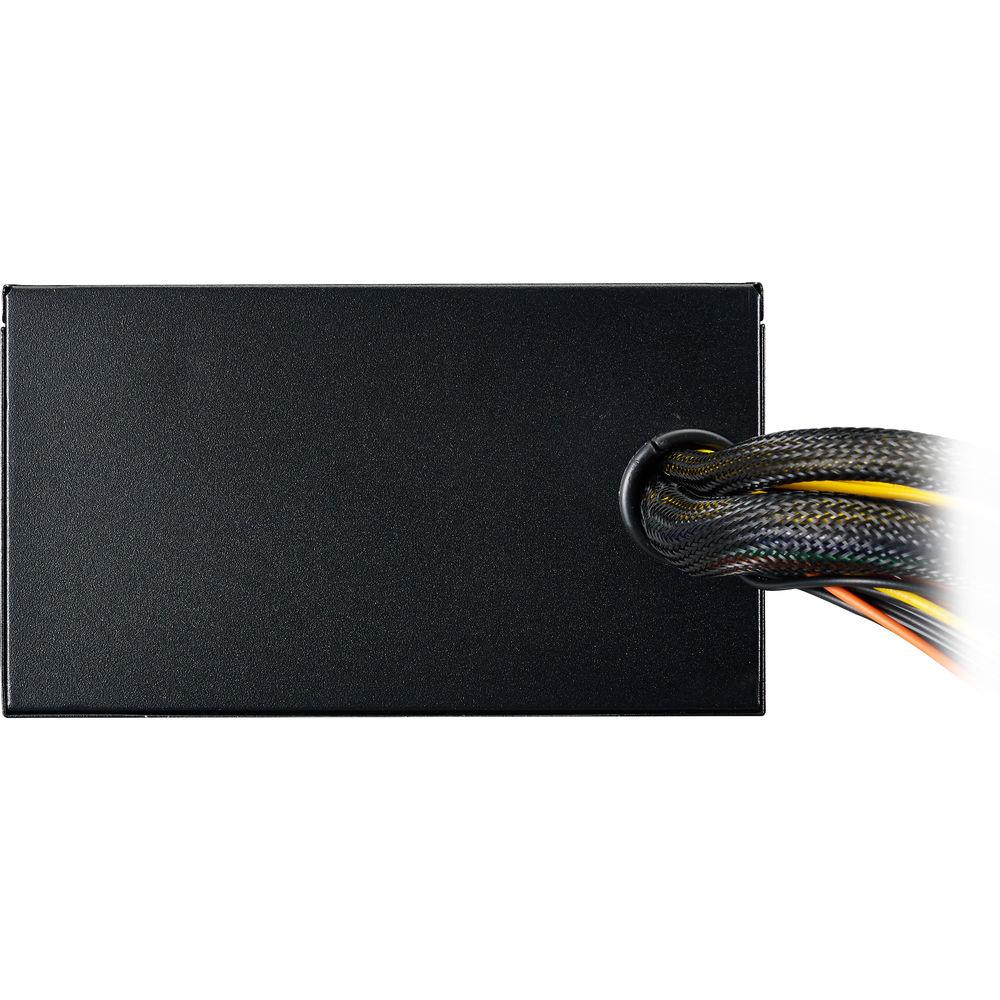

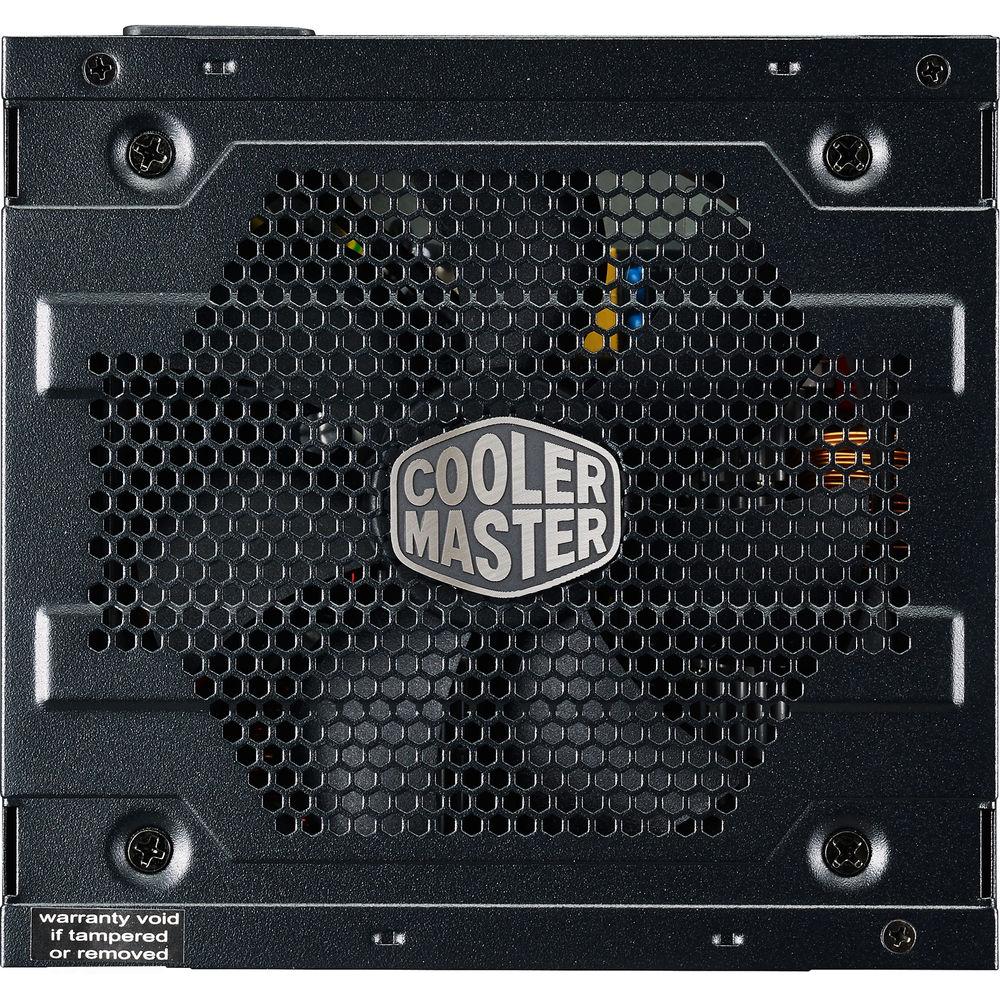

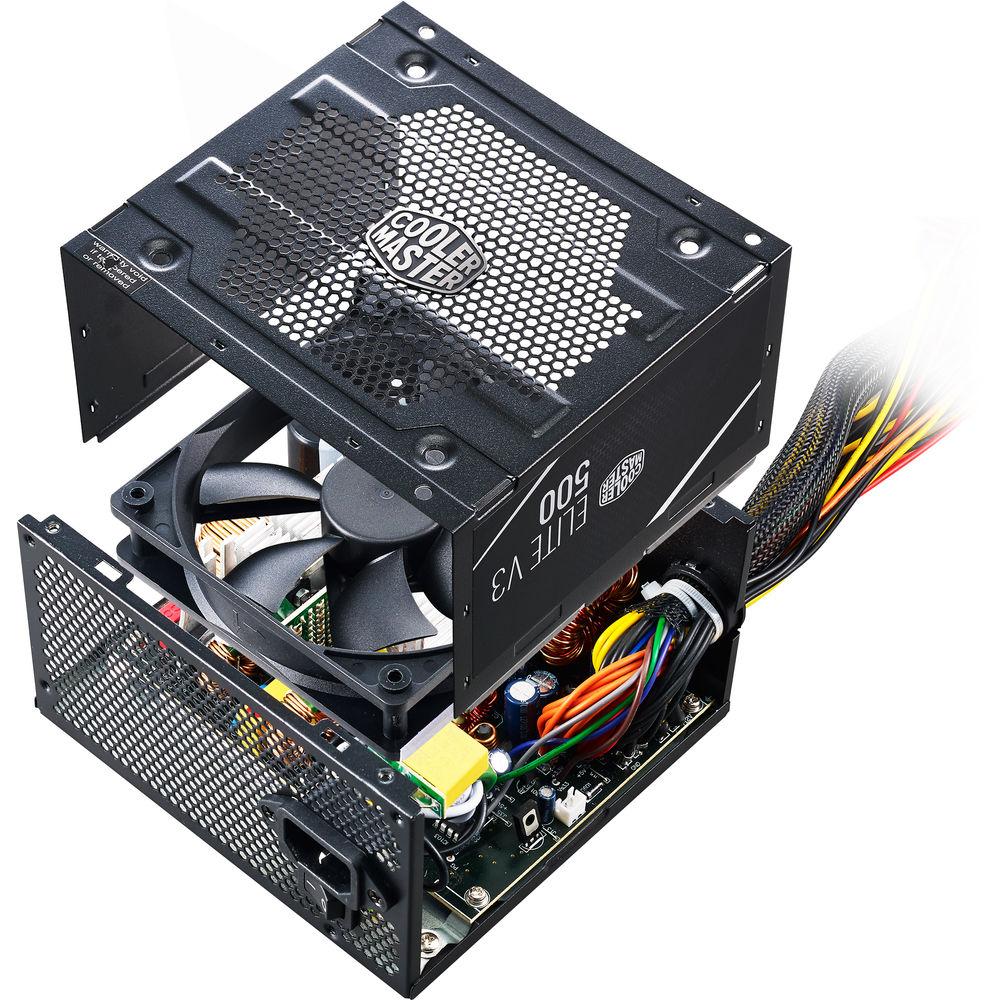

Product description Provide power to your everyday PC build with the Elite V3 500W Power Supply from Cooler Master. Capable of delivering up to 500W power output over a single +12V rail, this ATX 12V power supply comes with a non-modular design, meaning all its sleeved cables are attached to the device. The Elite V3 500W PSU features two PCIe connectors, six SATA connectors, three peripheral connectors, and a floppy connector, while a 120mm fan with an intelligent fan controller is designated to keep the power supply cool and quiet. The PSU has a 75% efficiency rating. - 75% Efficiency
- The efficiency of your power supply unit is important because it directly affects you system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU; it only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The new Elite V3 series has a guaranteed typical efficiency of 75%.
- Active Power Factor Correction
- A power supply unit works by taking power directly from the wall or other fixed power source, converting it to the correct output required by the connected components, and then distributing that power to the components. If any part of this process is interrupted or executed poorly, the connected components and the PSU itself could be damaged. Active PFC uses a circuit to correct the power factor, which helps to reduce total harmonics, correct AC input voltage, and increase overall efficiency output.
- Higher Temperature Resistance
- The Elite V3 has a maximum operating temperature of 104°F/40°C. This higher operating temperature allows you to power your system safely in warmer environments without having to worry about your system overheating or shutting off unexpectedly. The higher heat resistance also reduces temperature based wear, increasing the lifespan of the unit by a noticeable amount.
- Fits Most Environments
- The Elite V3 was built to perform consistently, whether it's in altitudes above 16,000' or in humid settings like a tropical rain forest. This power supply unit was designed to perform reliably and consistently in just about any place you would actually need to use a PC and many places that you wouldn't.
UPC: 884102038297 In the Box Cooler Master Elite V3 500W Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master Elite V3 500W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

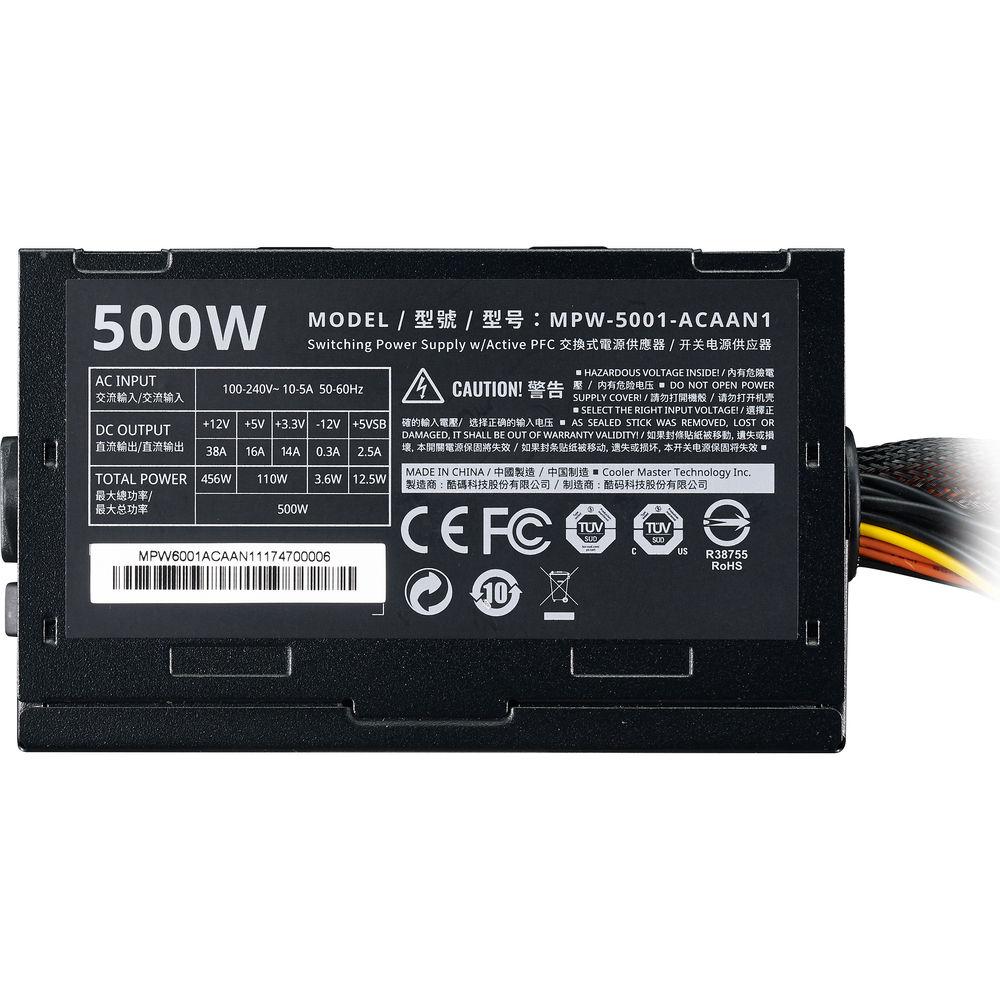

Technical parametersCooler Master Elite V3 500W Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin CPU
2 x 6+2-Pin PCIe
6 x (Unspecified Pin Count) SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Sleeved | | PCIe Connector Distances | 25.6" / 650 mm | | SATA Connector Distances | 29.5" / 750 mm | | Peripheral Connector Distances | 34.3" / 870 mm | | Floppy Connector Distances | 34.3" / 870 mm | | ATX Connector Distance | 19.7" / 500 mm | | EPS Connector Distances | 21.7" / 550 mm | | | | Total Wattage | 500 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 456 W | | Max Load for +12 V | 38 A | | Combined Power for +3.3/+5 V | 110 W | | Max Load for +3.3 V | 14 A | | Max Load for +5 V | 16 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 to 5 A | | | | Efficiency Rating | None | | Efficiency | 75% | | Hold up Time | 10 ms at 100% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 120 mm | | Bearing Type | Sleeve | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.31 | | Protection | Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection | | Certifications | BSMI, CE, FCC, TUV, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 5.5 x 3.4" / 150.0 x 140.0 x 86.0 mm | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 8.75 x 7.75 x 3.8" |
