User Manual for Cooler Master Hyper T4 Heatsink Click to enlarge the picture
Contents of the user manual for the Cooler Master Hyper T4 Heatsink
- Product category: Fans & CPU Coolers Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Fans & CPU Coolers
 |
User manual for the Cooler Master Hyper T4 Heatsink contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

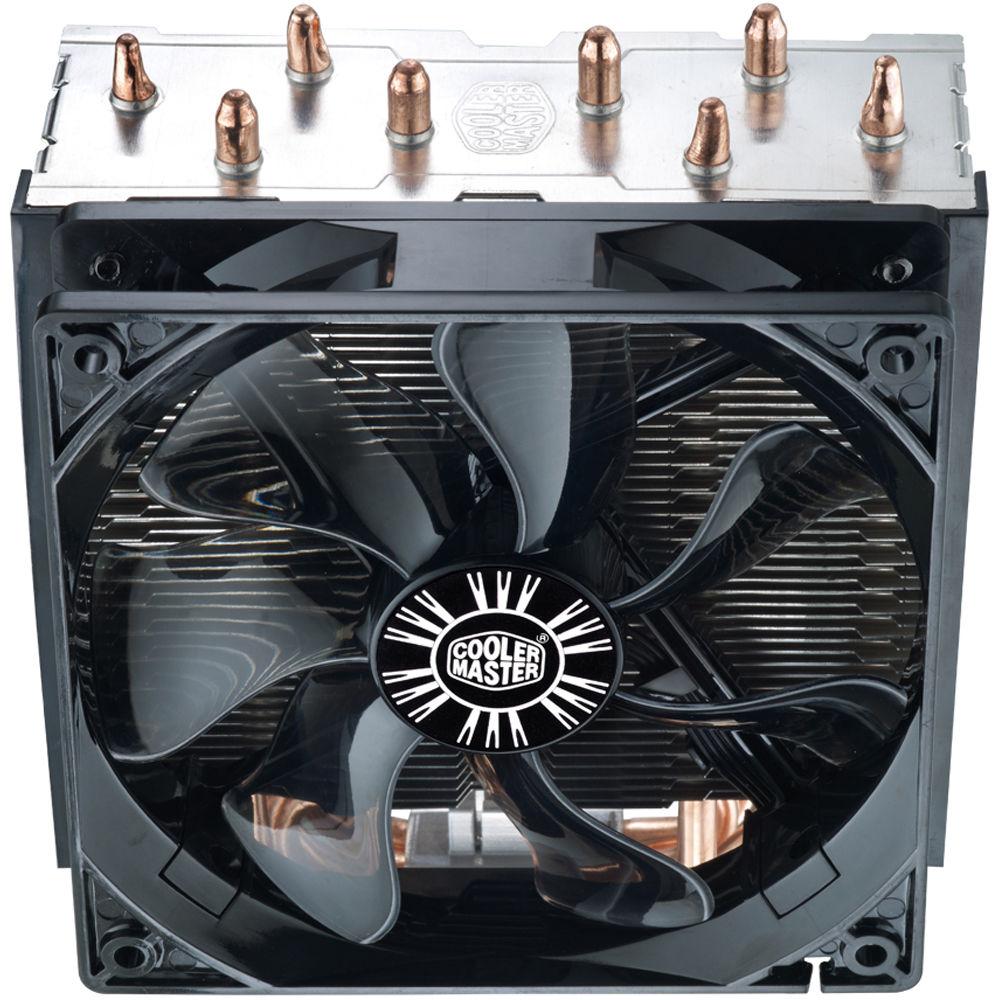

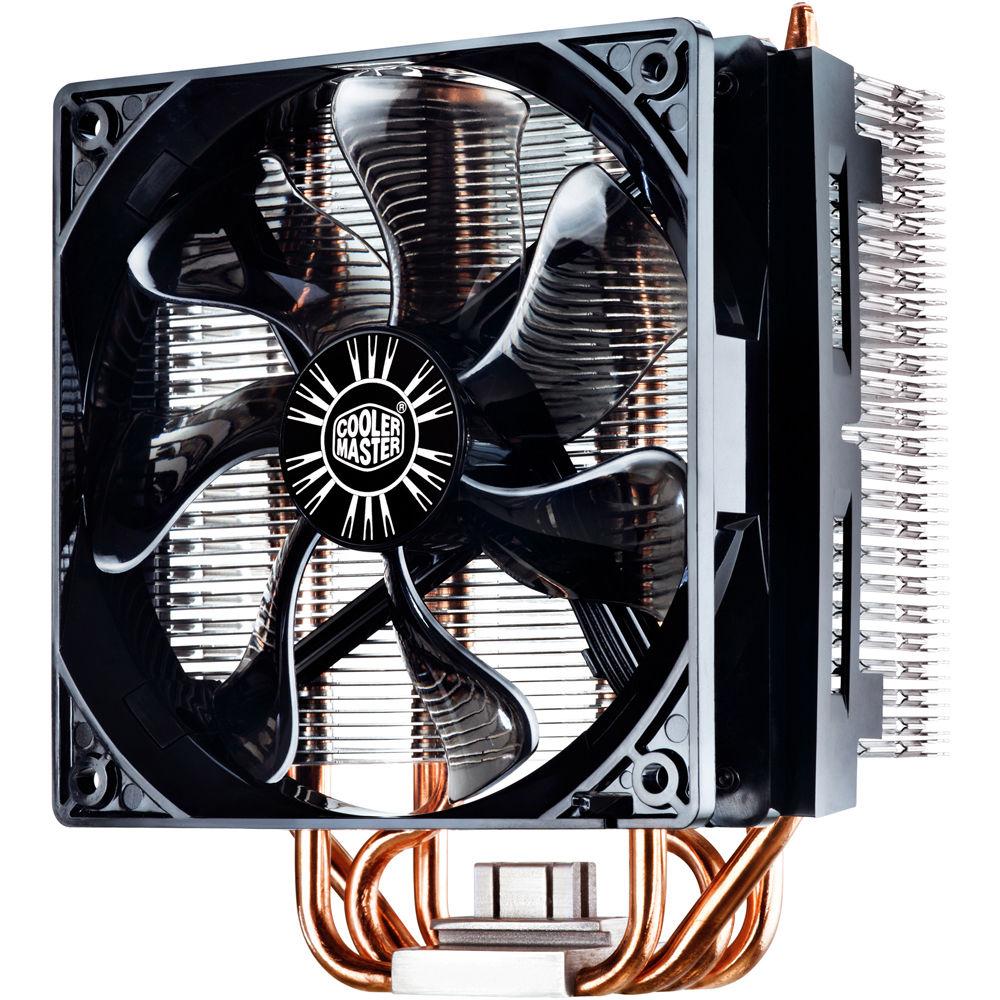

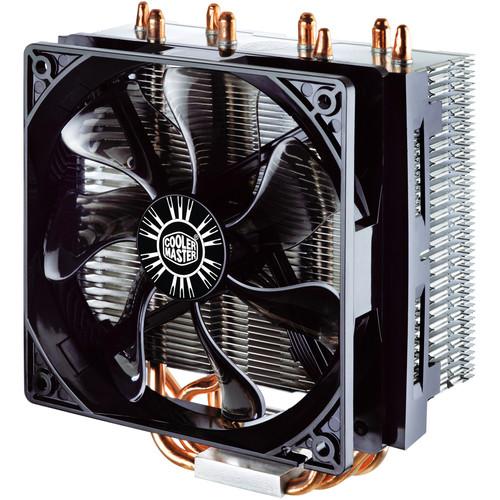

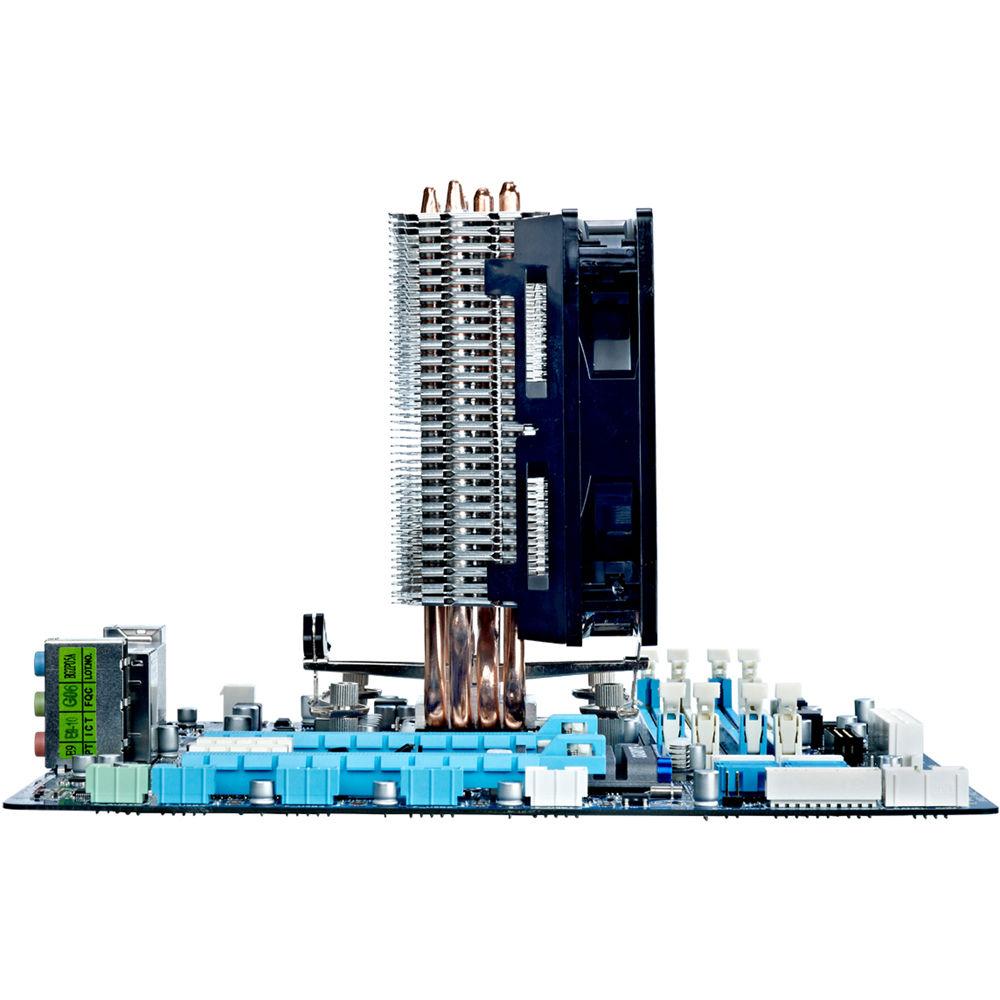

Product description The Hyper T4 Heatsink from Cooler Master is a CPU fan and heatsink that helps to deliver cooling performance on virtually all modern platforms with its four direct touch heatpipes. Compatible with Intel LGA 2011/1366/1156/1155/775 and AMD FM1/AM3+/AM3/AM2 sockets, the T4's 4.72" / 120.00mm PWM fan features a speed range of 600~1800 rpm ± 10% and can be fine tuned for maximum airflow, cooling performance, or near-silent operation. A user-friendly snap-on bracket and a universal mounting system also help the Hyper T4 to integrate into virtually any system.

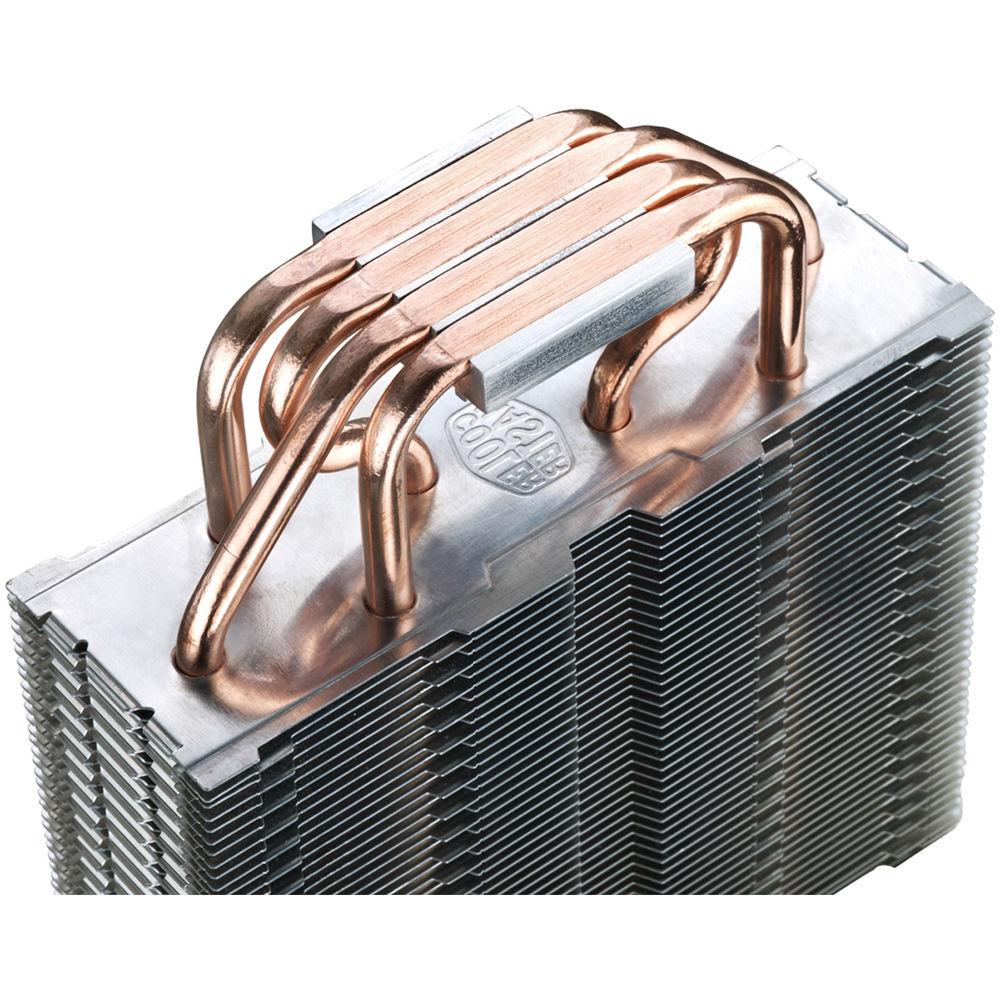

The Hyper T4 also features a fan airflow of 24~70 CFM ± 10%, a fan air pressure of 0.3~2.14mm H2O ± 10%, a life expectancy of 40,000 hours, a noise level of 15.1~31.6 dBA, and a rifle bearing type. It uses a 4-pin connector and operates using 12 VDC and 0.2A, while its power consumption is 2.64W. - Four Direct Contact heatpipes for seamless contact between the cooler and CPU
- This heatsink is equipped with a 120mm wide range PWM fan. The rpm can be fine tuned for maximum airflow or whisper quiet operation
- Snap-on fan brackets to quickly and easily install, remove, clean, or replace the fan or heatsink
- Versatile all-in-one mounting solution supporting the Intel LGA 2011/1366/1156/1155/775 and AMD FM2+/FM2/FM1/AM3+/AM3/AM2 sockets

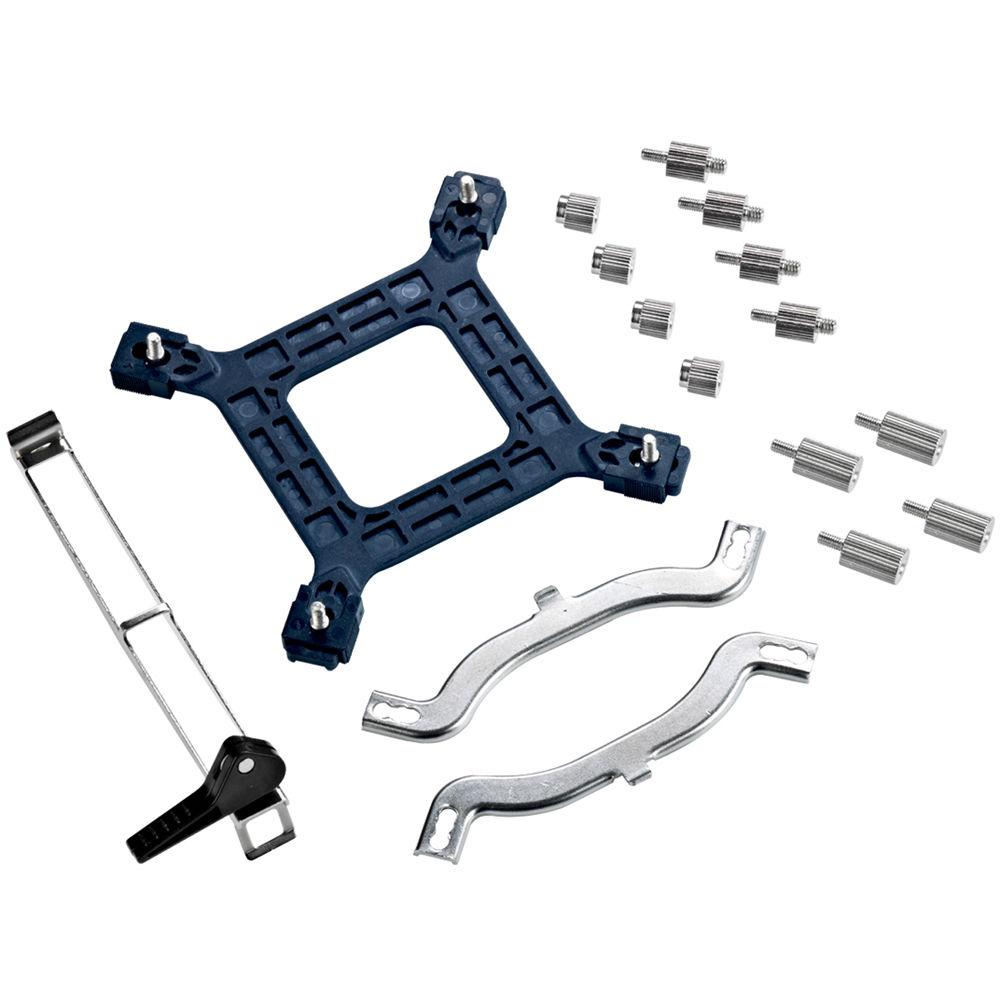

UPC: 884102018206 In the Box Cooler Master Hyper T4 Heatsink Universal CPU Mounting System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master Hyper T4 Heatsink in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master RR-T4-18PK-R1 Specs | Cooler Type | CPU Air Cooler | | Bearing Type | Rifle | | Connectors | 4-Pin | | Fan Size | 120 mm | | Fan Speed | 600 to 1800 rpm | | Noise Level | 15.1 to 31.6 dBA | | LED | None | | Maximum Airflow | 70 CFM | | Power Consumption | 2.64 W | | Dimensions (W x H x D) | 5.2 x 6.0 x 2.9" / 132.1 x 152.4 x 73.7 mm | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 7.4 x 6.5 x 4.6" |
