User Manual for Cooler Master MasterAir Maker 8 CPU Cooler Click to enlarge the picture
Contents of the user manual for the Cooler Master MasterAir Maker 8 CPU
- Product category: Fans & CPU Coolers Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Fans & CPU Coolers
 |
User manual for the Cooler Master MasterAir Maker 8 CPU contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

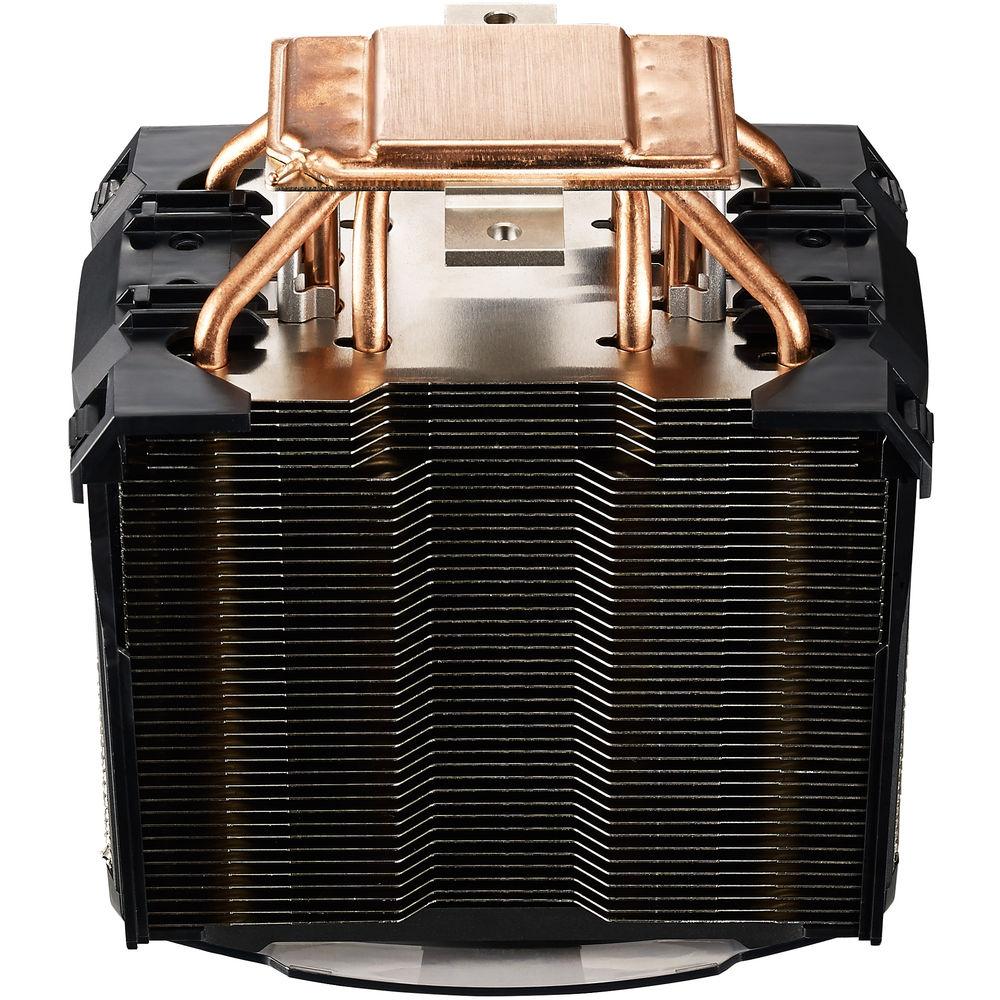

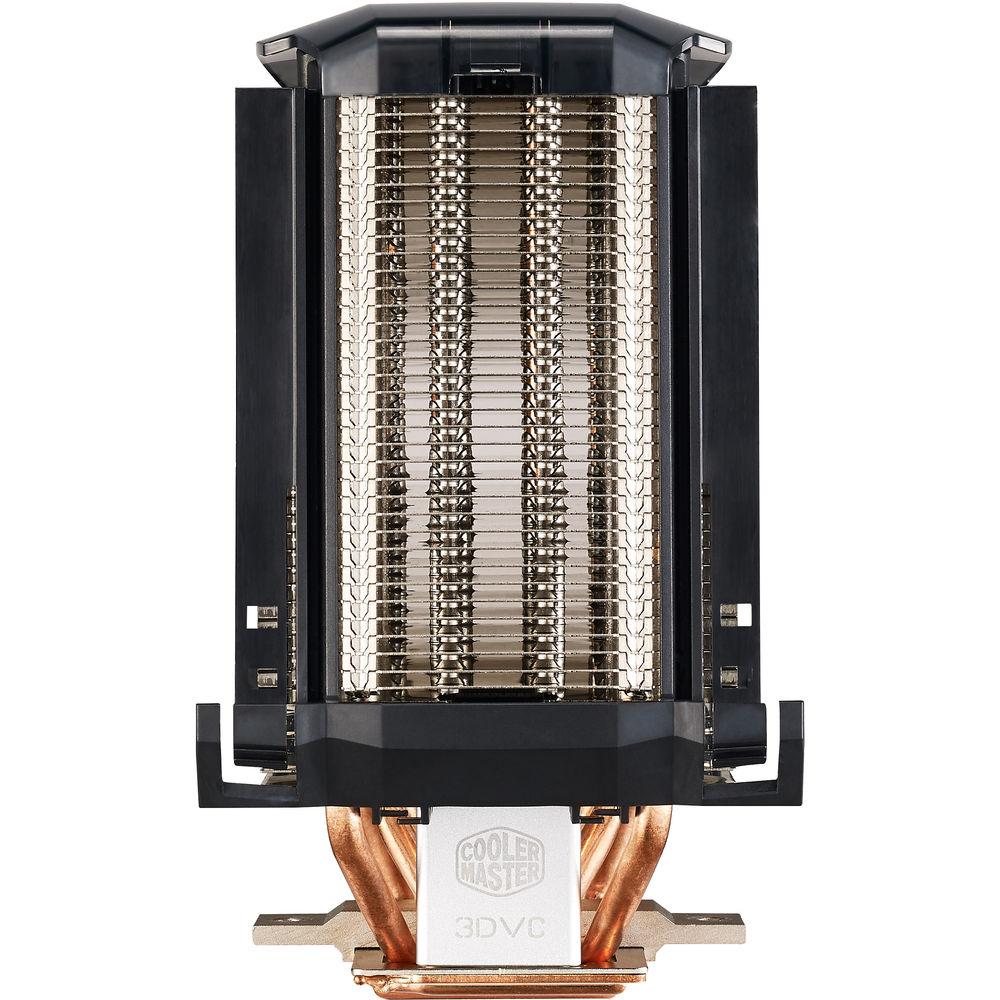

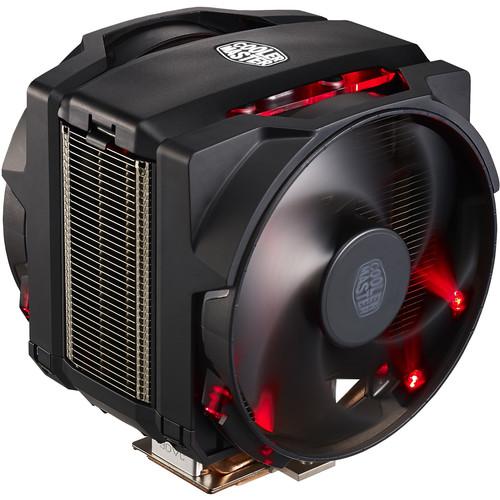

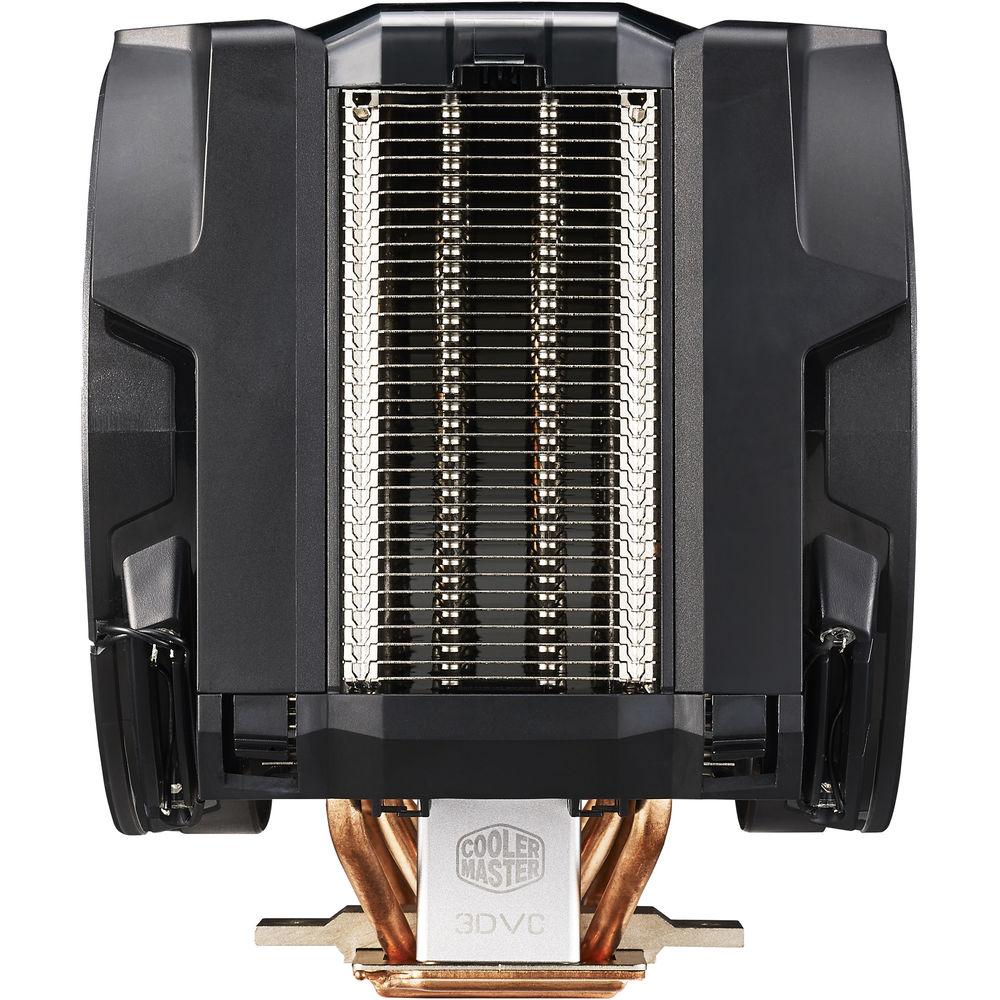

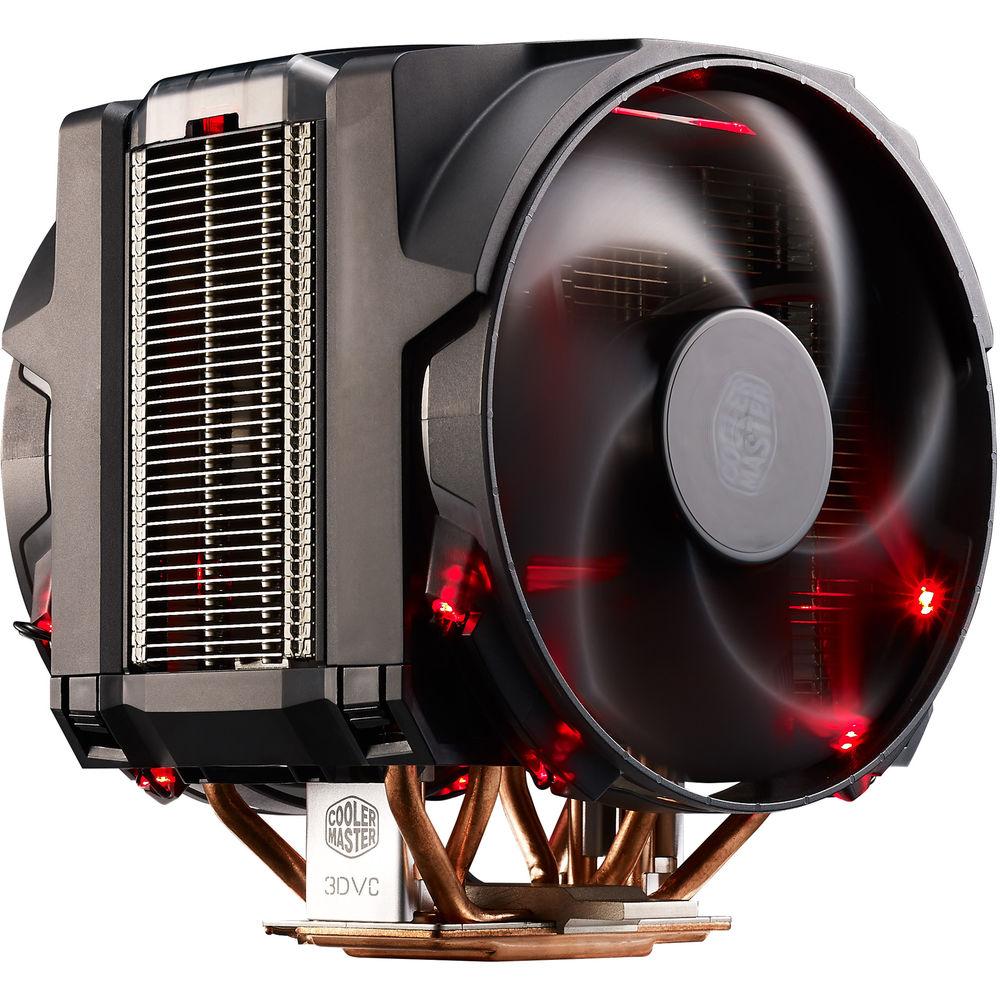

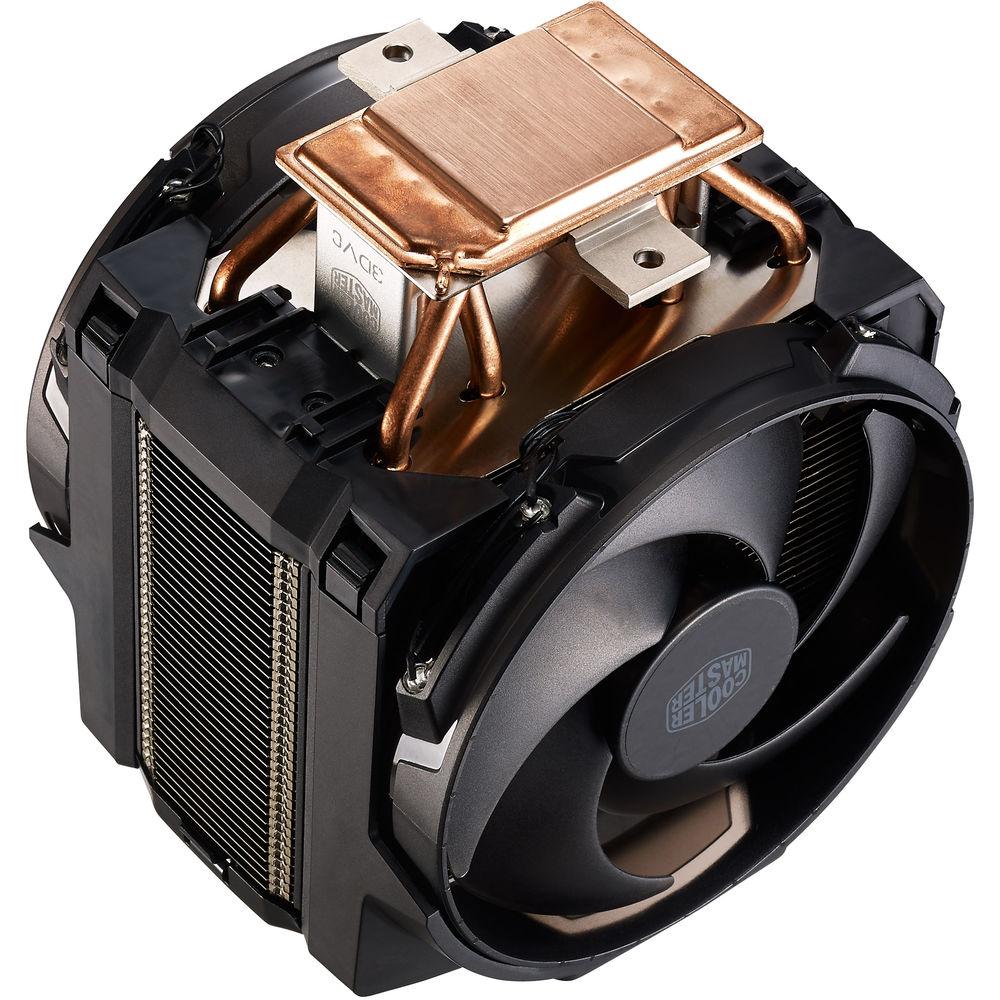

Product description The MasterAir Maker 8 CPU Cooler from Cooler Master is designed for gamers and overclockers who demand low temperatures and LED lighting. This large CPU cooler is compatible with a variety of Intel and AMD sockets and can cool up to 250W TDP with its eight heat pipes, aluminum fins, and 3D vapor chamber base. The 3D vapor chamber base is filled with coolant that when heated, changes to gas to dissipate heat. It then condenses back into liquid, continuing the cycle. At the top of the MasterAir Maker 8 is an interchangeable, 3D printable cover. Download the 3D schematics to customize and build your own. Additionally, two 140mm Silencio FP fans are included to provide quiet and efficient cooling. - 3D Vapor Chamber
- Replacing the standard copper base, a coolant filled vapor chamber now transfers heat away from the CPU. When the vapor chamber is heated, the coolant transforms from liquid to gas, which then condenses on cold surfaces, dissipates its heat load, and then changes back to liquid and collects in the coolant reservoir.
Since the rate of condensation depends on the temperature delta of the coolant and the contact surface, the coolant automatically streams towards the coolest surface area. As a result it provides stable and evenly spread temperatures on all of its surfaces, regardless of the location and density of the heat source below the chamber base. - Customizable Top Cover
- The MasterAir Maker 8 features interchangeable and 3D-printable top covers. It comes with an aluminum and translucent top cover you get you started, and by downloading the 3D printing schematics, you can print your own creative design, image, or 3D model that protrudes out of the cover. If you can design it, then you can make it.
- 250W TDP Cooling

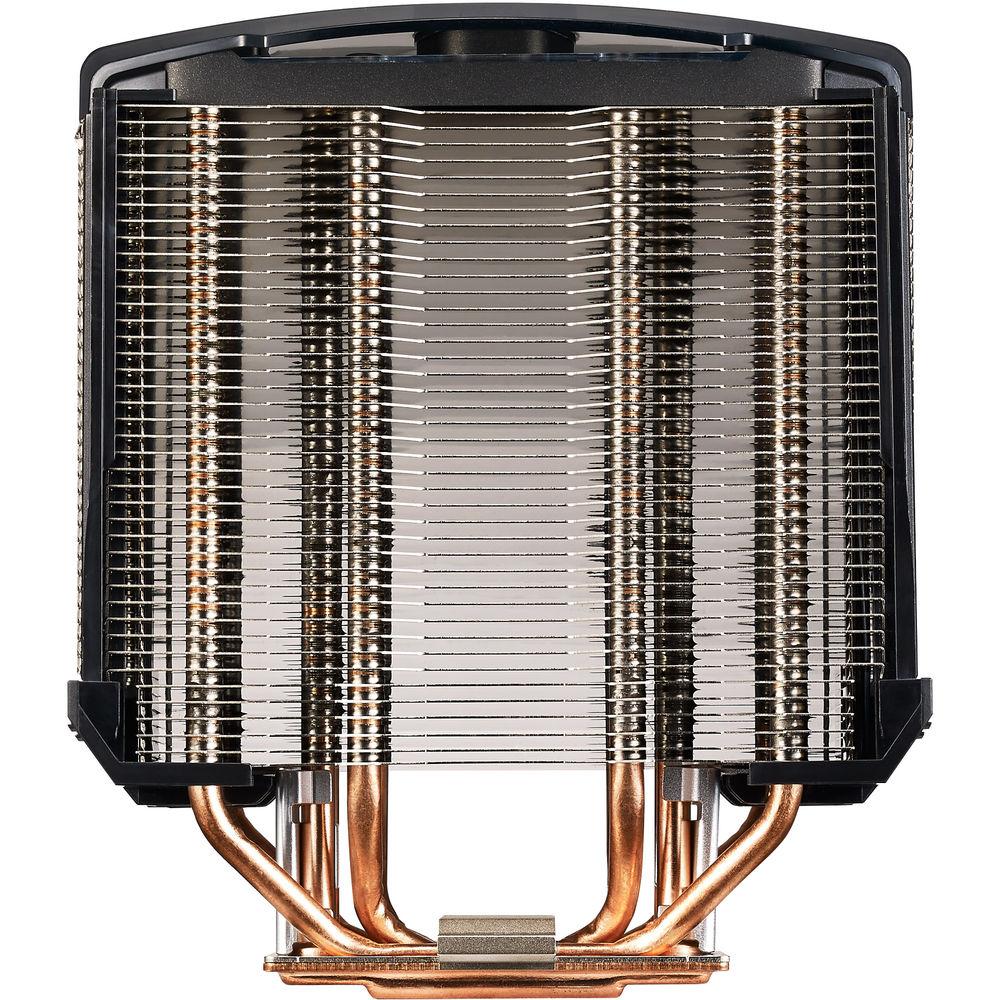

- A total of eight heat pipes (four seamlessly merged with the base) conduct heat away from the horizontal base, while a large aluminum heatsink further dissipates heat. The MasterAir Maker 8 gives gamers and overclockers peace of mind with a high 250W TDP, helping to protect the system from becoming unstable or shutting down due to overheating during intensive gaming and overclocking.

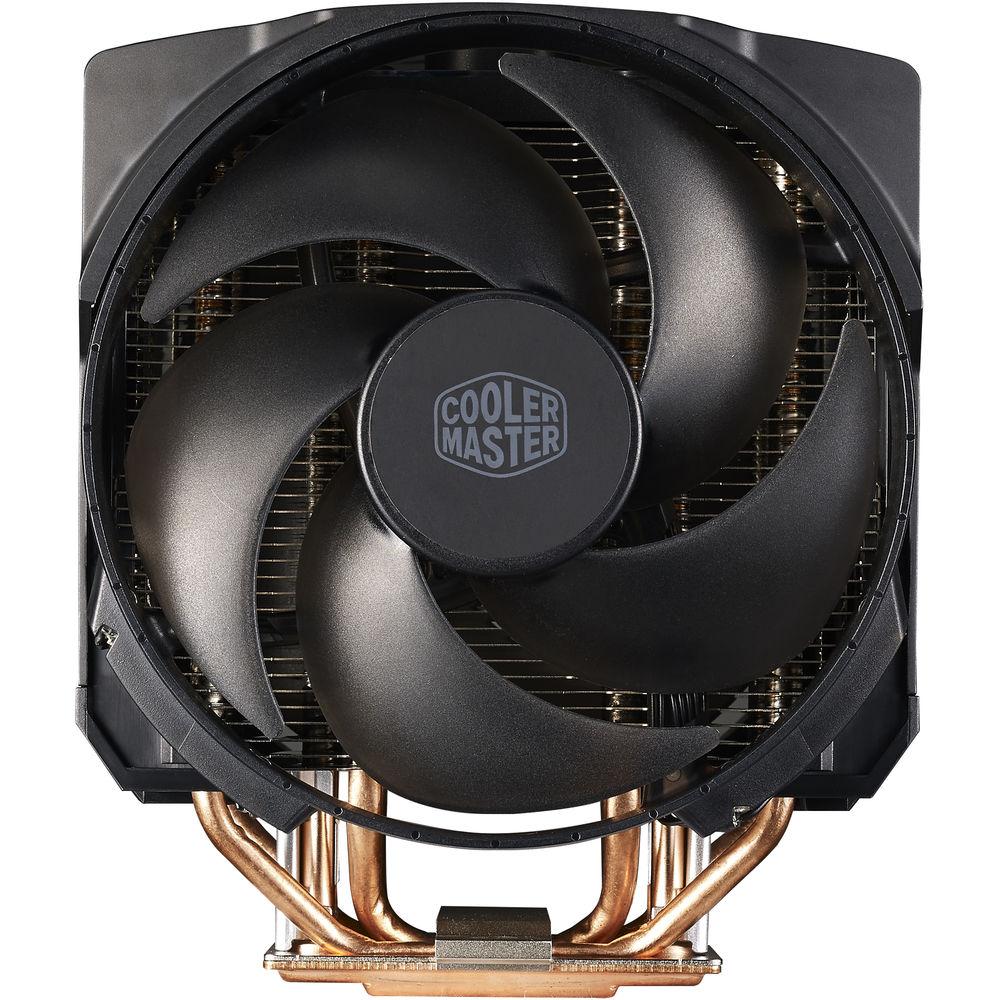

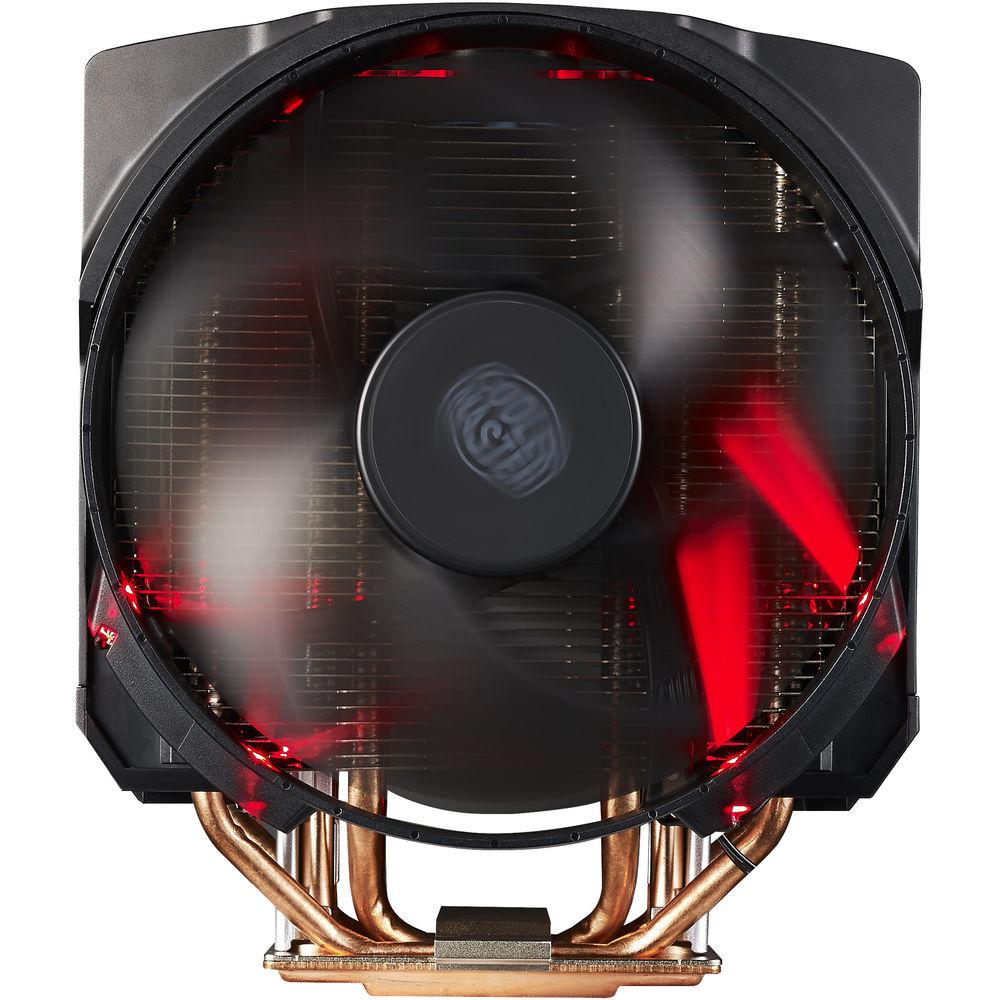

- Silencio FP Fans
- The two Silencio FP fans have a combined noise output of 8-24 dBa, and the self-lubricating and dust-proof design keeps the blades operating smoothly.
- Intuitive Bracket Design
- The MasterAir Maker 8 supports both 140 and 120mm fans. Fans can be quickly and easily removed, replaced, and even adjusted for memory clearance via a special fan bracket design. Simply hold the release tab and slide the fan up.
UPC: 884102027413 In the Box Cooler Master MasterAir Maker 8 CPU Cooler Mounting Kit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MasterAir Maker 8 CPU Cooler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master Maker Specs | Cooler Type | CPU Air Cooler | | Bearing Type | Loop Dynamic Bearing (LDB) | | Connectors | 4-Pin | | Fan Size | 140 mm | | Fan Speed | 600 to 1800 rpm | | Noise Level | 24.0 dBA | | LED | RGB | | Maximum Airflow | 66 CFM | | Power Consumption | 1.80 W | | Dimensions (W x H x D) | 5.3 x 5.7 x 6.8" / 135.0 x 145.0 x 172.0 mm | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 11.6 x 9.8 x 8.5" |
