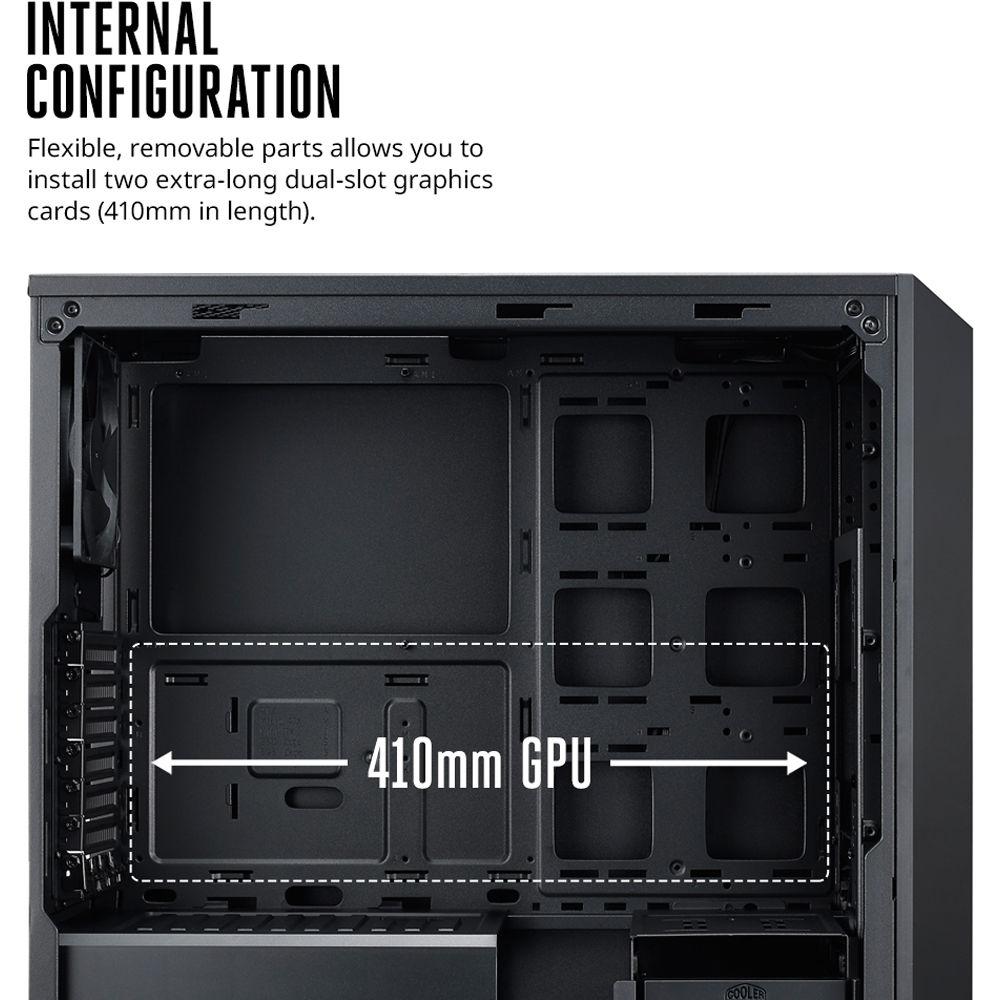

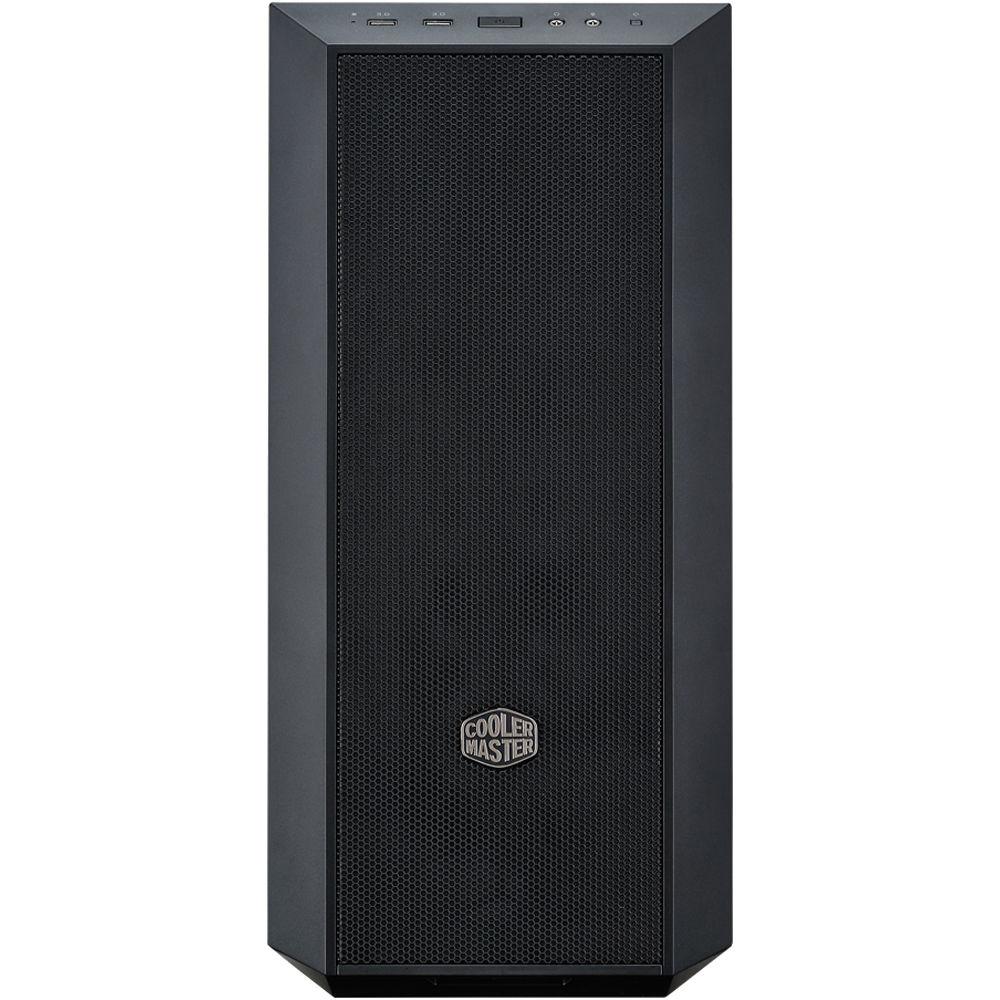

Product description The Masterbox 5 Mid-Tower Case from Cooler Master provides ample room to hold your internal components so you can build a desktop computer. The Masterbox 5 is compatible with mini-ITX, micro-ATX, and ATX motherboards. It has space to accommodate a single 2.5" drive along with up to two 2.5" or 3.5" drives. Optical drives are supported via an optional drive cage. The top front panel is outfitted with two USB 3.0 ports as well as headphone and microphone ports. Cooler Master has designed this Masterbox 5 with a black steel chassis along with a meshed front panel. In addition, the case features seven expansion slots, which are designed for PCIe cards and graphics cards up to 16.1" long.

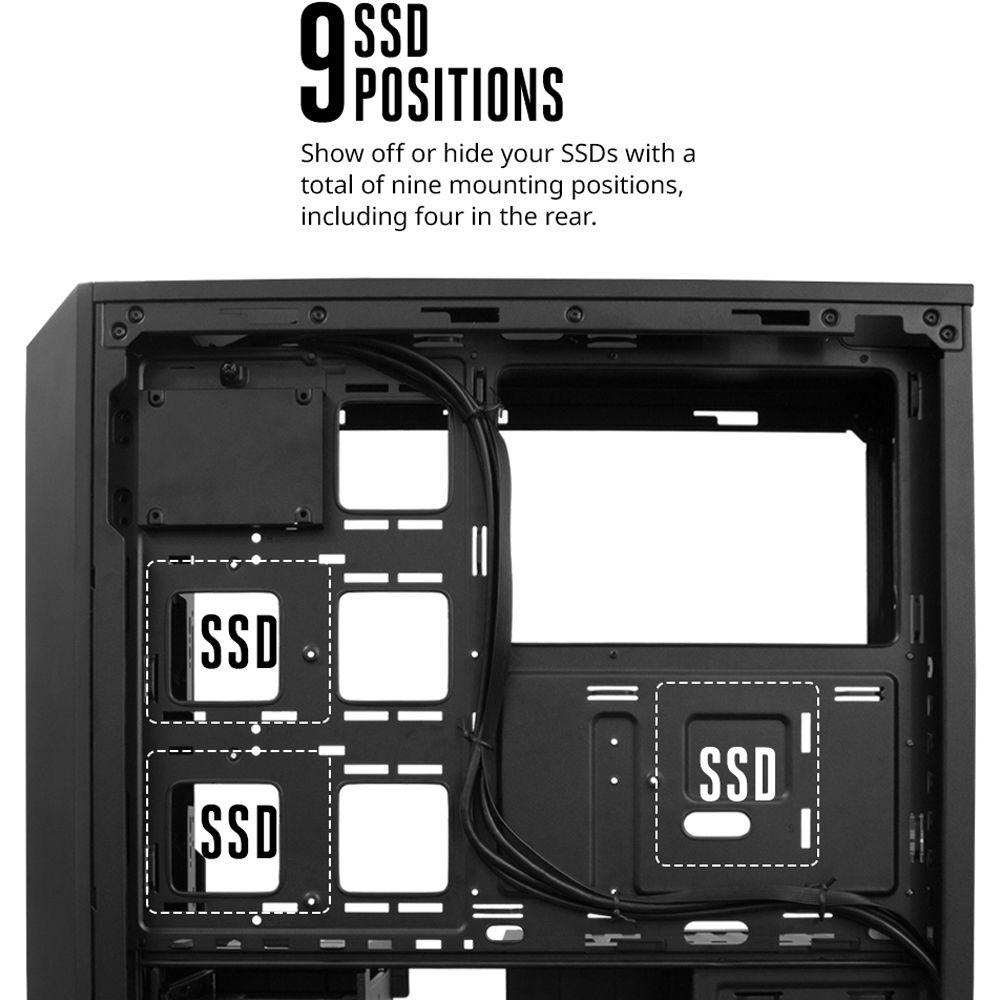

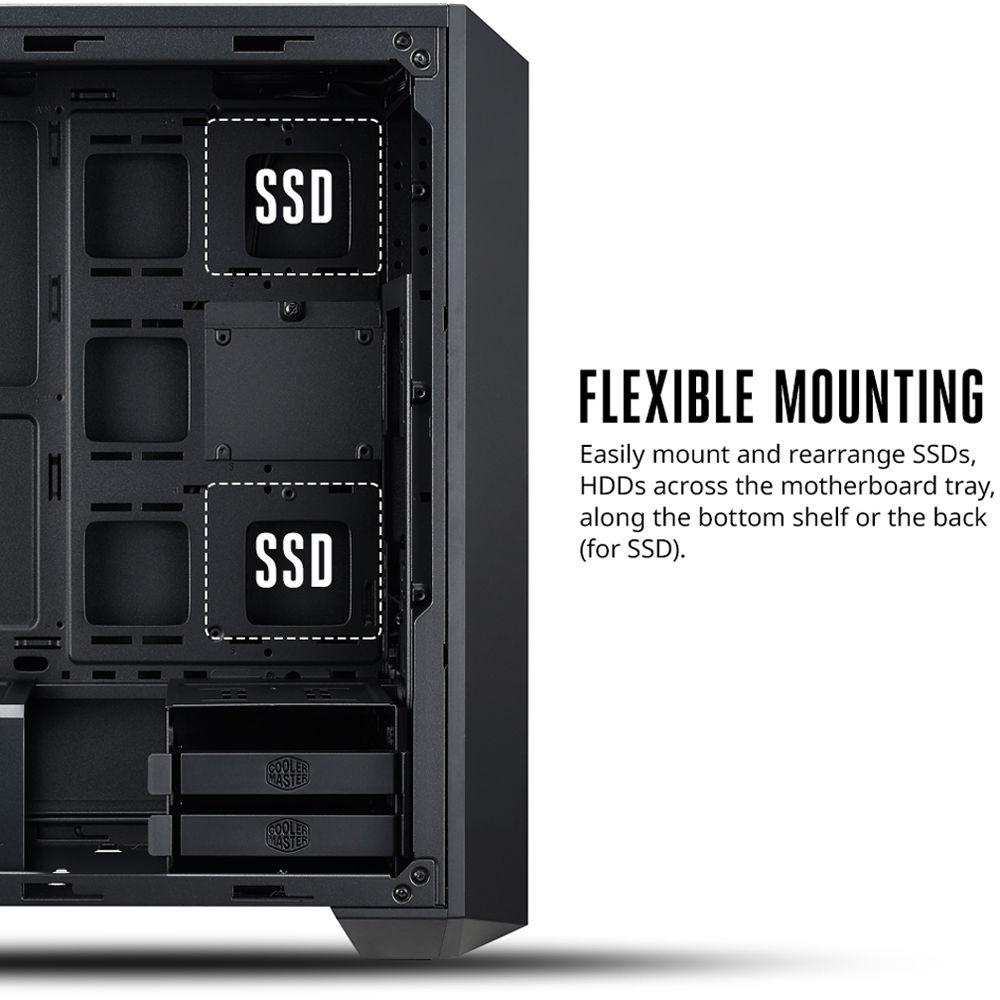

For cooling, two 120mm fans are included, and an optional third 120mm or 140mm fan is supported. This case can also house your liquid cooling solution. Additionally, dust filters located in the front and bottom of the case help keep the inside clean. - Flexible mounting system lets you easily mount and rearrange SSDs across the motherboard tray or along the bottom shelf or the back of the case

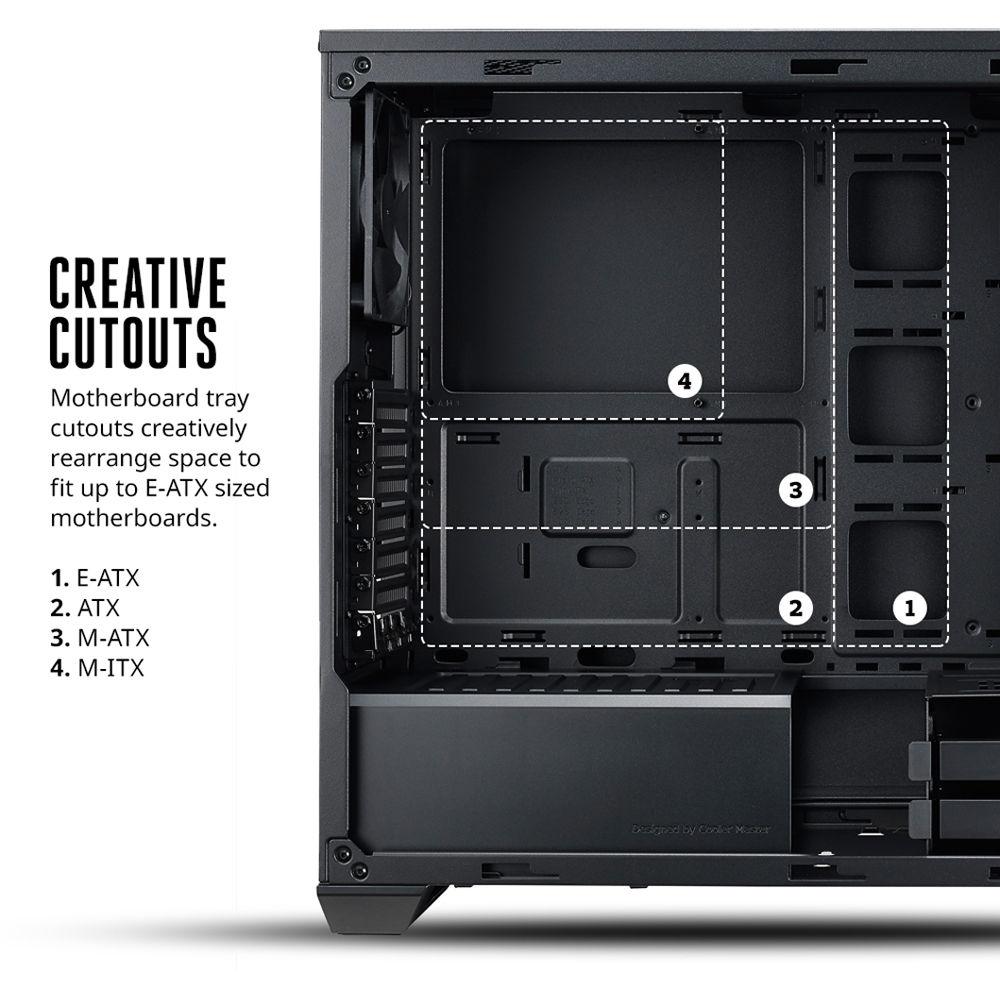

- Motherboard tray cutouts allow enough space to fit mini-ITX, micro-ATX, and ATX motherboards as well as large air and liquid coolers

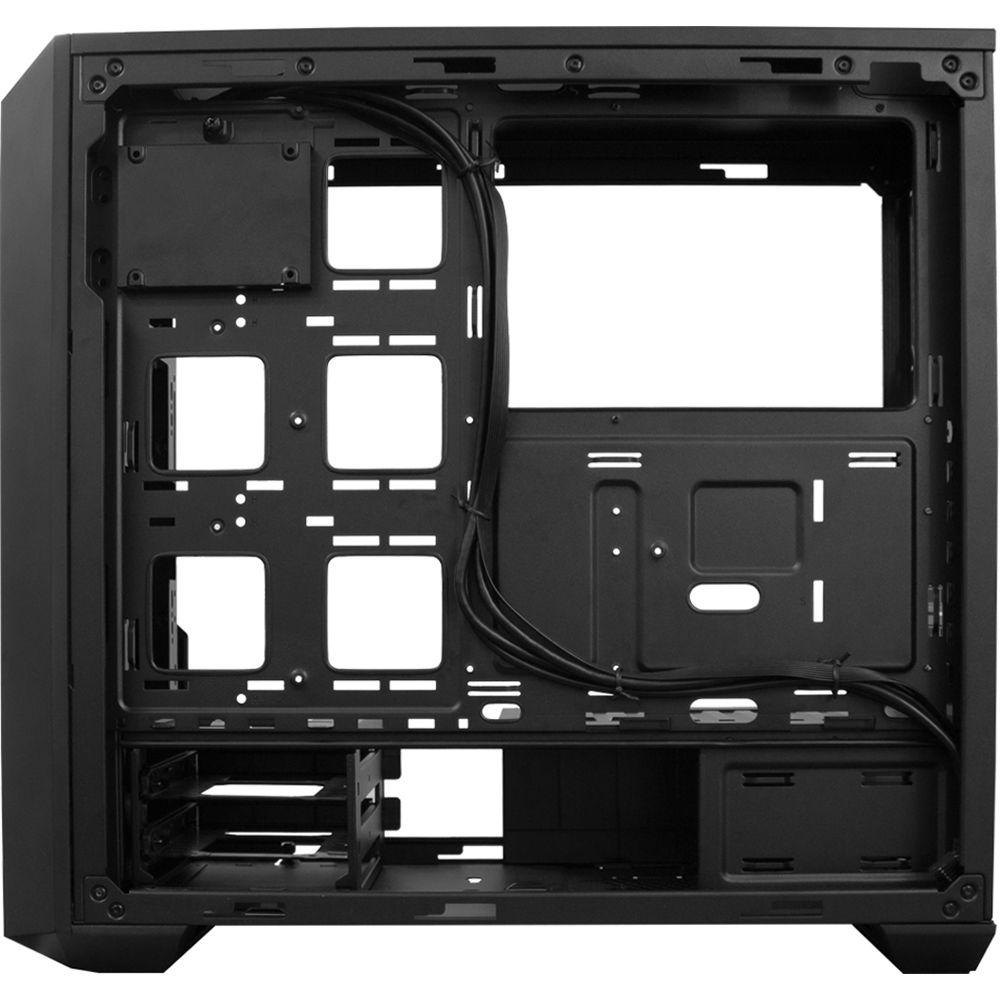

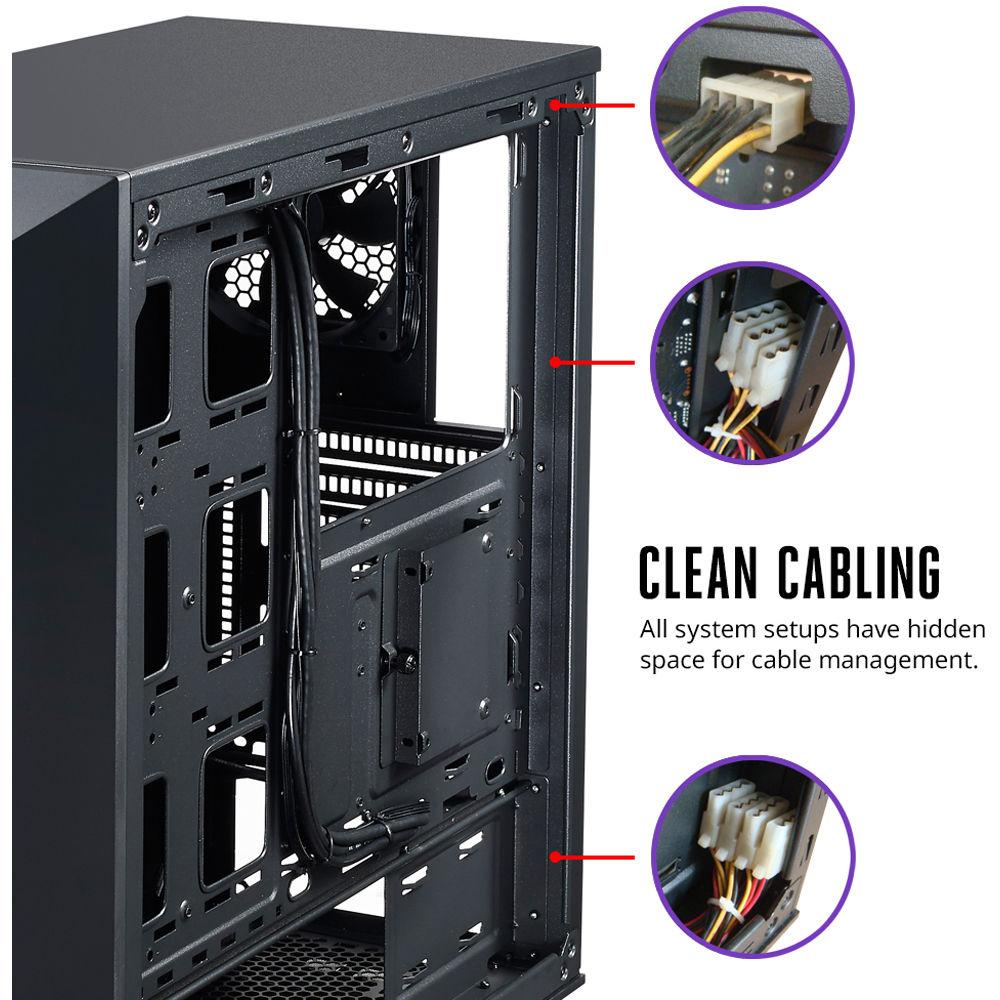

- Cable management system hides your cables behind the motherboard tray
- Windowed side panel lets you view your components
- Supports three 120mm fans including two at the front and one at the back or a 280mm front radiator with an optional bracket
- Safeguard your peripherals with a StormGuard security system
UPC: 884102028786 In the Box Cooler Master Masterbox 5 Mid-Tower Case (Black) Limited 2-Year Warranty Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master Masterbox 5 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master MCX-B5S1-KWNN-11 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 2 x 2.5"
1 x 2.5" | | Maximum GPU Length | 16.1" / 41 cm | | CPU Cooler Height | 6.6" / 16.7 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Front) | 1 x 120 mm
Or
1 x 140 mm
| | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Maximum Radiator Size (Front) | 280 mm | | Maximum Radiator Size (Rear) | 120 mm | | Fan Controller Included | No | | Filter Locations | Front, Bottom | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | 1.4" / 35 mm | | Dimensions (W x H x D) | 19.7 x 8.7 x 18.7" / 50.0 x 22.0 x 47.5 cm | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 22.5 x 22.5 x 11.0" |
