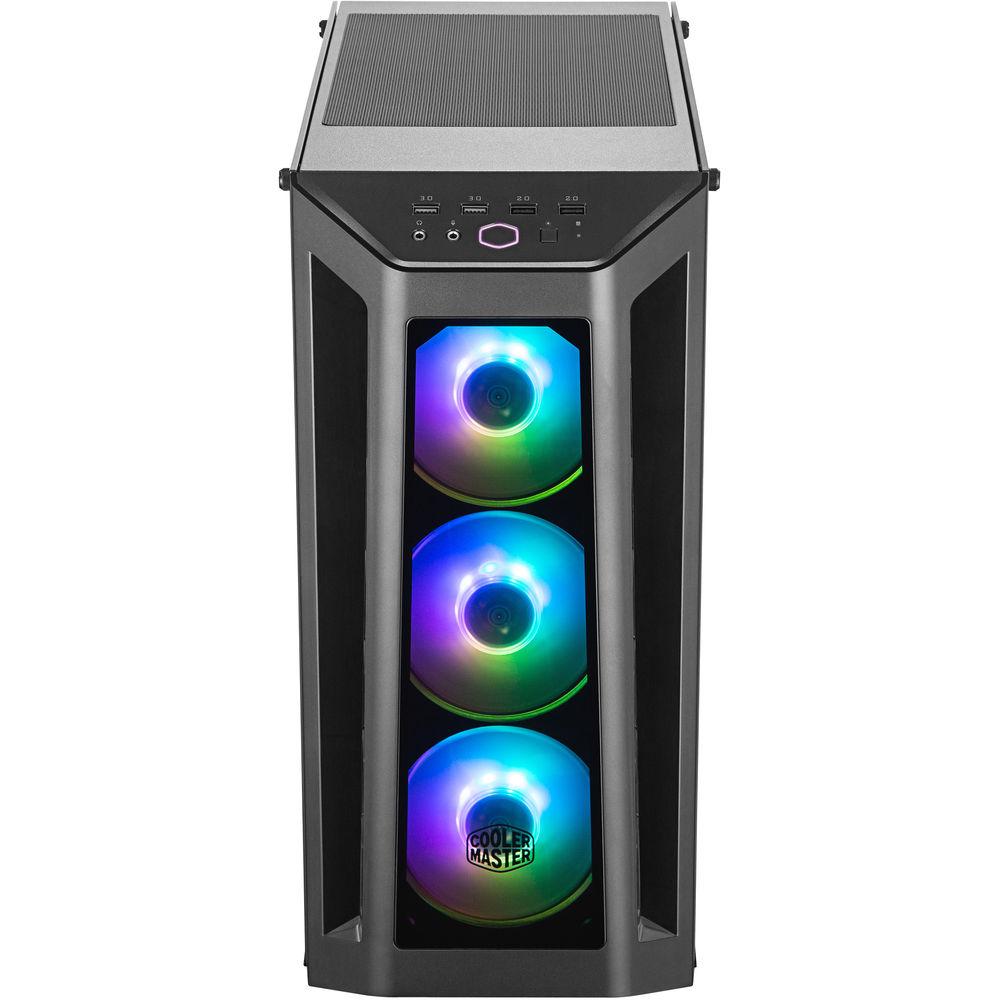

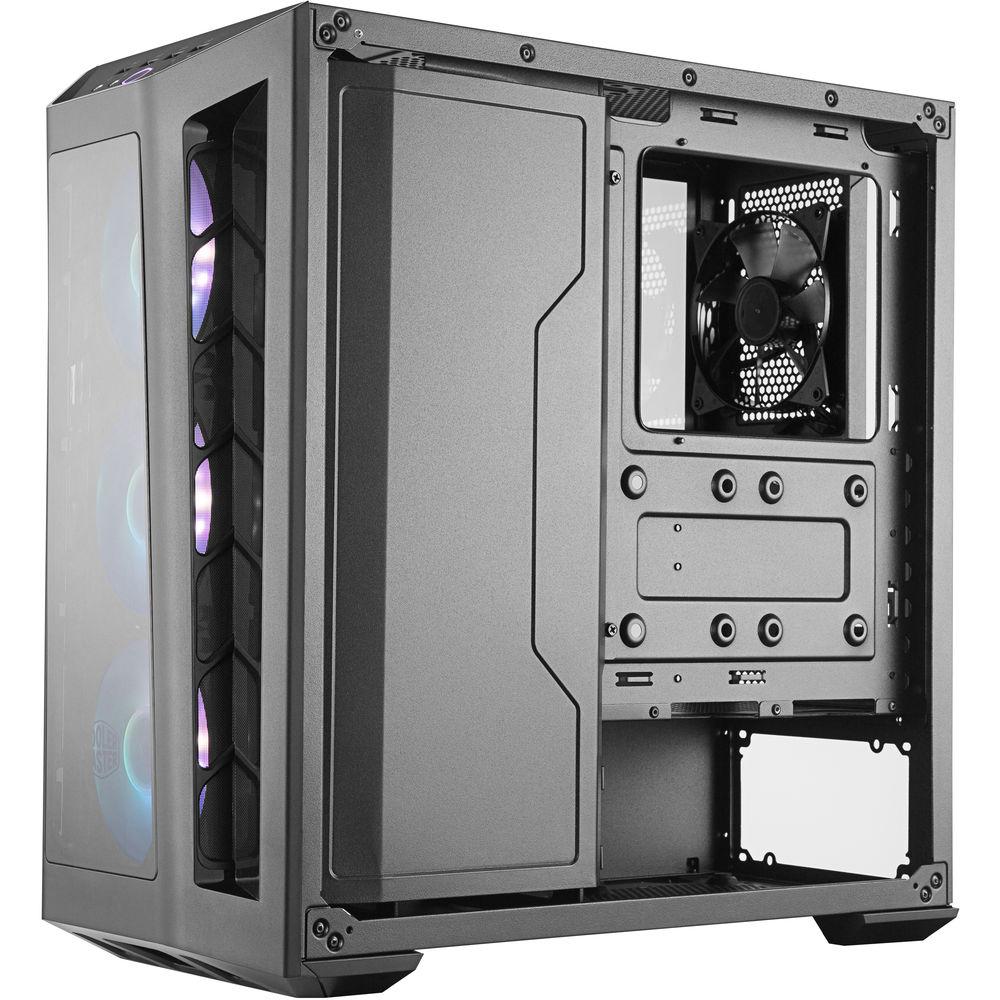

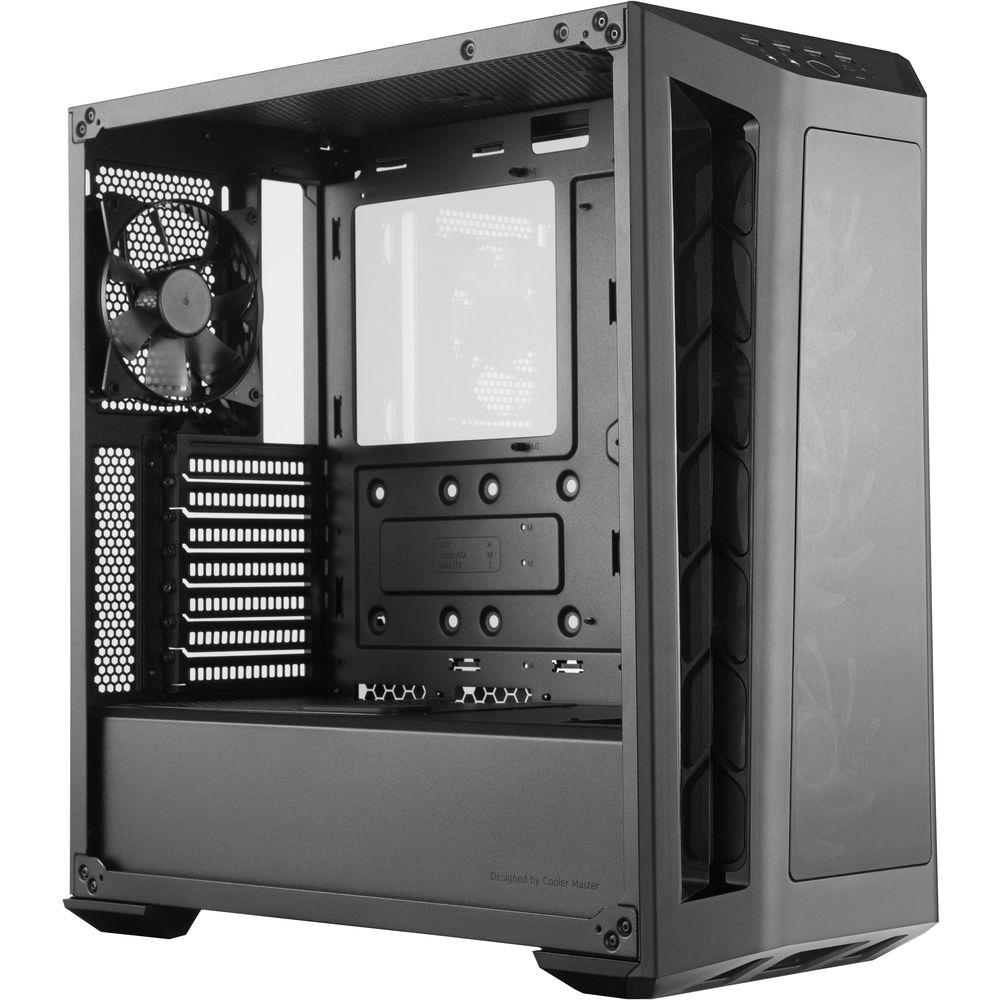

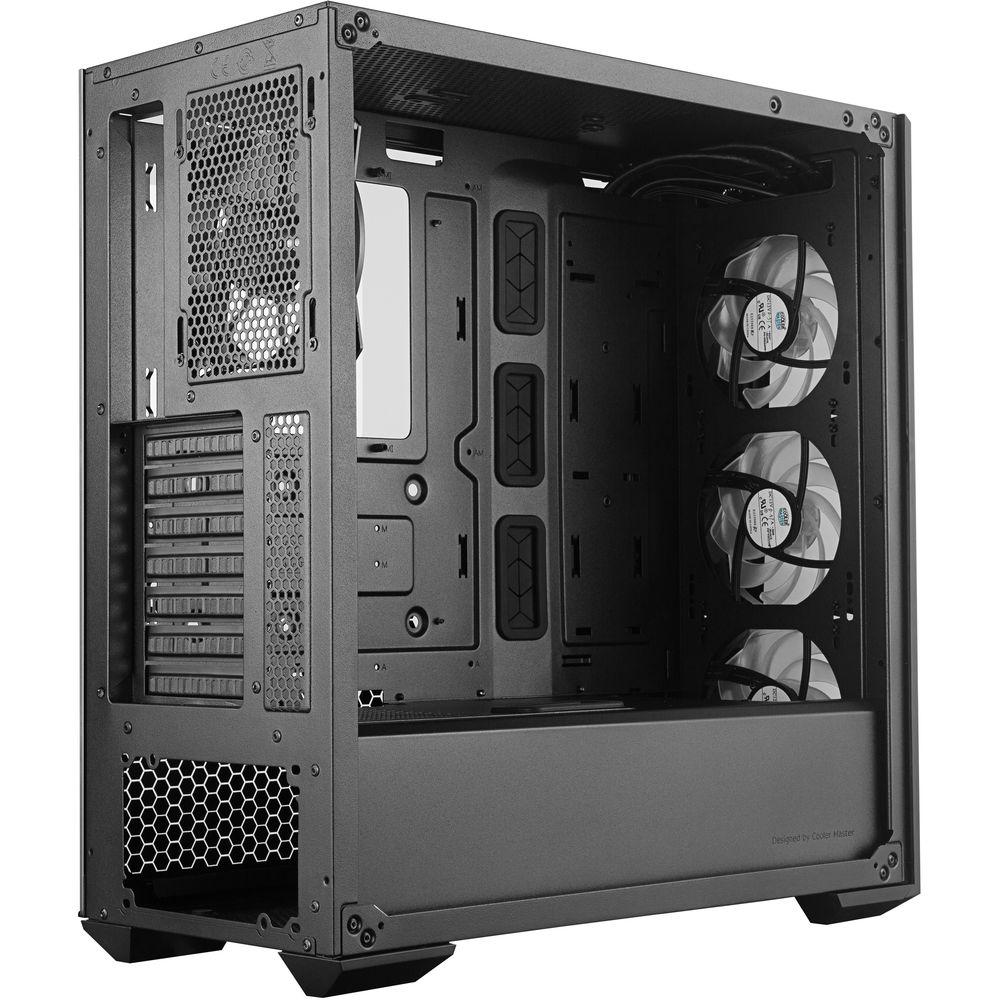

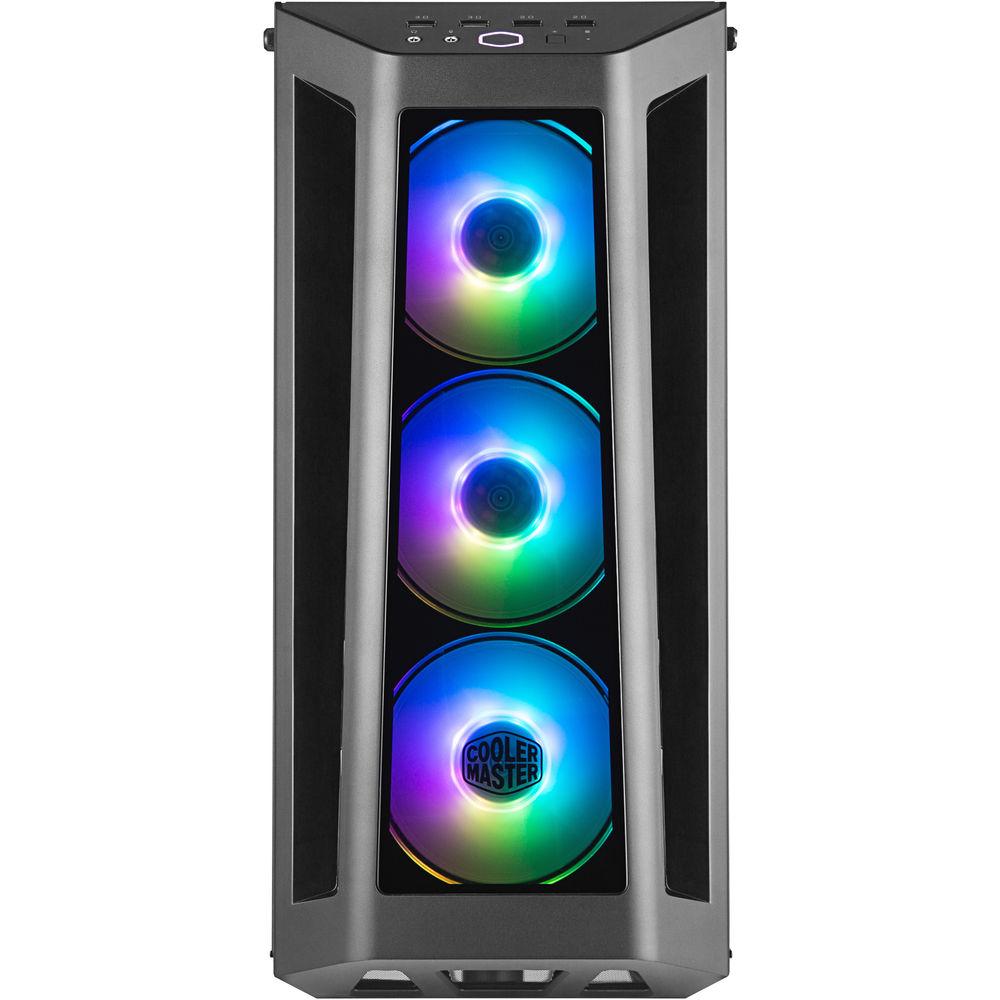

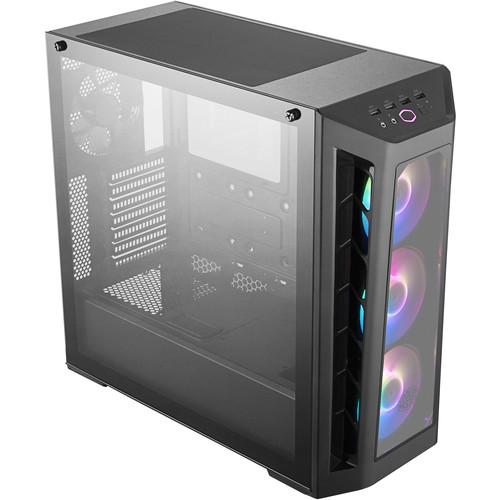

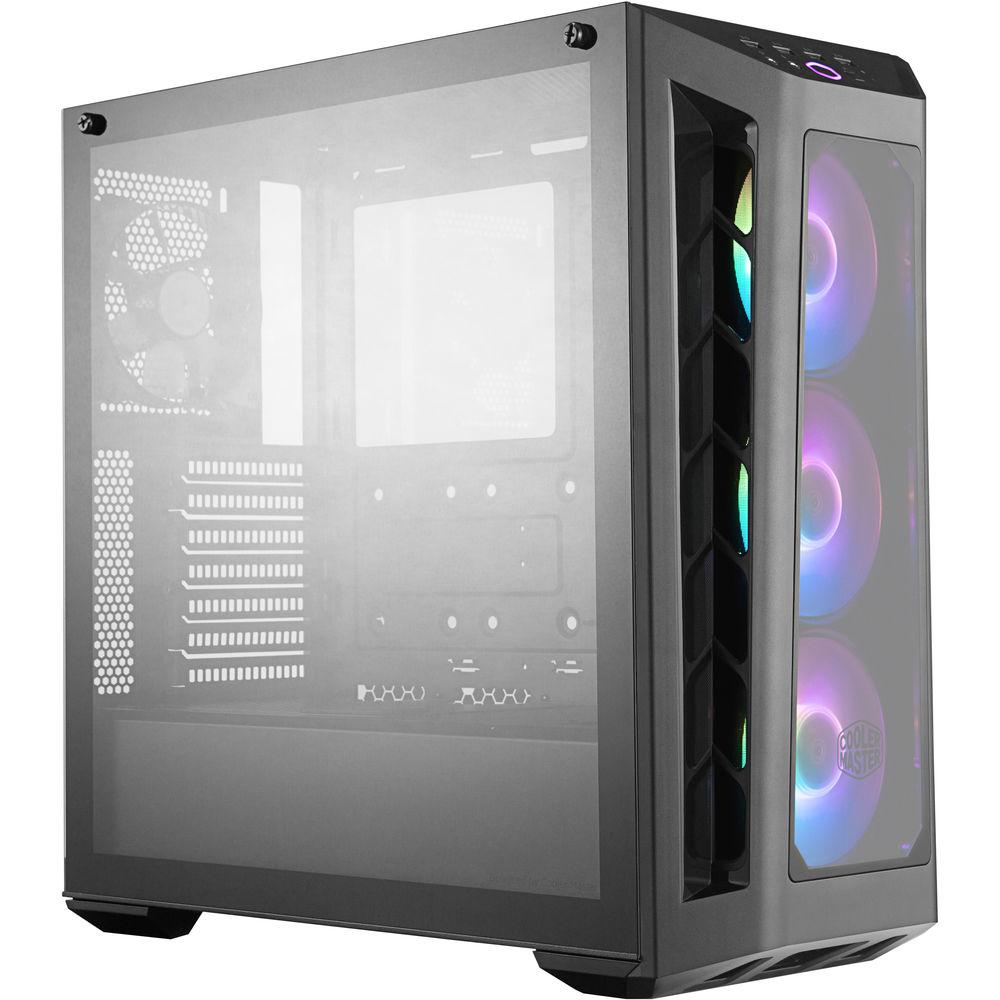

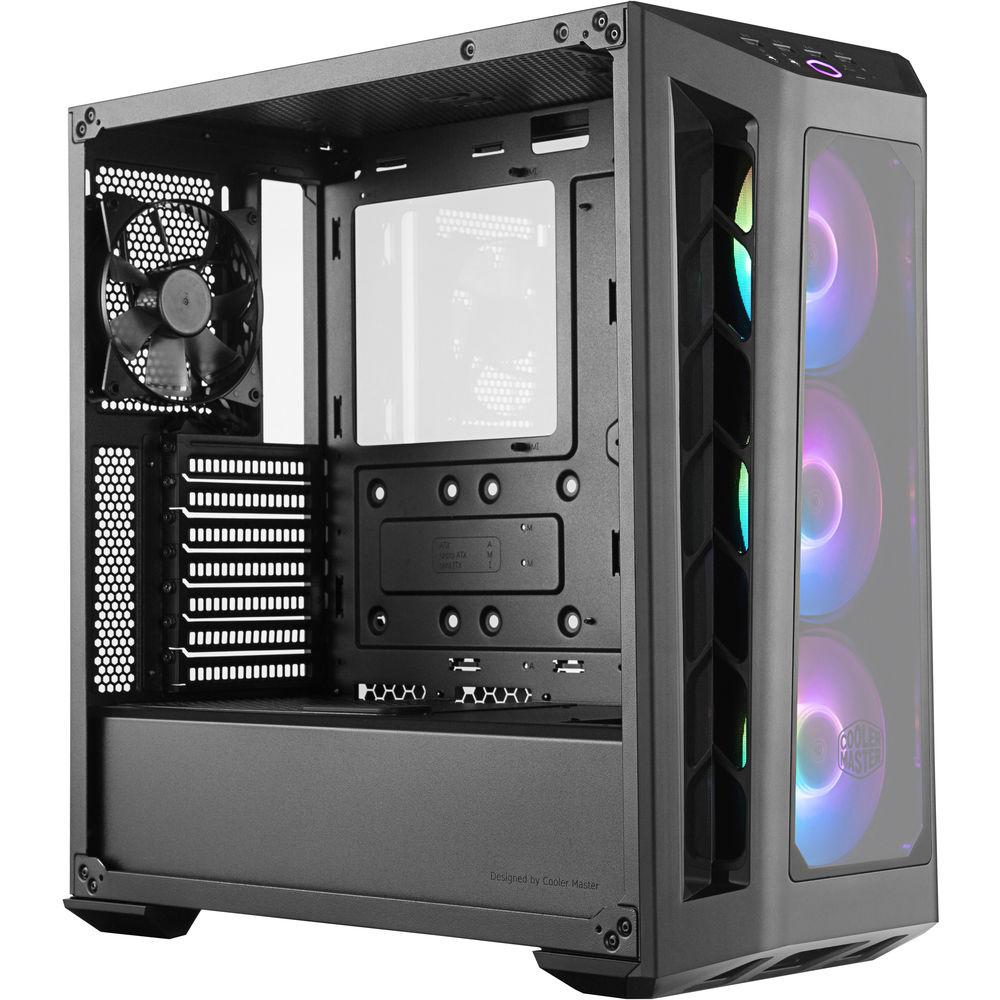

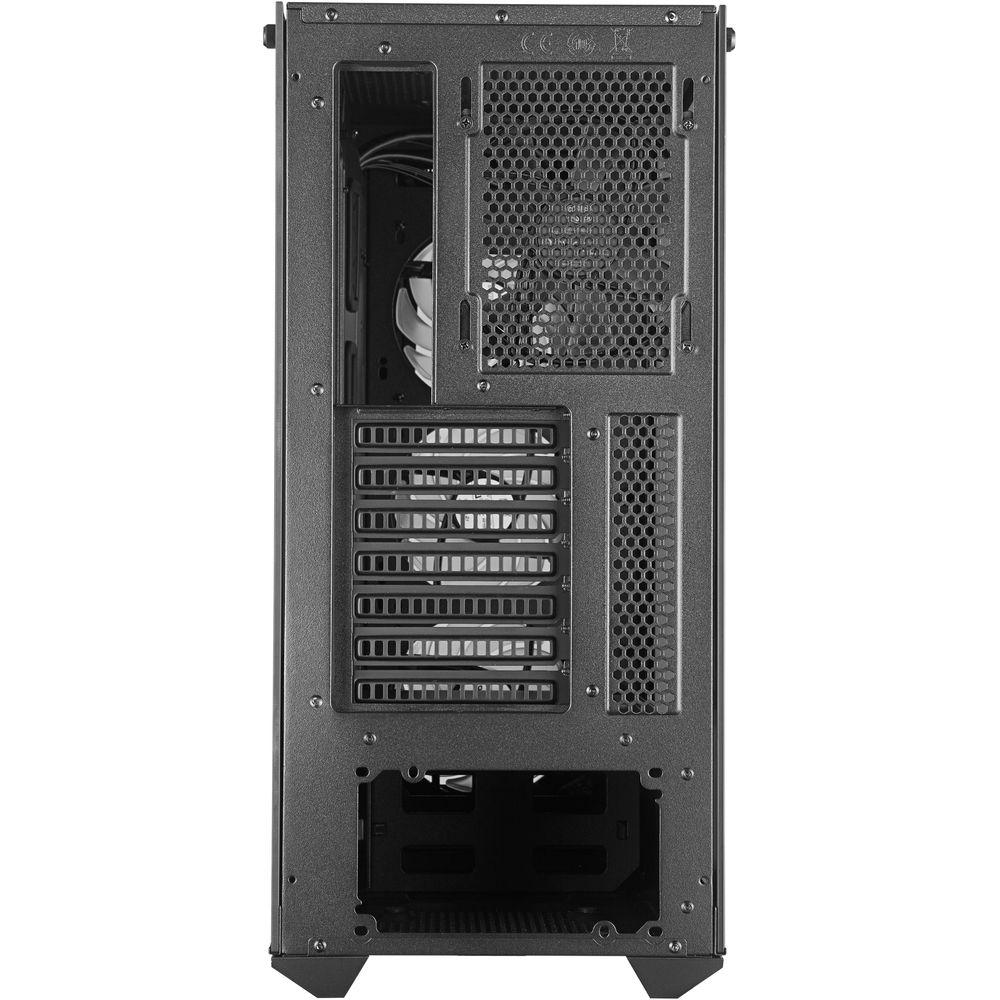

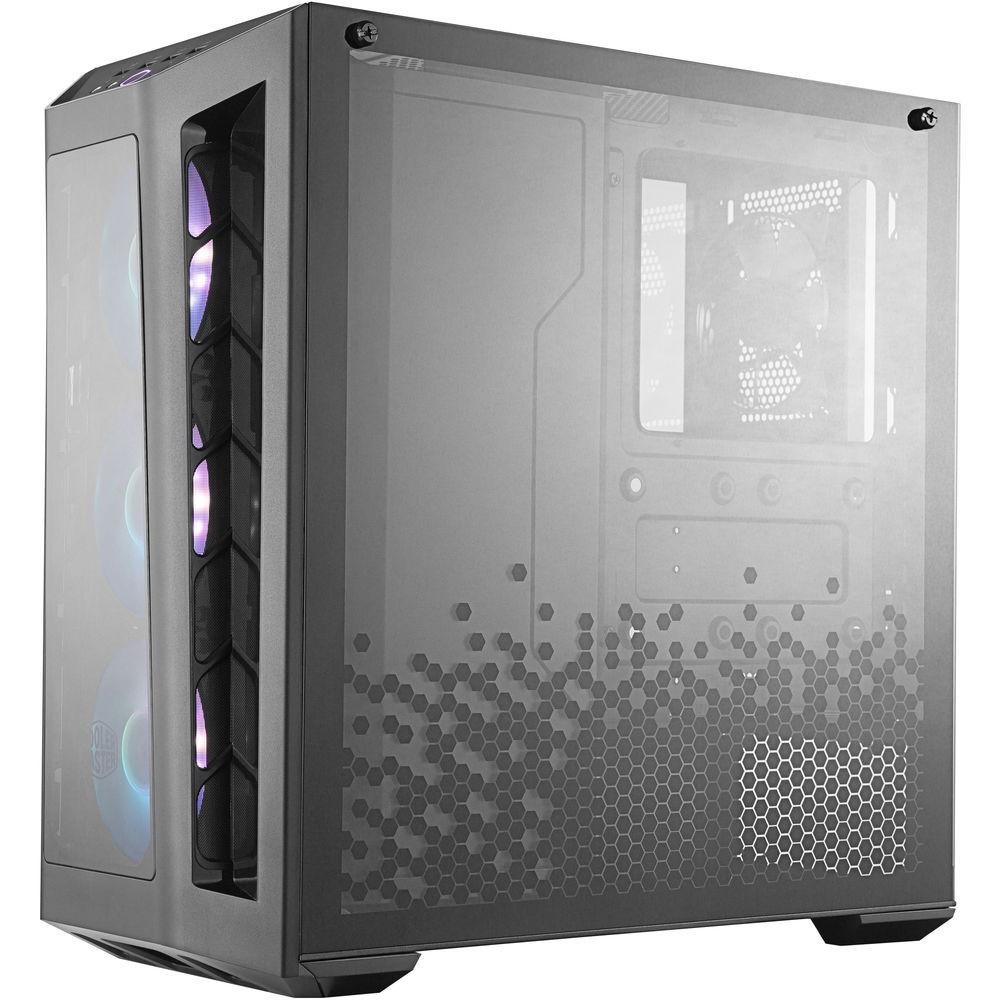

Product description The MasterBox MB530P Mid-Tower Case from Cooler Master is a stylish case with three tempered glass panels and customizable RGB lighting support. Moreover, it has a dedicated RGB lighting button on its front I/O and comes with a 2-to-3 ARGB splitter for connecting compatible devices. Inside, it can fit up to an ATX motherboard, two 3.5" drives, four 2.5" drives, and seven single-slot PCIe cards. For cooling, it comes with four pre-installed 120mm fans: three RGB ones at the front and a regular non-RGB fan at the back. It also supports up to a 360mm radiator at the front should you opt for liquid cooling. -
- Three tempered glass panels
- Large intakes on the front panel
- Four 120mm fans included, (3 x RGB)
- Addressable RGB fans with lighting control
- Compatible with Asus, Gigabyte, MSI, and ASRock motherboards
- Support for up to a 360mm radiator
- PSU shroud, cable cover, and cable management space
UPC: 884102047138 In the Box Cooler Master MasterBox MB530P Mid-Tower Case Limited 1-Year Warranty User Manual PDF 11.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MasterBox MB530P Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master MasterBox MB530P Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 2 x 3.5"
4 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 16.14" / 410 mm | | CPU Cooler Height | 6.50" / 165 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.09" / 180 mm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 3 x 120 mm LED (1200 rpm) | | Fans Included (Rear) | 1 x 120 mm (1200 rpm) | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Top) | 140 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | No | | Filter Locations | Bottom, Front, Top | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel, Plastic | | Built-In Lighting | Yes | | Security | None | | Cable Management Space | 0.98" / 25 mm | | Dimensions (W x H x D) | 9.0 x 18.5 x 19.3" / 229.0 x 469.0 x 489.0 mm | | | | Package Weight | 21.87 lb | | Box Dimensions (LxWxH) | 22.0 x 21.25 x 11.25" |
