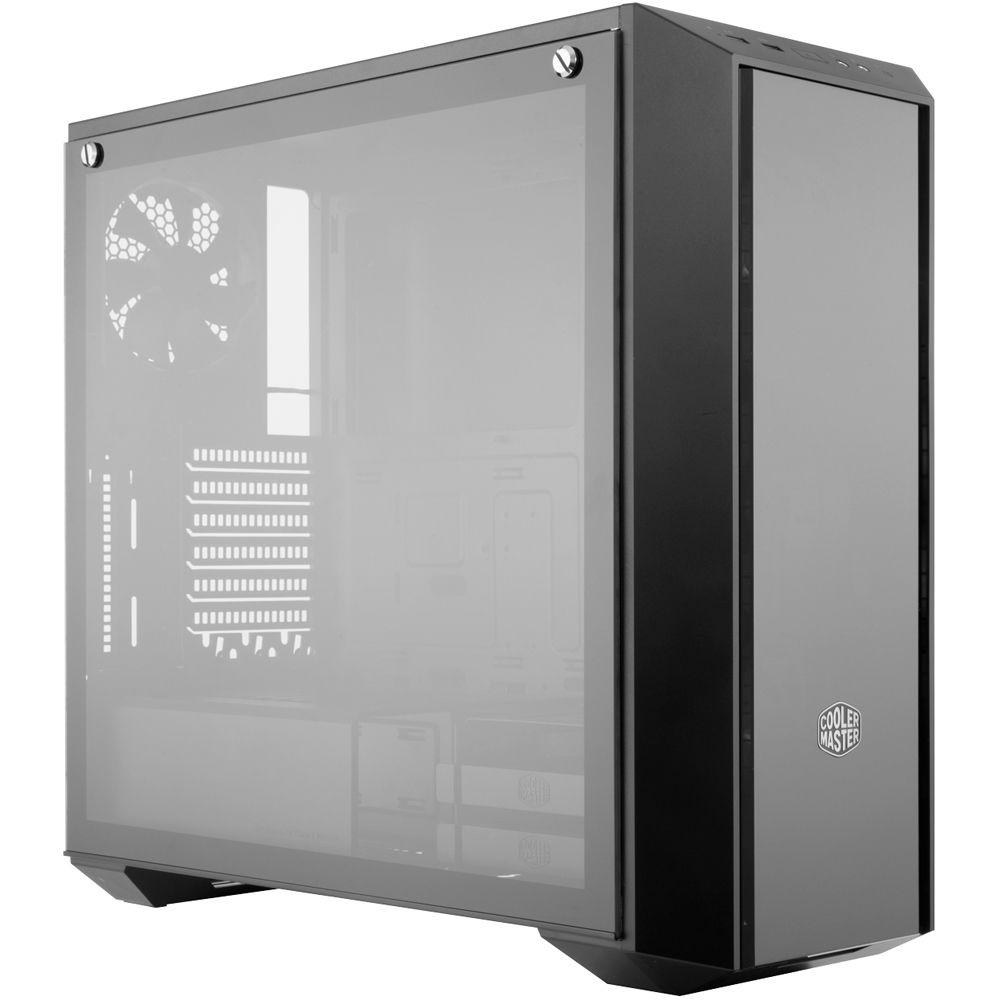

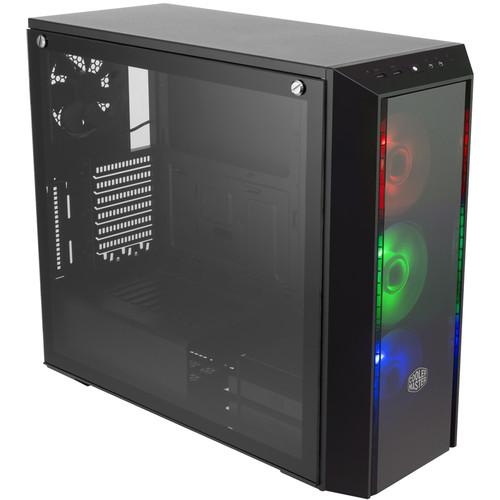

User Manual for Cooler Master MasterBox Pro 5 RGB Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the Cooler Master MasterBox Pro 5 RGB
- Product category: Desktop Computer Cases Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Desktop Computer Cases
 |
User manual for the Cooler Master MasterBox Pro 5 RGB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

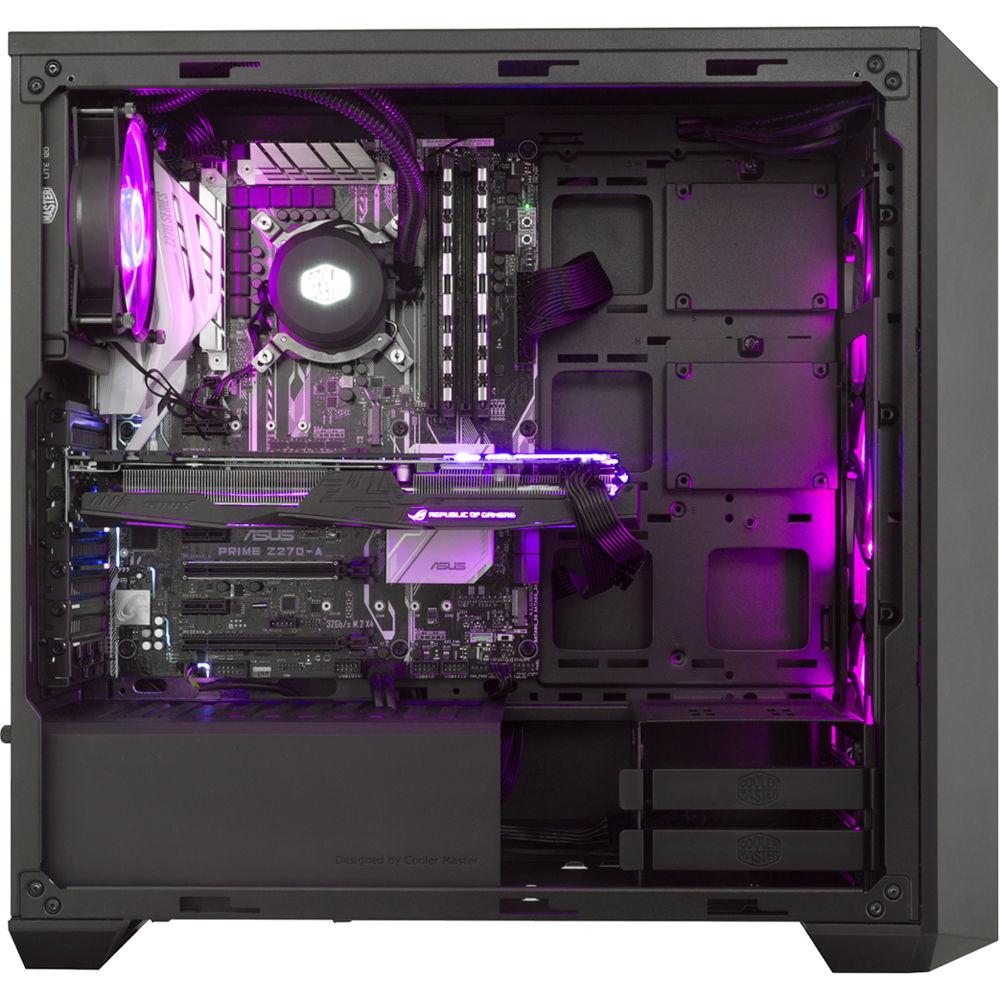

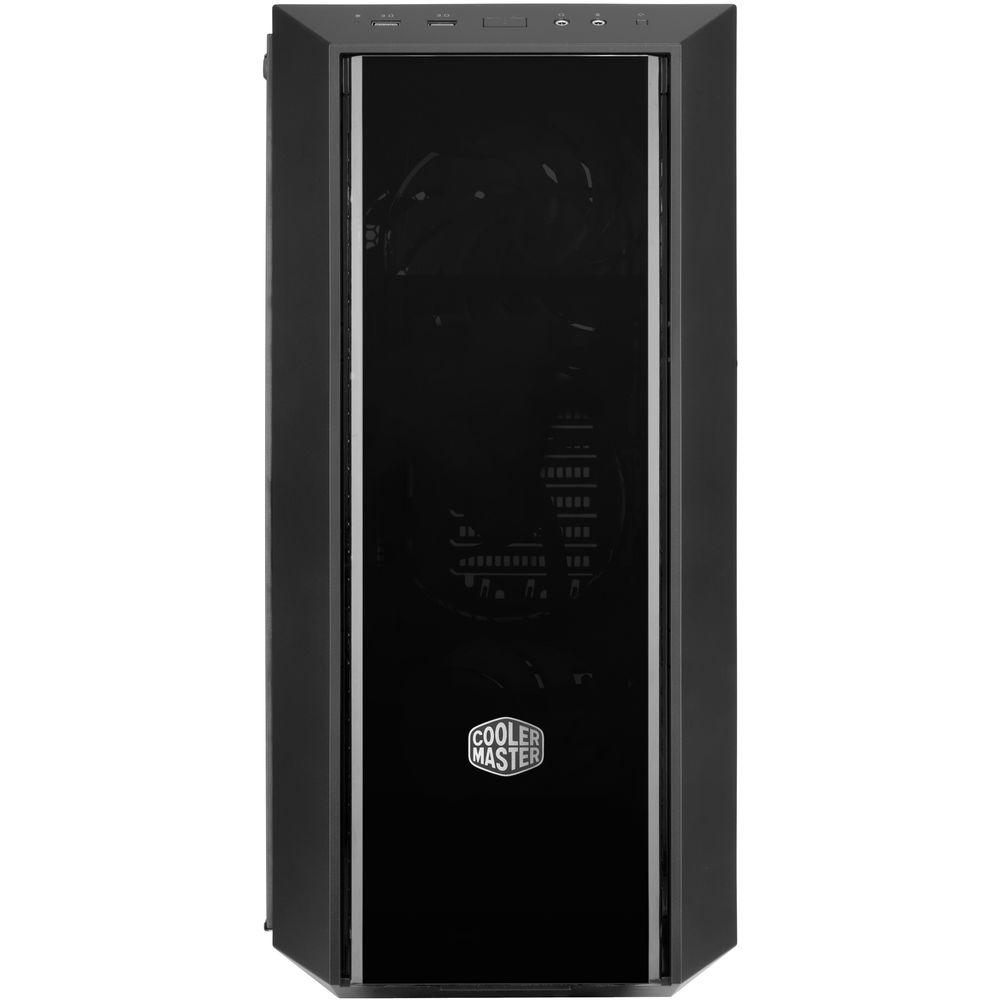

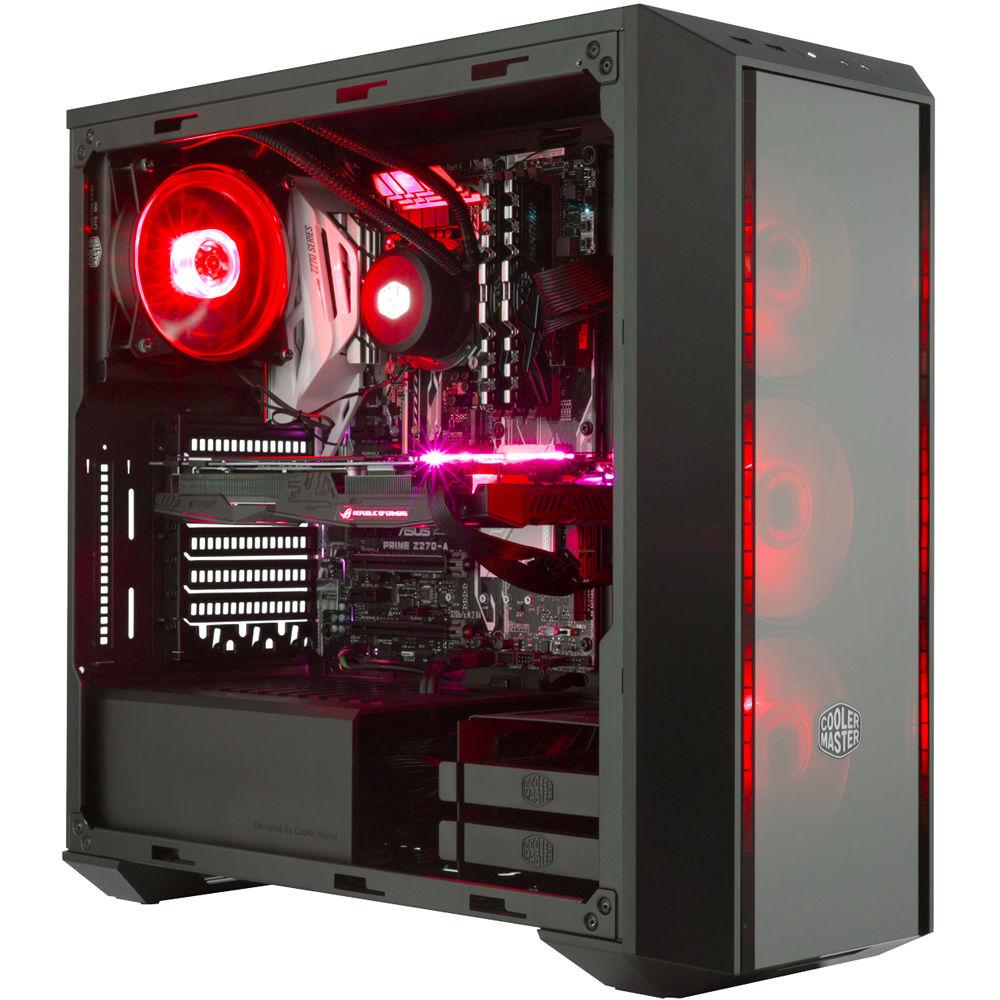

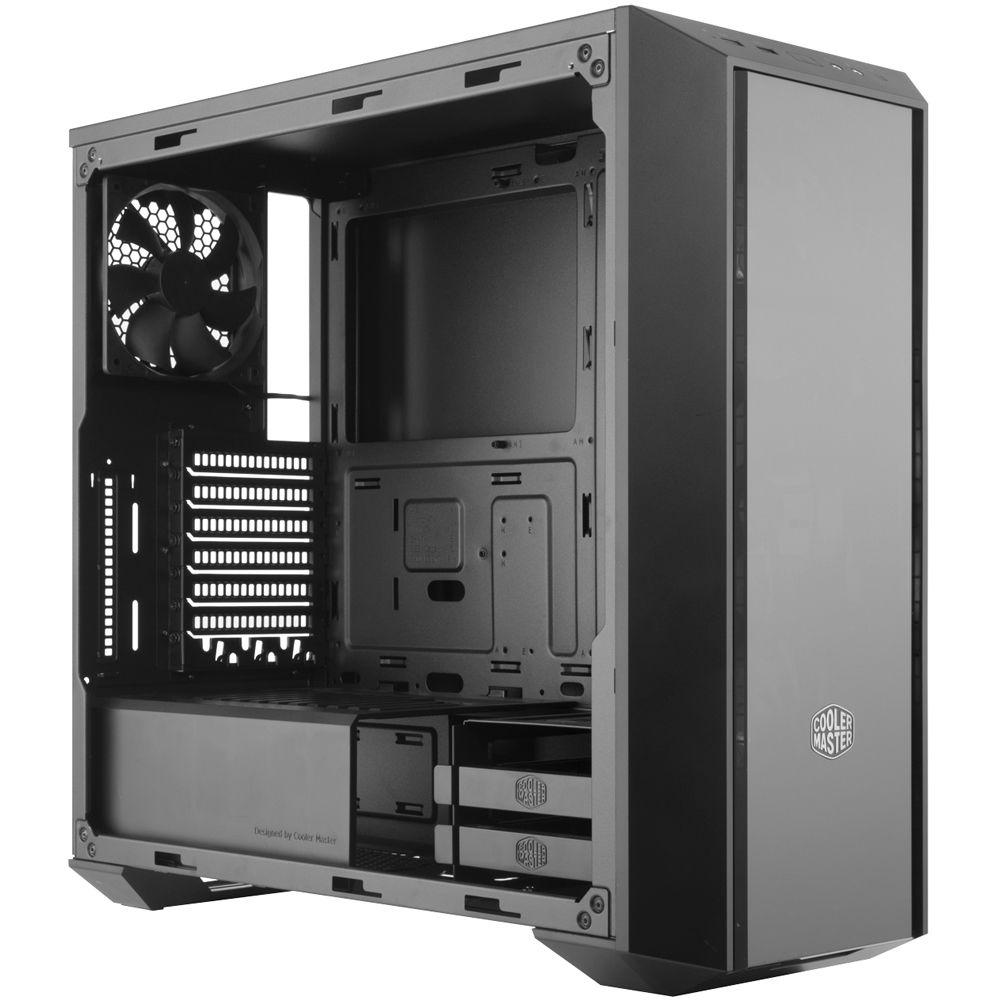

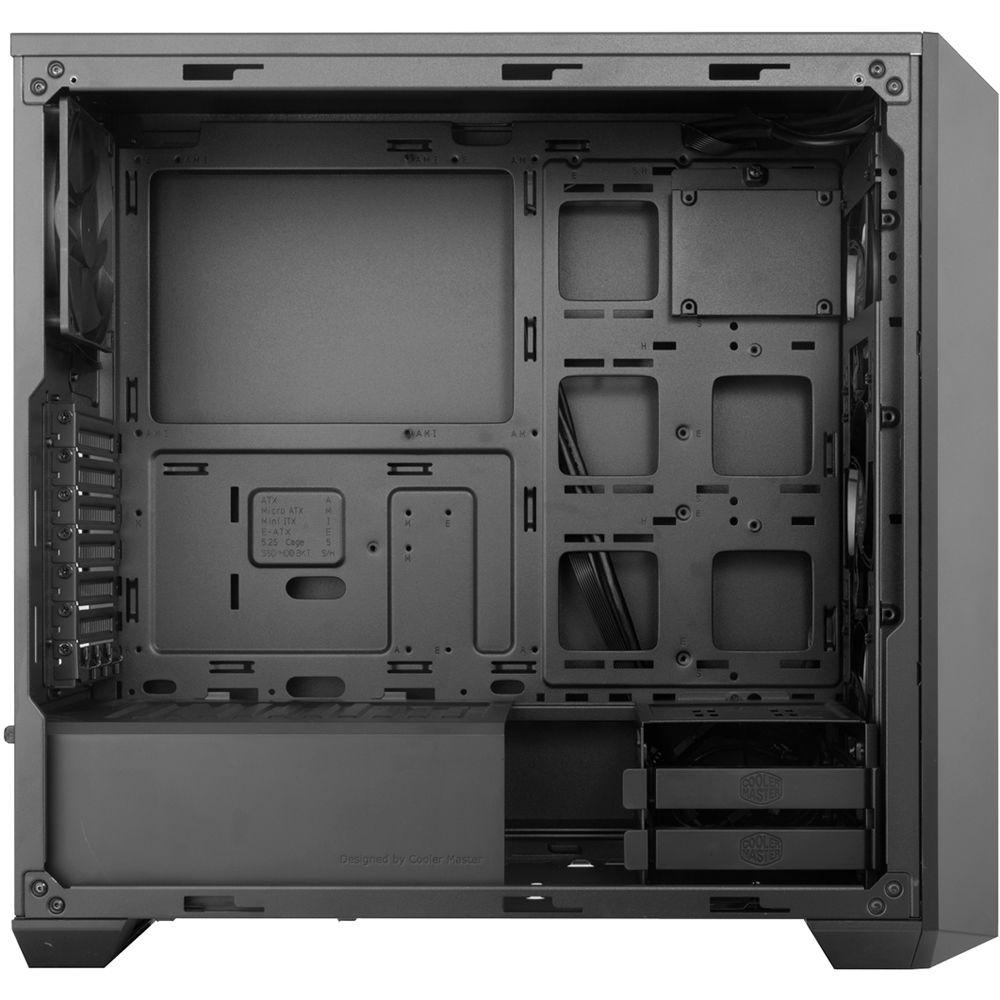

Product description The MasterBox Pro 5 RGB Mid-Tower Case from Cooler Master supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards. The case features two 3.5"/2.5" combo drive bay, two 2.5" SSD drive bays, and seven expansion slots. It comes pre-installed with one 120mm rear fan and three 120mm RGB fans behind the DarkMirror front panel. The interior offers conveniently placed cutouts, making component installation, interior expansion, and multiple interior layouts simple and easy. It can also support large, high-end components, several fans, and DIY liquid cooling. Keep your system looking clean with numerous routing holes and a cover for your PSU. - Easily mount and rearrange SSDs across the motherboard tray and on the back with the SSD bracket
- 1-to-3 splitter cable and 4-pin male-to-male adapters for RGB LED fans included

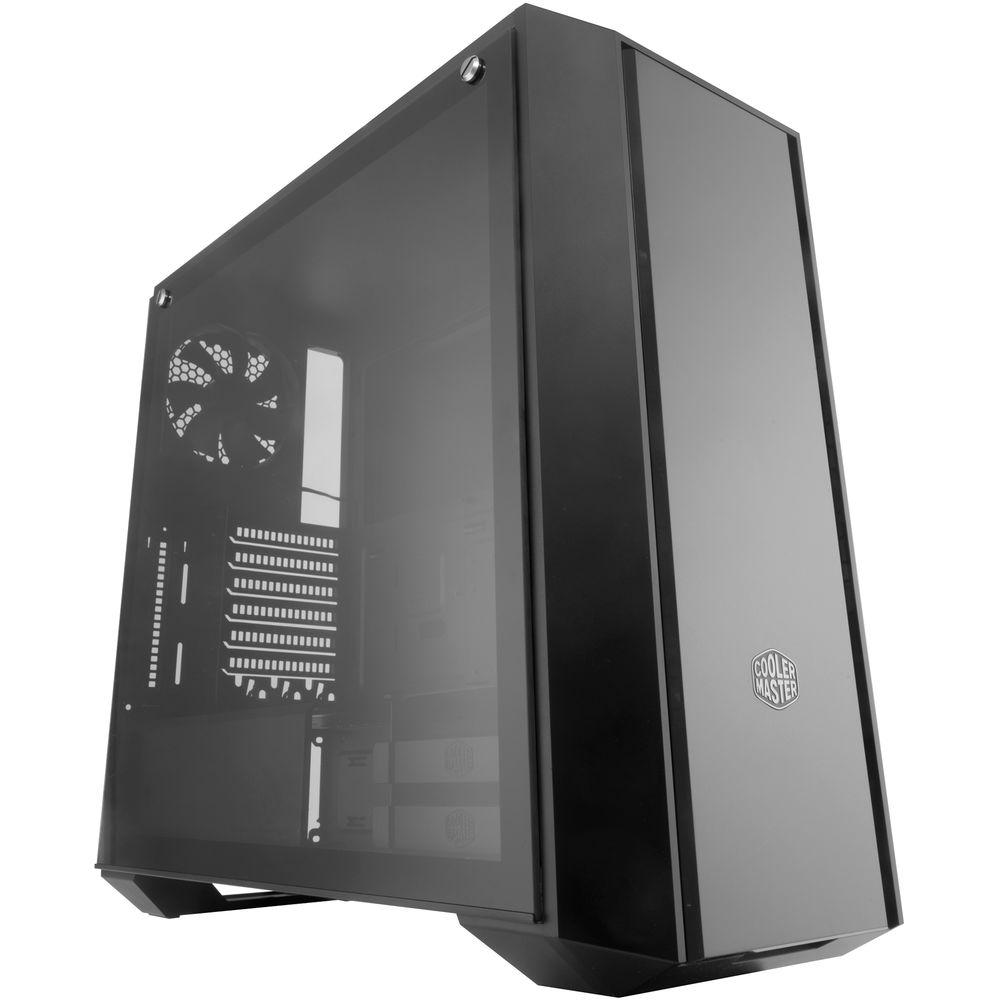

- 4mm thick edge-to-edge tempered glass side panel
- All system setups have hidden space for cable management
UPC: 884102036613 In the Box Cooler Master MasterBox Pro 5 RGB Mid-Tower Case 1-to-3 Splitter Cable 4-Pin Male to Male Adapters Limited 2-Year Warranty Spec sheet PDF 941.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MasterBox Pro 5 RGB Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master MasterBox Pro 5 RGB Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 16.14" / 410 mm | | CPU Cooler Height | 6.57" / 167 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.09" / 180 mm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm

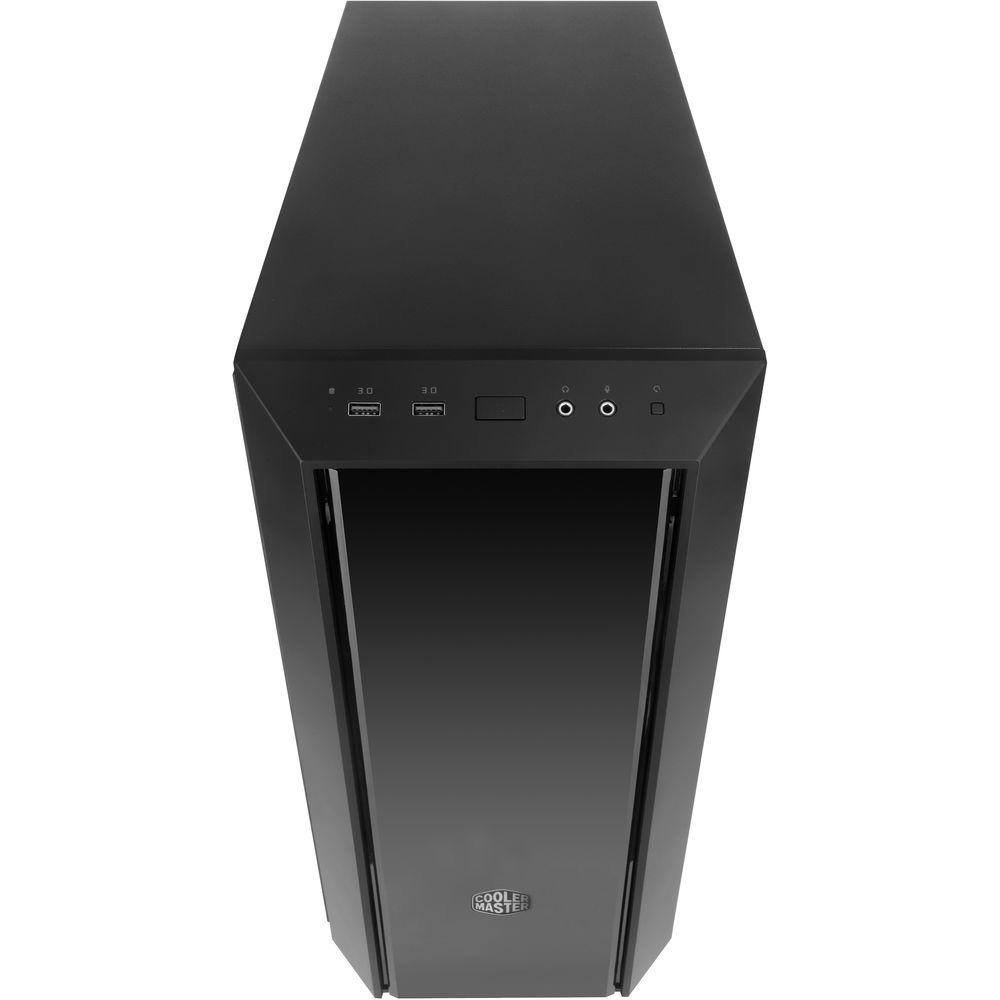

| | Fan Mounting (Side) | None | | Fan Mounting (Top) | None | | Fan Mounting (Bottom) | None | | Fans Included (Front) | 3 x 120 mm LED | | Fans Included (Rear) | 1 x 120 mm | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Fan Controller Included | No | | Filter Locations | Bottom, Front | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel, Plastic | | Built-In Lighting | Yes | | Cable Management Space | 1.38" / 35 mm | | Dimensions (W x H x D) | 8.8 x 18.7 x 19.7" / 223.0 x 475.0 x 500.0 mm | | Weight | 19.2 lb / 8.7 kg | | | | Package Weight | 22.2 lb | | Box Dimensions (LxWxH) | 22.38 x 22.0 x 10.88" |
