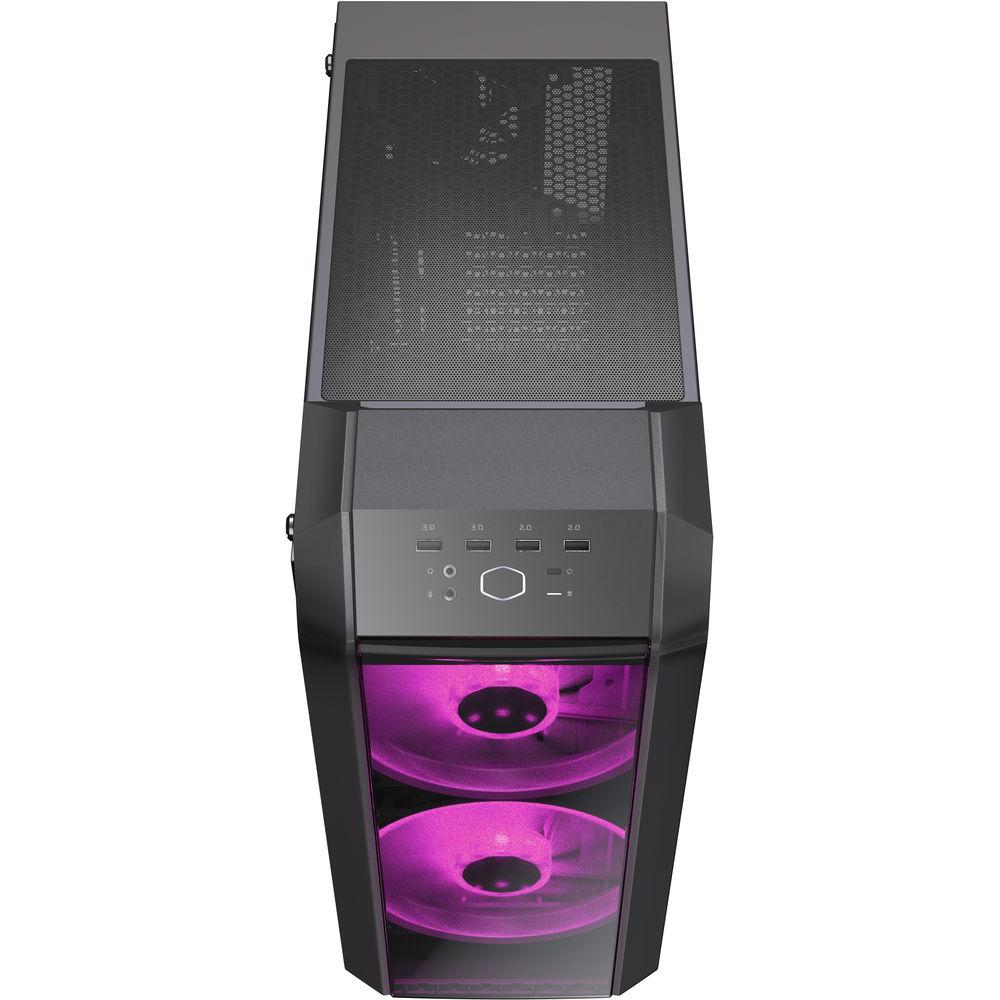

User Manual for Cooler Master MasterCase H500 Mid Tower Desktop Case Click to enlarge the picture
Contents of the user manual for the Cooler Master MasterCase H500 Mid Tower
- Product category: Desktop Computer Cases Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Desktop Computer Cases
 |
User manual for the Cooler Master MasterCase H500 Mid Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

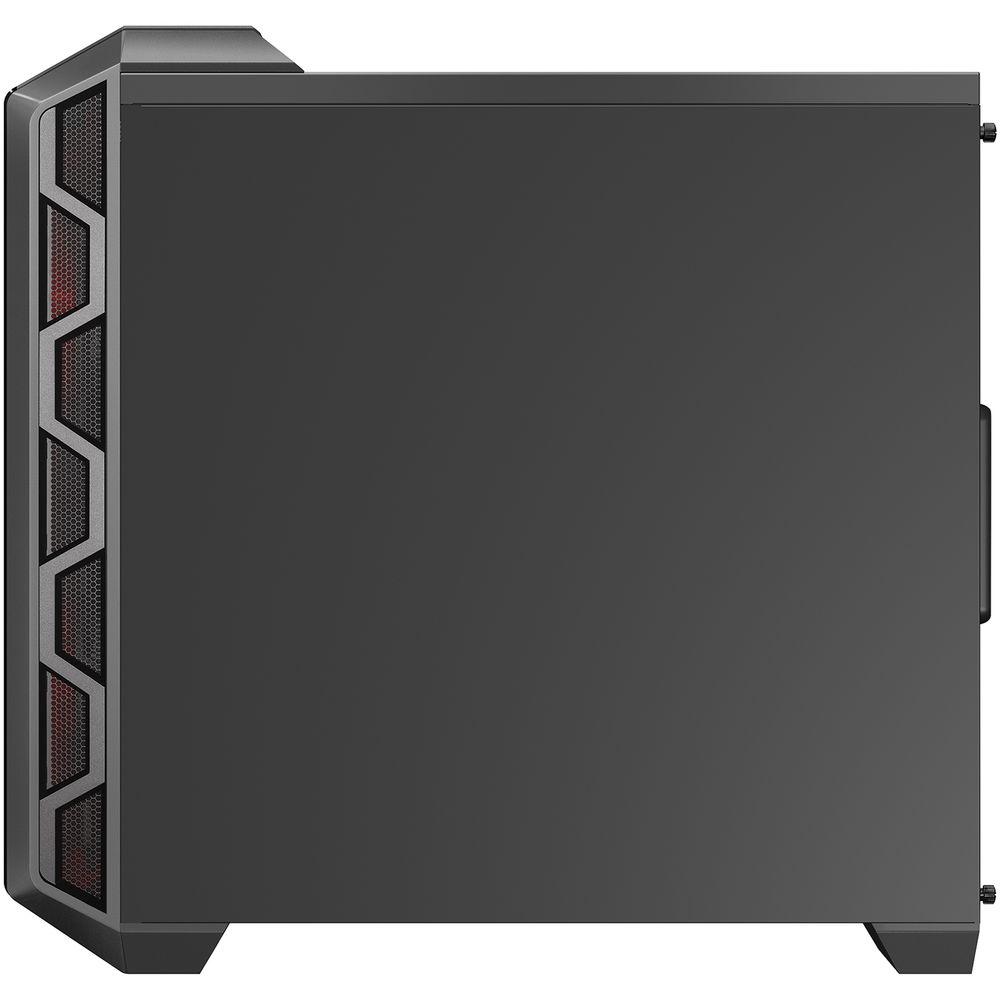

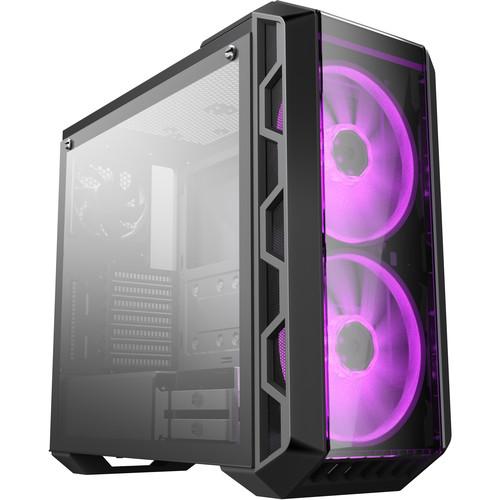

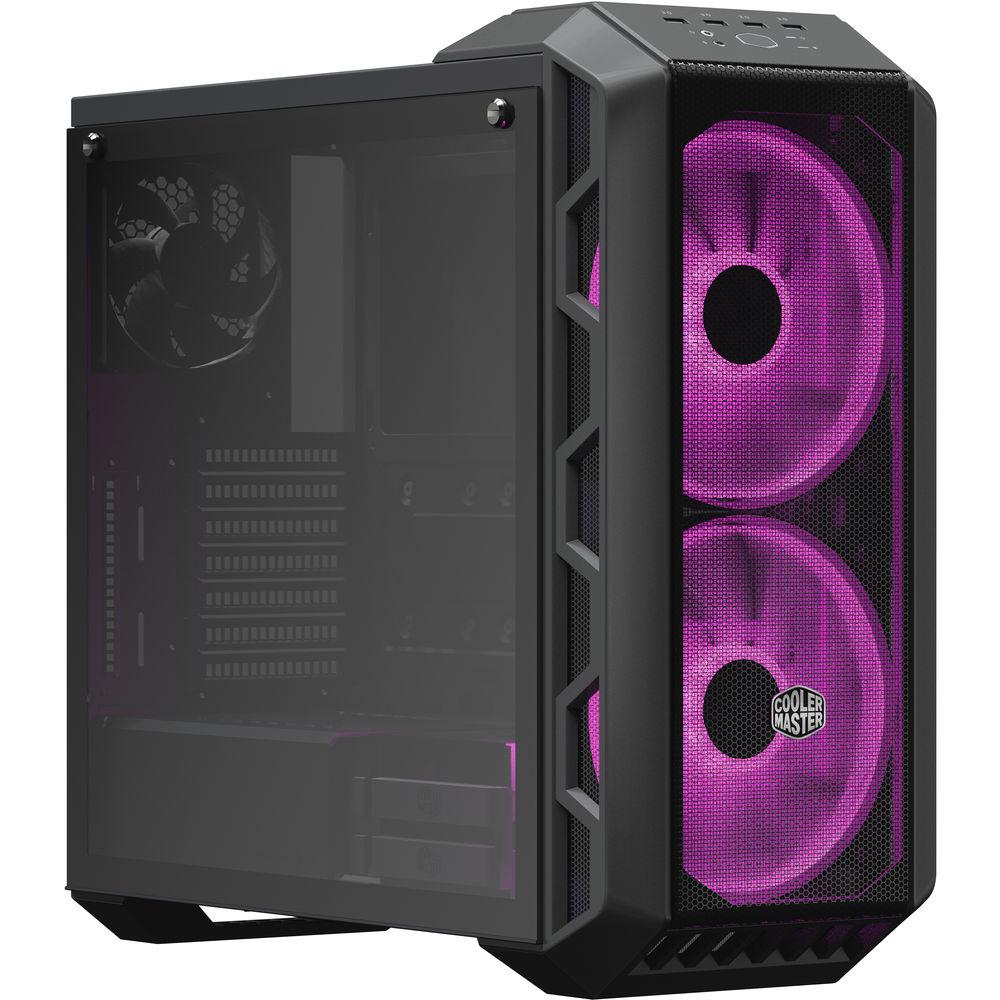

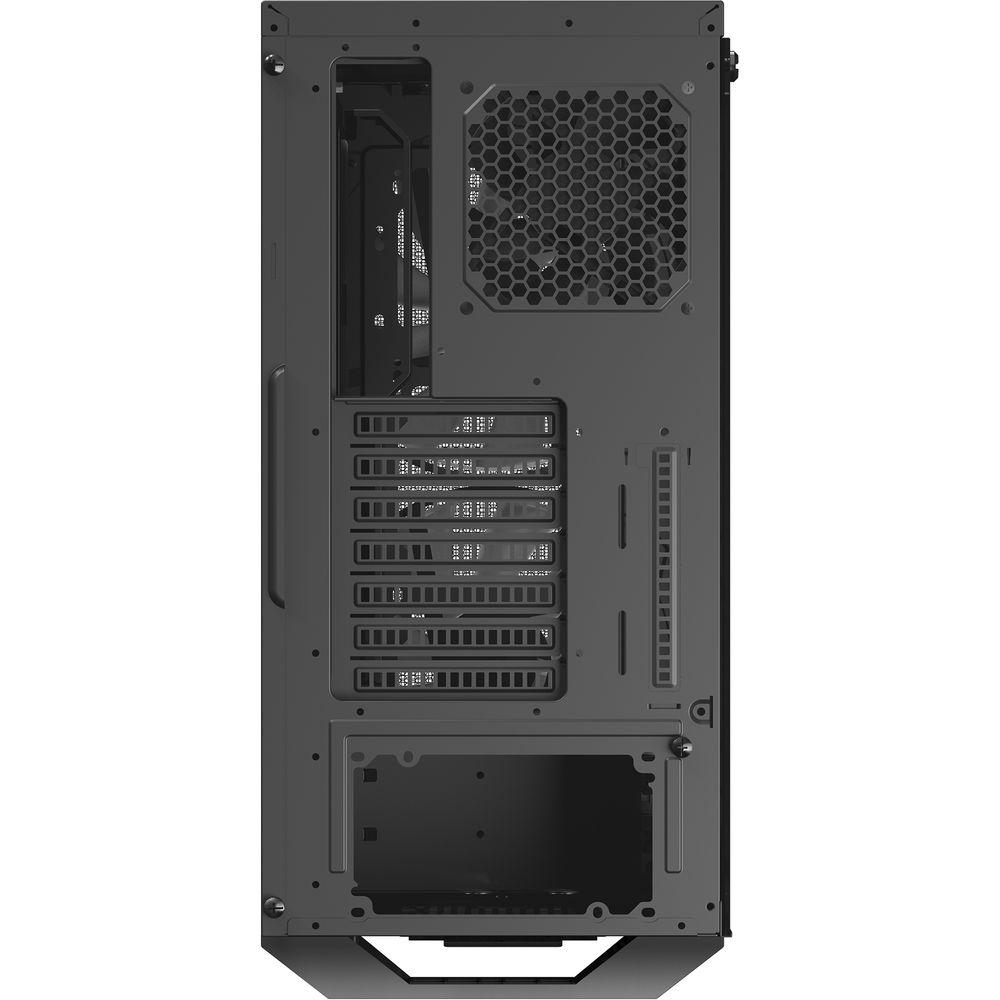

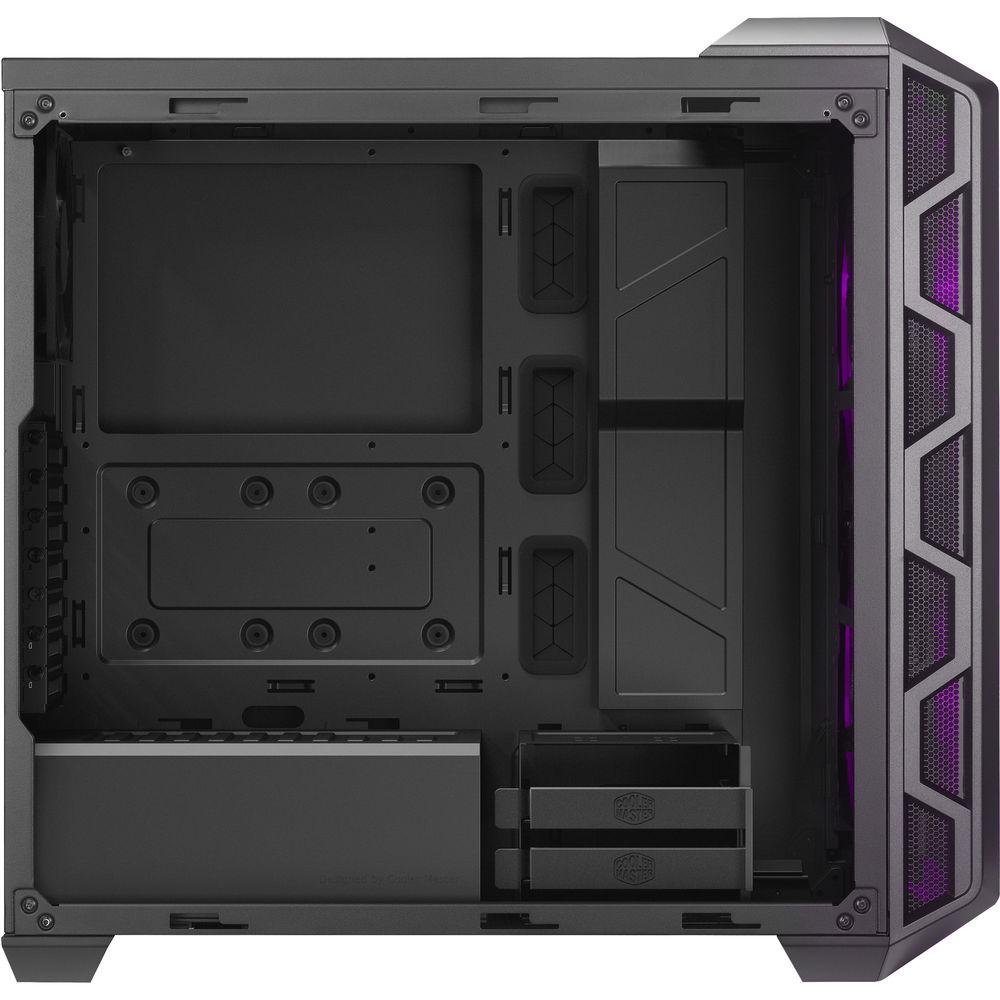

Product description The MasterCase H500 Mid Tower Desktop Case from Cooler Master houses all of your system's components and lets you display them with lighting coming from RGB LED fans along with a tempered glass side panel. The MasterCase H500 can accommodate up to four 2.5" drives, and two of the 2.5" bays can support 3.5" storage drives. With a mid-sized design, the case can hold motherboards up to ATX in size and has seven expansion slots. For connectivity, it offers two USB 2.0 and two USB 3.0 ports as well as a set of 3.5mm audio jacks.

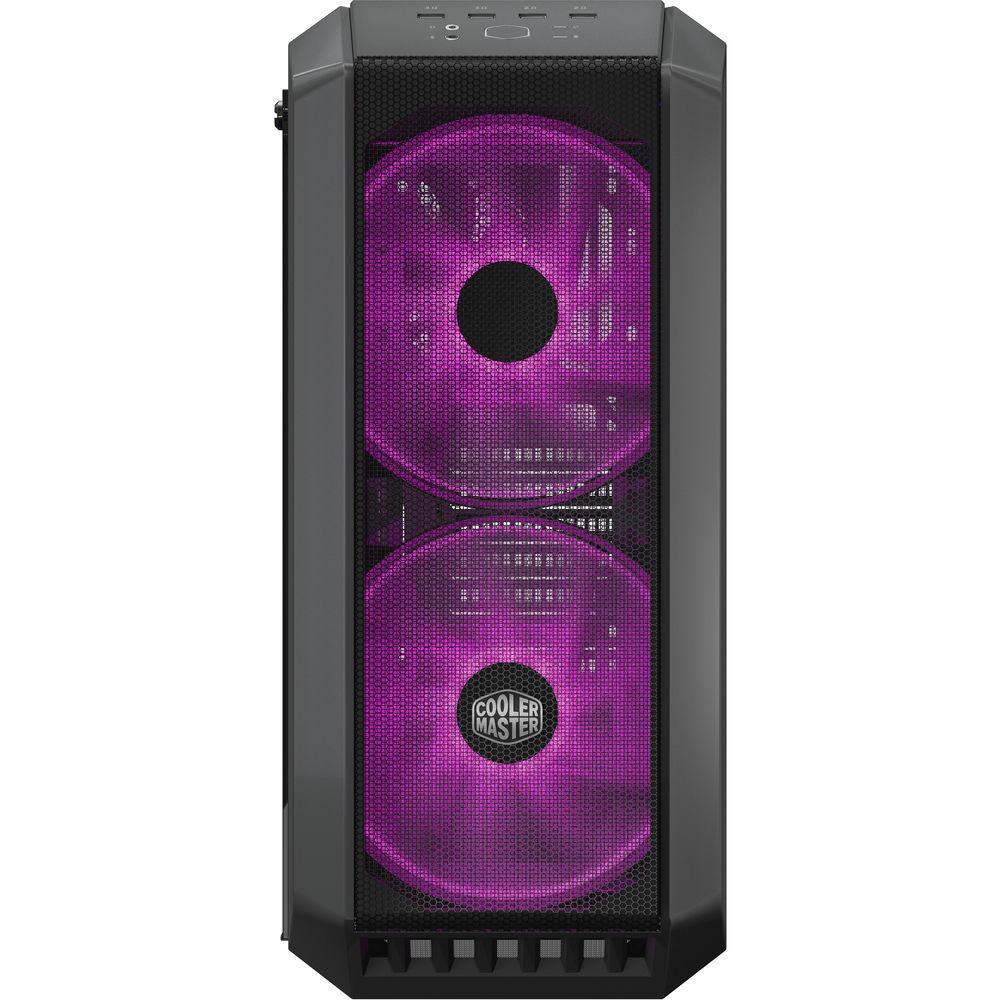

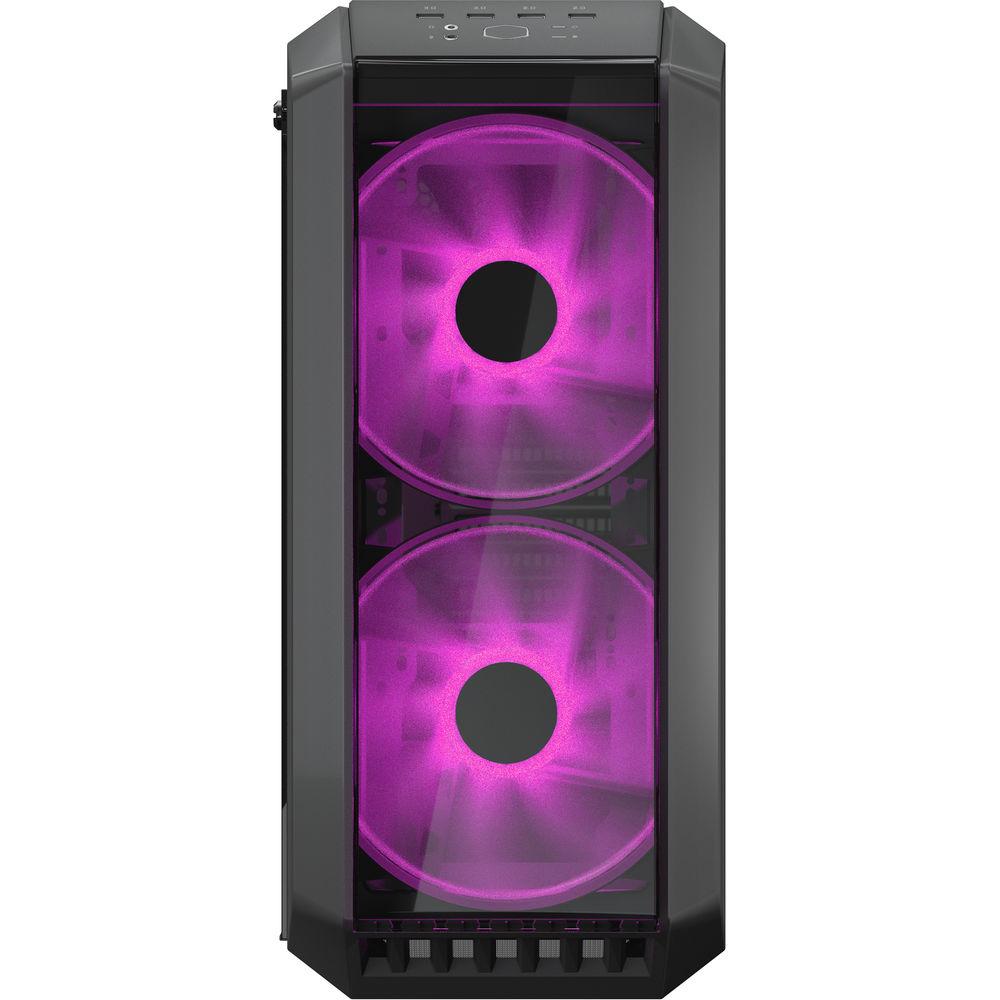

To help keep the air flowing through system at a constant rate, Cooler Master has equipped the case with two 200mm fans as well as one 120mm fan in the rear. Additional cooling is possible using the included mesh front panel and a user-supplied liquid cooling system. A tempered glass panel is also provided for the front. Furthermore, dust filters are mounted to the top, front, and bottom of the MasterCase H500 desktop case. - Mesh and transparent front panels included for optimized airflow or aesthetics
- Managed by an included RGB Controller, two 200mm RGB fans come pre-installed with support for one optional 200mm fan on the top panel

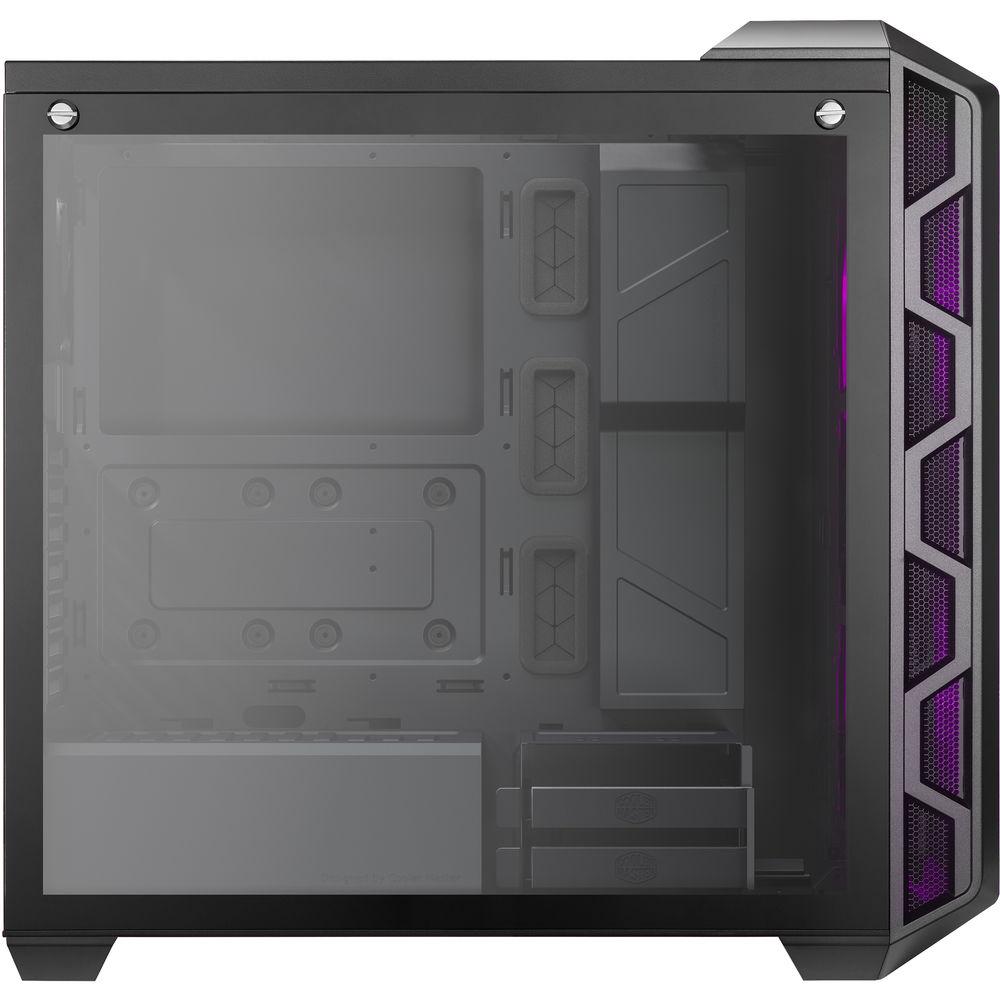

- Light-grey tinted tempered glass side panel for showcasing your build with optional (RGB) lighting
- Cable and PSU cover for clean system builds
- Top magnetic filter allows hot air to flow outside the system for optimal thermal support
- Raised front panel covers a portion of the top panel to act as a handle (supporting up to 44 lb / 20 kg) for transport
UPC: 884102044670 In the Box Cooler Master MasterCase H500 Mid Tower Desktop Case Set of Front Panels Limited 2-Year Warranty Guides & Manuals wwetwvcdqvuvrsarzcvbq Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MasterCase H500 Mid Tower Desktop Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master MasterCase H500 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 16.1" / 408.94 mm | | CPU Cooler Height | 6.5" / 165.10 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 180.34 mm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
Or
2 x 200 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
Or
1 x 200 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 2 x 200 mm LED | | Fans Included (Rear) | 1 x 120 mm | | Fans Included (Top) | None | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Top) | 240 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | Yes | | Filter Locations | Bottom, Front, Top | | | | Connections | 2 x USB Type-A (USB 2.0)
2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel, Plastic, Acrylic | | Built-In Lighting | No | | Security | None | | Cable Management Space | 1.18" / 30 mm | | Dimensions (W x H x D) | 9.0 x 20.7 x 19.8" / 228.0 x 525.0 x 502.0 mm | | | | Package Weight | 23.4 lb | | Box Dimensions (LxWxH) | 24.0 x 22.25 x 11.5" |
