User Manual for Cooler Master MasterCase H500M Mid Tower Desktop Case Click to enlarge the picture
Contents of the user manual for the Cooler Master MasterCase H500M Mid Tower
- Product category: Desktop Computer Cases Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Desktop Computer Cases
 |
User manual for the Cooler Master MasterCase H500M Mid Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

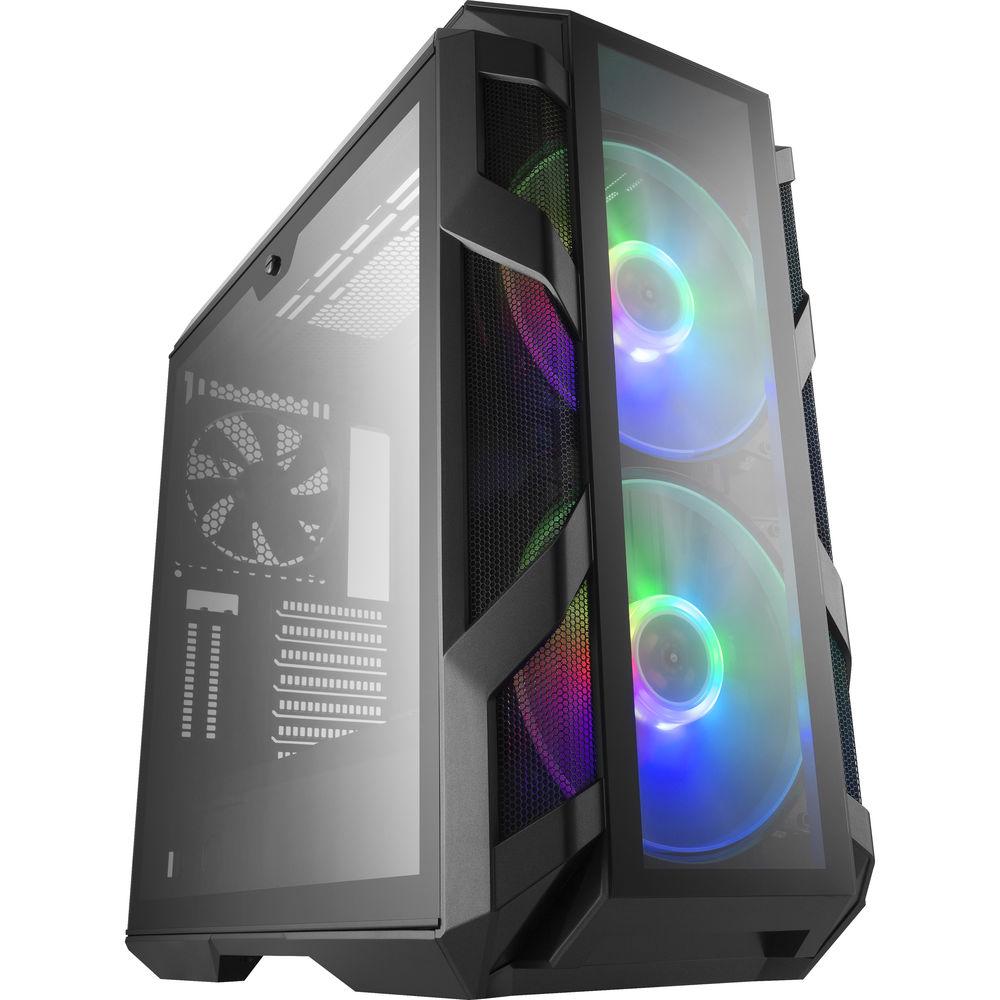

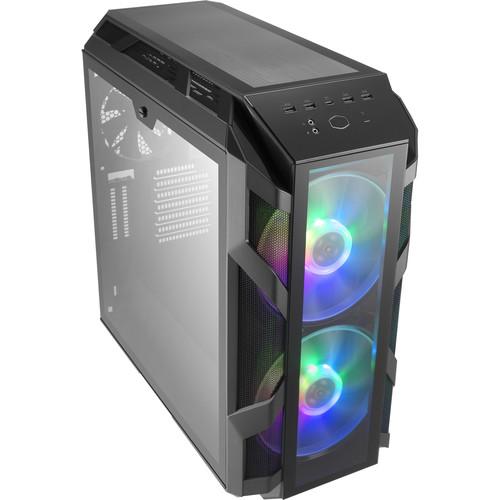

Product description The MasterCase H500M Mid Tower Desktop Case from Cooler Master lets you build a custom computer system that sports a motherboard up to E-ATX in size as well as multiple storage drives and graphics cards. A support arm is provided to hold a large, heavy graphics card, while a shroud hides the power supply and excessive cable lengths. For a clear, comprehensive view of your system components, the case is outfitted with four tempered glass panels that cover both sides along with the top and front. In addition, one USB 3.1 Gen 2 Type-C port along with four USB 3.0 Type-A ports are available on the I/O panel for easy access to your thumb drives, mobile devices, and storage drives.

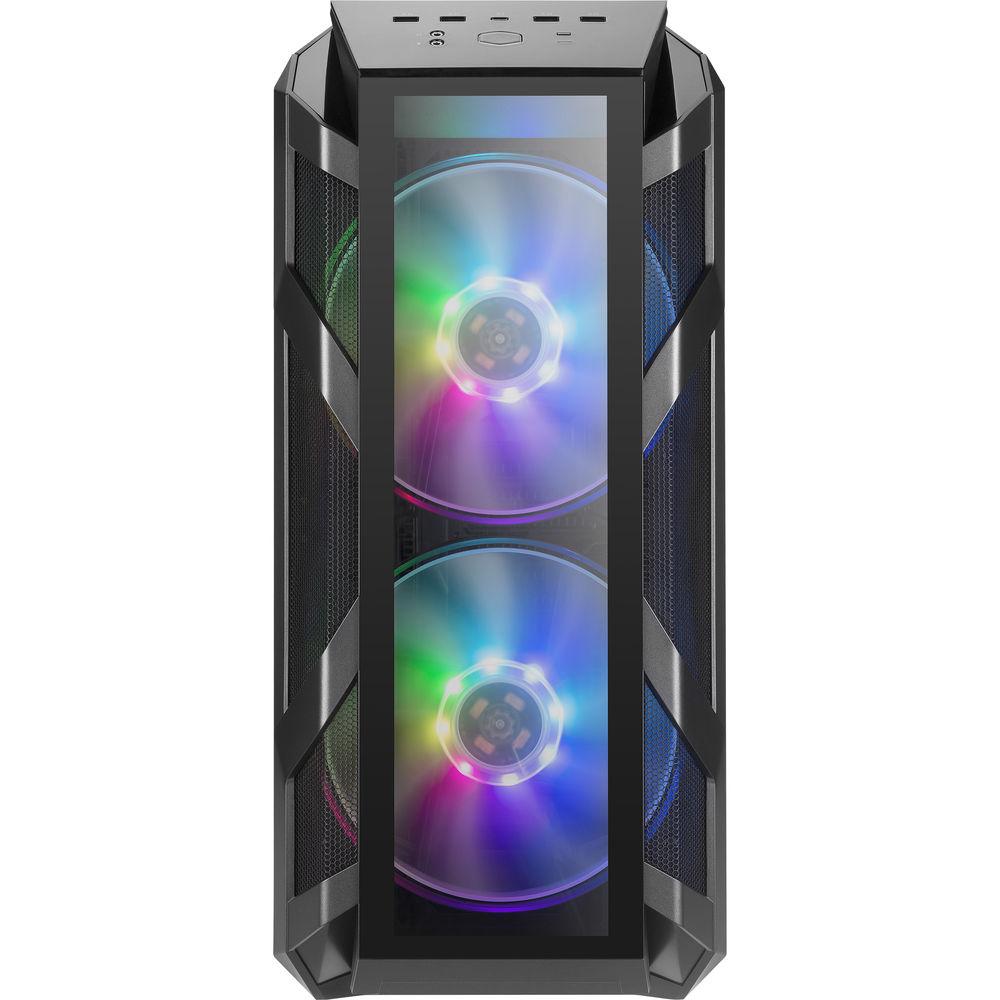

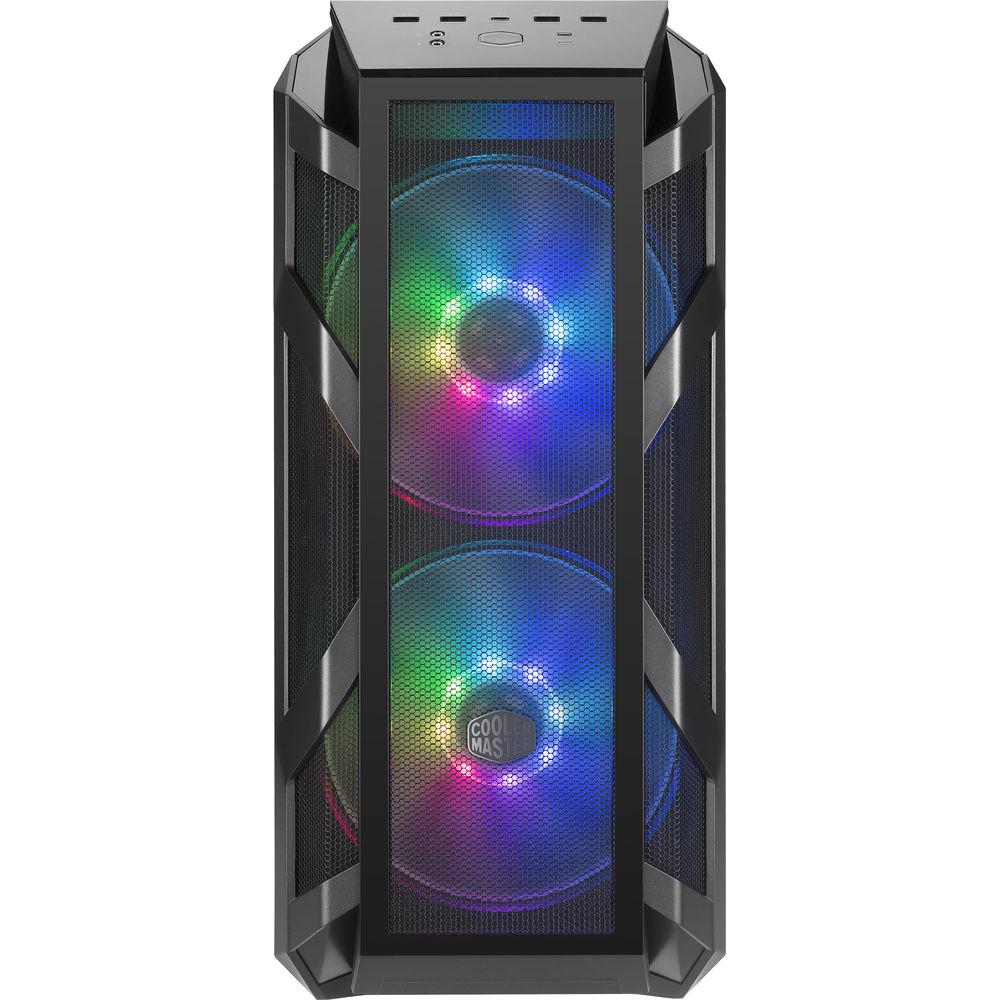

To cool your components, Cooler Master includes one 140mm fan and two 200mm addressable RGB fans, which are managed by an addressable RGB controller. The addressable feature allows you to assign an individual color and effect for each fan. For improved airflow, a mesh panel is included to replace the front glass panel. Furthermore, liquid cooling is supported by accommodating up to 360mm radiators mounted to the front or top of the case. - Mesh and transparent front panels included for optimized airflow or aesthetics
- Managed by an included addressable RGB controller, two addressable 200mm RGB fans come pre-installed

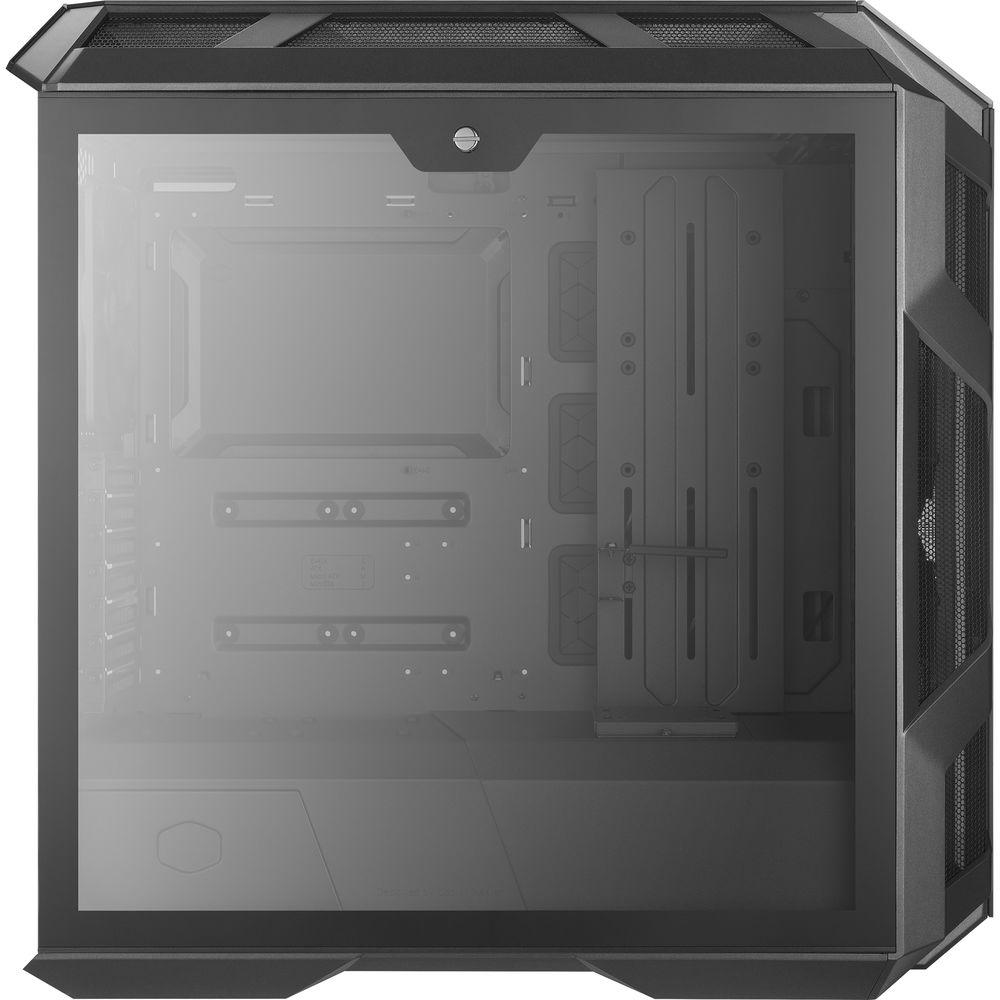

- Four tempered edge-to-edge glass panels (sides, top, and front) offer a clear and comprehensive system view
- Relieve the stress of weight and reinforce larger, longer graphics cards with an included adjustable graphics card support arm
- The front panel is compatible with radiators up to 360mm and the top bracket supports radiators up to 360mm
- Dedicated water pump bracket offers mounting options directly atop the PSU shroud
- A total of 9 covers take clean building to the next level with a PSU cut out cover that provides the option of showing off your PSU or leaving it out of sight

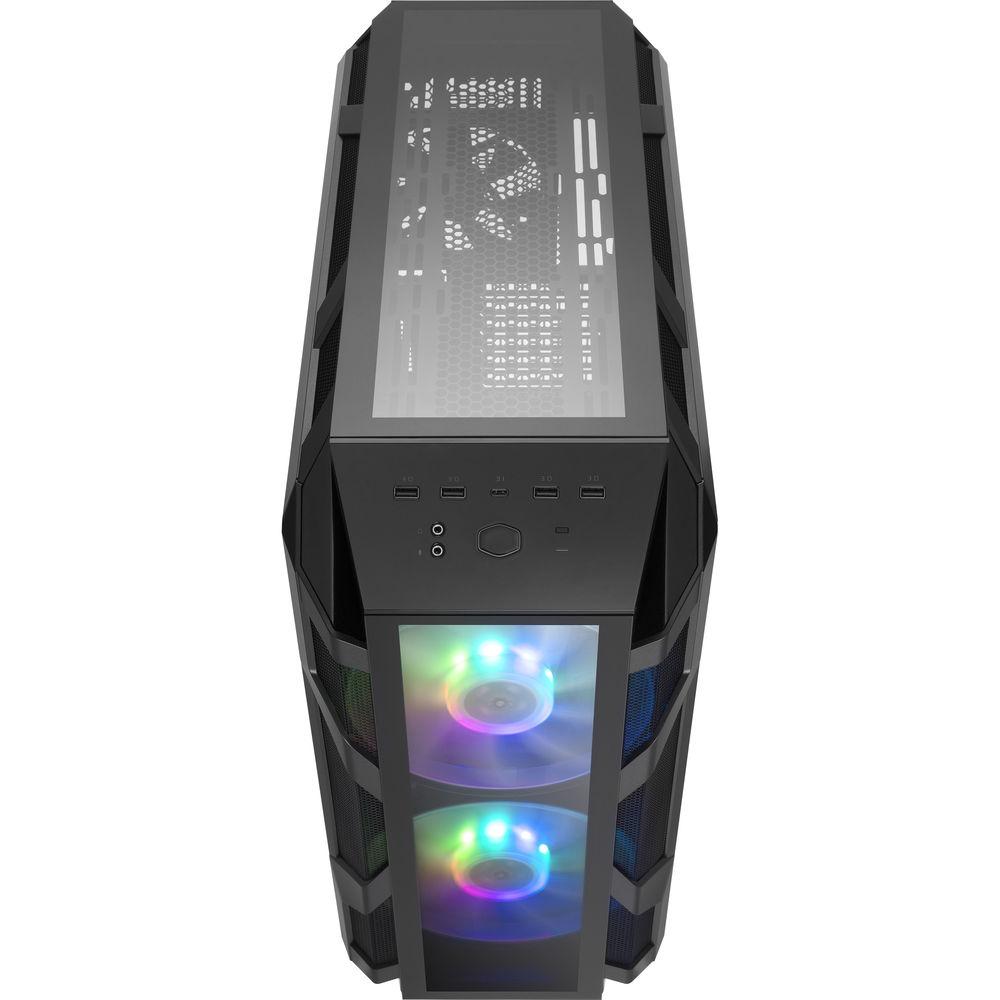

- I/O panel comes with one USB 3.1 (Gen 2) Type-C port along with four USB 3.0 Type-A ports and two HD audio jacks.
UPC: 884102044663 In the Box Cooler Master MasterCase H500M Mid Tower Desktop Case Set of Front Panels Limited 2-Year Warranty User Manual PDF 16mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MasterCase H500M Mid Tower Desktop Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master MasterCase H500M Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
6 x 2.5" | | Expansion Slots | 7 x Full Height + 2 | | Maximum GPU Length | 16.22" / 412 mm | | CPU Cooler Height | 7.48" / 190 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.87" / 200 mm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
3 x 140 mm
Or
2 x 200 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
Or
2 x 200 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 2 x 200 mm LED (800 rpm) | | Fans Included (Rear) | 1 x 140 mm (1200 rpm) | | Fans Included (Top) | None | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 140 mm | | Maximum Radiator Size (Top) | 360 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | Yes | | | | Connections | 1 x USB Type-C (USB 3.1)
4 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | No | | Security | None | | Dimensions (W x H x D) | 9.8 x 21.4 x 21.5" / 248.0 x 544.0 x 546.0 mm | | | | Package Weight | 37.5 lb | | Box Dimensions (LxWxH) | 25.8 x 25.0 x 13.5" |
