User Manual for Cooler Master MasterCase H500P Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the Cooler Master MasterCase H500P Mid-Tower Case
- Product category: Desktop Computer Cases Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Desktop Computer Cases
 |
User manual for the Cooler Master MasterCase H500P Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

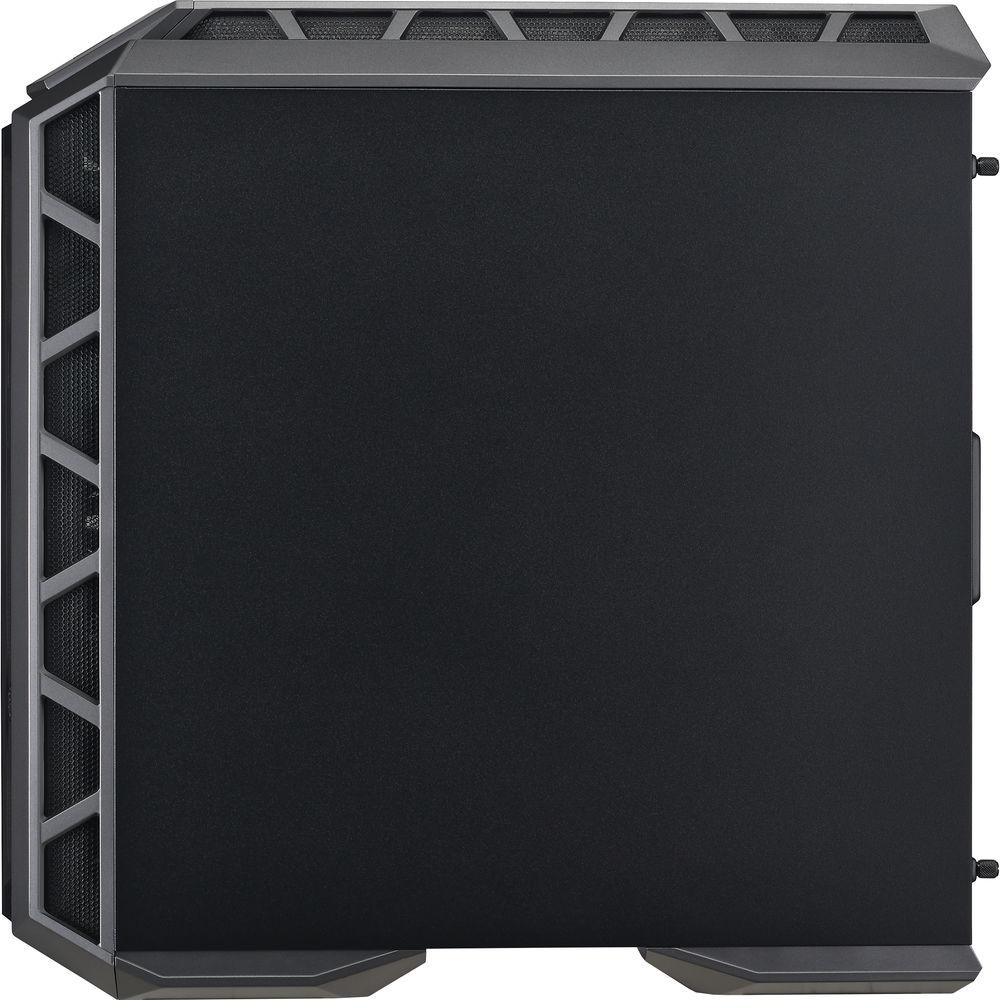

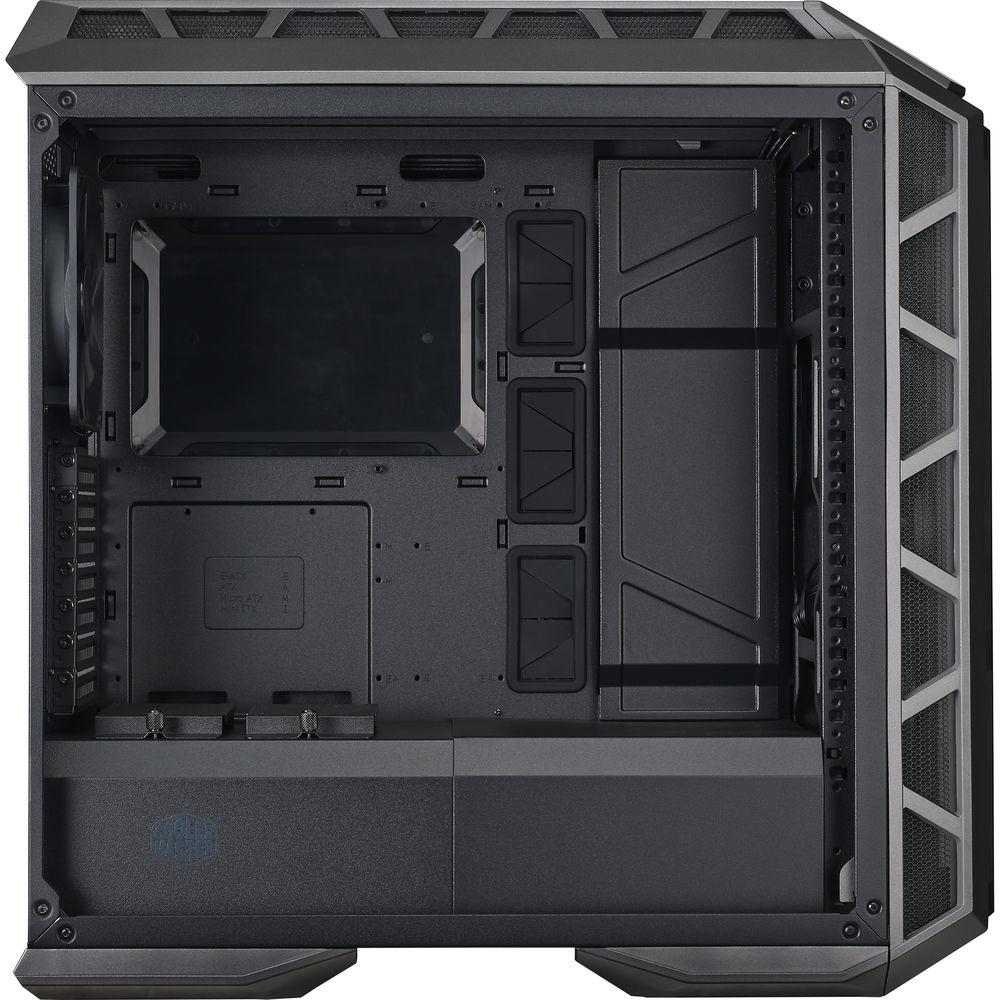

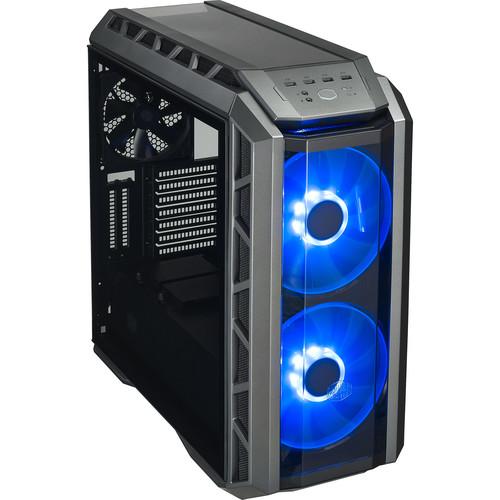

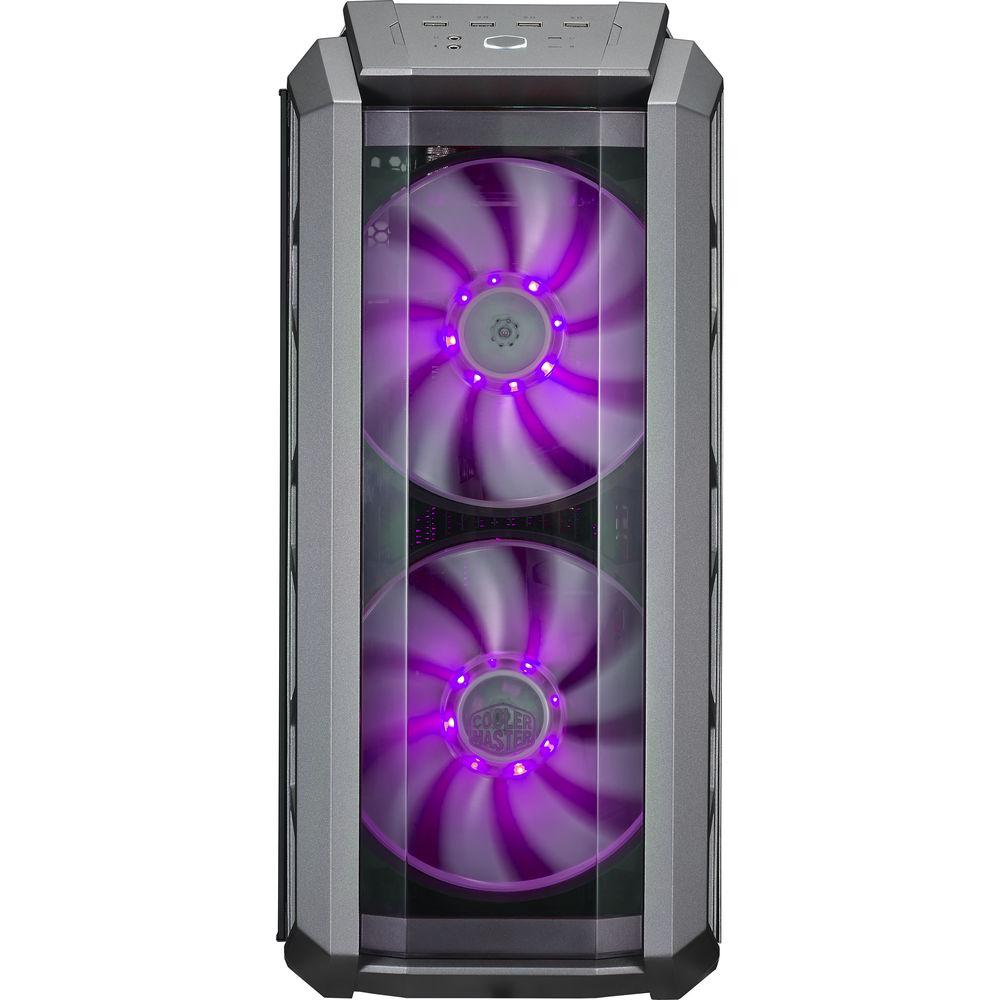

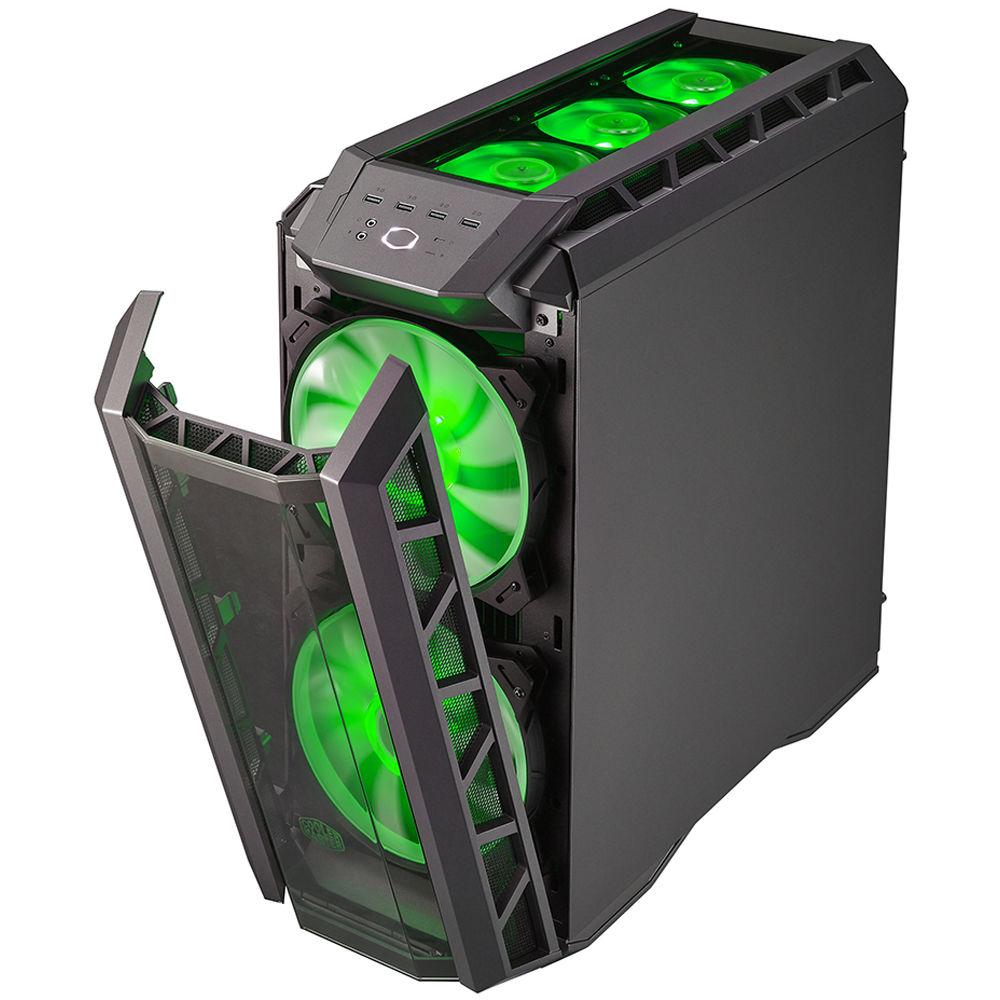

Product description Build your PC in style with the MasterCase H500P Mid-Tower Case from Cooler Master. This black steel case supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards, and it features a tempered-glass side panel and RGB lighting, ideal for showing off your build. The case comes with two 3.5/2.5" drive bays and two 2.5" drive bays. Two included 200mm fans boast RGB lighting, and a 140mm rear fan is also included. The case supports liquid cooling systems, while two rear PCI slots allow for vertical card mounting. - RGB Lighting

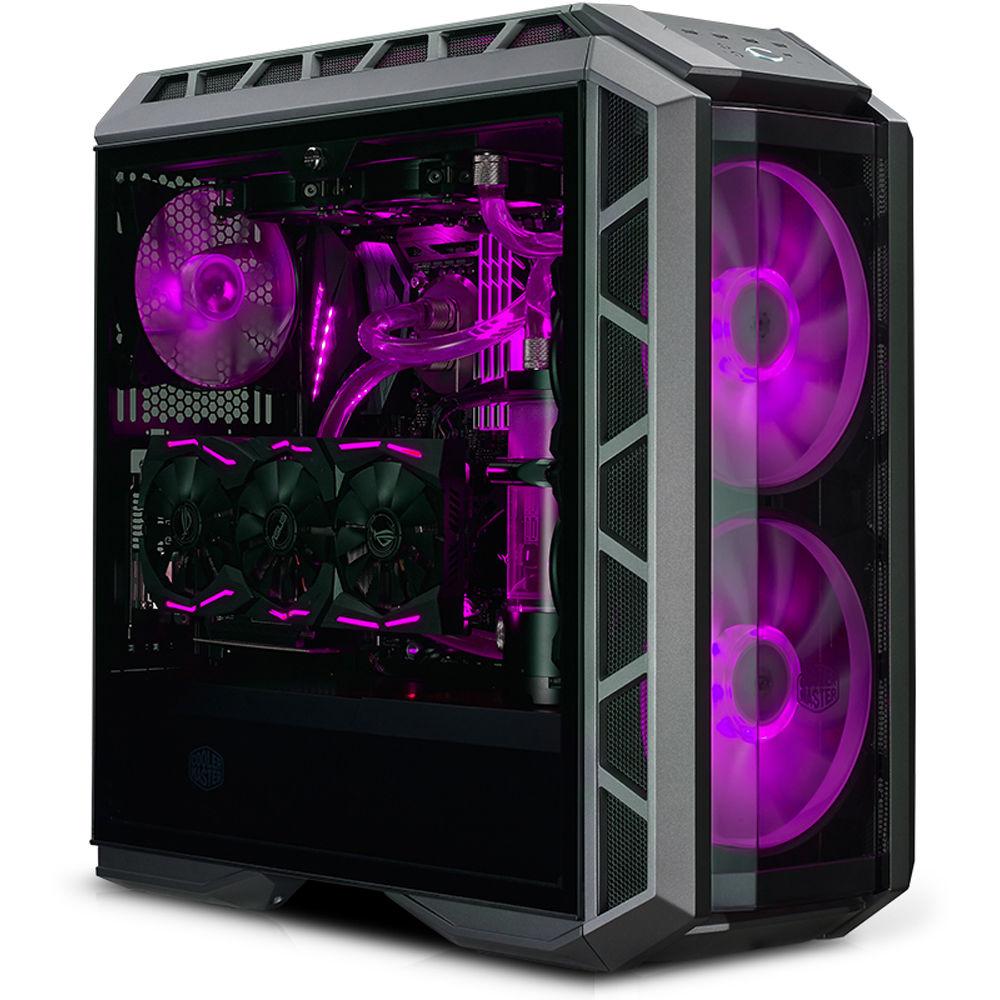

- Use the RGB lighting to create a captivating build in your preferred color theme.

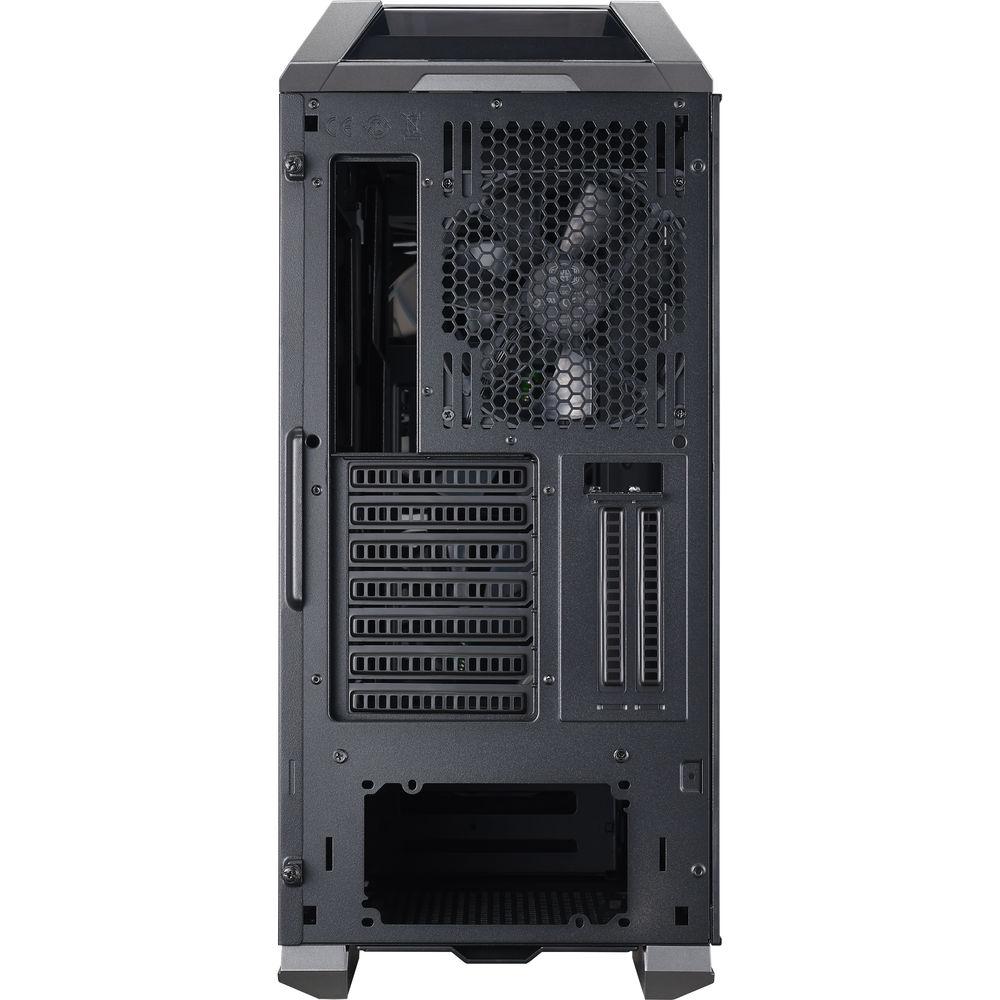

- Vertical Graphics Card Mounting
- Two additional PCI slots at the rear enable you to show off one graphics card in the vertical position. An additional riser cable is needed to use your graphic card vertically.

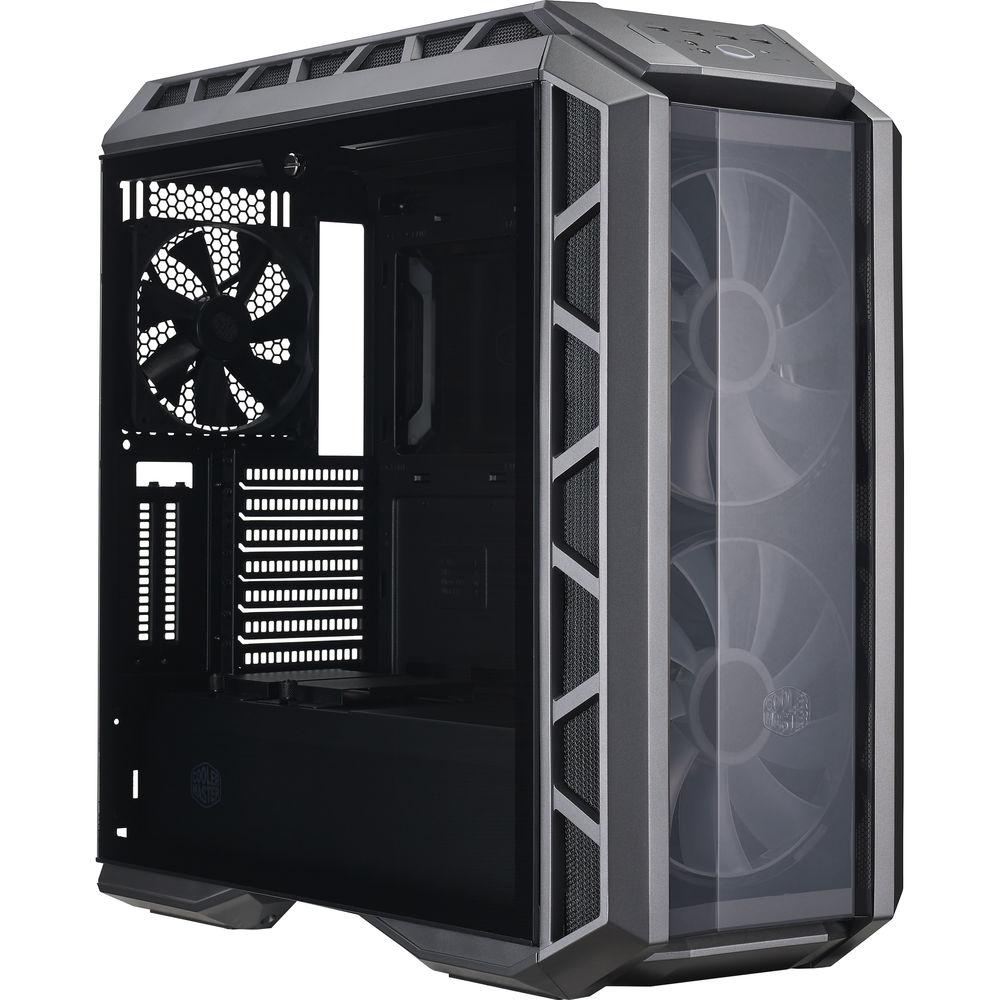

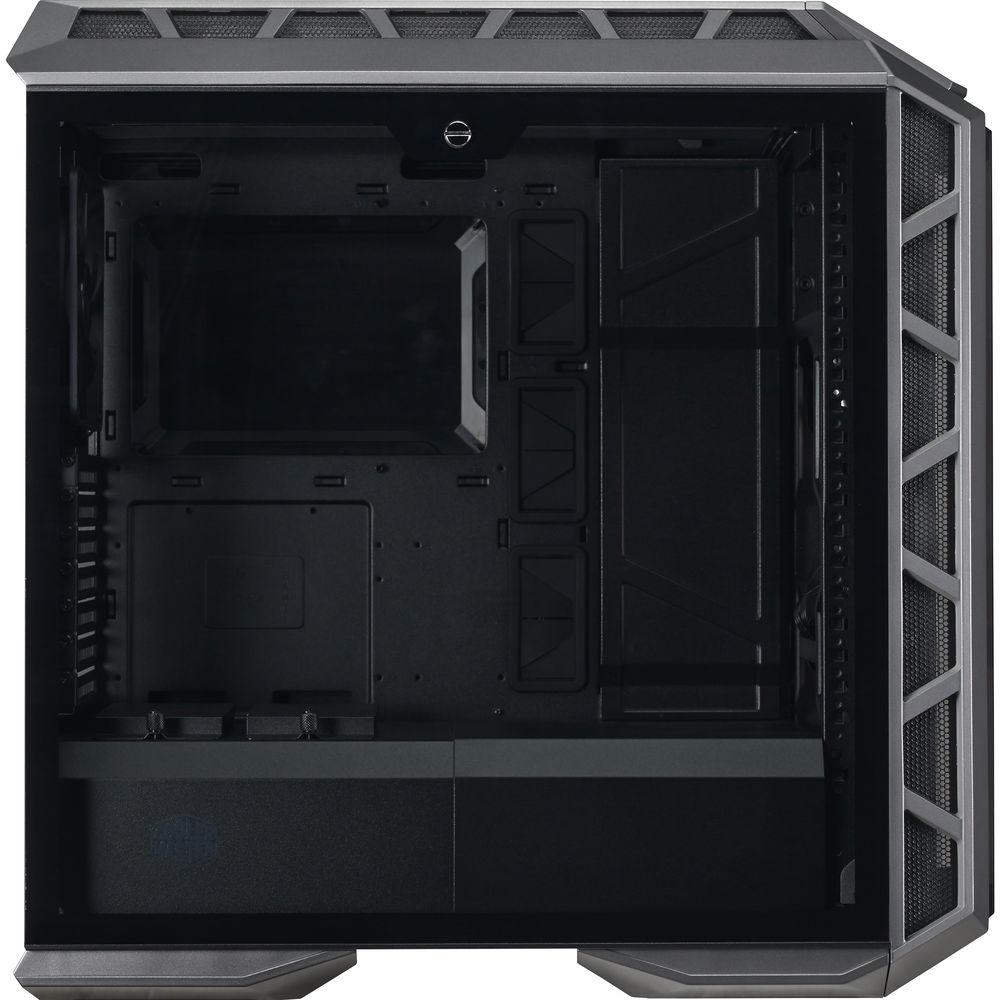

- Tempered-Glass Side Panel
- The MasterCase H500P has a light gray-tinted tempered-glass side panel and plastic top/front covers, making it ideal for showcasing your build with RGB lighting.
- Liquid Cooling-Ready
- The MasterCase H500P accommodates up to 360mm radiators on the top and front.

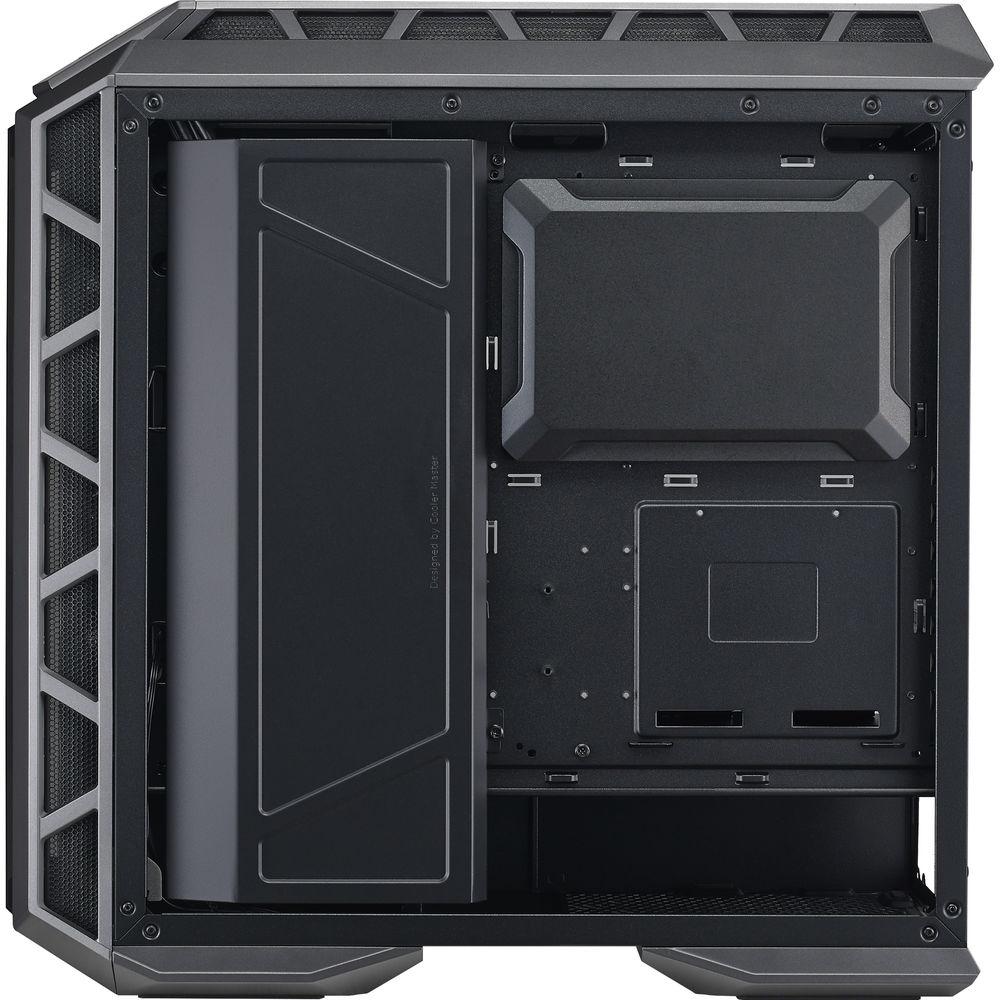

- Covers for Clean Building
- The case features a CPU cut-out hole, a PSU shroud, and additional cable covers to optimize cable management.
- 1-to-3 Splitter Cable for RGB LED Fans
- A connector splitter with 4-pin male-to-male adapters is included.
UPC: 884102036453 In the Box Cooler Master MasterCase H500P Mid-Tower Case Screw Kit Top Fan Bracket 10 x Cable Ties Cleaning Cloth 1-to-3 Splitter Cable for RGB LED Fans Limited 1-Year Warranty User Manual PDF 9.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MasterCase H500P Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master MasterCase H500P Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 2 x 2.5/3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height + 2 | | Maximum GPU Length | 16.22" / 412 mm | | CPU Cooler Height | 7.48" / 190 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 3 x 120 mm
Or
3 x 140 mm
Or
2 x 200 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Top) | 3 x 120 mm
Or
3 x 140 mm
Or
2 x 200 mm
| | Fans Included (Front) | 2 x 200 mm LED (800 rpm) | | Fans Included (Rear) | 1 x 140 mm (1200 rpm) | | Maximum Radiator Size (Front) | 1 x 360 mm | | Maximum Radiator Size (Rear) | 1 x 140 mm | | Maximum Radiator Size (Top) | 1 x 360 mm | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel, Plastic | | Built-In Lighting | Yes | | Security | None | | Dimensions (W x H x D) | 21.4 x 9.5 x 21.3" / 544.0 x 242.0 x 542.0 mm | | | | Package Weight | 29.4 lb | | Box Dimensions (LxWxH) | 25.4 x 25.2 x 13.4" |
