Product description

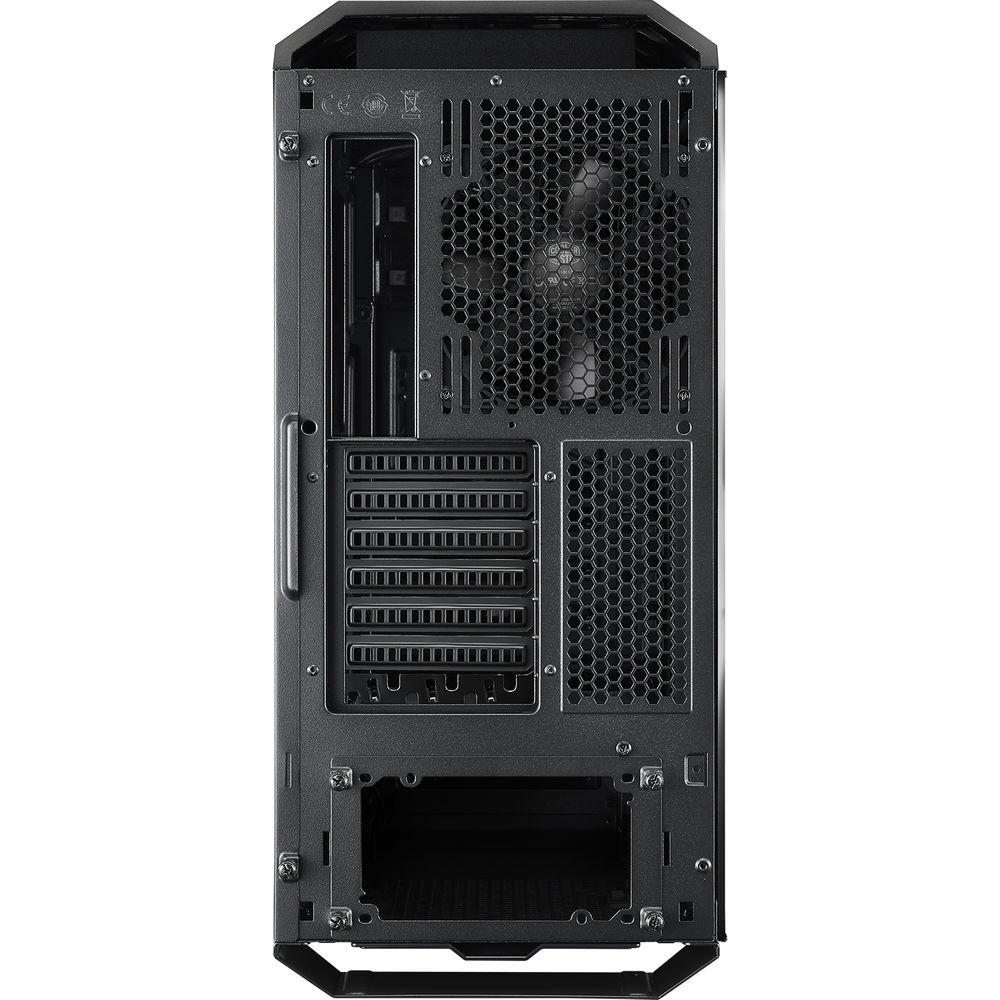

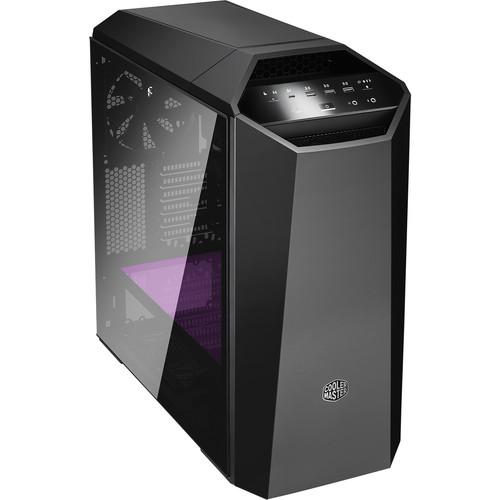

The MasterCase MC500M Mid-Tower Case from Cooler Master supports ATX, Micro-ATX, Mini-ITX, and E-ATX motherboards up to 12 x 10.7". The case features two 5.25" drive bays, four 3.5"/3.5" combo drive bays, and one 2.5" SSD drive bay. The MasterCase MC500M comes pre-installed with one 140mm fan in the rear and two 140mm fans in the front with room for additional fans and radiators.

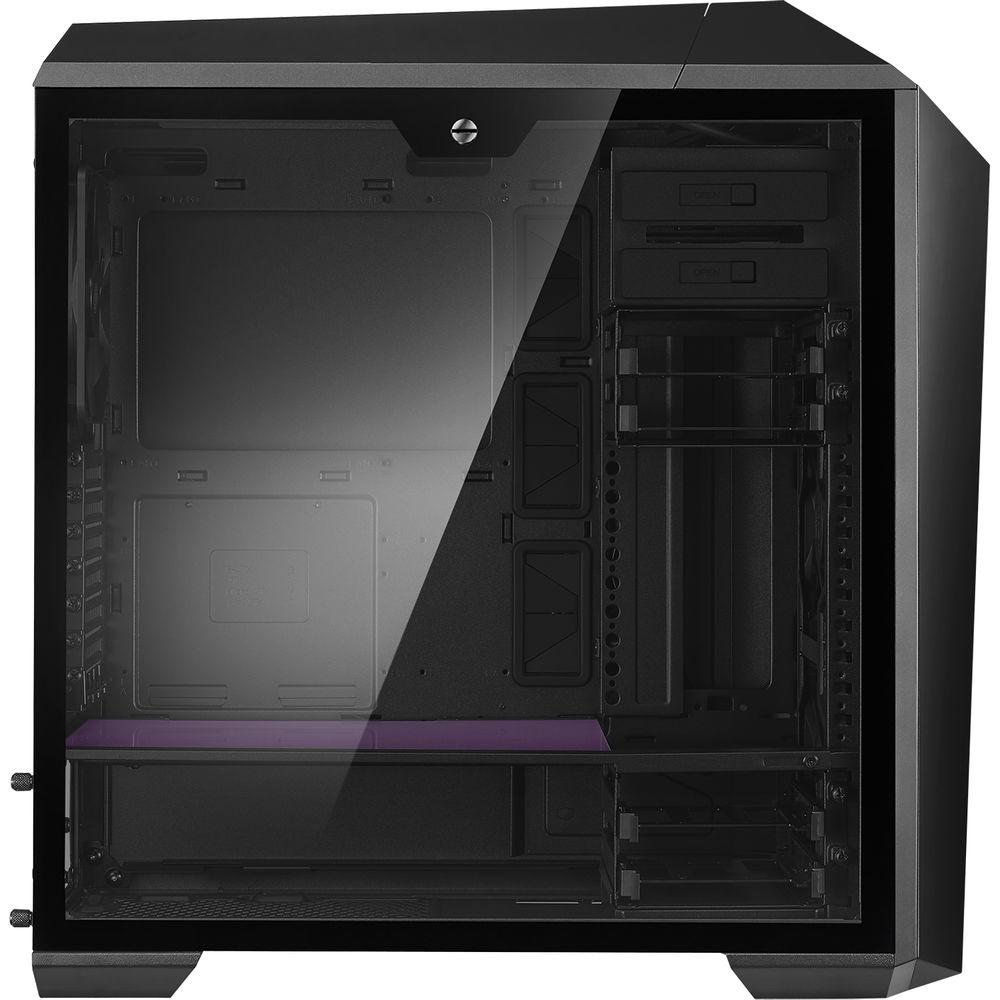

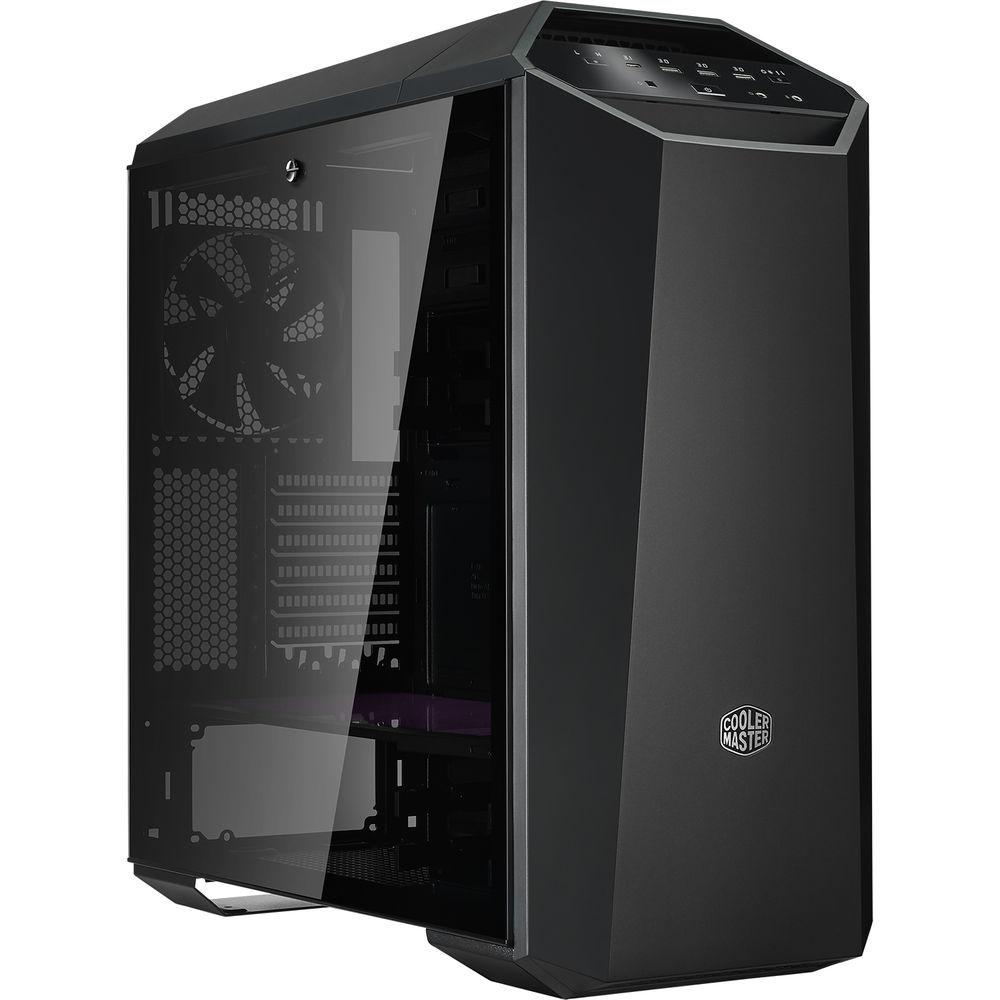

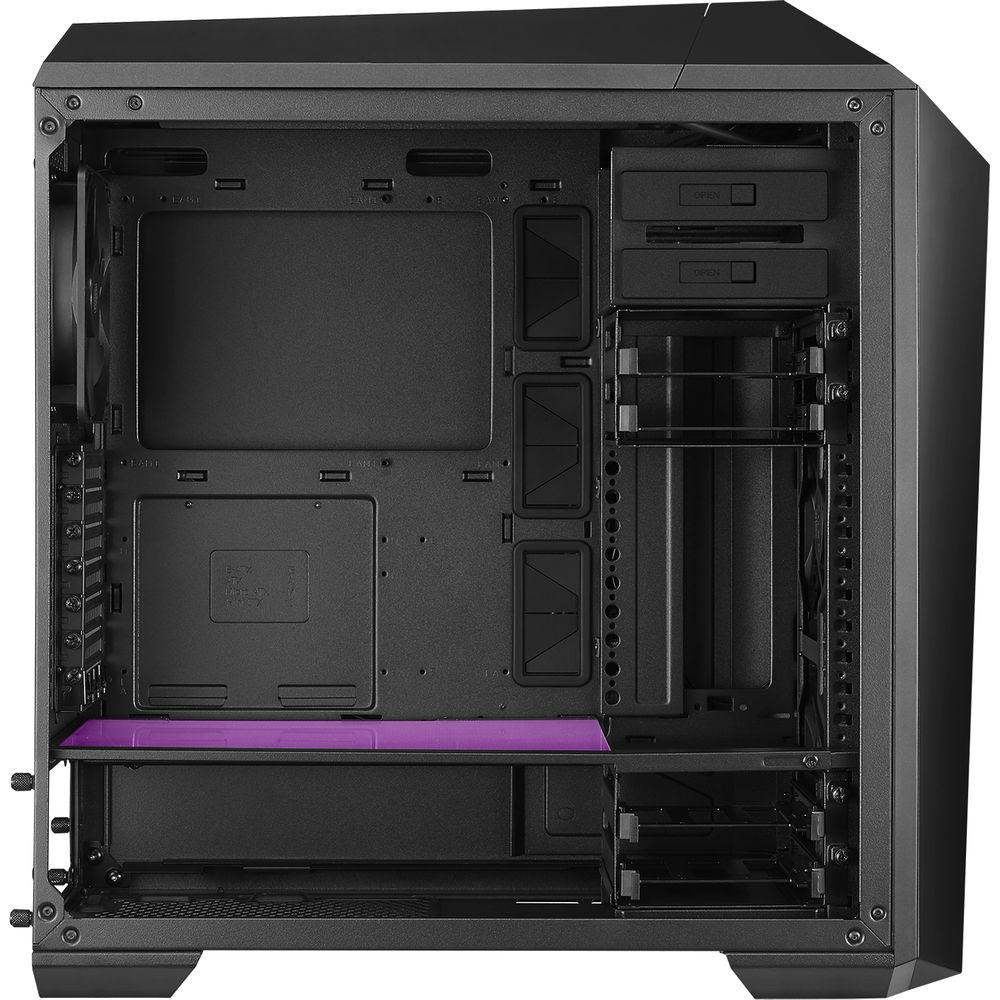

With the FreeForm modular system, you can easily customize, adjust, and upgrade your case, inside and out, with multiple system configurations. The case also comes pre-installed with an RGB LED partition plate and fan and an RGB lighting control board. An edge-to-edge light gray tinted tempered glass side panel gives a wide view inside your PC.
  • An option to relocate the M.port and remove the partition plate gives you the freedom to adjust the inside of the case.
  • I/O panel includes a USB 3.1 Type-C port, three USB 3.0 ports, Audio In/Out, fan speed control, and LED control.

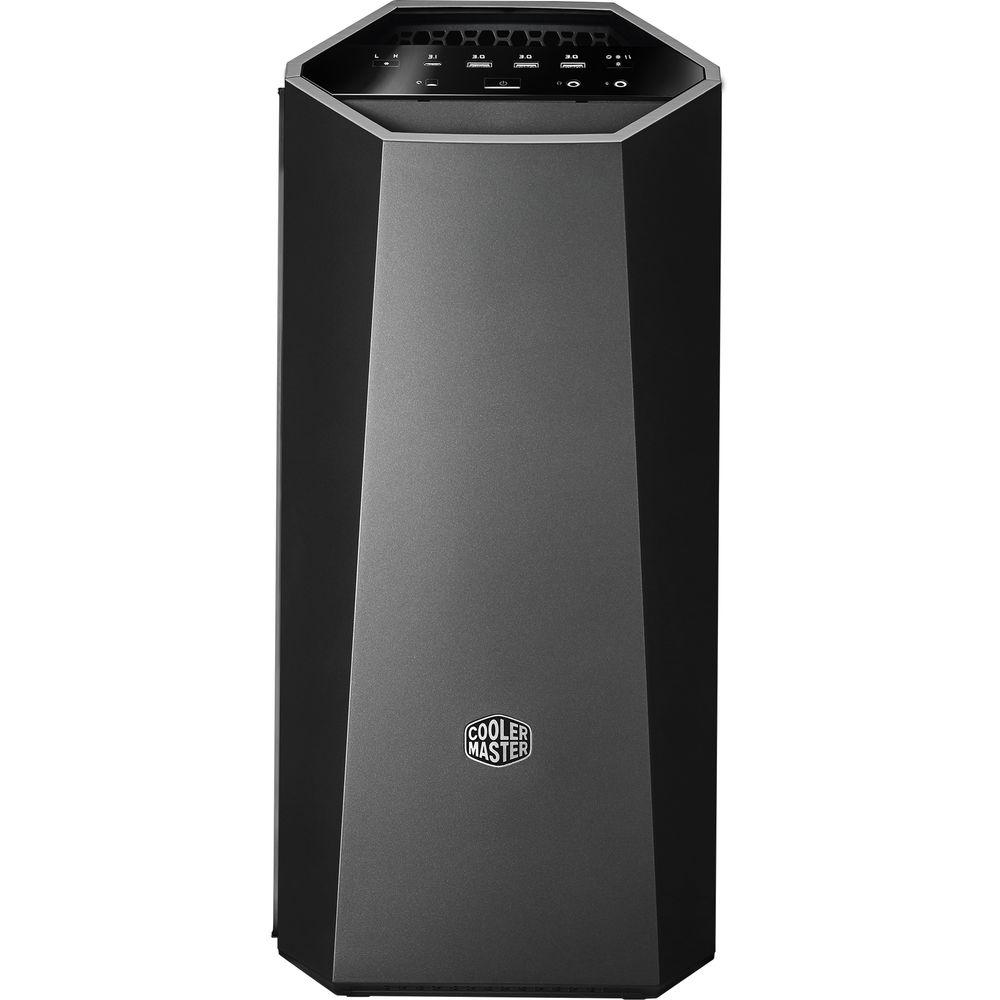

  • Front and top panels fit in place with a magnetic grip.
  • The padded front and top panels (with added plate) balance noise and airflow.
  • A unique bracket holds the side panels from falling while installing or removing.

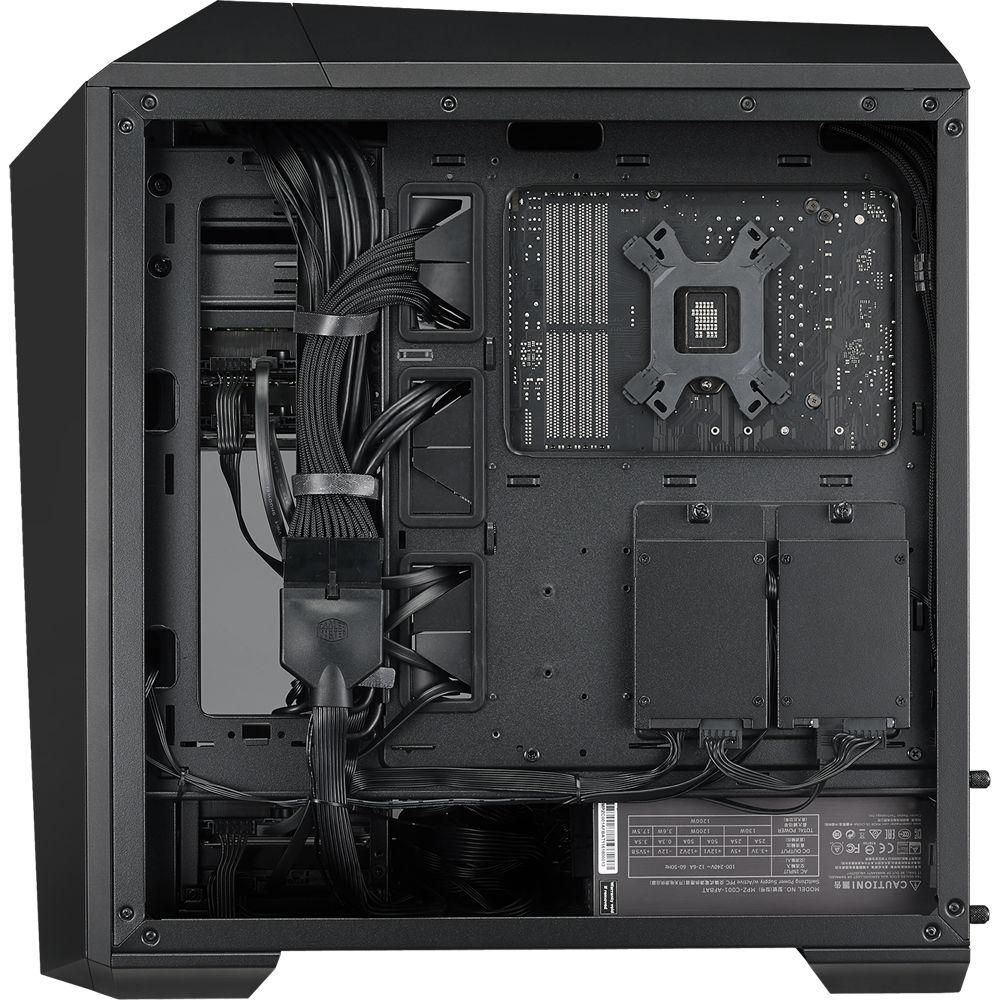

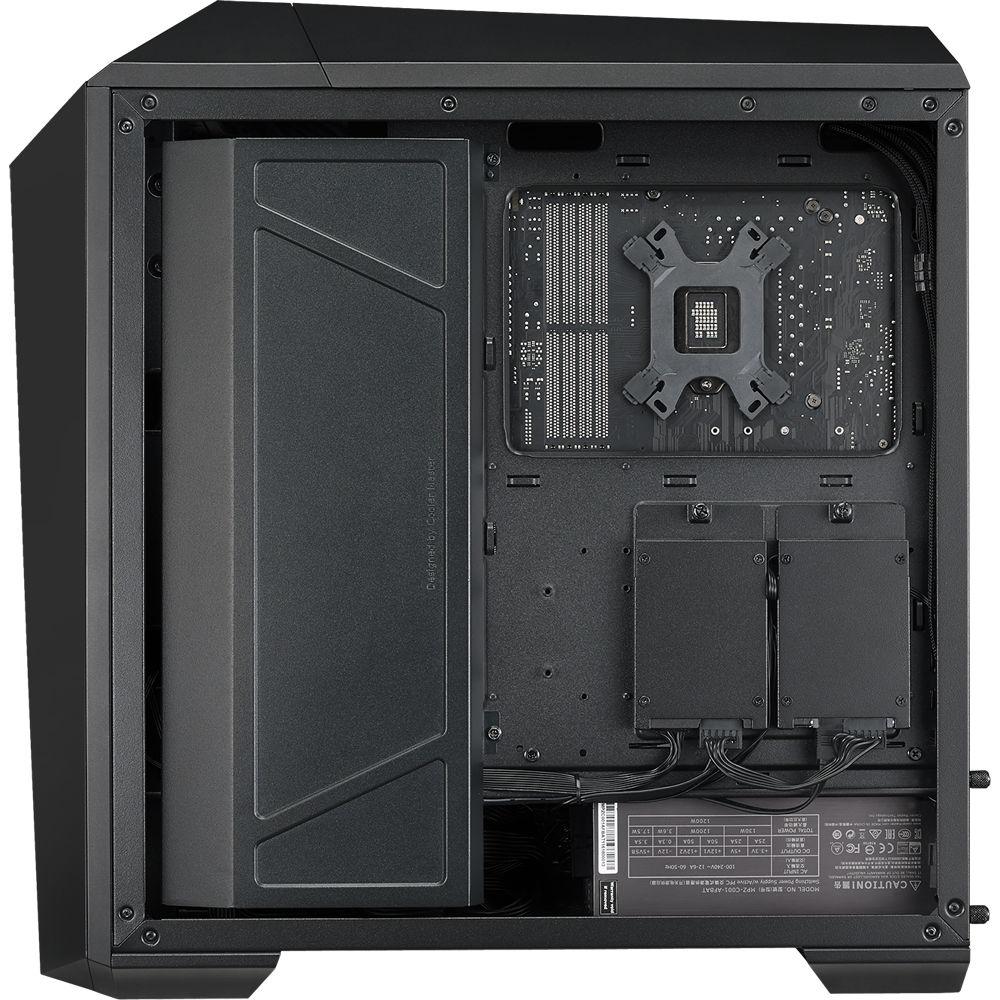

  • Cable management cover provides a clean look.

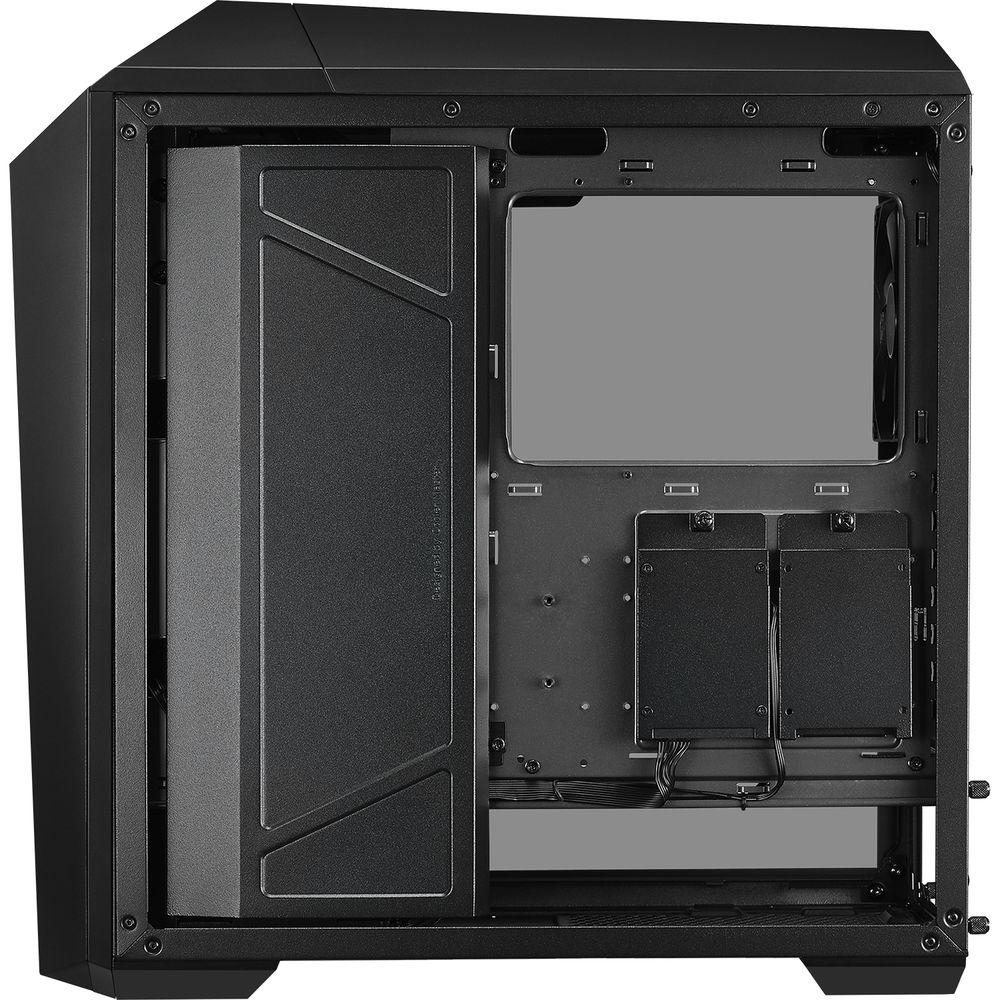

  • Clip-and-click panel lets you adjust the internal layout.
  • Two slip-and-clip pockets provide four mounting positions for 2.5" SSDs.
UPC: 884102038082 In the Box Cooler Master MasterCase MC500M Mid-Tower Case
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Cooler Master MasterCase MC500M Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Cooler Master MasterCase MC500M Specs

    Motherboard Support ATX, E-ATX, Micro-ATX, Mini-ITX
    External Drive Bays 2 x 5.25"
    Internal Drive Bays 4 x 2.5/3.5"
    1 x 2.5"
    Expansion Slots 7 x Full Height
    Maximum GPU Length 16.22" / 412 mm
    CPU Cooler Height 7.48" / 190 mm
    Supported PSU Size ATX
    Fan Mounting (Front) 3 x 120 mm
    Or
    3 x 140 mm
    Fan Mounting (Rear) 1 x 120 mm
    Or
    1 x 140 mm
    Fan Mounting (Side) None
    Fan Mounting (Top) 2 x 120 mm
    Or
    2 x 140 mm
    Fan Mounting (Bottom) None
    Fans Included (Front) 2 x 140 mm (1200 rpm)
    Fans Included (Rear) 1 x 140 mm (1200 rpm)
    Maximum Radiator Size (Front) 360 mm
    Maximum Radiator Size (Rear) 140 mm
    Maximum Radiator Size (Top) 280 mm
    Fan Controller Included Yes
    Filter Locations Bottom, Front, Top
    Connections 3 x USB Type-A (USB 3.0)
    1 x USB Type-C (USB 3.1)
    Audio Connections 1 x 3.5 mm Input
    1 x 3.5 mm Output
    Display Connections None
    Windowed Panel Yes
    Material Tempered Glass, Steel, Plastic
    Built-In Lighting Yes
    Cable Management Space 1.38" / 35 mm
    Dimensions (W x H x D) 9.3 x 21.6 x 20.8" / 235.0 x 548.0 x 528.6 mm
    Weight 28.9 lb / 13.1 kg
    Package Weight 35.0 lb
    Box Dimensions (LxWxH) 5.0 x 5.0 x 5.0"
