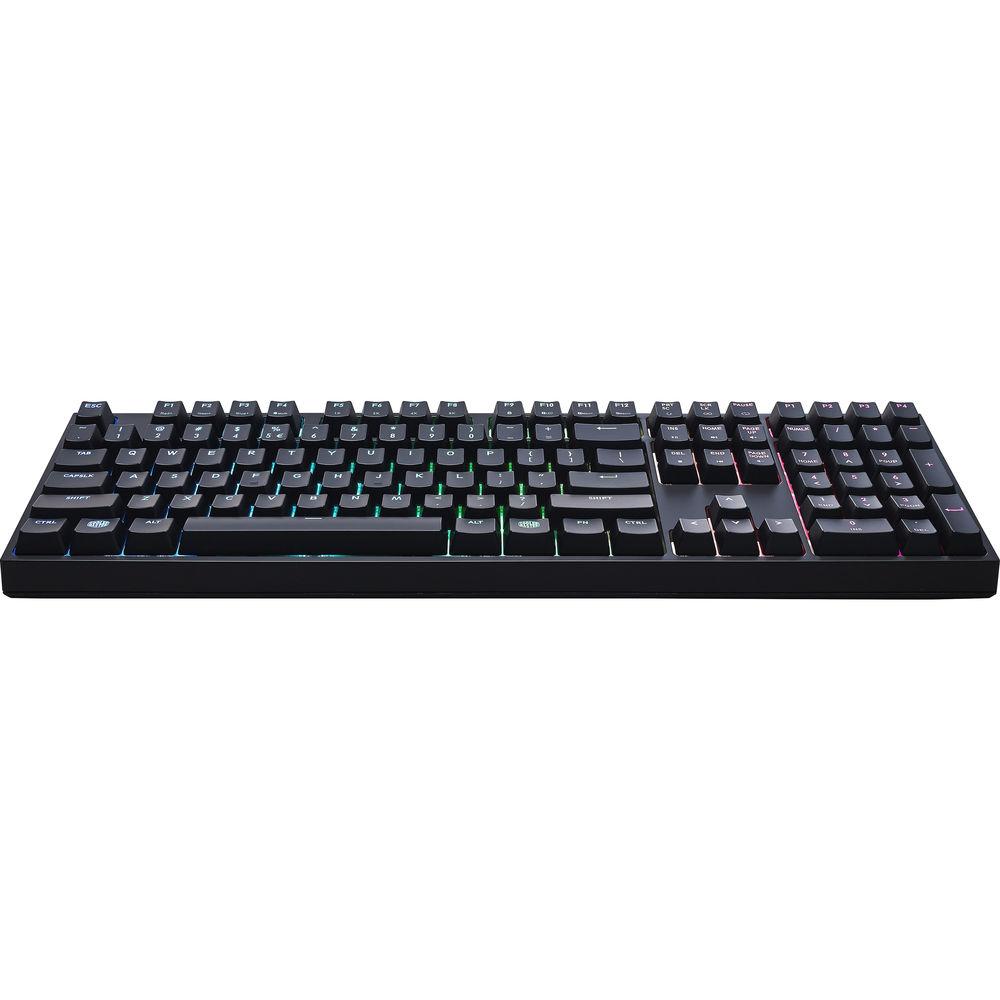

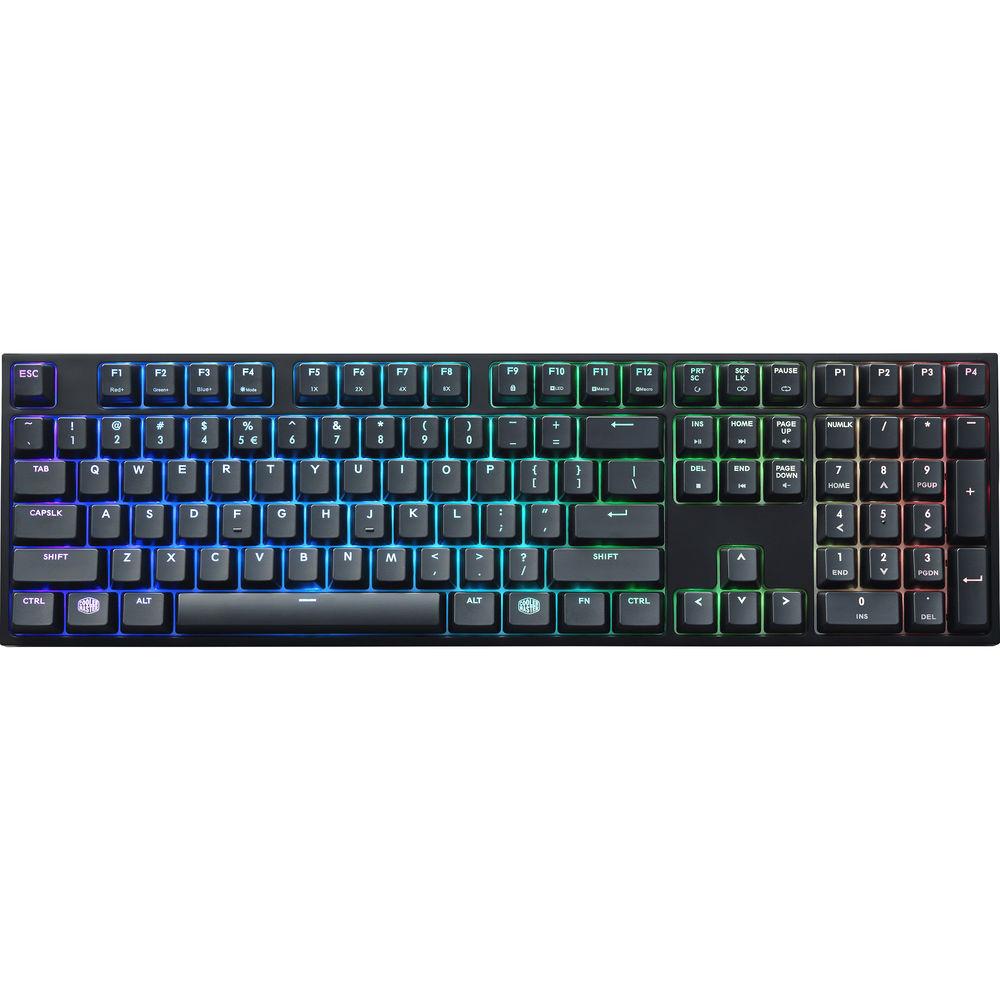

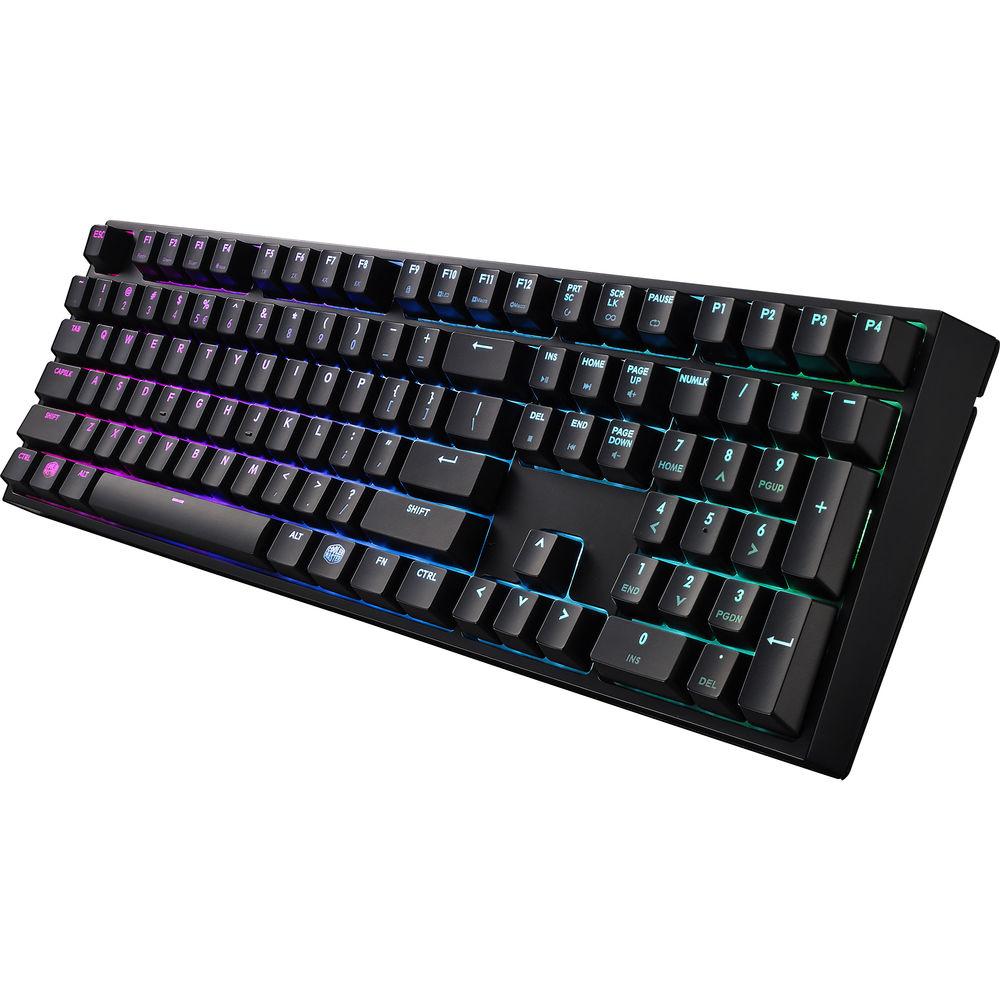

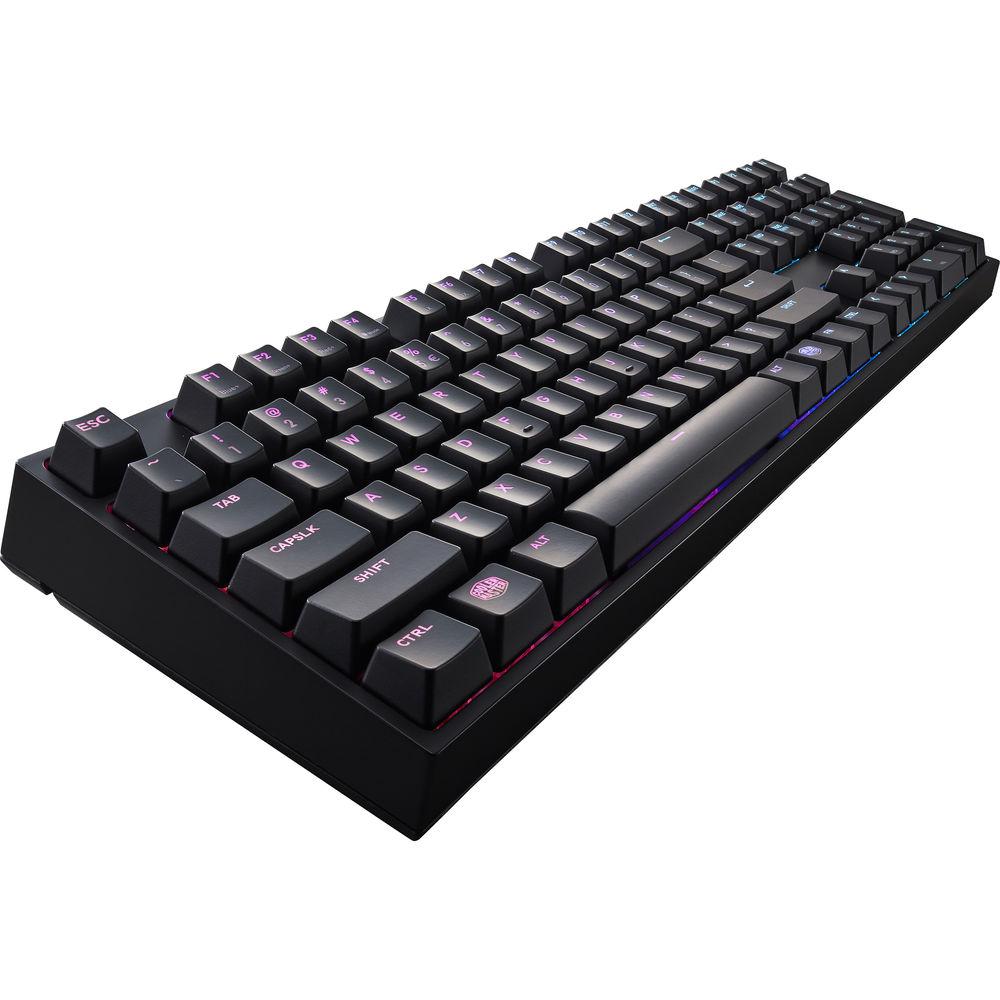

User Manual for Cooler Master MasterKeys Pro L Mechanical Keyboard with Intelligent RGB Backlighting Click to enlarge the picture
Contents of the user manual for the Cooler Master MasterKeys Pro L Mechanical
- Product category: Keyboards Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Keyboards
 |
User manual for the Cooler Master MasterKeys Pro L Mechanical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

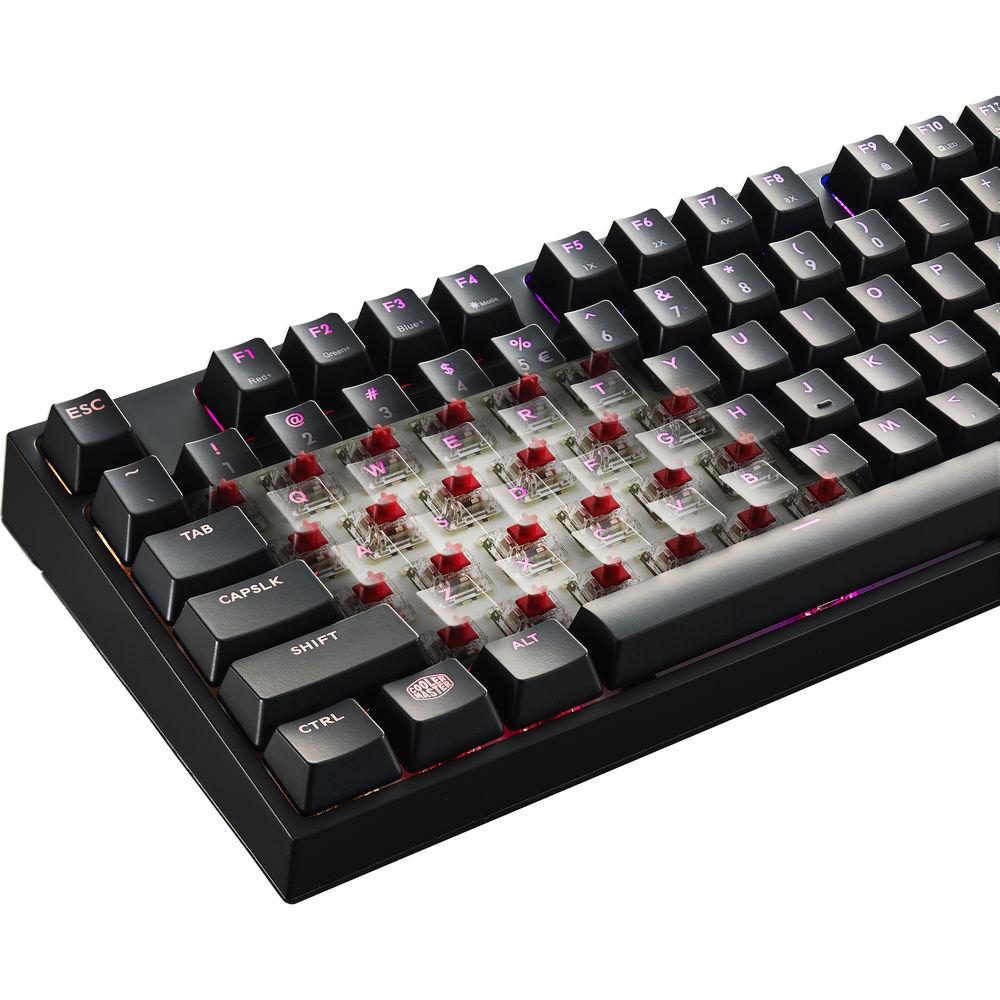

Product description Go Mechanical with the MasterKeys Pro Backlit Mechanical Keyboards Read More Equipped with Cherry MX Red switches, the MasterKeys Pro L Mechanical Keyboard with Intelligent RGB Backlighting from Cooler Master connects to your system using a 4.9' detachable micro-USB 2.0 cable. It features an RGB LED backlight that supports 16.7 million colors, a 72 MHz ARM Cortex M3 32-bit processor, 512kB of built-in memory, on-the-fly recording for programmable macros and lighting, a polling rate of 1000 Hz, a repeat rate of 1, 2, 4, and 8x, and a response rate of 1 ms. This keyboard is protected by a limited 2-year warranty. Cherry MX Red Switches - Mechanical keyboards utilize a different type of key switch technology for a more durable and unique typing experience. The Cherry MX Red switch has an actuation force of 45g and features a linear travel with no tactile bump. This can be beneficial for users who don't need the tactility of other switches. Additionally, with close actuation and release points, Cherry MX Red switches allow for easier double-tapping. Unlike Cherry MX Blue switches, these do not have an audible "click" mechanism, allowing for a quieter operation. Noise generated from this keyboard will be from the key either springing back into place or "bottoming out" – making contact with the back plate after a particularly hard press
Product Features - Redesigned & Redefined
- The interior of this keyboard has been redesigned with RGB backlighting by modifying the printed circuit board (PCB) with small cutouts to let the LEDs sit snugly against the switches, allowing genuine Cherry MX switches to be used
- Illumination
- The MasterKeys Pro radiates almost any color you want. Change and customize the color with or without software. LEDs include multiple modes of operation, including Color Wave, Breathing, and unique responsive effects
- Processing Power
- The MasterKeys Pro is outfitted with a powerful ARM Cortex M3 processor. Clocking in at 72 MHz, the processor is up to 25% faster than keyboards that use the Cortex M0 processor, which greatly unlocks the potential for the MasterKeys Pro On-the-Fly System. Save and execute commands and macros with less loading and waiting
- On-the-Fly System
- The MasterKeys Pro utilizes the processing power of the ARM Cortex M3 for its advanced On-the-Fly system. LED lighting modes, repeat rate adjustment, multimedia keys, and macro recording, combined with four profile keys, enable you to control almost all aspects of the keyboard at your fingertips. There is no need to Alt+Tab and open up the software
- Macro and Profile Support
- Four profile keys offer quick backlighting and macro recording. Program multiple keystrokes to a single key or change per-key backlighting with intuitive keyboard commands. Users can also program keys with different colors to help learn the in-game keybinds faster
- Status Indicator System
- Navigate the On-the-Fly system and know what settings you have selected by just glancing at the keyboard. When holding down the FN key, users can see what profile and repeat rate they're currently on, as well as whether or not the Windows key lock is activated. They are also able to see the brightness levels of colors selected for the red, green, and blue keys
- Software
- Straightforward software lets you fine-tune RGB color and speed settings for modes like Color Wave, Star Effect, and Rain Drop. Users are also able to hold left click to brush on colors for per-key backlighting, making LED customization a breeze. Backup and save your gaming profiles to share with fans and the community
- Anti-Ghosting Technology
- Anti-ghosting technology features two technologies rolled into one, making the keyboard's functions and macros compatible even on iOS systems. The N-key and 6-key rollover have been combined together, helping to ensure each keypress is correctly detected regardless of how many keys are pressed. If six or more keys are pressed, it automatically switches over to N-key rollover
In the Box Cooler Master MasterKeys Pro L Mechanical Keyboard with Intelligent RGB Backlighting (Cherry MX Red) 4.9' Detachable Micro-USB Cable Keycap Puller Limited 2-Year Warranty Brochure PDF 450kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MasterKeys Pro L Mechanical Keyboard with Intelligent RGB Backlighting in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master SGK-6020-KKCR1-US Specs | | | Number of Keys | 104 | | Switch Type | Mechanical | | Mechanical Switch Type | Cherry MX Red | | Dedicated Multimedia Keys | No | | Dedicated Macro Keys | 4 | | On-the-Fly Recording | Yes | | Windows Lock Key | Yes | | Polling Rate | 1000 Hz | | Response Time | 1 ms | | | | Connection Type | Wired | | System Connection | Micro-USB (5-Pin) | | USB Ports | None | | Audio | None | | | | Backlight | Yes | | LED Colors | RGB | | Onboard Memory | 512 kB | | Built-In Control Device | None | | Wrist Rest | None | | | | Cable Length | 4.9' / 1.5 m | | Cable Type | Detachable, Straight | | Cable Management Channel | Yes | | Material of Construction | Metal, Plastic | | Dimensions (L x W x H) | 17.3 x 5.1 x 1.7" / 439.2 x 130.3 x 42.0 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 18.2 x 7.1 x 1.9" |
