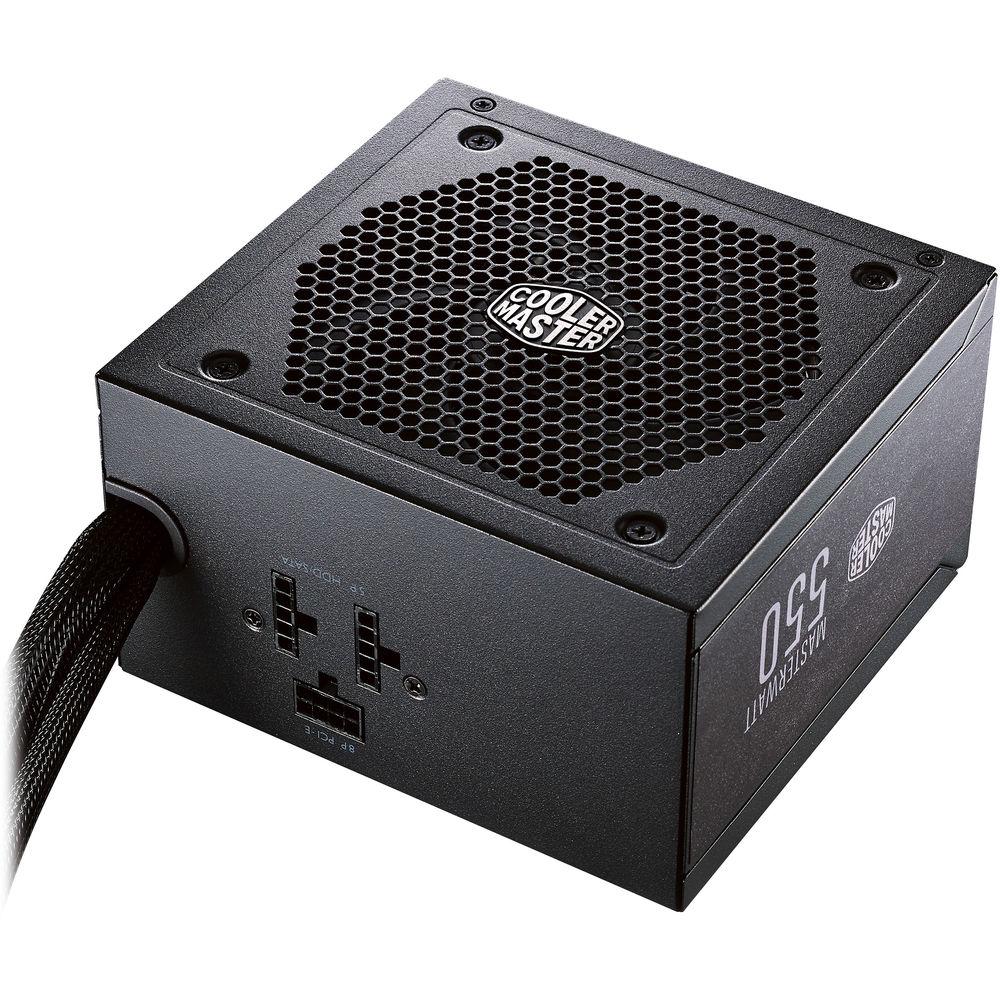

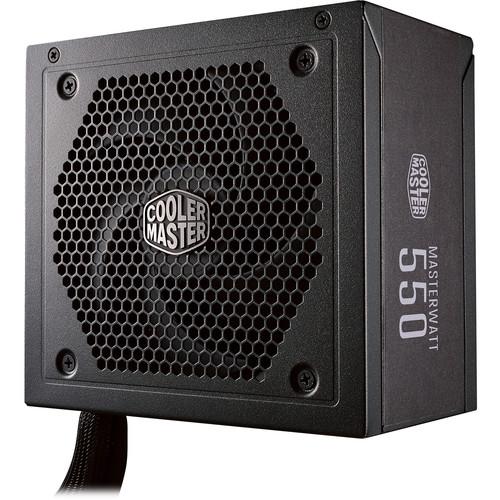

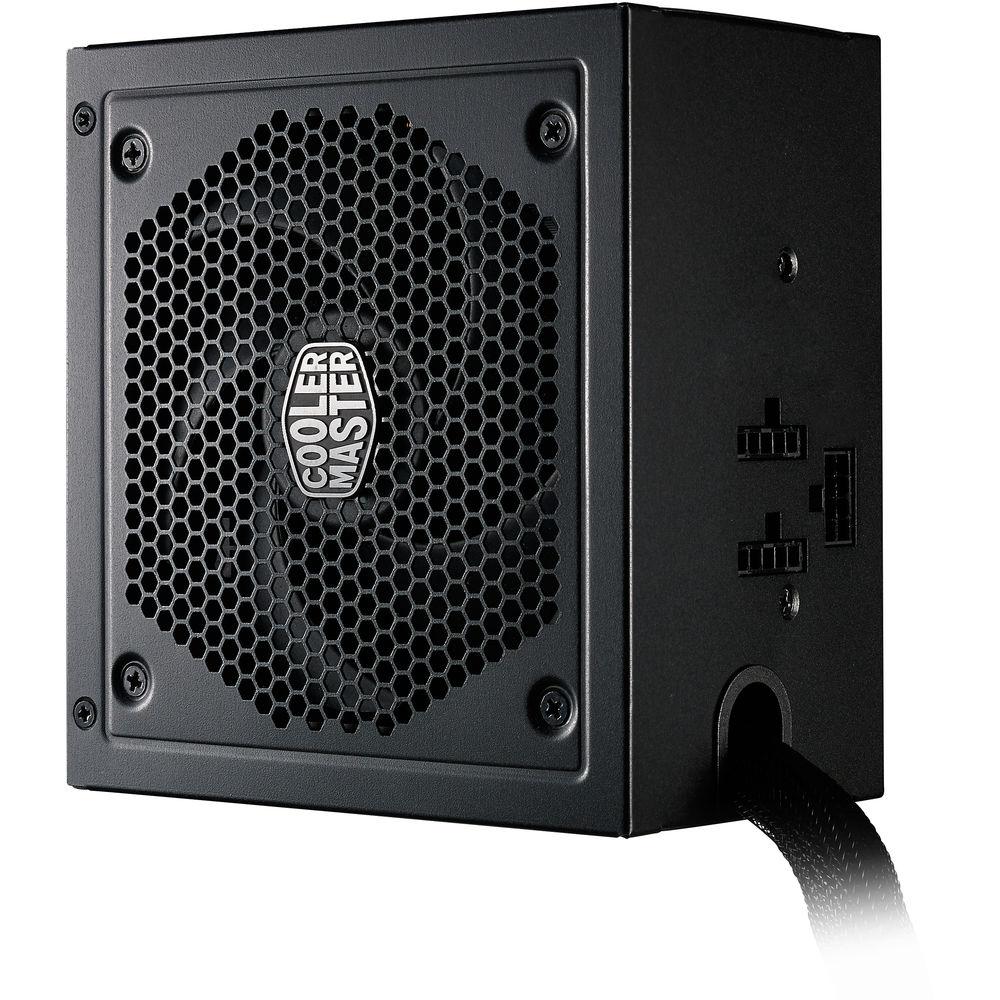

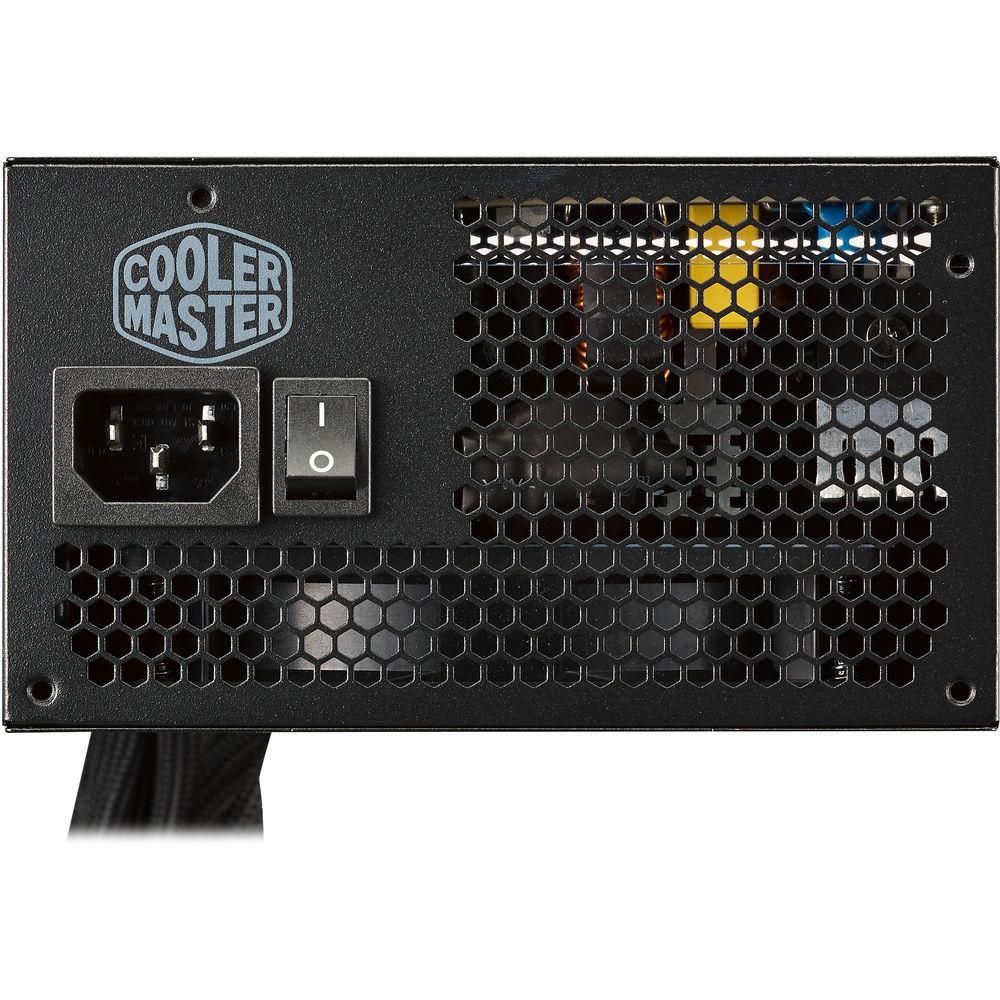

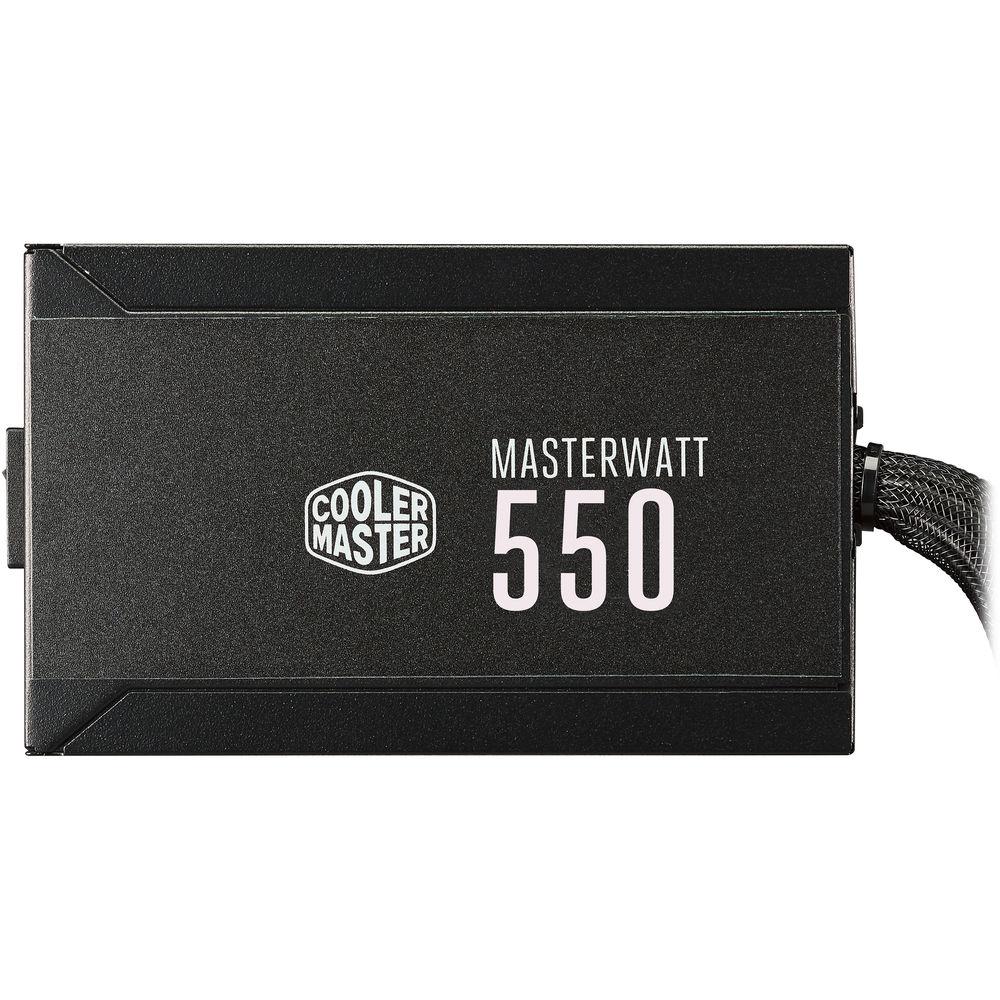

Product description The MasterWatt 550 550W 80 Plus Bronze Semi-Modular Power Supply from Cooler Master is a standard ATX-sized power supply designed to provide your system with stable and reliable power. It can output up to 550W of power and includes all the cables you need for a regular single graphics card build. Moreover, it operates quietly and features multiple protection technologies to keep things operating smoothly. - 80 Plus Bronze
- The 80 Plus Bronze certification guarantees that MasterWatt delivers an average efficiency of 85% at full load.

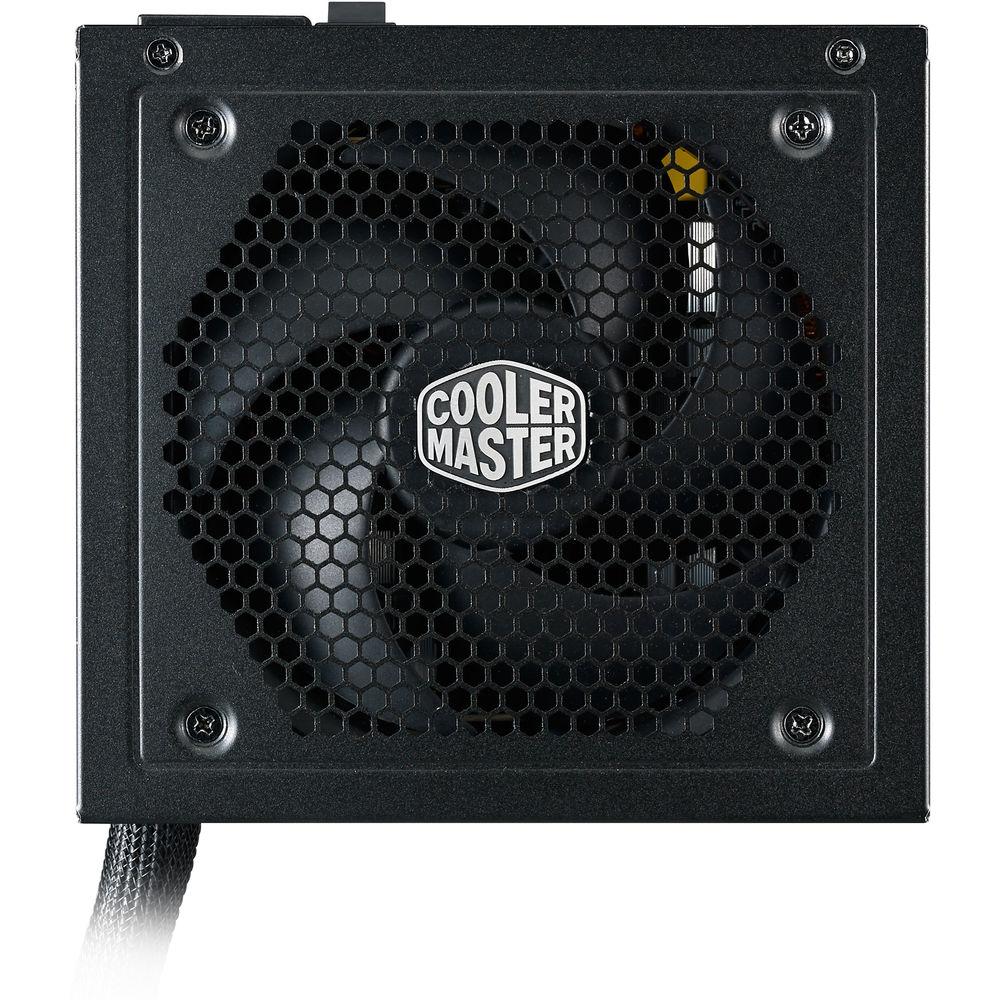

- Durable LDB Bearing Fan

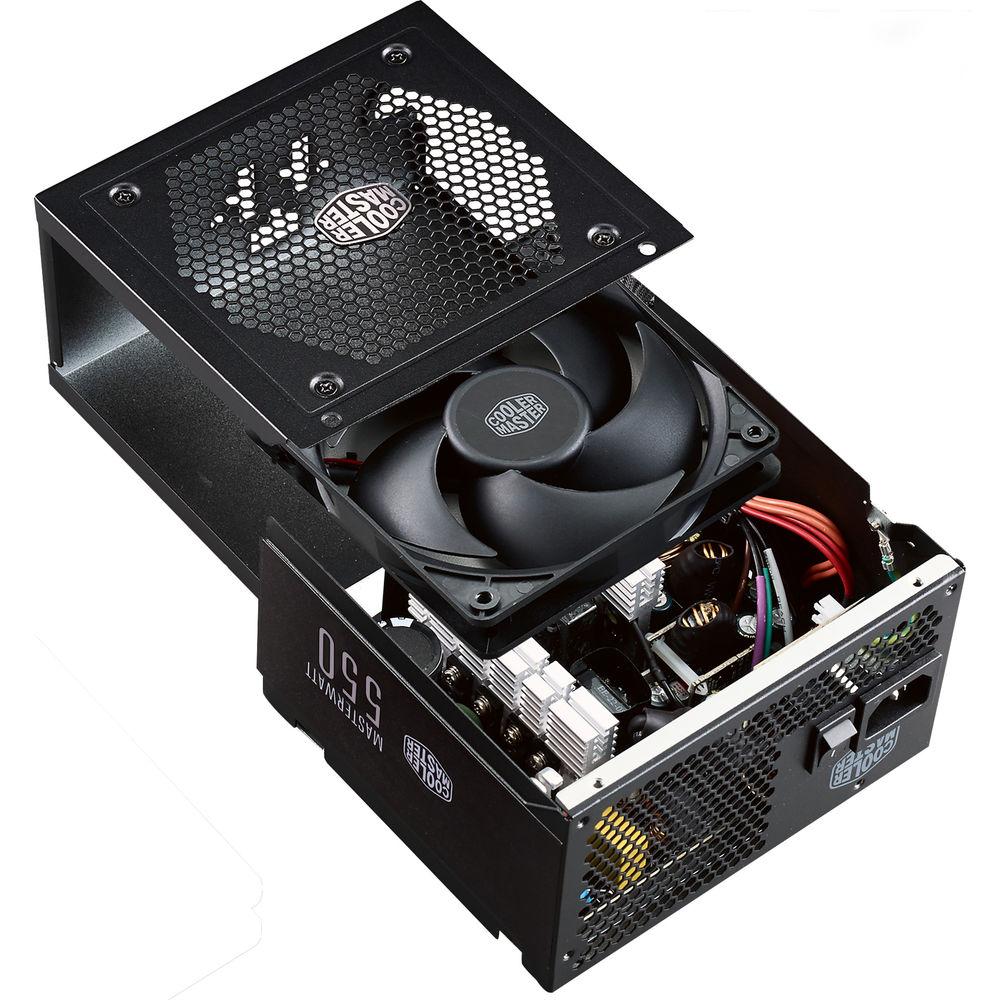

- This power supply is built with a Cooler Master 120mm Silencio FP fan, which combines sealed LDB (Loop Dynamic Bearing) bearings with quiet fan blades for durable, quiet cooling.
- Semi-Fanless Operation
- The MasterWatt operates silently at 0 dB when under 15% load. Past that, the fan starts spinning to dissipate heat.
- Dual Forward & DC-to-DC Circuit Design
- The Dual Forward and DC-to-DC circuit design offers reliable and stable power that's especially significant in +3.3 V and +5 V outputs.

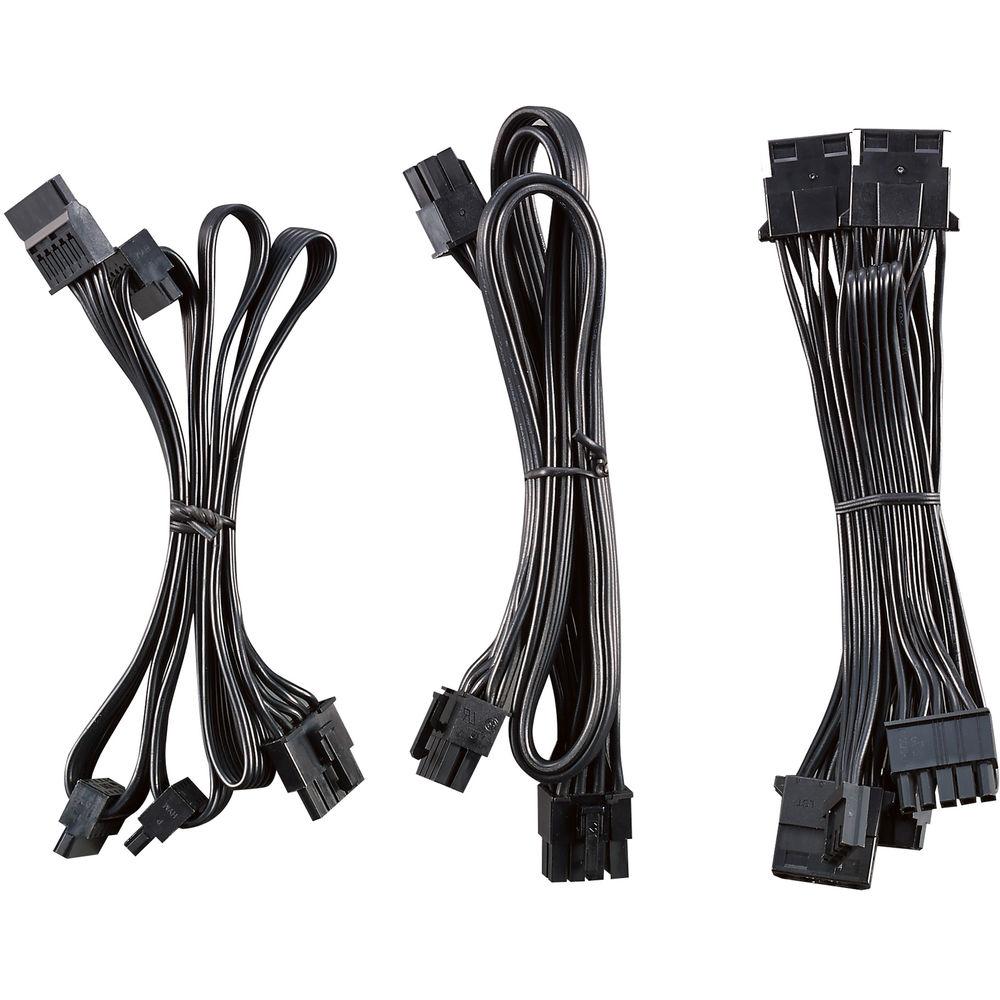

- More Conductive PCI-e Cables
- The MasterWatt uses 16 AWG PCI-e cables for less resistance and better efficiency.
- Protection
-
- OCP (Over Current Protection)
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- OTP (Over Temperature Protection)
- SCP (Short Circuit Protection)
UPC: 884102034978 In the Box Cooler Master MasterWatt 550 550W 80 Plus Bronze Semi-Modular Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MasterWatt 550 550W 80 Plus Bronze Semi-Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

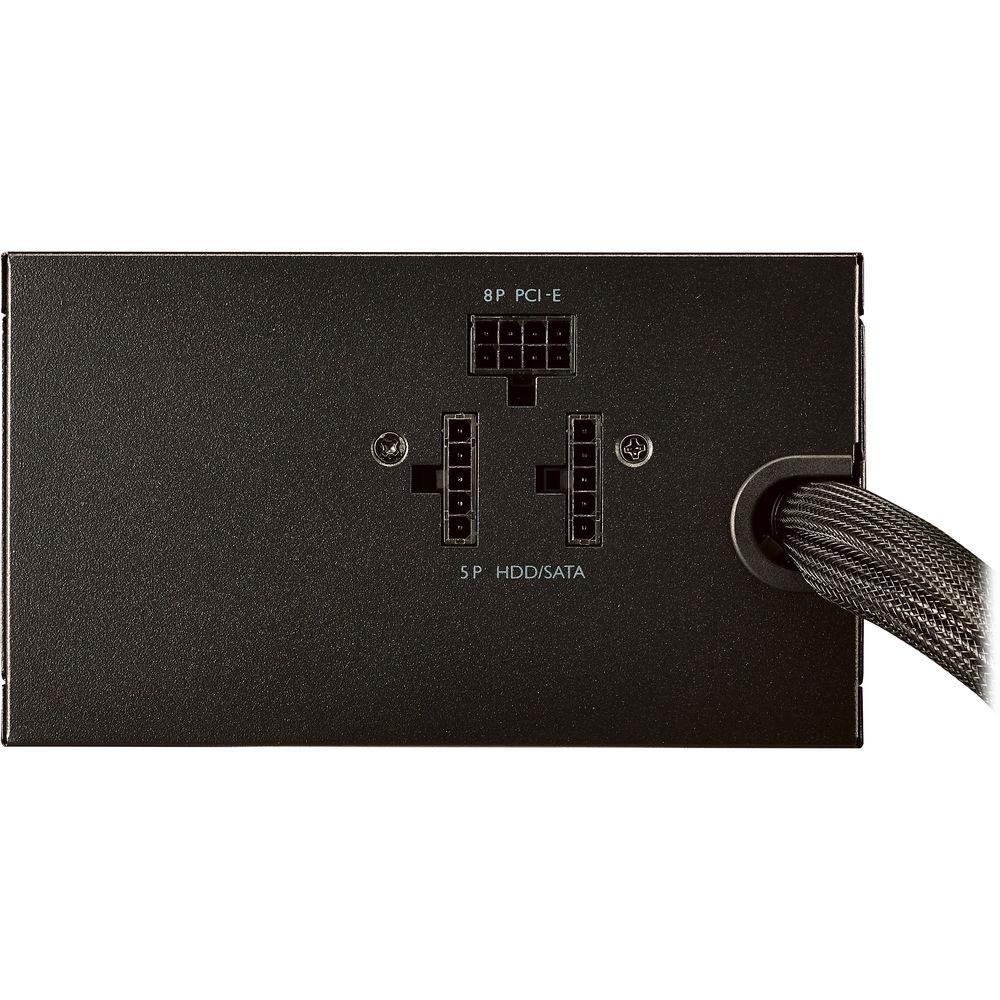

Technical parametersCooler Master MasterWatt 550 Specs | Type | ATX 12V Version 2.4 | | Input Voltage | 100 - 240 VAC | | Input Current | 8 - 4 A | | Input Frequency | 50 - 60 Hz | | Connectors | 1 x 24-Pin Motherboard
1 x 4+4-Pin CPU
2 x 6+2-Pin PCI-e
6 x SATA
2 x 4-Pin Peripheral

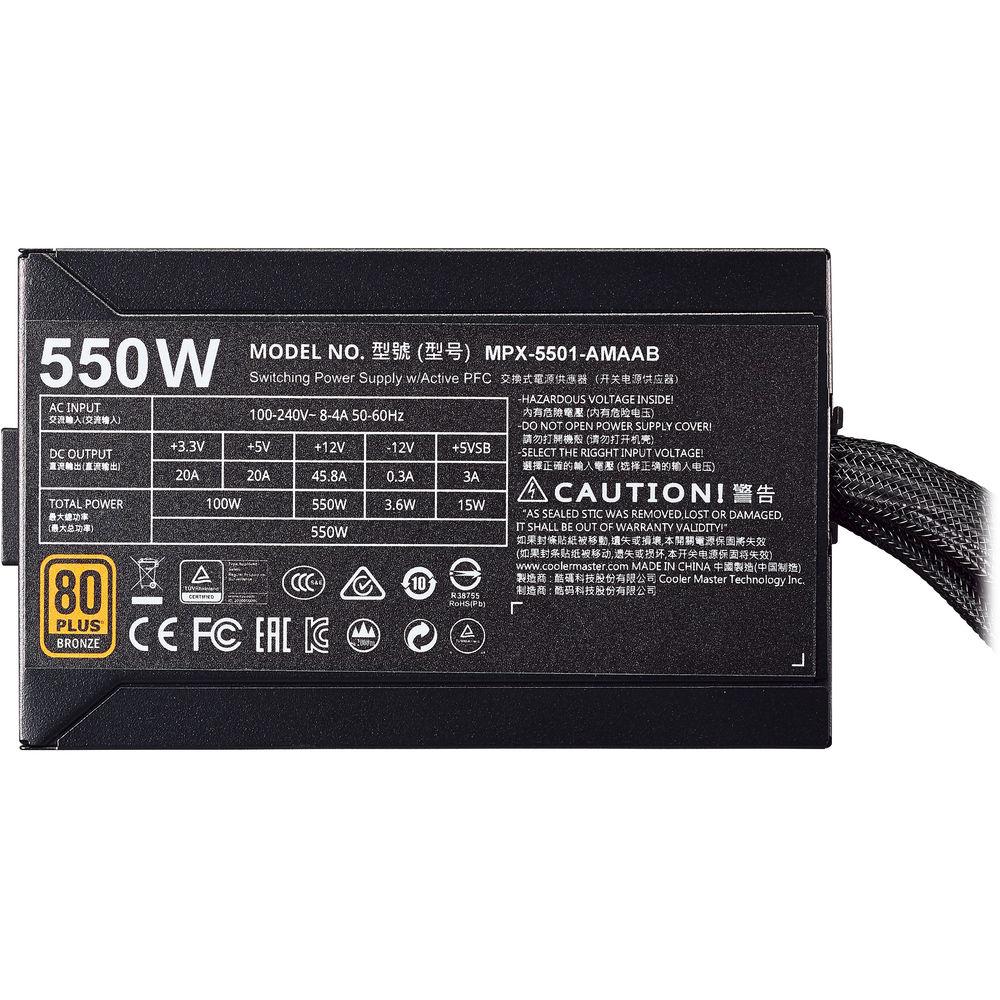

1 x 4-Pin FDD Cable | | Output | +3.3 V - 20 A
+5 V - 20 A
110 W
+12 V - 45.8 A
550 W
-12 V - 0.3 A
3.6 W
+5 Vsb - 3 A
15 W | | Fan | 120 mm | | MTBF (Approx.) | 100,000 hours | | | | Operating Temperature | 32 - 104°F / 0 - 40°C | | | | 80 PLUS Certification | 80 Plus Bronze | | Regulations and Standard Compliance | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB | | Dimensions (L x W x H) | 5.51 x 5.91 x 3.39" / 140 x 150 x 86 mm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 10.6 x 7.8 x 4.5" |
