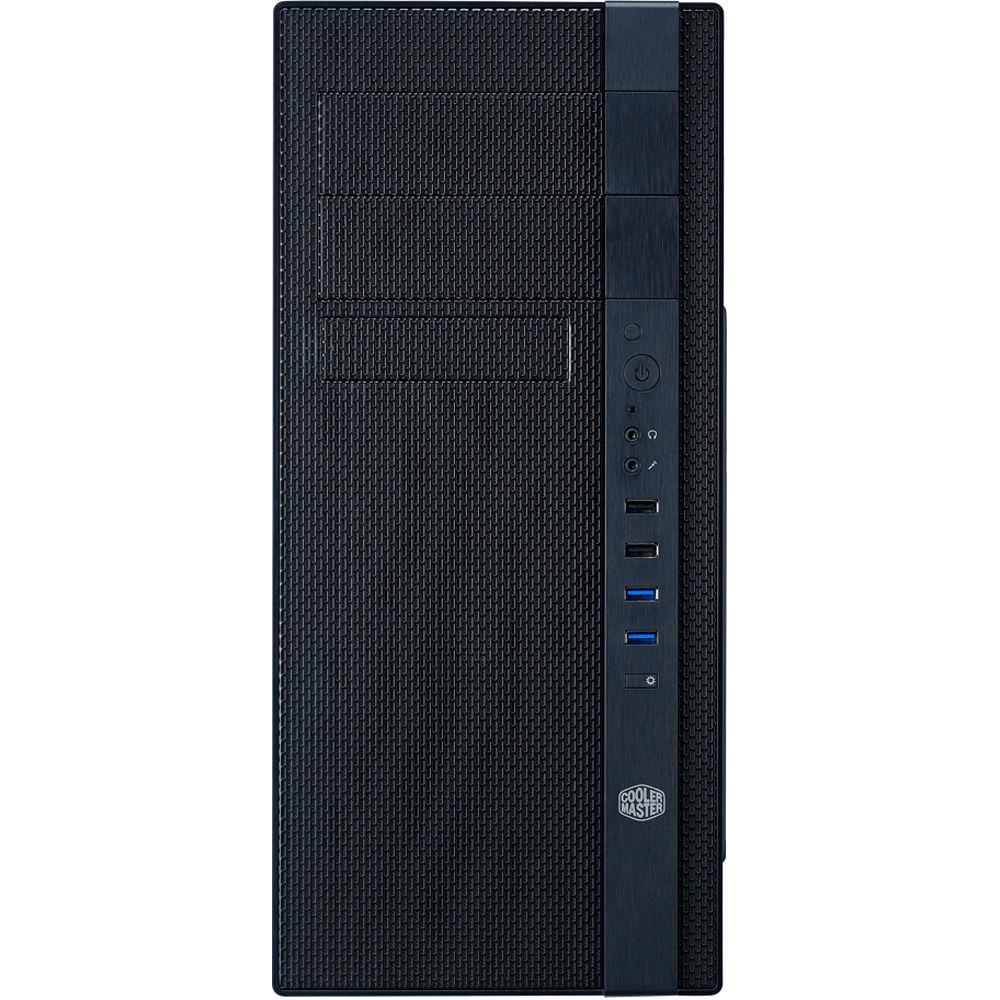

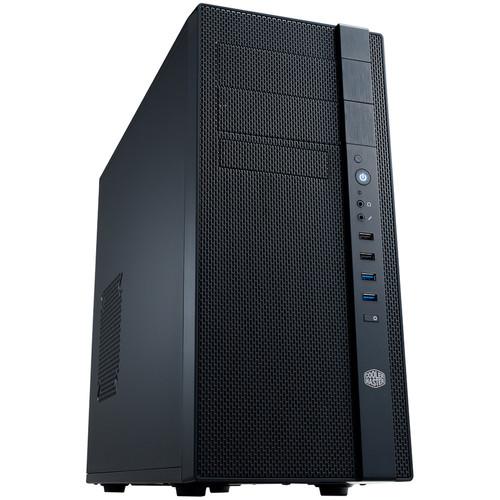

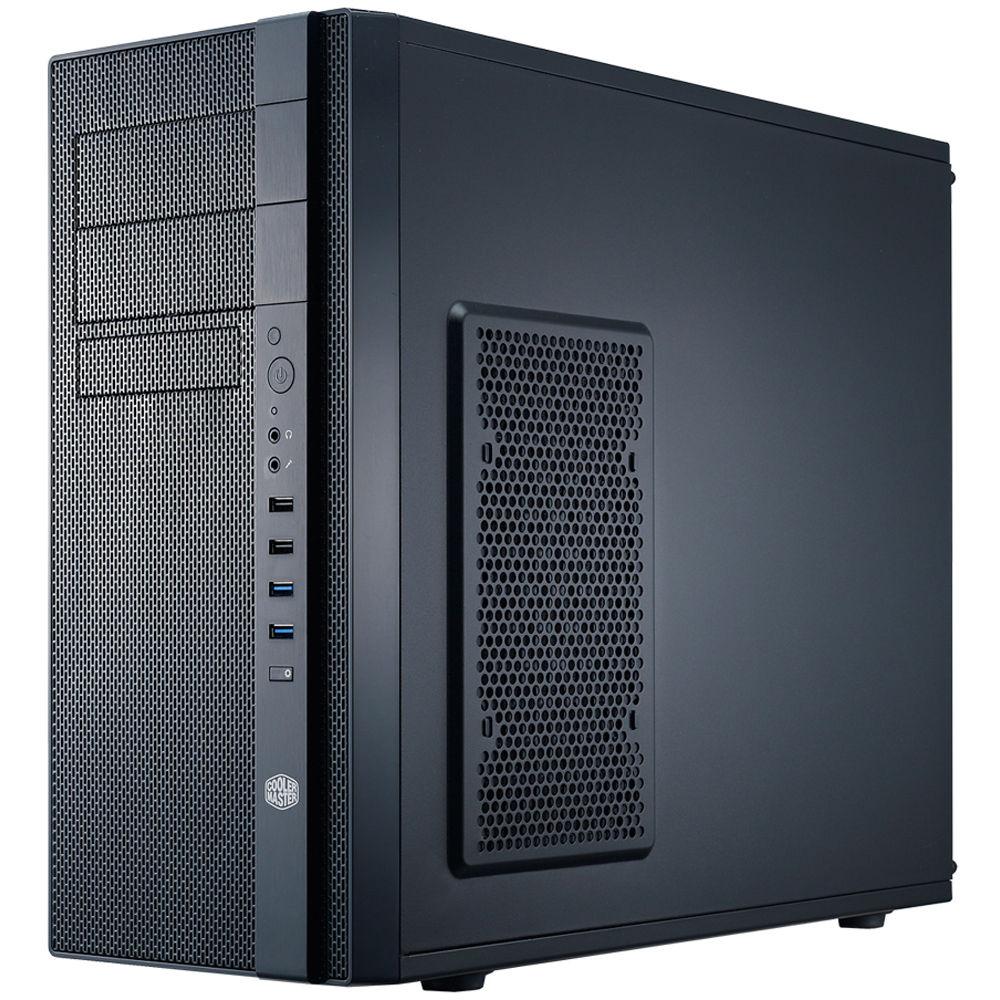

Product description The midnight black Mid Tower Micro-ATX/ATX Computer Case from Cooler Master has extensive cooling support and air cooling performance. It supports a 9.4" liquid cooling radiator or two 4.7" fans on the right side or at the top. The case also supports high-end graphics cards up to 12.6", including NVIDIA GTX 690 and AMD HD 7990. It provides three dust filters on top, right side, and bottom for easy maintenance, and supports a 4.7" liquid cooling radiator in the rear. - Mesh front panel with large vents
- Supports a 9.4" liquid cooling radiator or two 4.7" fans on the right side and at the top

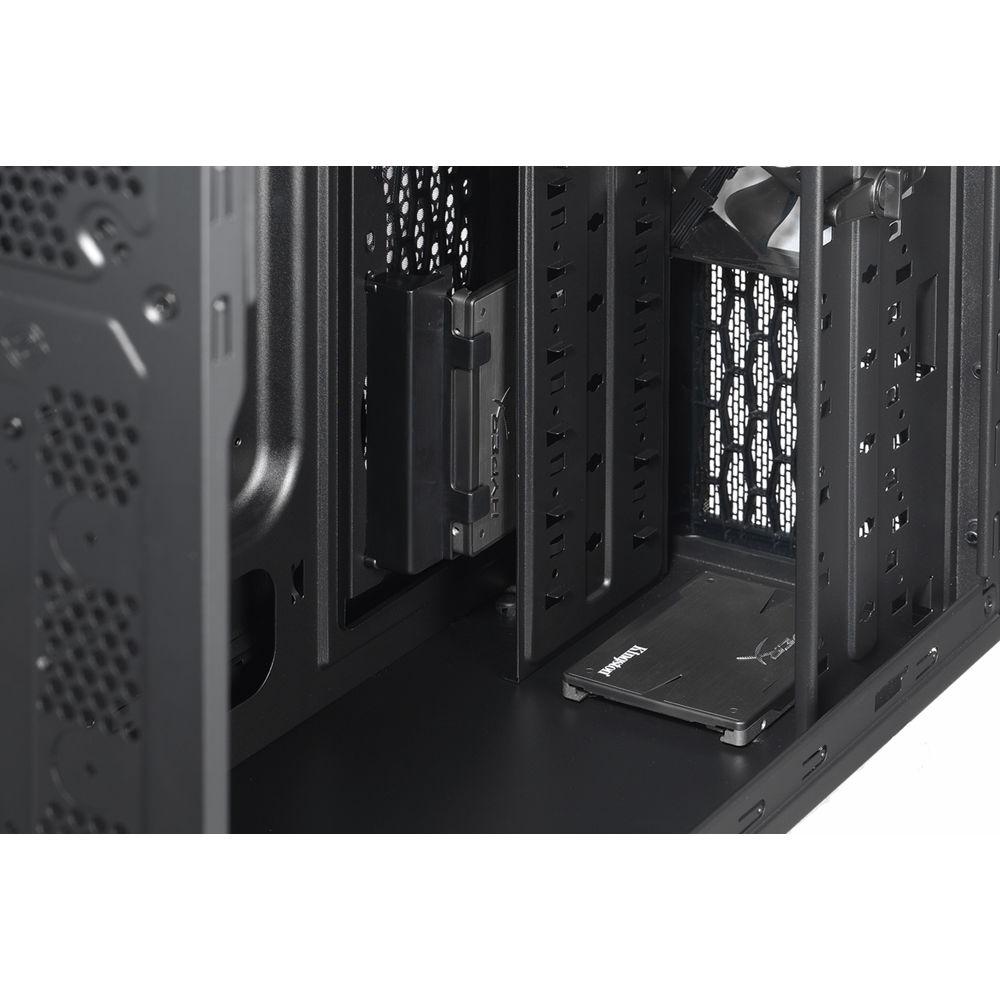

- Supports up to three SSDs, two on the tool-less 2.5" cage and one at the bottom of HDD cage
- Supports a 4.7" liquid cooling radiator in the rear
- Includes two XtraFlo 4.7" fans without LED arranged for optimum airflow with support for up to eight fans
- Supports high-end graphics cards up to 12.6", including NVIDIA GTX 690 and AMD HD 7990
- Dual Super Speed USB 3.0 ports
UPC: 884102023293 In the Box Cooler Master Mid Tower Micro-ATX/ATX Computer Case (Midnight Black) Limited 2-Year Warranty Brochure PDF 370.3kbbfxewbtbdutbcwcvcqxz Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master Mid Tower Micro-ATX ATX Computer Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master N400 Specs | | | Motherboard Support | ATX, Micro-ATX | | External Drive Bays | 2 x 5.25"
1 x 3.5" | | Internal Drive Bays | 7 x 3.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 12.6" / 32 cm | | CPU Cooler Height | 6.4" / 16.2 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.09" / 18 cm | | | | Fan Mounting (Front) | 2 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | 2 x 120 mm
And
1 x 140 mm
Or
3 x 120 mm
| | Fan Mounting (Top) | 2 x 120 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Fans Included (Side) | None | | Fans Included (Top) | None | | Maximum Radiator Size (Front) | 240 mm | | Maximum Radiator Size (Rear) | 120 mm | | Maximum Radiator Size (Side) | 240 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | No | | Filter Locations | Bottom, Side, Top | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 7.5 x 16.7 x 19.7" / 190.0 x 426.0 x 501.4 mm | | Weight | 12.3 lb / 5.6 kg | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 22.2 x 19.0 x 9.6" |
