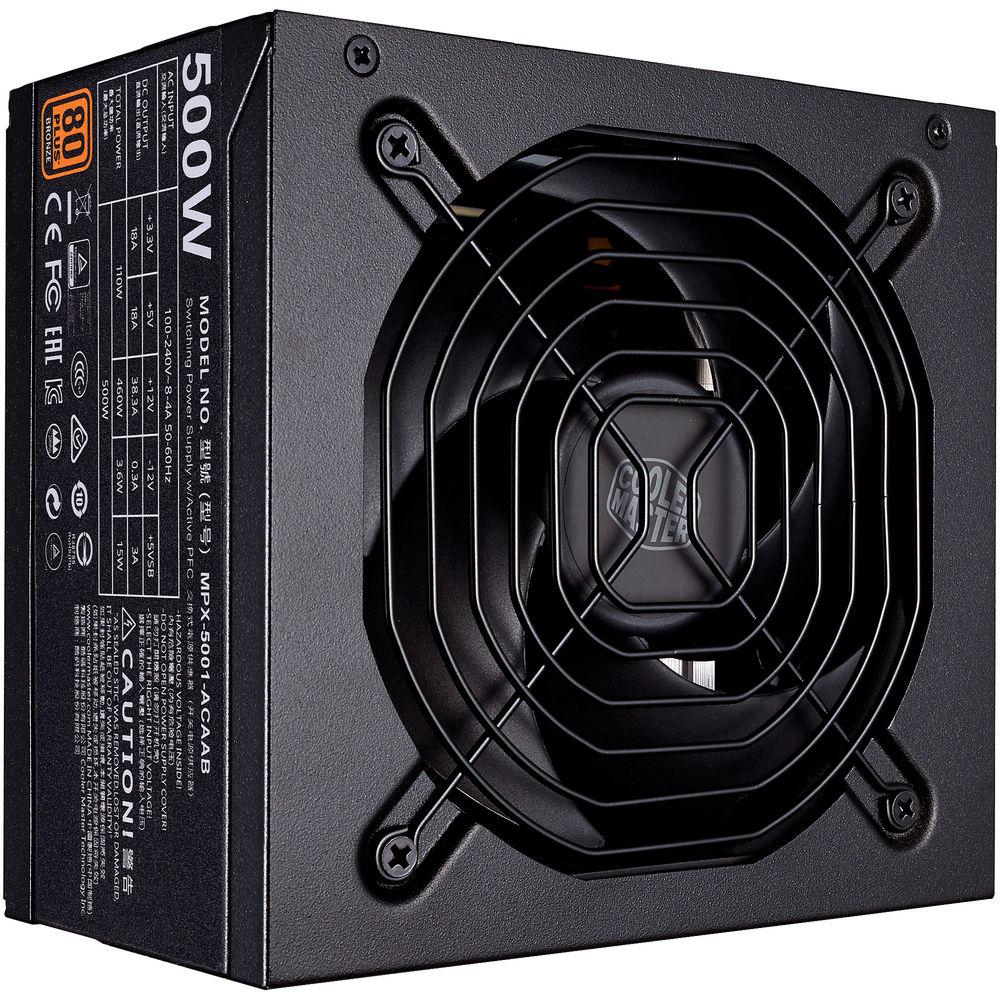

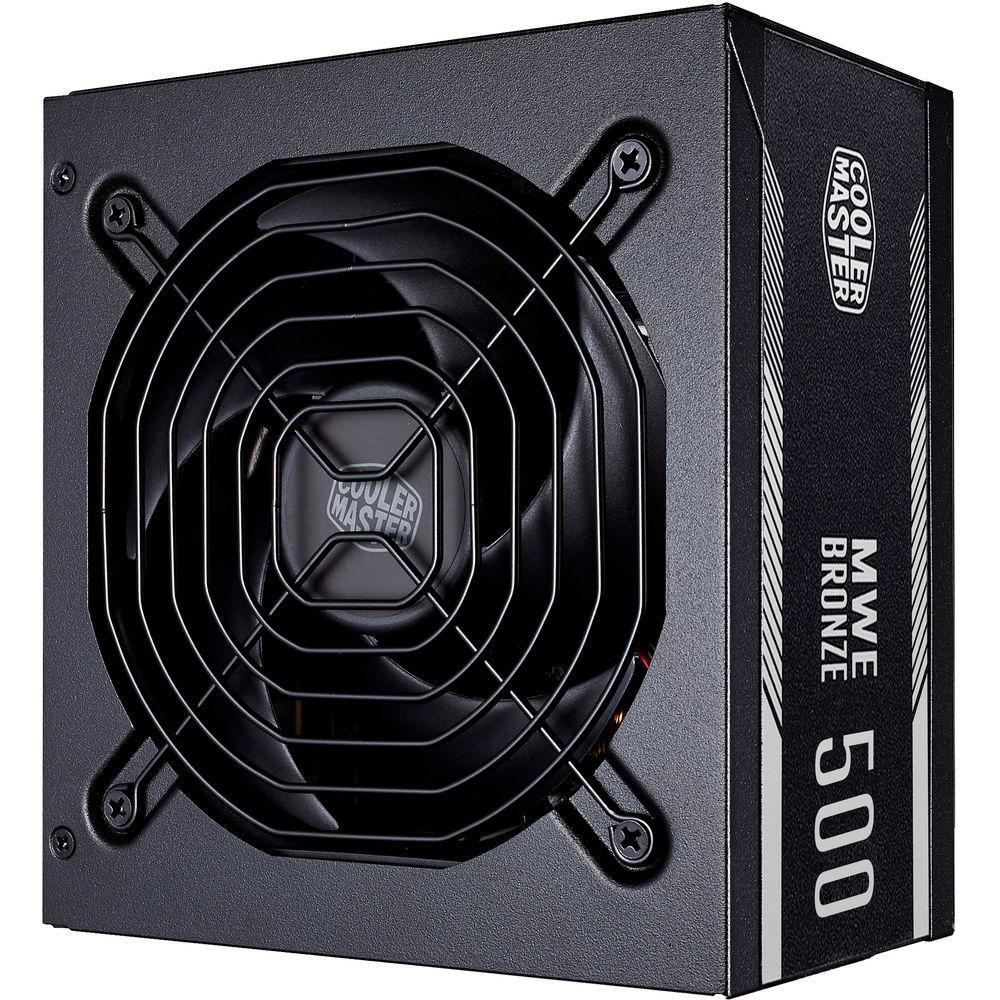

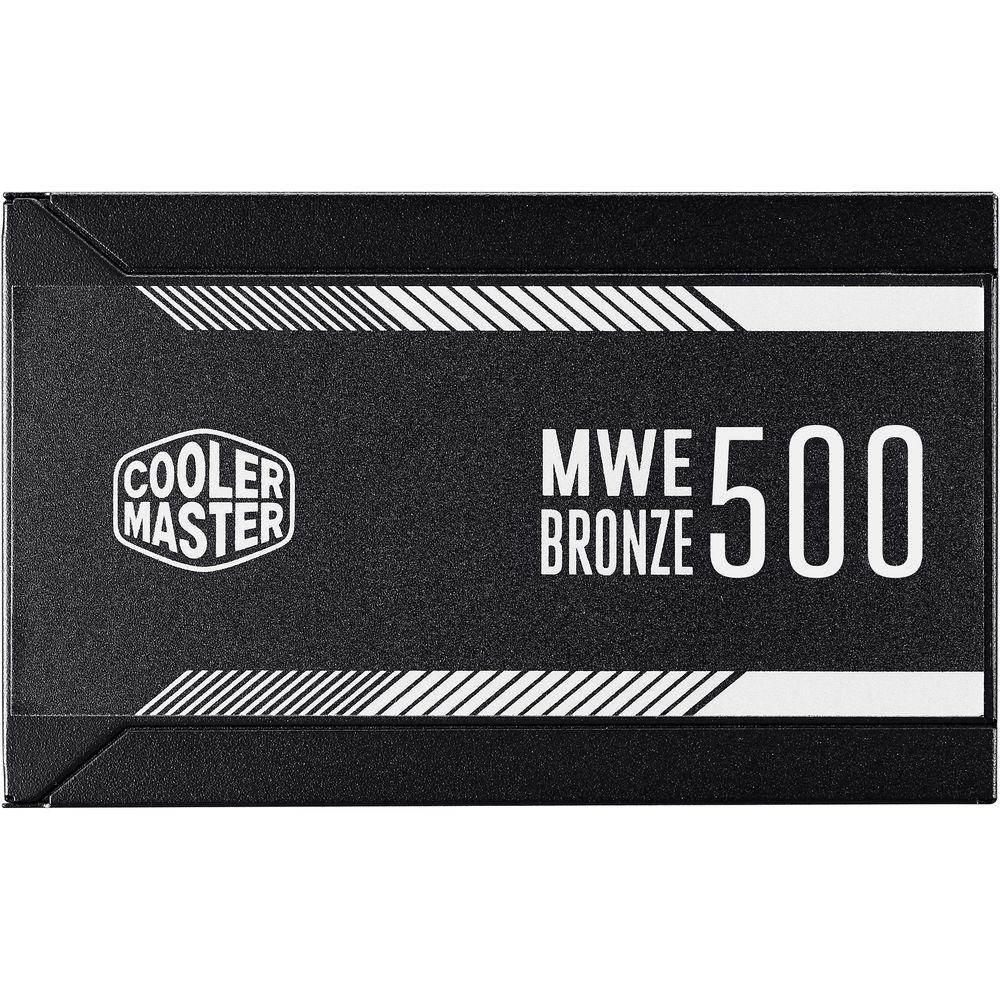

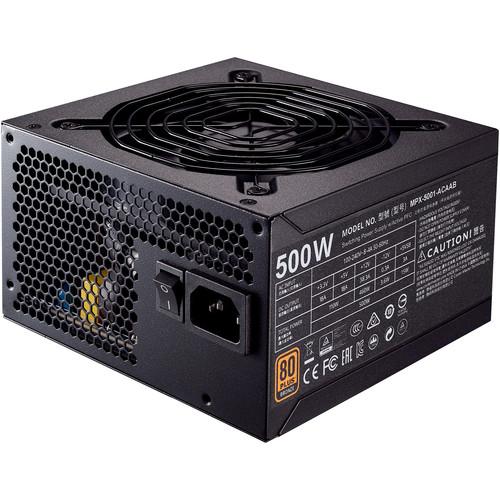

Product description Power your PC build with the MWE Bronze 500 500W 80 PLUS Bronze Certified Power Supply from Cooler Master. Capable of up to 500W power output over a single +12V rail, this ATX 12V power supply boasts a non-modular design, meaning all its sleeved cables are attached to the unit. The MWE Bronze 500 features two PCI-e connectors, four SATA connectors, three peripheral connectors, and a floppy connector, while a 120mm Silencio loop-dynamic bearing fan is designed to keep the power supply cool and quiet. The PSU has an 80 PLUS Bronze power-efficiency rating. - Durable LDB Bearing

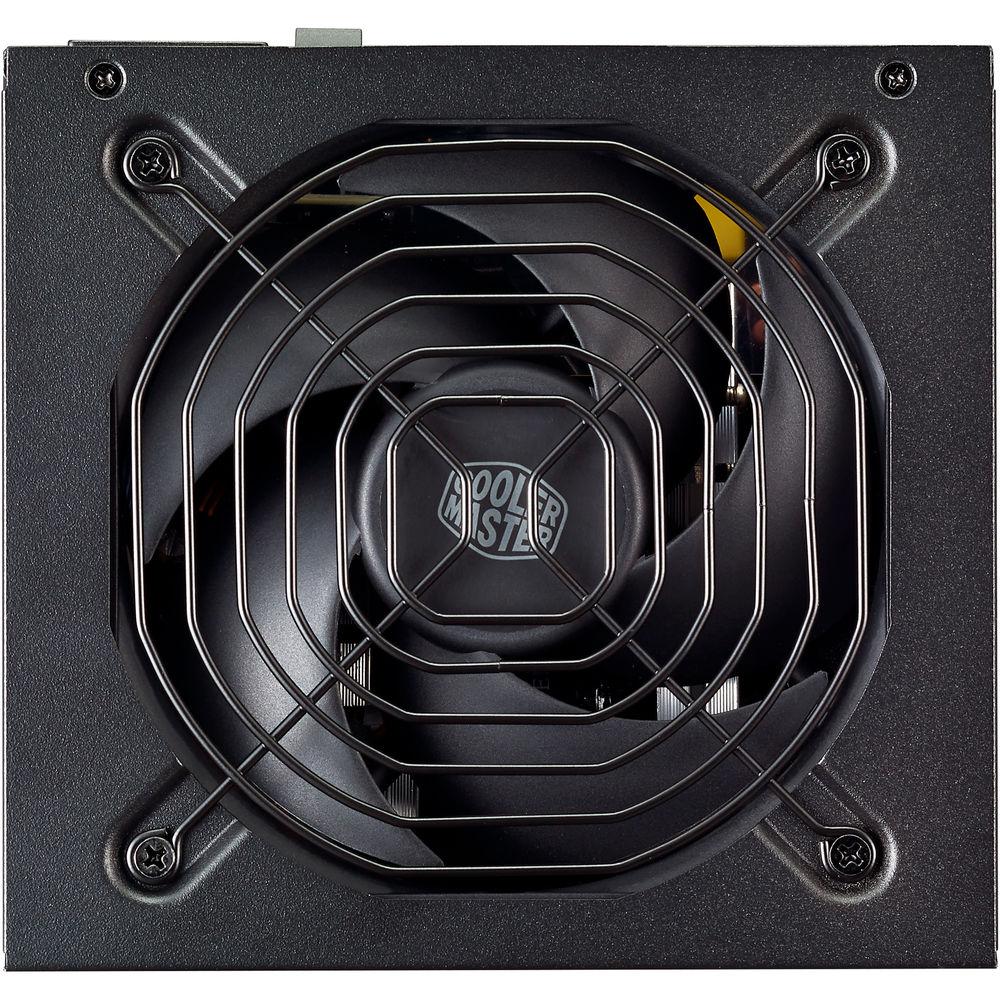

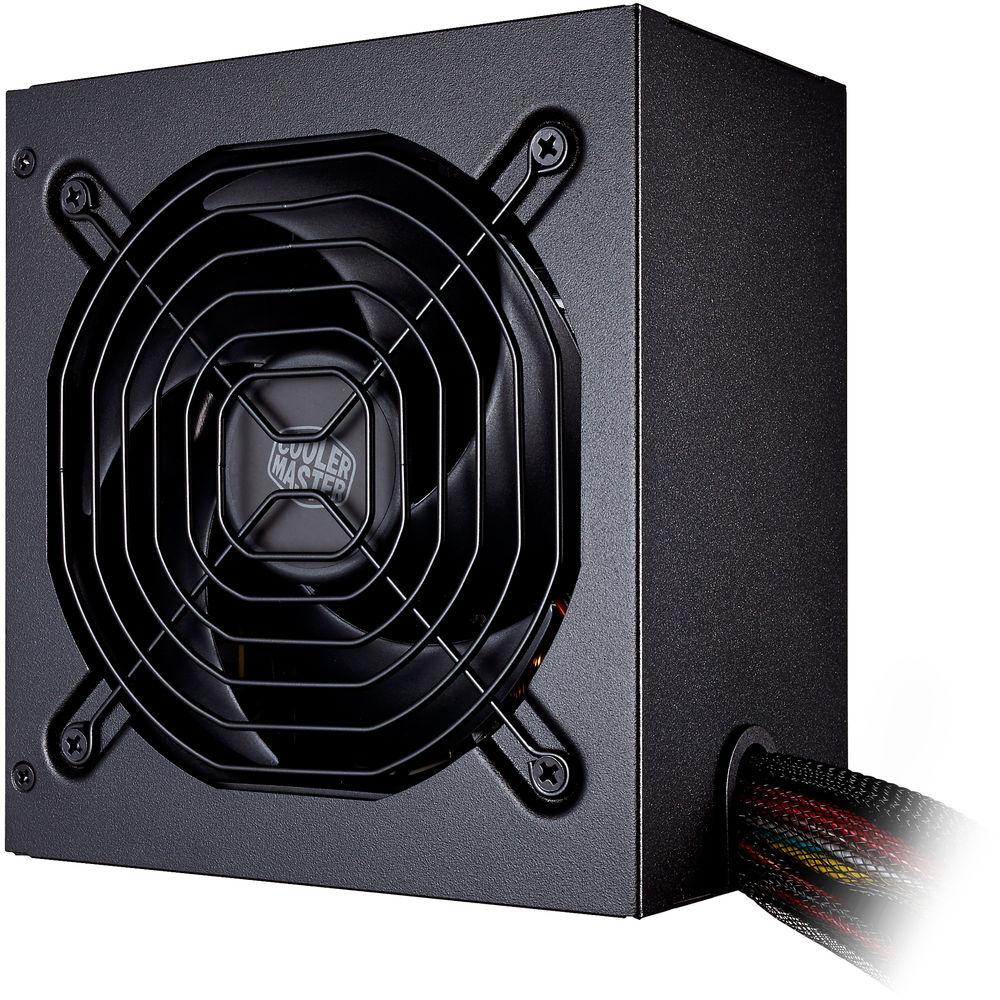

- The included Cooler Master 120mm Silencio FP fan combines sealed loop dynamic bearings with quiet fan blades, designed to offer a long lifetime of quiet cooling. The fan has a self-lubricating, dust-proof (IPX6) design that helps to reduce power consumption, as well as a 160,000-hour life expectancy. The Silent Driver IC helps to reduce clicks and vibration.
- Quality Capacitors
- High-quality capacitors are used in the MWE Bronze power supply to help boost product lifespan and resistance to high temperatures.
- Sleeved Cables

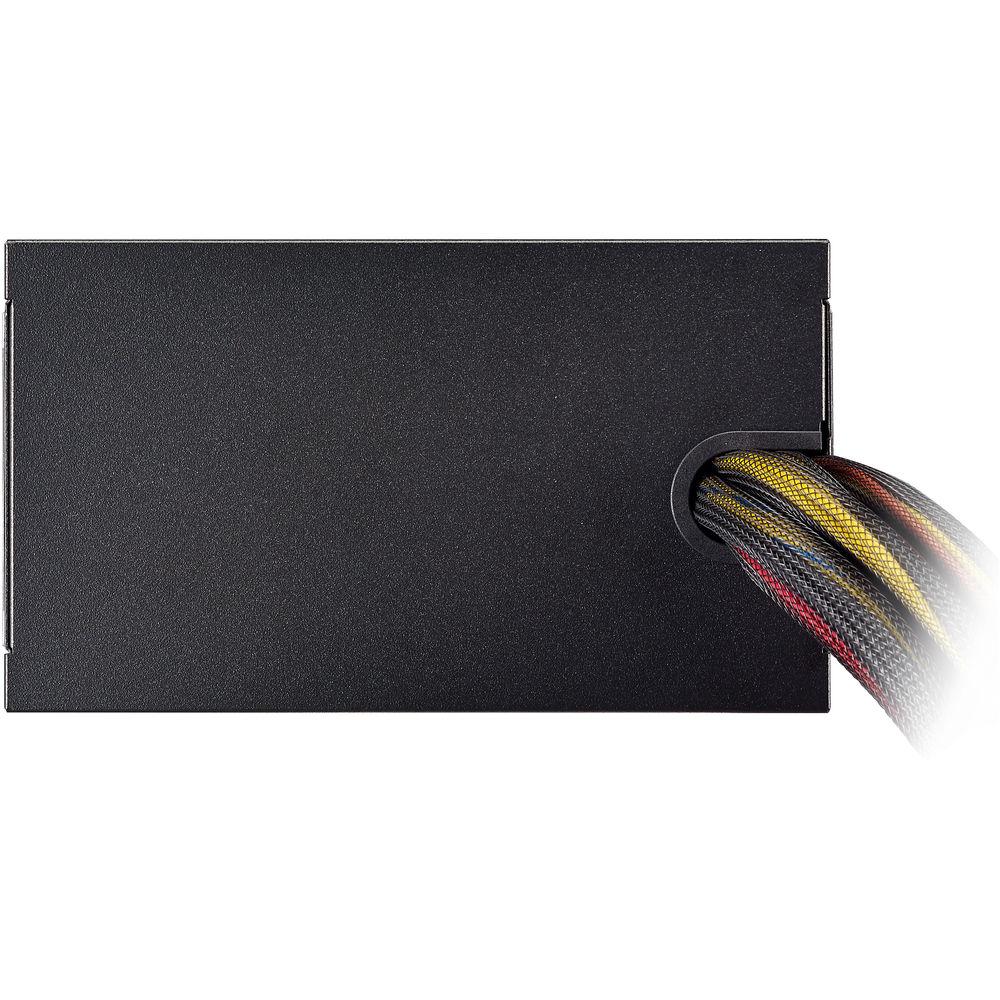

- Sleeved cables provide easier cable management, offering a clean and professional look. They also save space for better airflow within the PC system, helping to improve thermal performance and heat dissipation.
- Low Standby Power
- The MWE Bronze is designed to consume a maximum of 0.5W when your PC is in standby mode, complying with ErP 2013 Lot 6 standards.

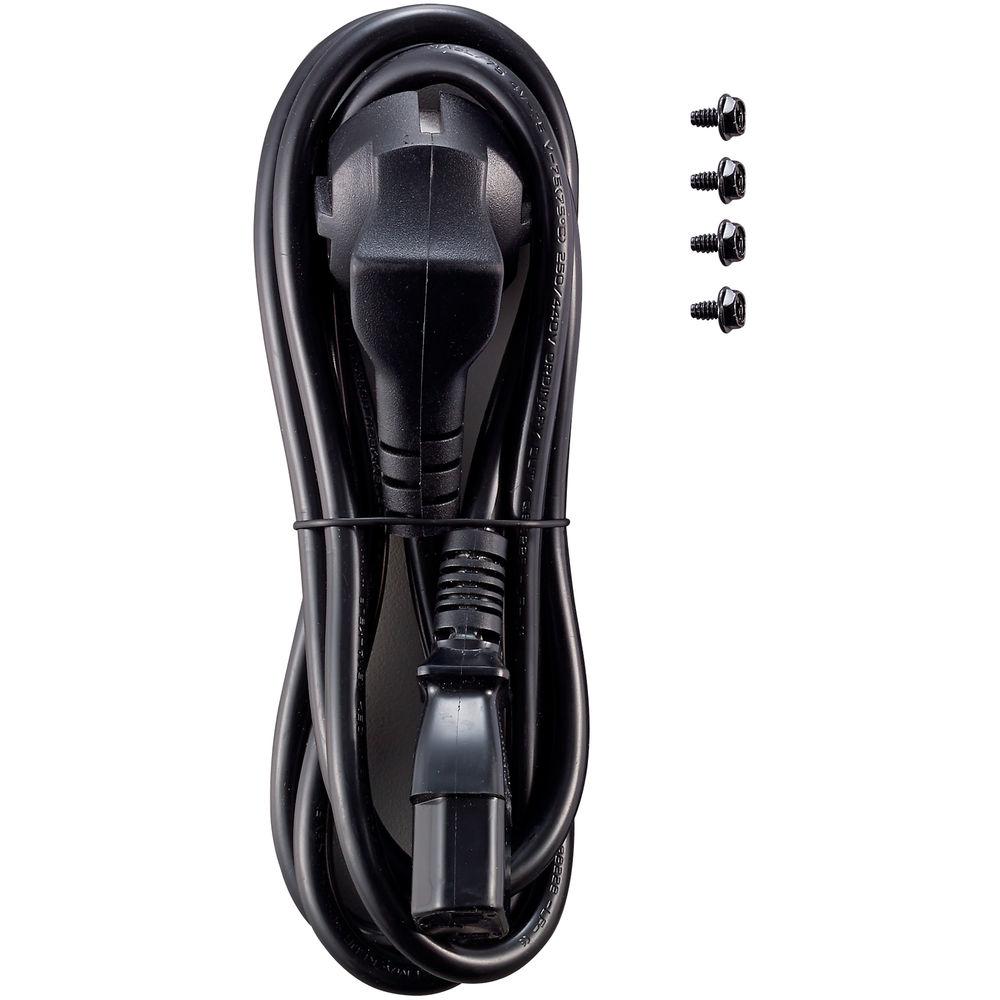

UPC: 884102034206 In the Box Cooler Master MWE Bronze 500 500W 80 PLUS Bronze Certified Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MWE Bronze 500 500W 80 PLUS Bronze Certified Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master MPX-5001-ACAAB-US Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin CPU
4 x (Unspecified Pin Count) SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy
2 x 6+2-Pin PCIe | | Cable Design | Sleeved | | PCIe Connector Distances | 21.7" / 550 mm
27.6" / 700 mm | | SATA Connector Distances | 17.7" / 450 mm
22.4" / 570 mm | | Peripheral Connector Distances | 17.7" / 450 mm
22.4" / 570 mm

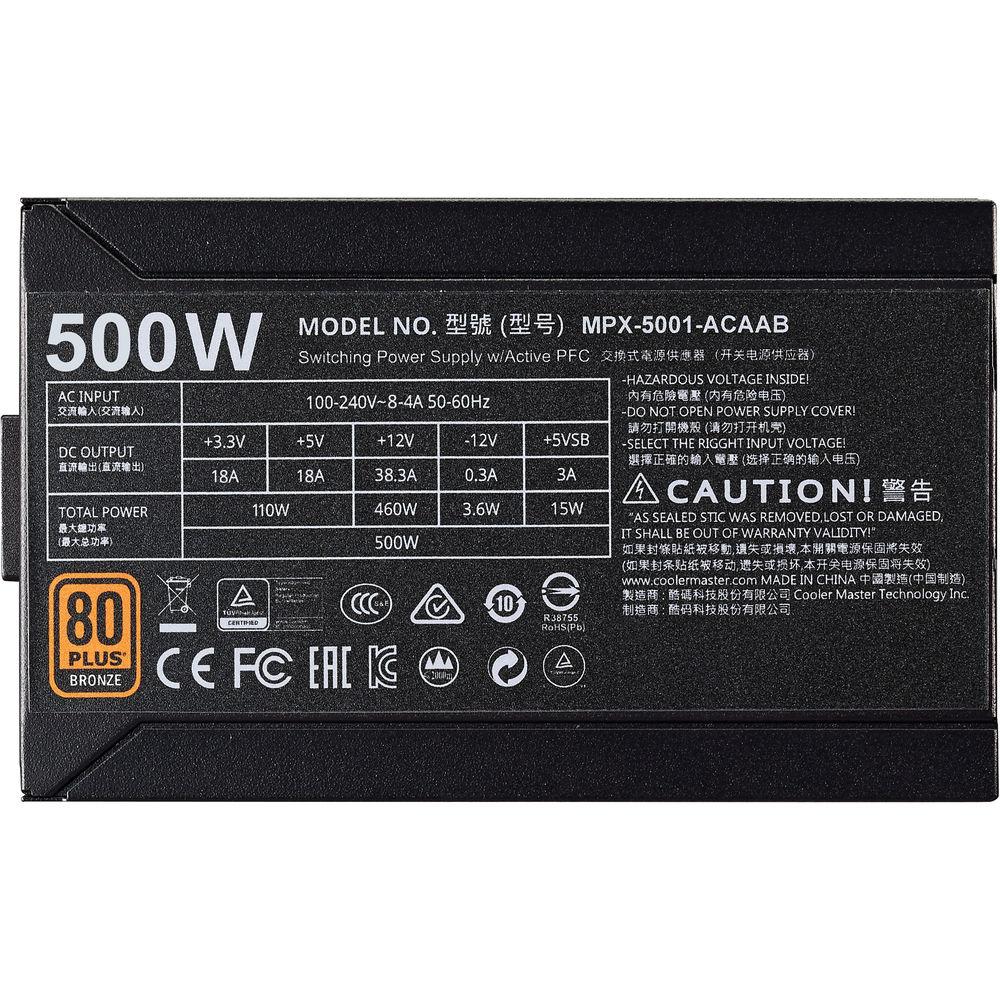

27.2" / 690 mm | | Floppy Connector Distances | 31.9" / 810 mm | | ATX Connector Distance | 24" / 610 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 500 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 460 W | | Max Load for +12 V | 38.3 A | | Combined Power for +3.3/+5 V | 110 W | | Max Load for +3.3 V | 18 A | | Max Load for +5 V | 18 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | Peak Power | 500 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 8 A | | | | Efficiency Rating | 80 PLUS Bronze | | Efficiency | 85% | | Hold up Time | 16 ms at 80% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 120 mm | | Bearing Type | Loop Dynamic Bearing (LDB) | | Fan Life Expectancy | 160,000 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.31 | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection | | Certifications | BSMI, CCC, CE, EAC, ErP Lot 6, FCC, Kcc, RCM, TUV, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.5 x 5.9 x 3.4" / 140.0 x 150.0 x 86.0 mm |
