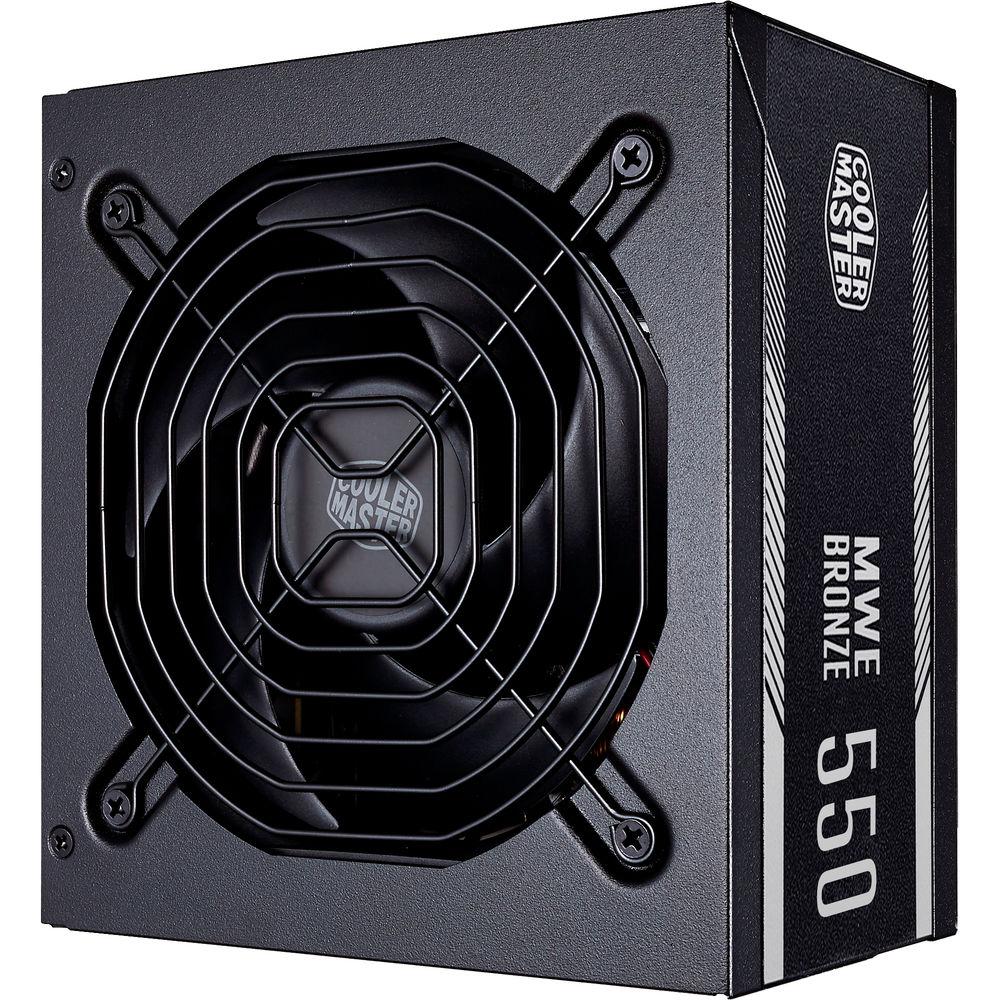

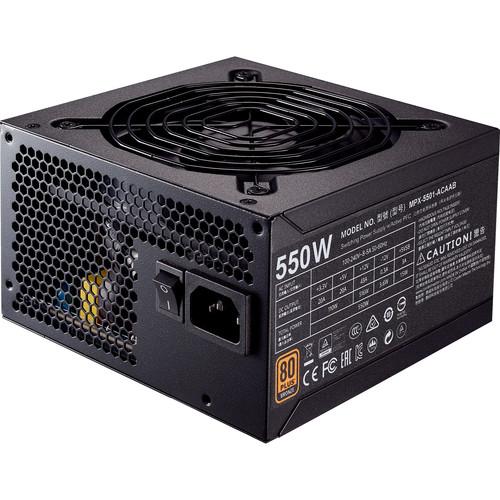

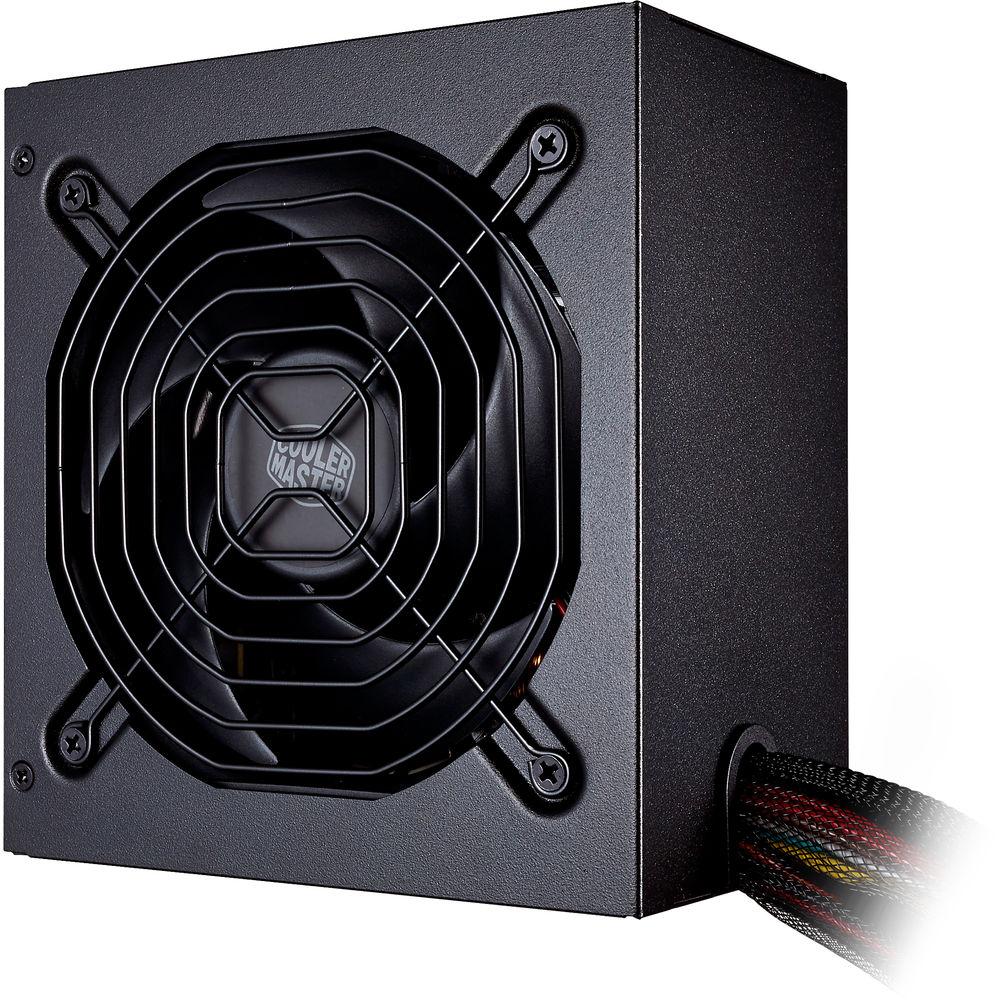

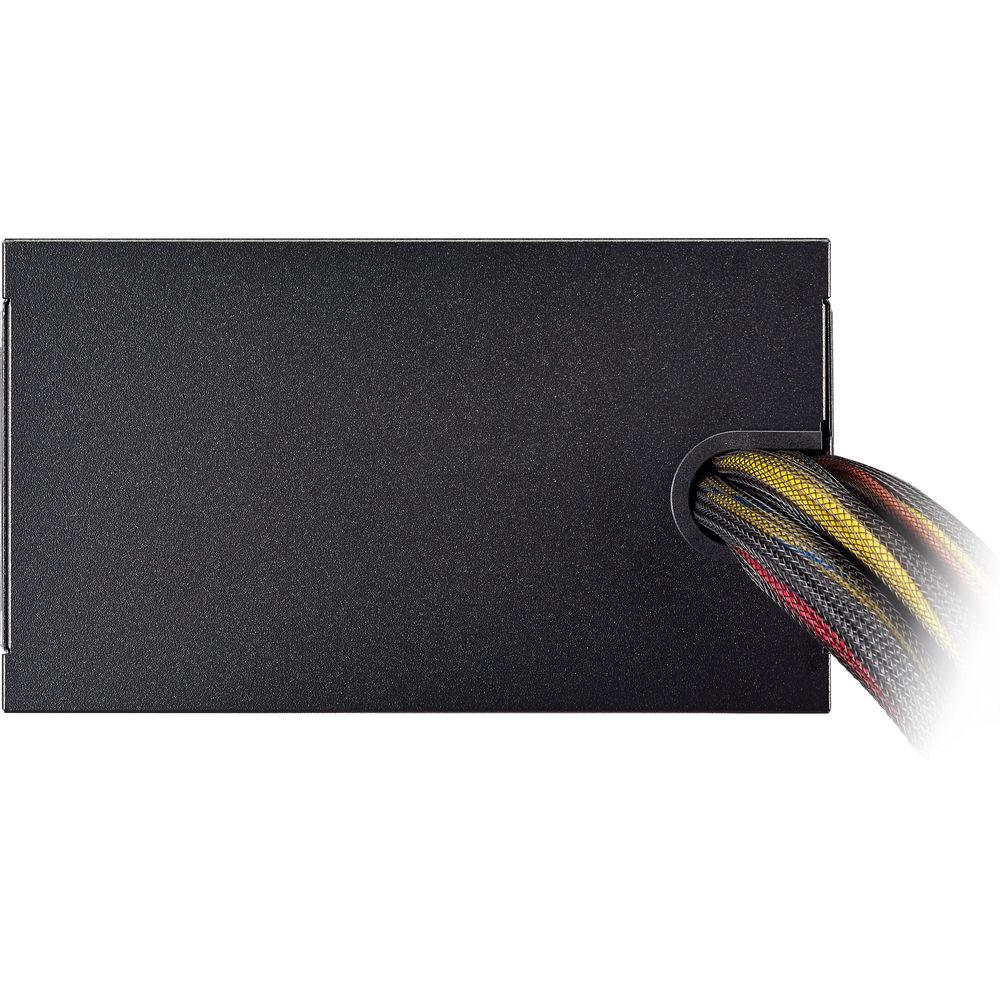

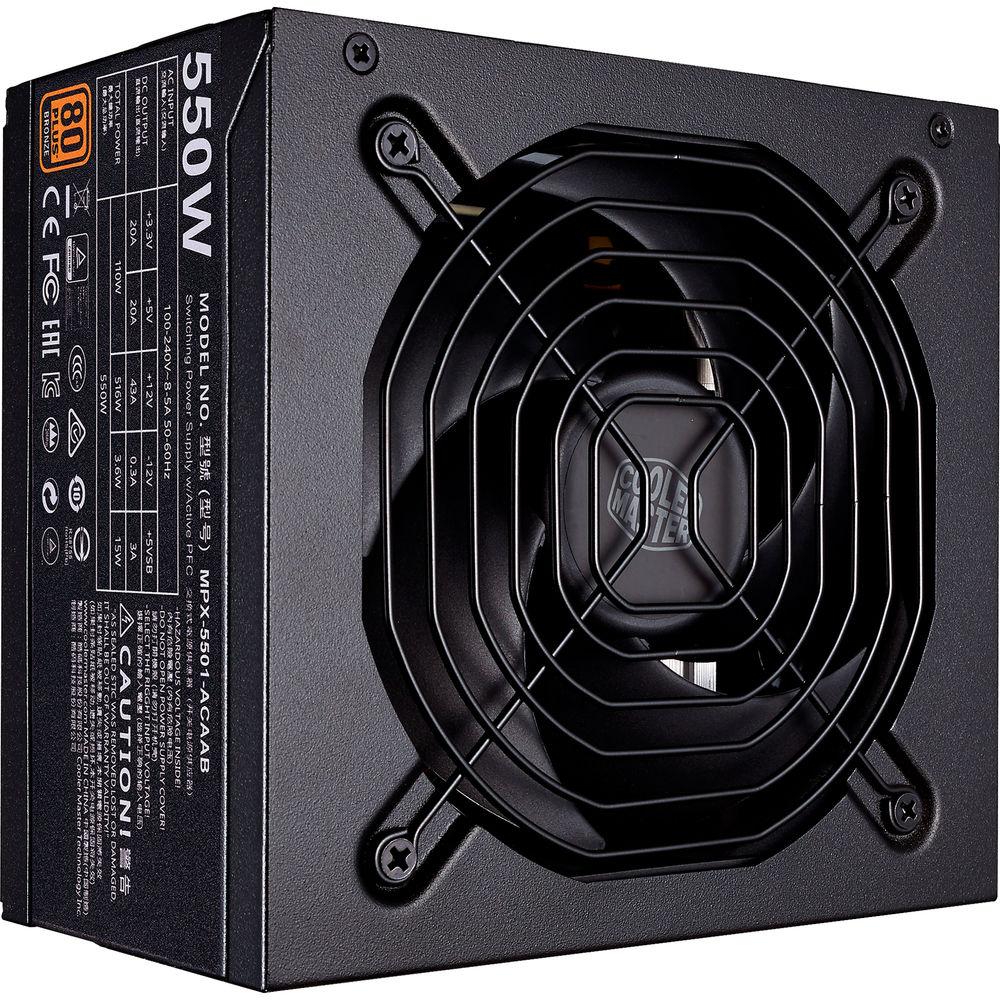

Product description The Cooler Master MWE Bronze 550 550W 80 Plus Bronze Power Supply is designed to provide your system with stable, quiet, and efficient power. Built with a 120mm fan utilizing LDB bearings, it operates silently and with little power. It's also 80 Plus Bronze rated for 85% efficiency. While this unit is not modular, the cables are sleeved to reduce bulkiness and offer a cleaner look. All the cables you'd need in a standard built are all built-in. Specs-aside, the MWE Bronze is also built with multiple heavy-duty protections including: Over-Voltage, Over-Power, Over-Temperature, Short-Circuit, and Over-Current. - Durable LDB Bearing

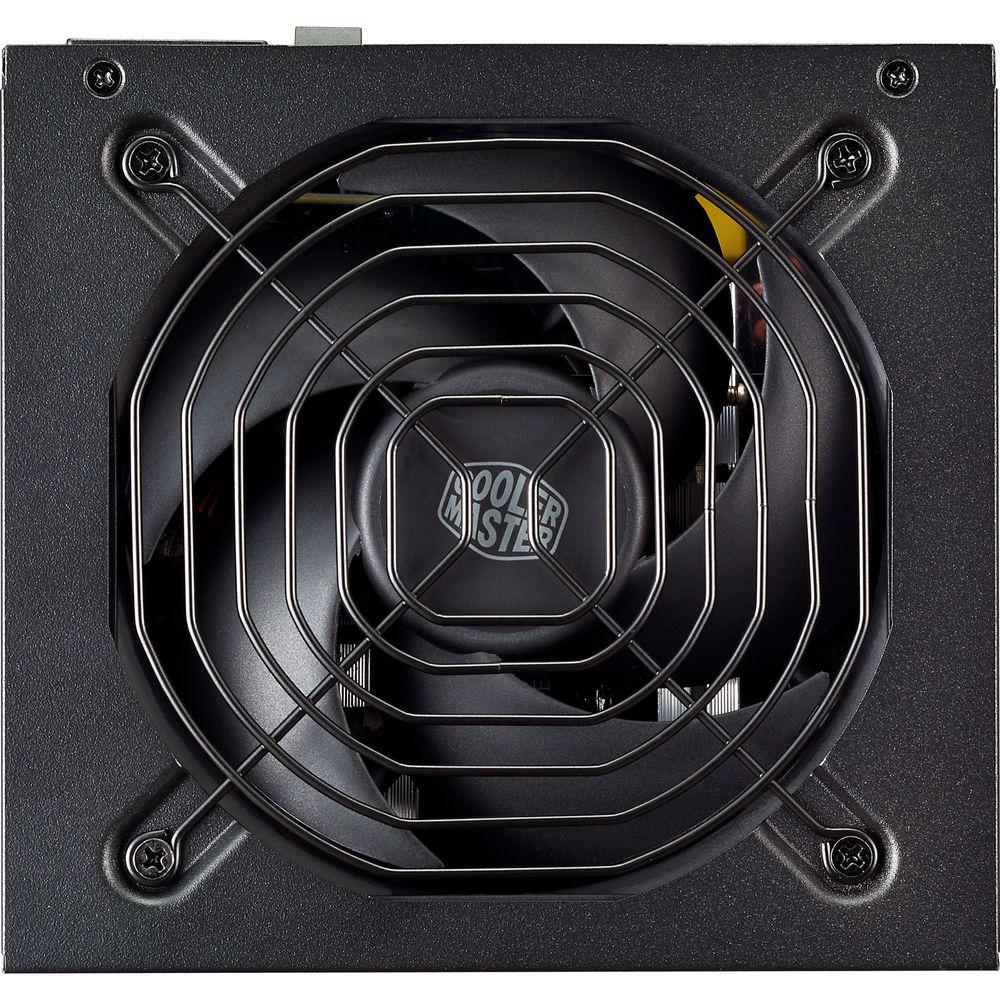

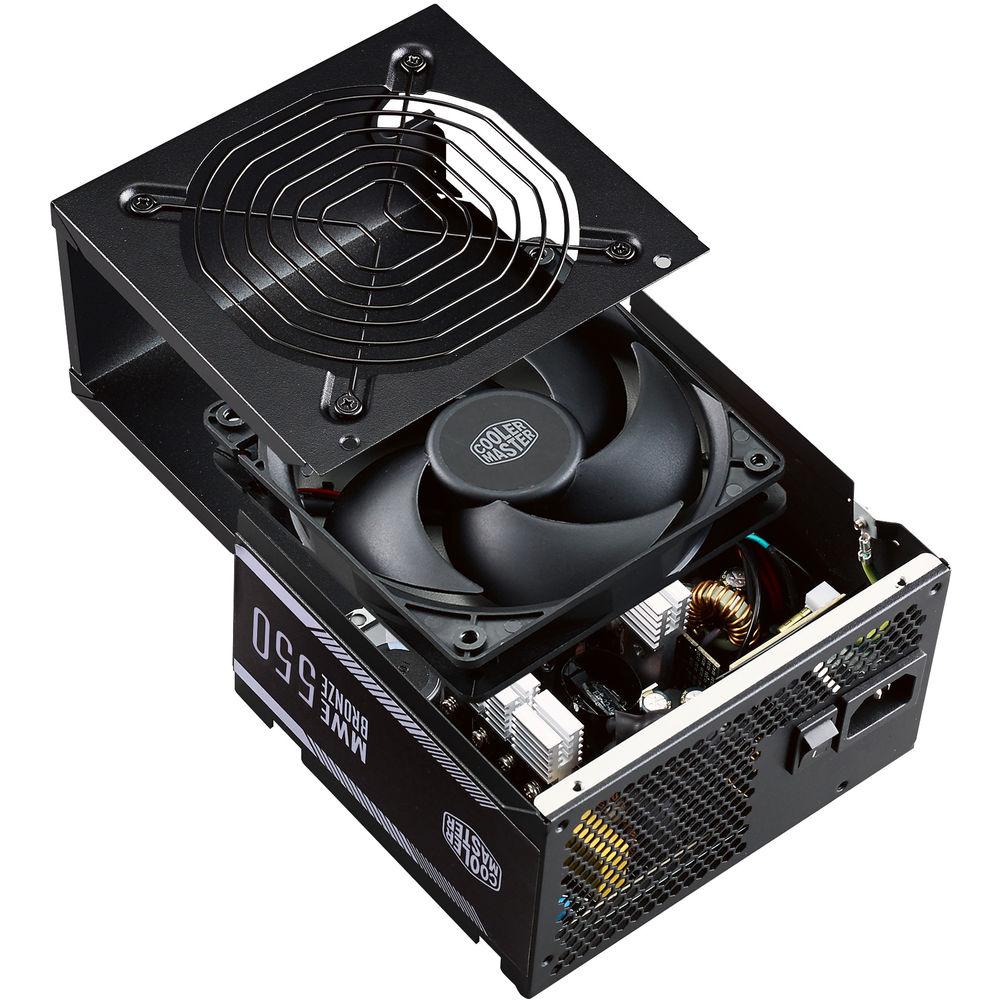

- The MWE Bronze power supply is built with a 120 mm Cooler Master Silencio FP fan, which features liquid-dynamic bearings (LDB) that offers reliable, quiet, and low-power operation.
- Low Standby Power
- At standby, the MWE Bronze power supply consumes less than 0.5 W of power, complying with ErP 2013 lot 6 standards.
UPC: 884102034480 In the Box Cooler Master MWE Bronze 550 550W 80 Plus Bronze Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MWE Bronze 550 550W 80 Plus Bronze Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

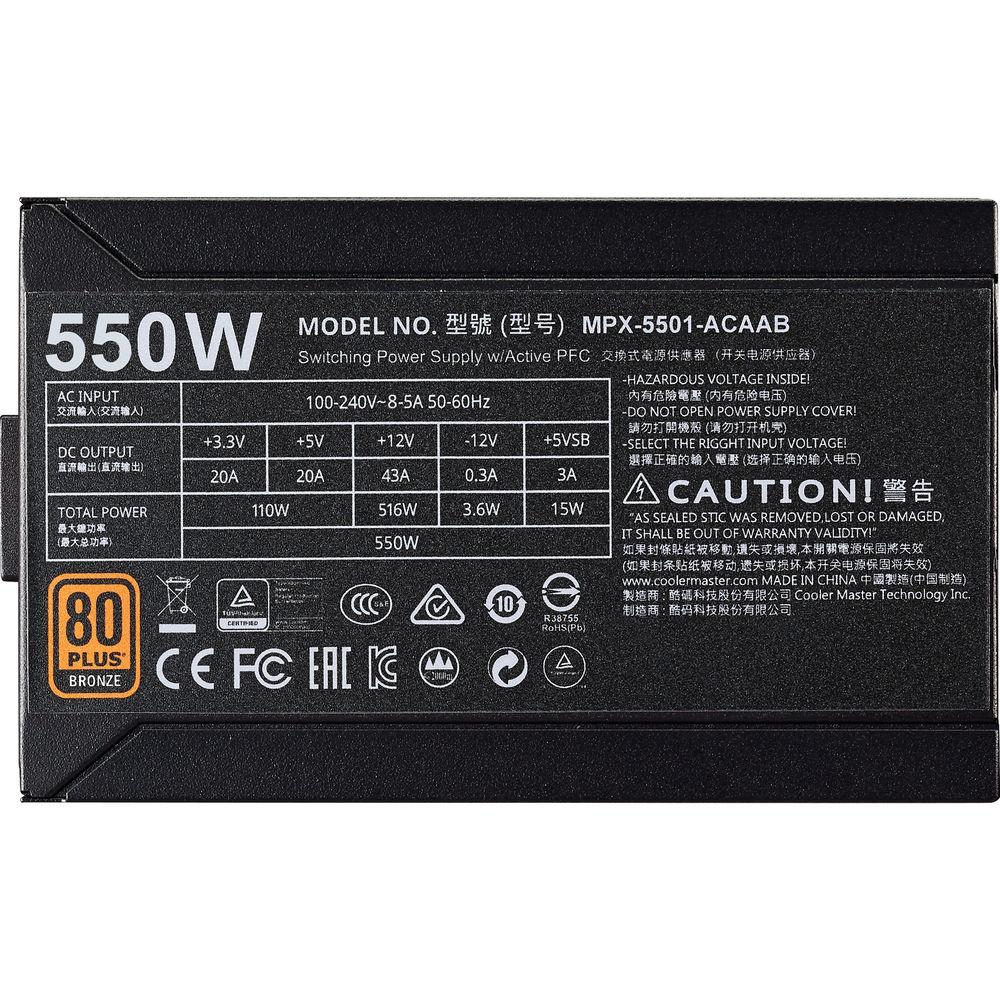

Technical parametersCooler Master MWE Bronze 550 Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin CPU
4 x 15-Pin SATA
3 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy
2 x 6+2-Pin PCIe | | Cable Design | Sleeved | | PCIe Connector Distances | 21.7" / 550 mm
5.9" / 150 mm | | SATA Connector Distances | 17.7" / 450 mm
4.7" / 120 mm | | Peripheral Connector Distances | 17.7" / 450 mm
4.7" / 120 mm | | ATX Connector Distance | 24" / 610 mm | | EPS Connector Distances | 23.6" / 600 mm | | | | Total Wattage | 550 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 516 W | | Max Load for +12 V | 43 A | | Combined Power for +3.3/+5 V | 110 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 8 A | | | | Efficiency Rating | 80 PLUS Bronze | | Efficiency | 85% | | Hold up Time | 16 ms at 80% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 120 mm | | Bearing Type | Loop Dynamic Bearing (LDB) | | Fan Life Expectancy | 160,000 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.31 | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection | | Certifications | BSMI, CCC, CE, EAC, FCC, TUV, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.5 x 3.4 x 5.5" / 140.0 x 86.0 x 140.0 mm |
