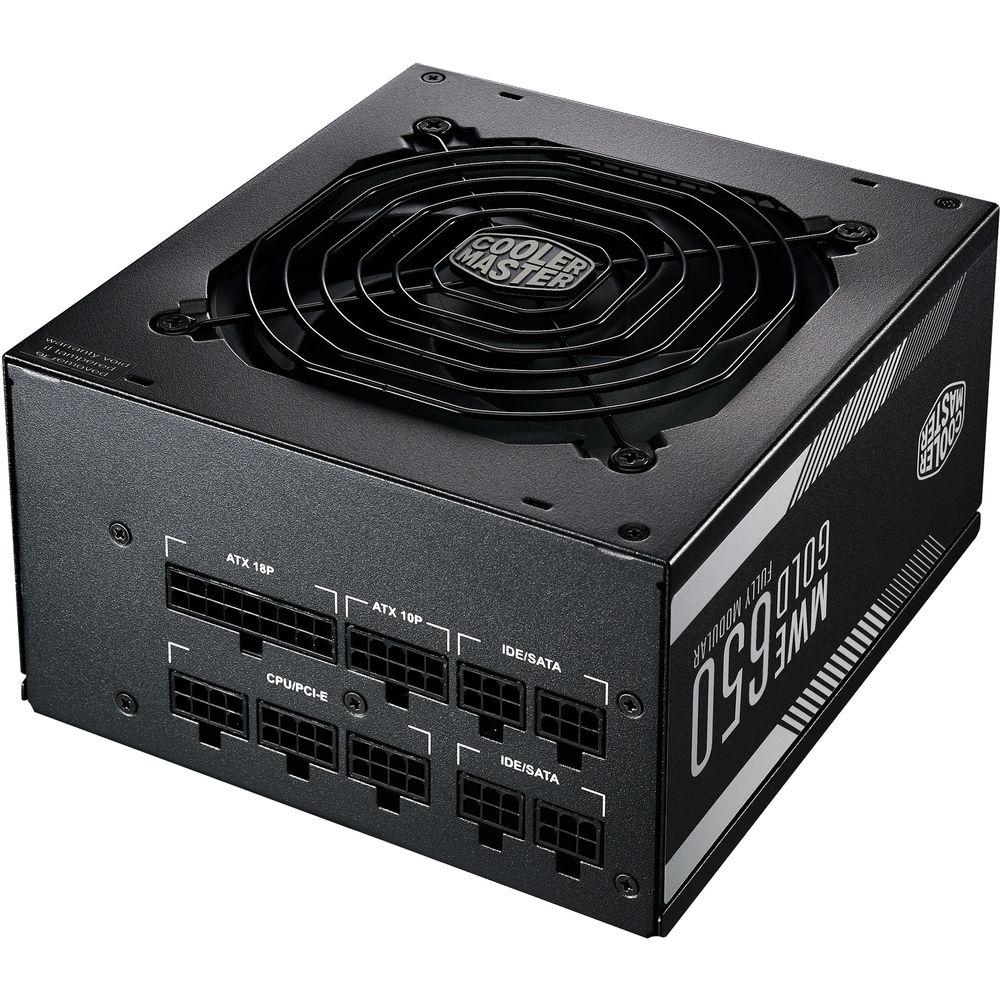

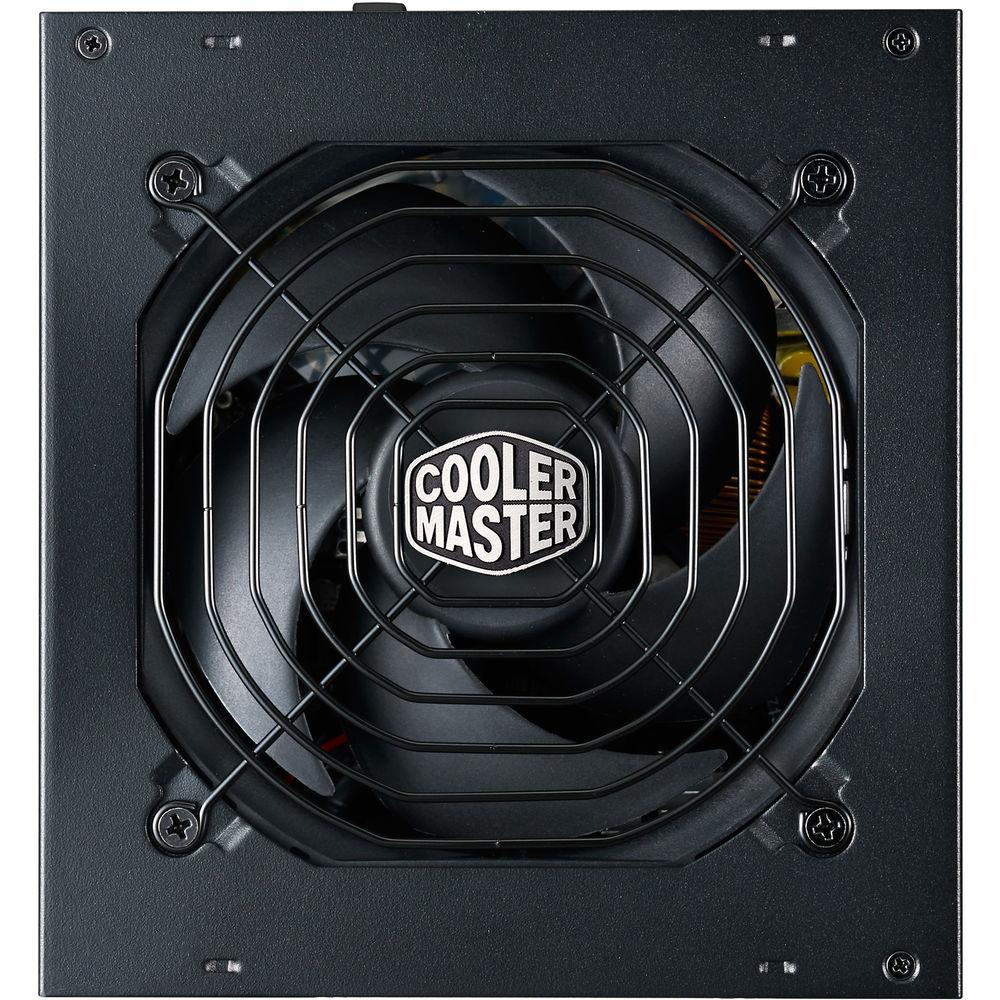

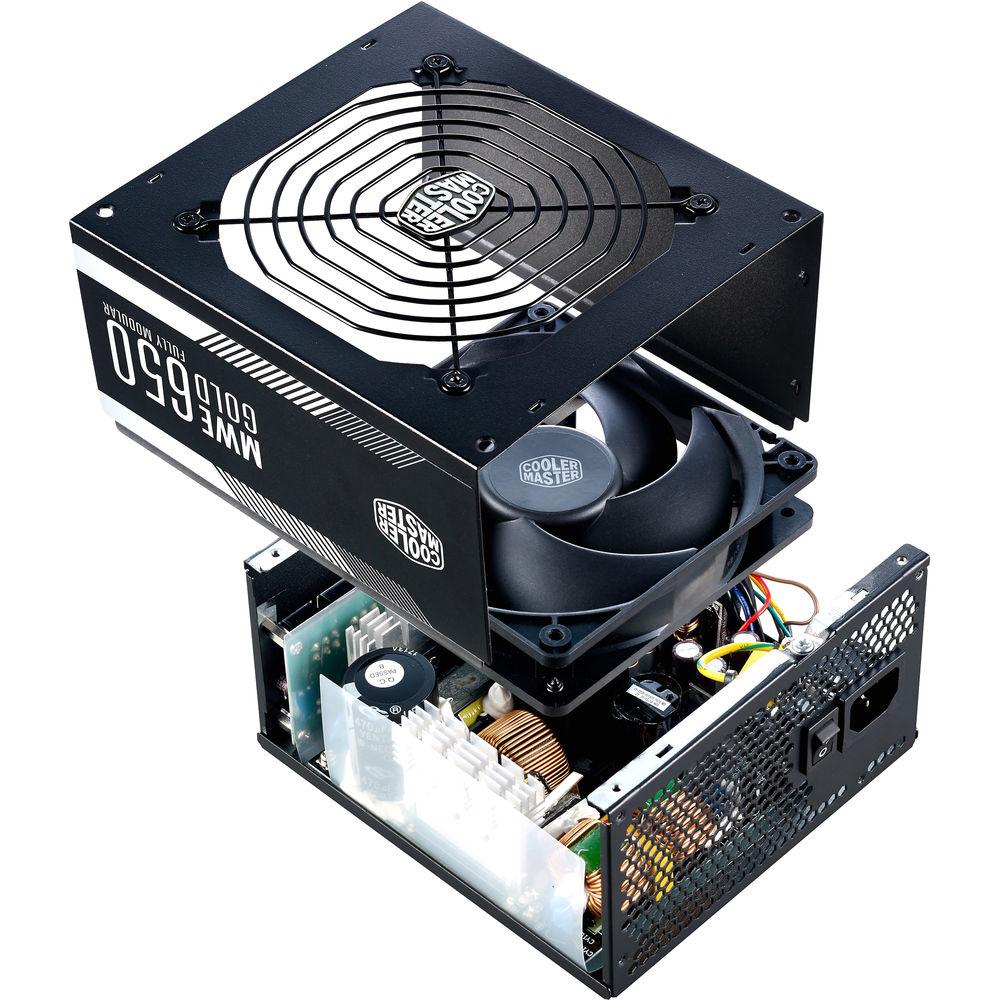

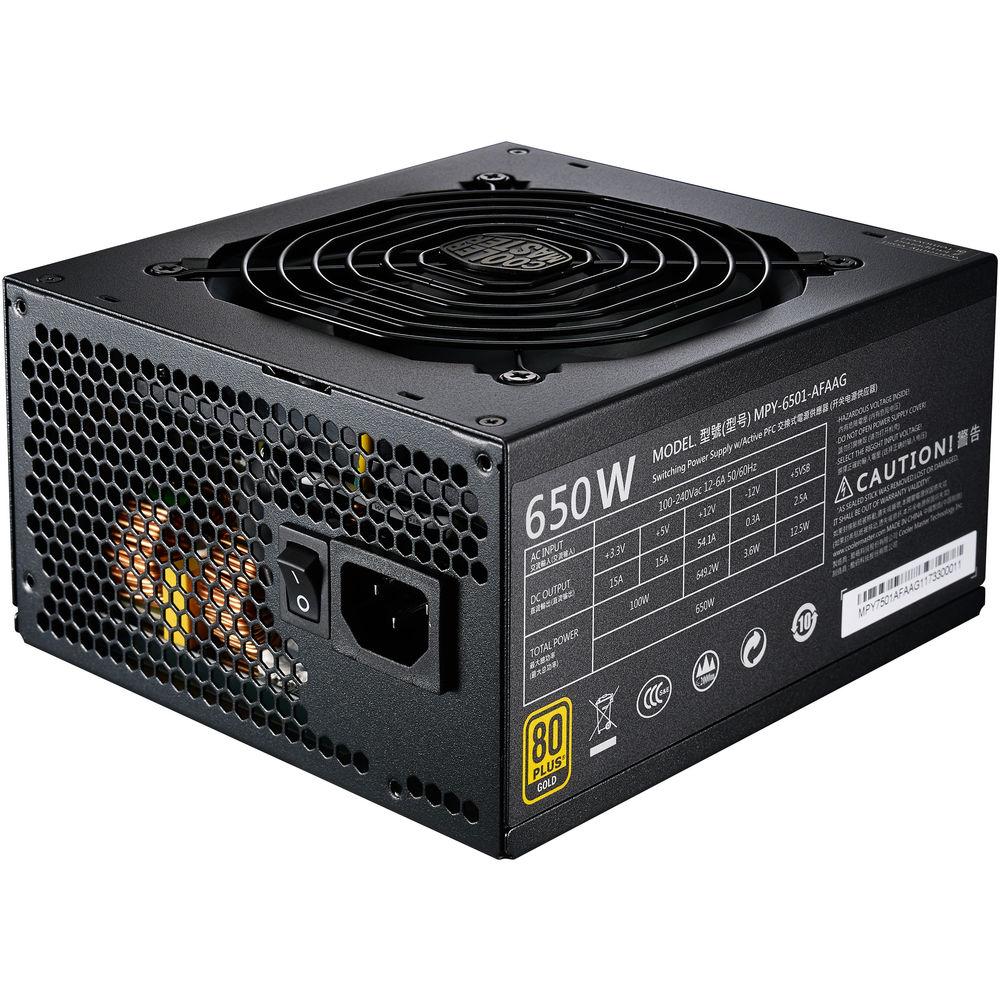

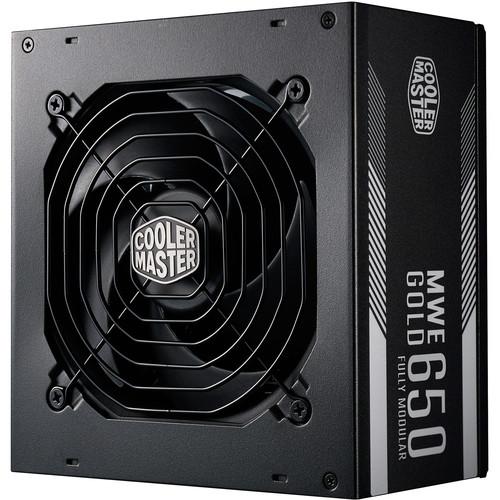

Product description The Cooler Master MWE Gold 650 650W 80 Plus Gold Modular Power Supply provides stable, efficient power to your computer. The MWE Gold 650 has a total of 650W of power and is also 80 Plus Gold certified for 90% efficiency. The PSU is also fully modular for customizable cabling to reduce clutter, increase airflow, and improve overall thermal performance. You'll have a variety of cables, such as 24-pin ATX, 8-pin (4+4) CPU, 8-pin (6+2) PCIe, SATA, and 4-pin peripheral. Cooler Master also utilized black flat cables for flexible cable management and improved airflow, even in smaller cases. Speaking of cooling, the MWE Gold 650 features a 120mm sealed LDB bearing fan with Silencio fan technology for quiet cooling and a longer lifespan. This PSU also has over-voltage, over-power, under-voltage, short-circuit, and over-temperature protection. UPC: 884102042232 In the Box Cooler Master MWE Gold 650 650W 80 Plus Gold Modular Power Supply 1 x 24-Pin ATX Cable 1 x Power Cord Cable 1 x 8-Pin CPU Cable 1 x 8-Pin (6+2) PCIe Cable 4 x 4-Pin Molex Cables 1 x SATA Cable 4 x Mounting Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master MWE Gold 650 650W 80 Plus Gold Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

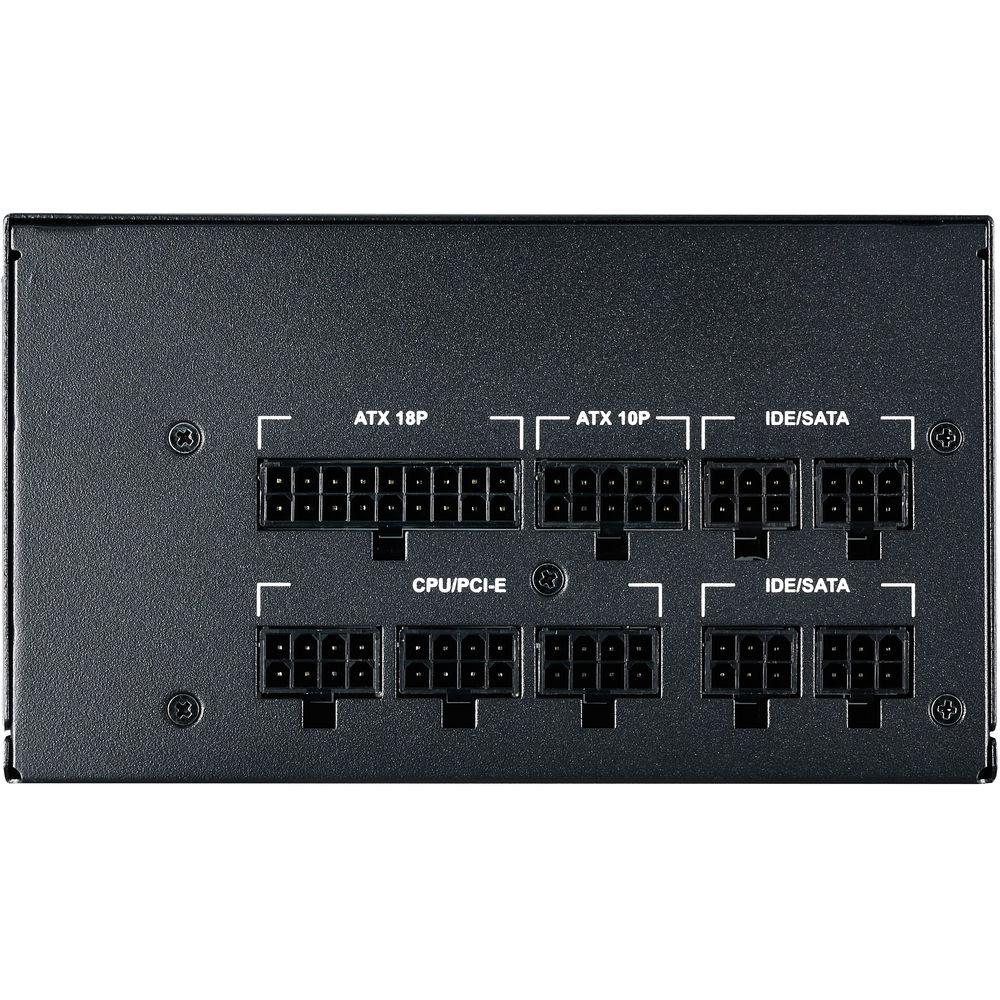

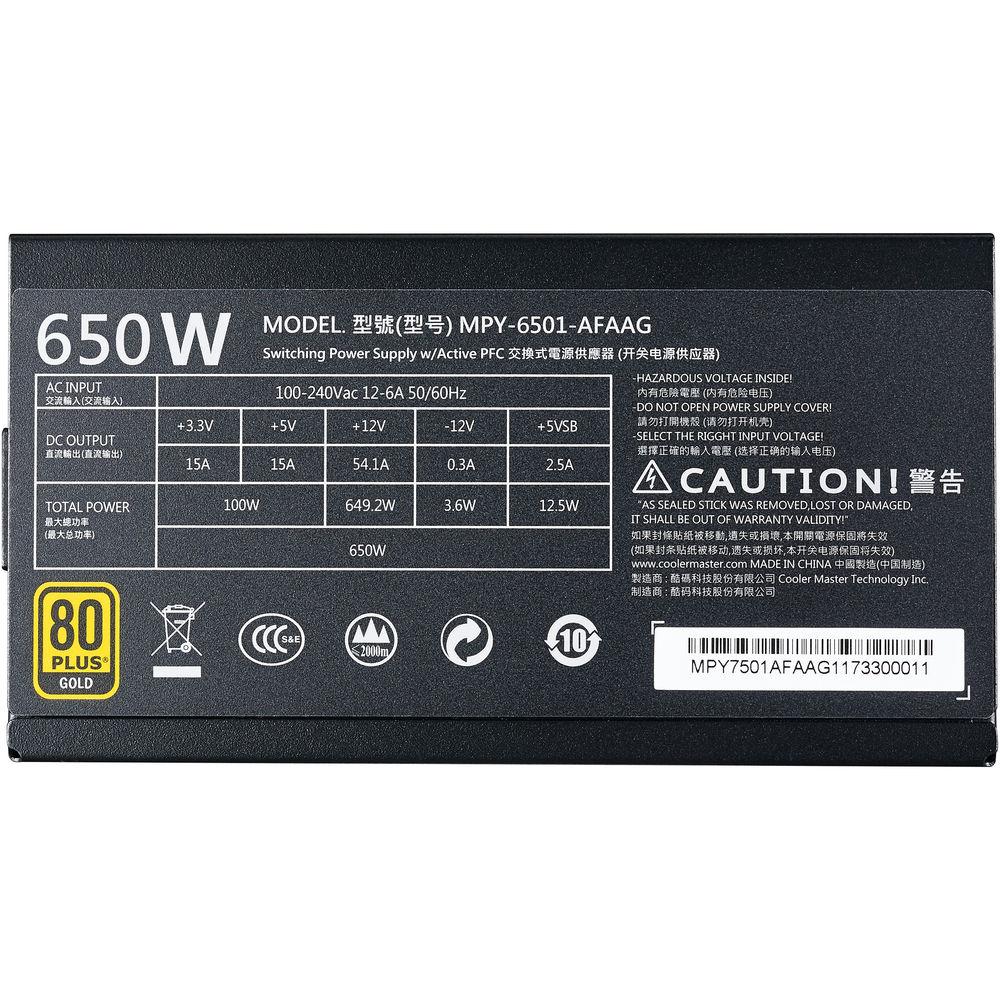

Technical parametersCooler Master MPY-6501-AFAAG-US Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
2 x 4+4-Pin CPU
4 x 6+2-Pin PCIe
8 x 15-Pin SATA
6 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Flat | | PCIe Connector Distances | 28.4" / 720 mm | | SATA Connector Distances | 29.9" / 760 mm | | Peripheral Connector Distances | 29.9" / 760 mm | | ATX Connector Distance | 24.0" / 610 mm | | EPS Connector Distances | 25.6" / 650 mm | | | | Total Wattage | 650 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 649.2 W | | Max Load for +12 V | 54.1 A | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 15 A | | Max Load for +5 V | 15 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 90% | | Hold up Time | 14 ms at 100% Load | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 120 mm | | Bearing Type | Loop Dynamic Bearing (LDB) | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.31 | | Protection | Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CB, CCC, CE, EAC, FCC, RCM, TUV, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.5 x 3.4 x 5.9" / 140.0 x 86.0 x 150.0 mm | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 12.4 x 7.7 x 4.7" |
