User Manual for Cooler Master Trooper SE Full Tower Case Click to enlarge the picture
Contents of the user manual for the Cooler Master Trooper SE Full Tower
- Product category: Desktop Computer Cases Cooler Master
- Brand: Cooler Master
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooler Master Desktop Computer Cases
 |
User manual for the Cooler Master Trooper SE Full Tower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooler Master product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooler Master user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooler Master product will considerably shorten its lifespan!
|

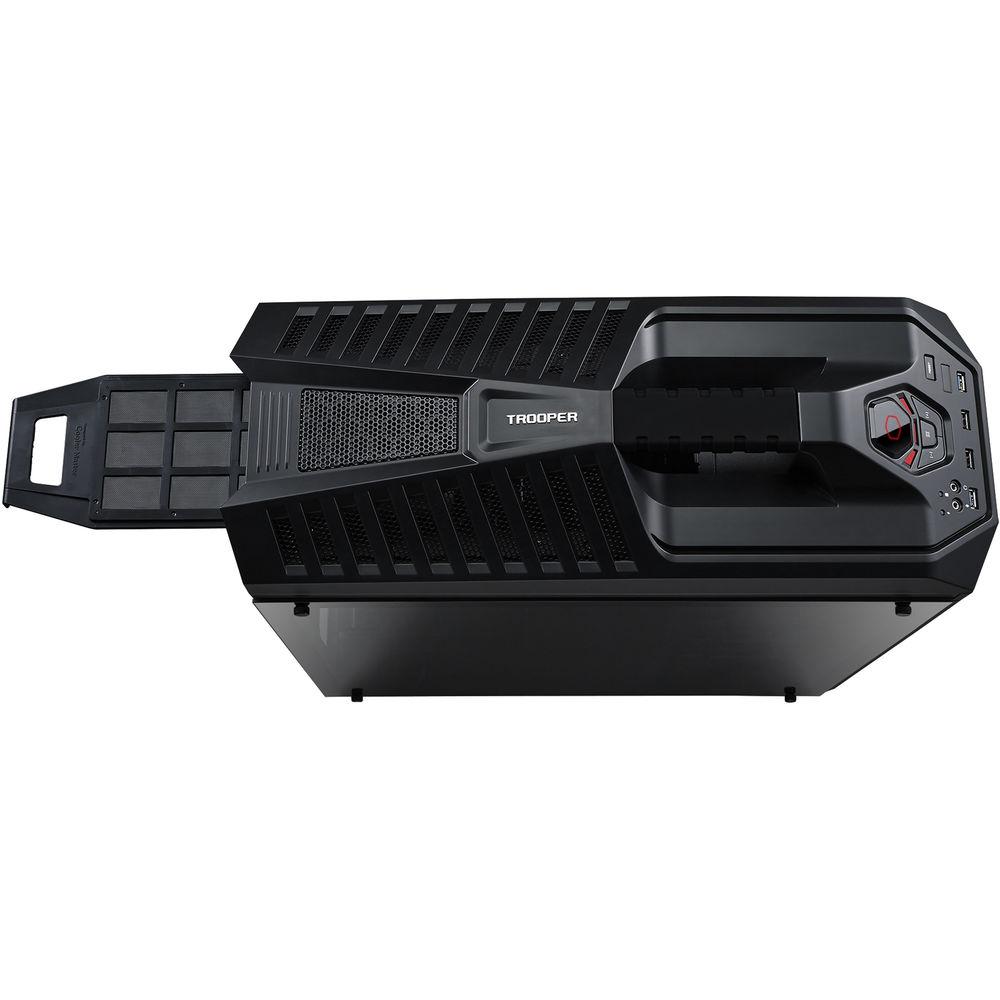

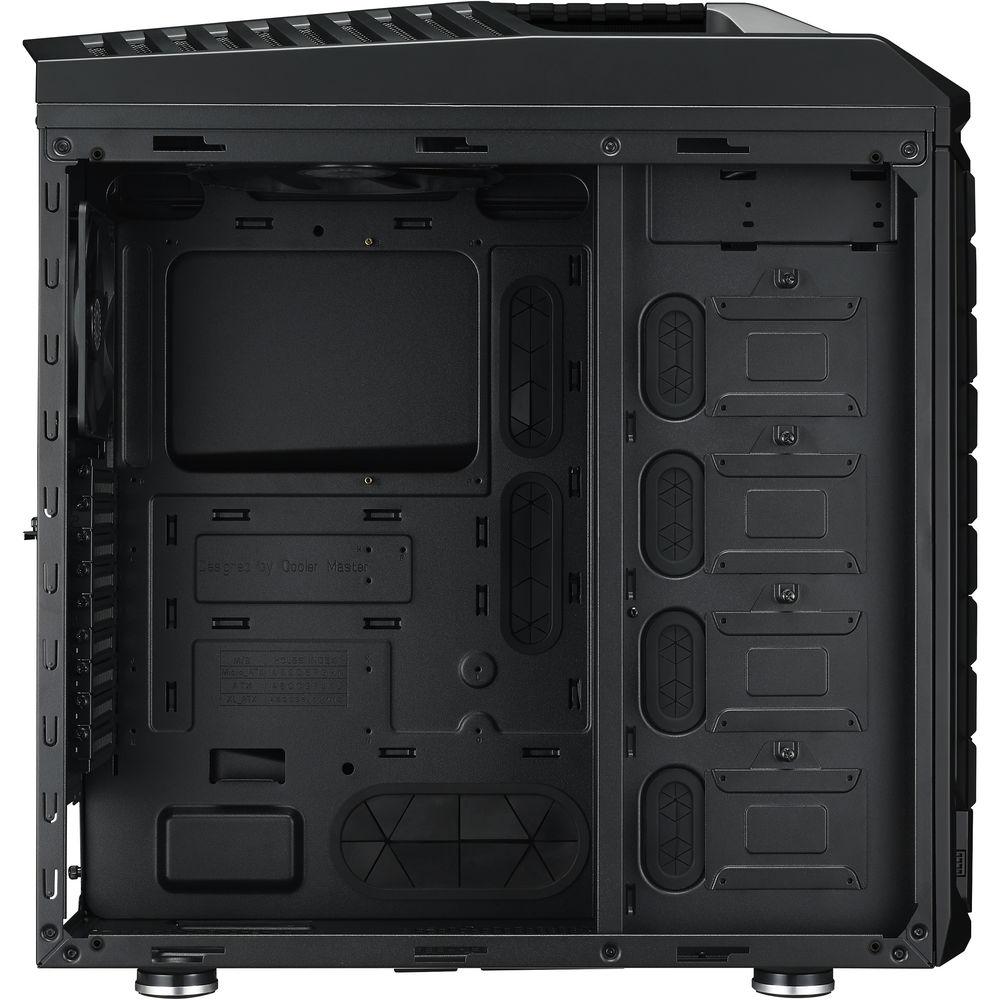

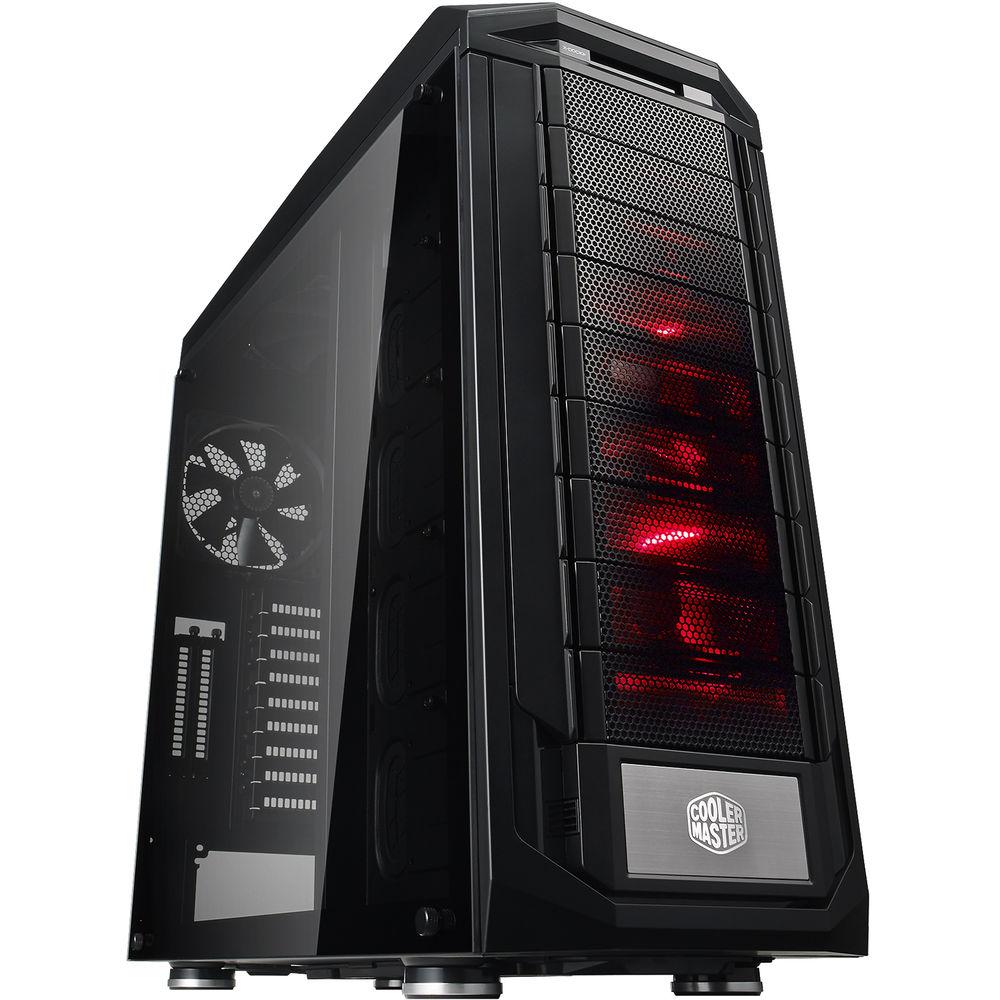

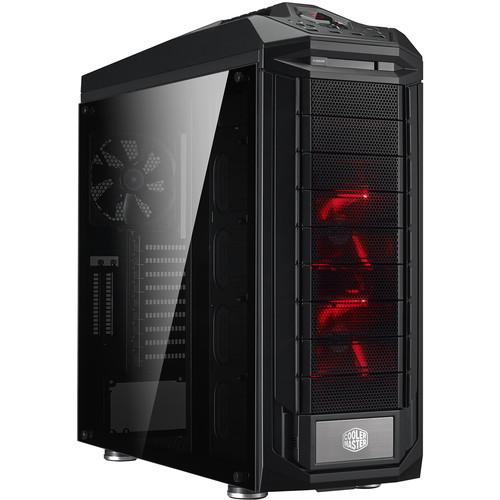

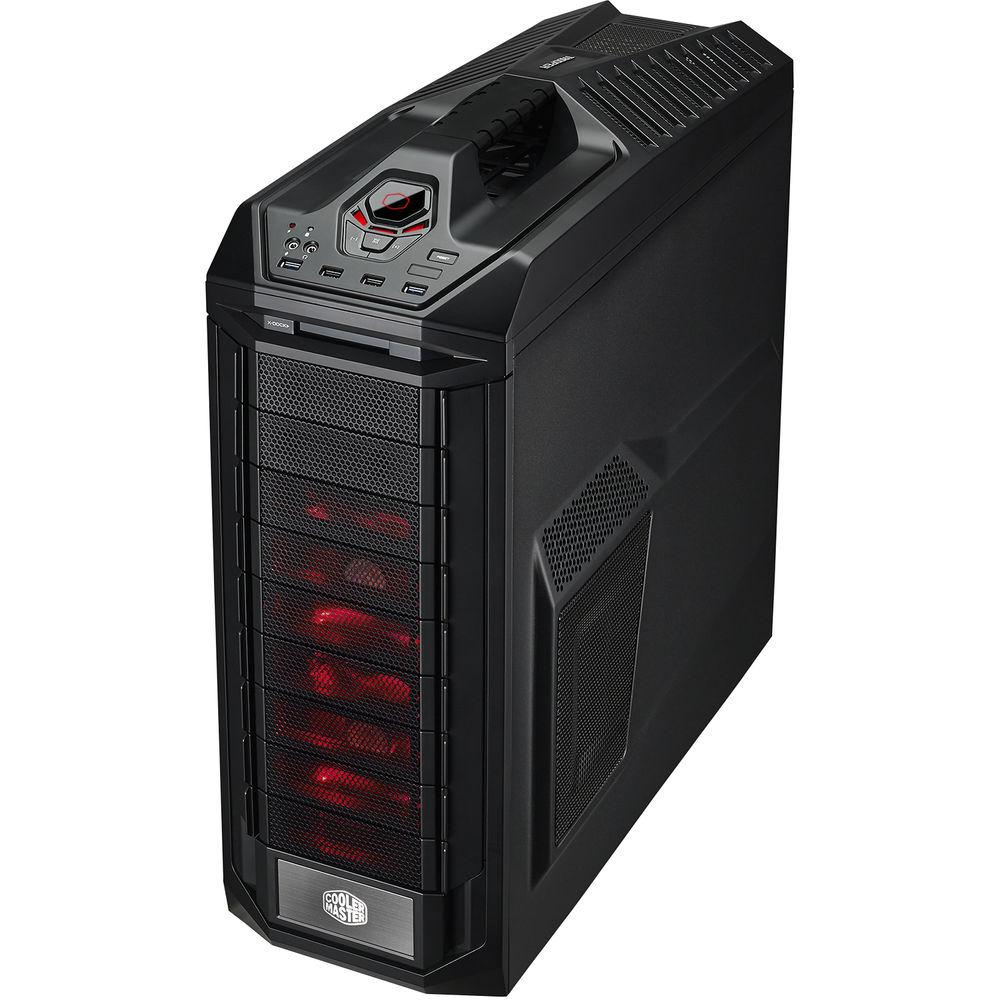

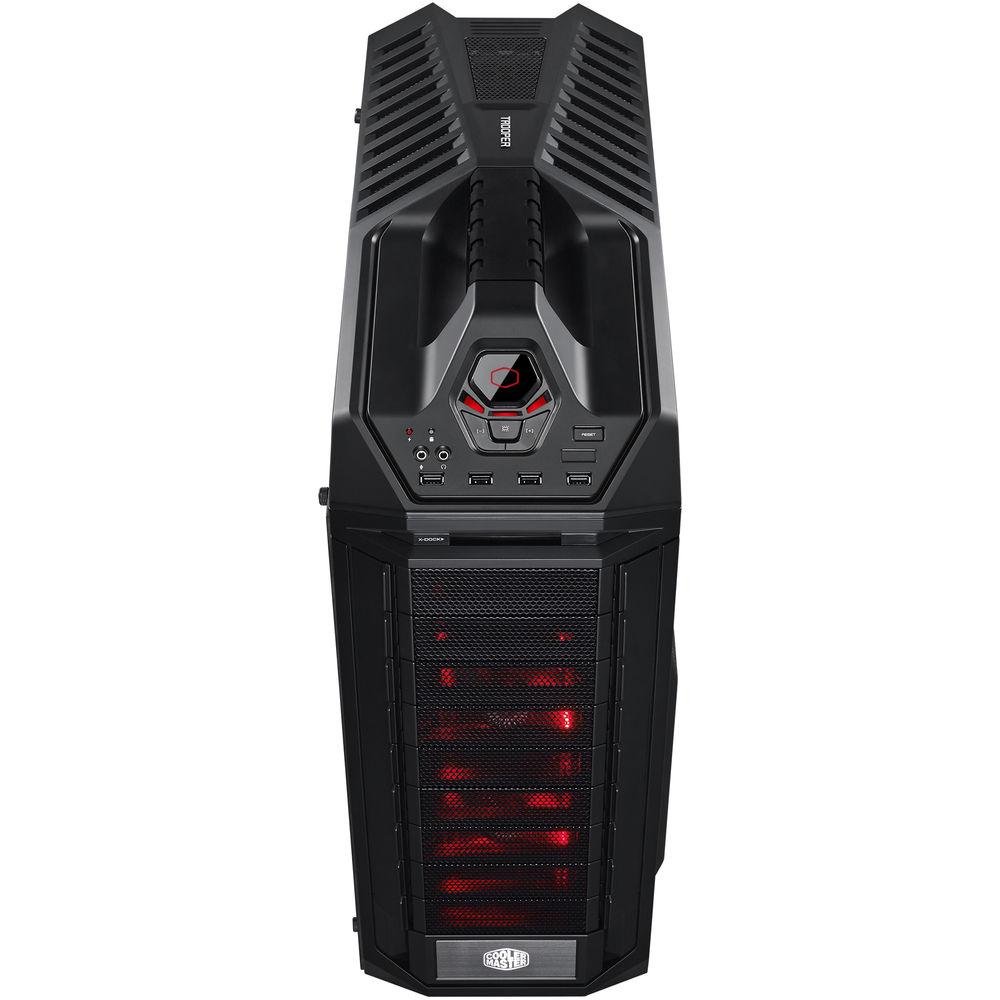

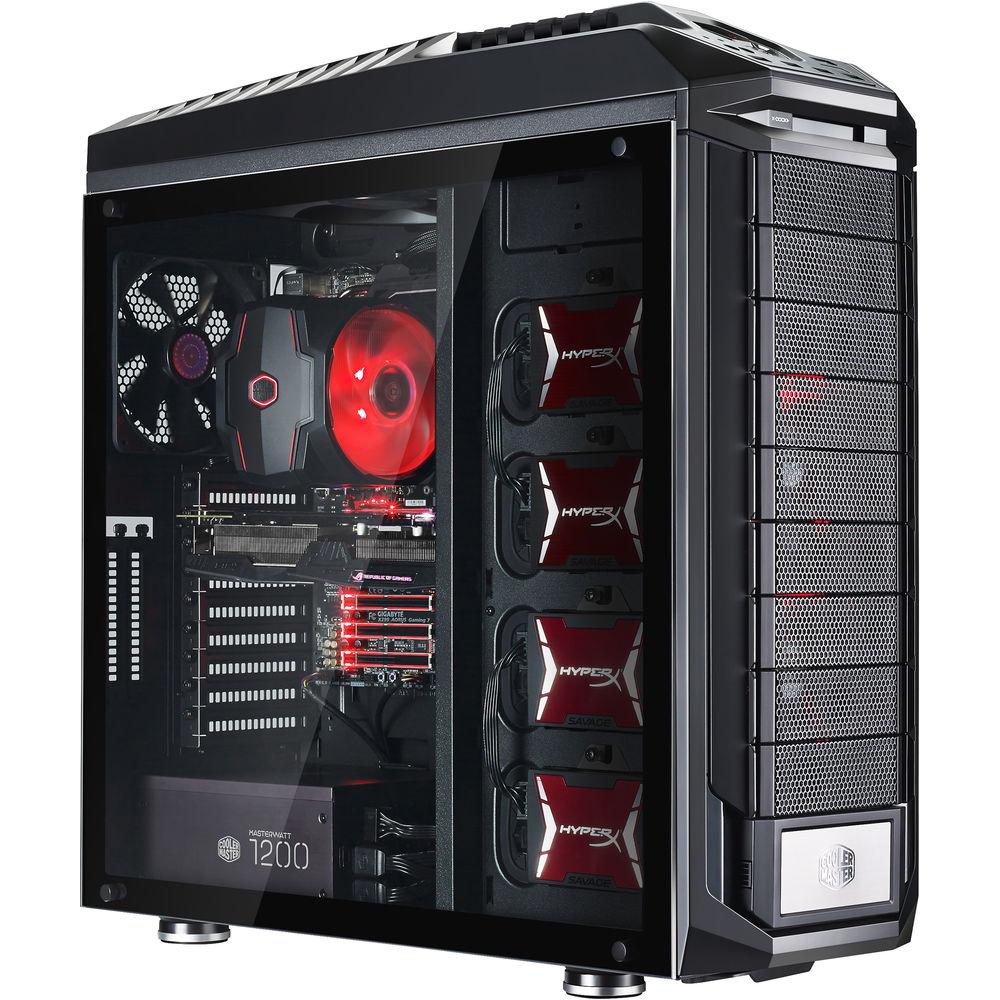

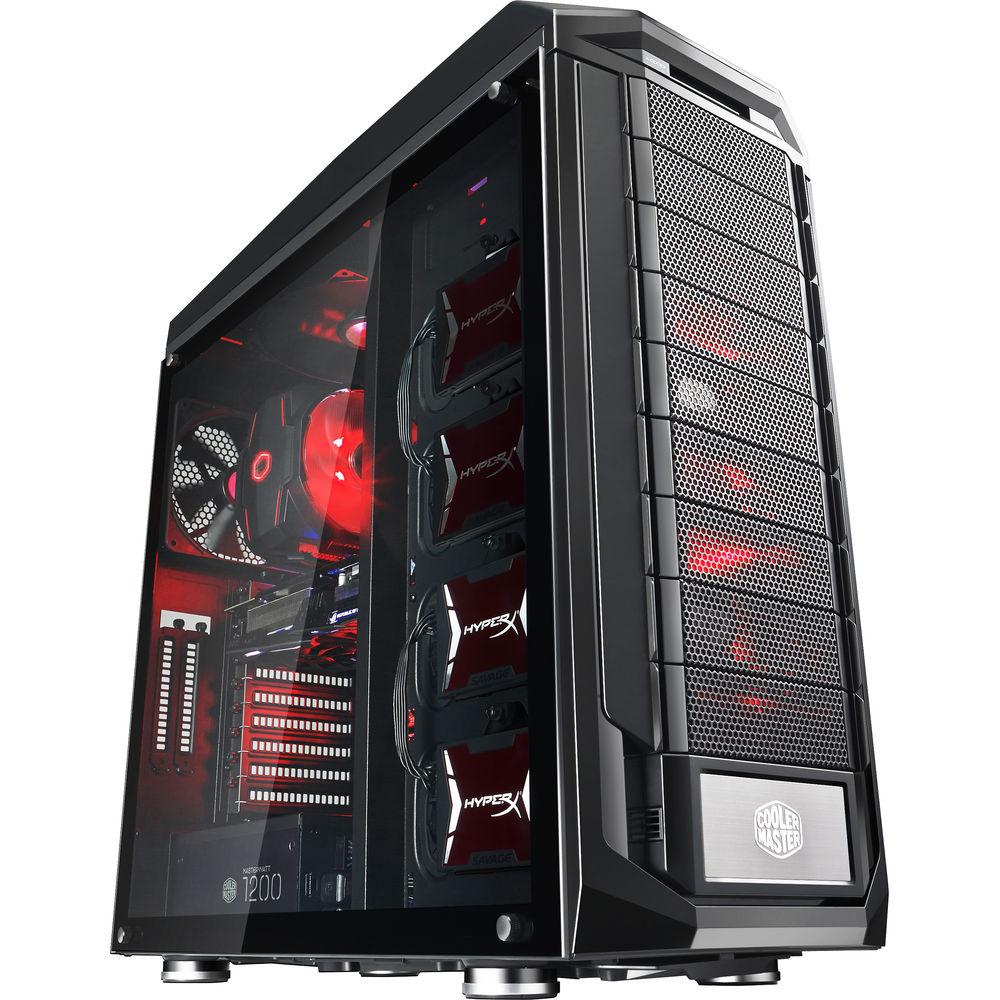

Product description The Trooper SE Full Tower Case from Cooler Master supports XL-ATX, ATX, Micro-ATX, Mini-ITX, and E-ATX motherboards up to 12 x 10.7". The case features one 5.25" drive bay, two 3.5" HDD drive bays, four 2.5" SSD drive bays, and an X-Dock 2.5" HDD/SSD hot swap bay for data exchange. The Trooper SE comes pre-installed with a 140mm rear fan and two 120mm front red LED fans with room for additional fans and radiators. A fan speed controller provides six stages of fan speed adjustment with clear LED indication. The case includes two USB 3.0 ports, two USB 2.0 ports, and audio input and output. - Edge-to-edge light grey tinted tempered glass side panel
- Top grip handle for easy and safe transportation
- A 0.7" space behind the motherboard tray offers hidden cable management
UPC: 884102037917 In the Box Cooler Master Trooper SE Full Tower Case Set of Mounting Cable Ties, Stand-off, and Screws Extension Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master Trooper SE Full Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master Trooper SE Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX, XL-ATX | | External Drive Bays | 1 x 5.25"
1 x 2.5" | | Internal Drive Bays | 2 x 3.5"
4 x 2.5" | | Expansion Slots | 9 x Full Height + 2 | | Maximum GPU Length | 12.68" / 322 mm | | CPU Cooler Height | 7.32" / 186 mm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
3 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 1 x 200 mm
Or
2 x 140 mm
Or
2 x 120 mm
| | Fan Mounting (Bottom) | 2 x 120 mm
| | Fans Included (Front) | 2 x 120 mm LED (1200 rpm) | | Fans Included (Rear) | 1 x 140 mm (1200 rpm) | | Maximum Radiator Size (Front) | 360 mm | | Maximum Radiator Size (Rear) | 140 mm | | Maximum Radiator Size (Top) | 240 mm | | Maximum Radiator Size (Bottom) | 240 mm | | Fan Controller Included | Yes | | Filter Locations | Bottom, Front, Top | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel, Plastic | | Built-In Lighting | Yes | | Cable Management Space | 0.70" / 17.9 mm | | Dimensions (W x H x D) | 9.8 x 23.8 x 22.8" / 250.0 x 605.6 x 578.5 mm | | Weight | 29.1 lb / 13.2 kg | | | | Package Weight | 33.15 lb | | Box Dimensions (LxWxH) | 25.5 x 25.0 x 11.0" |
