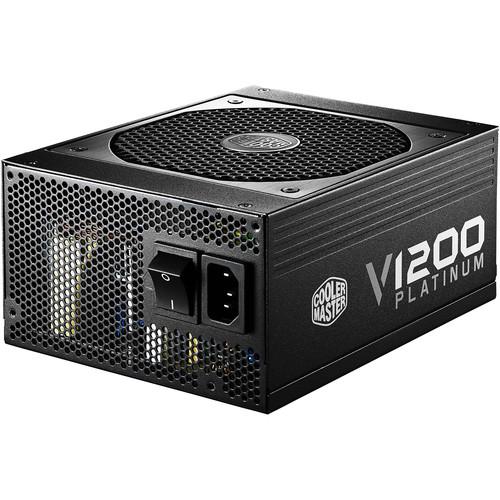

Product description Add a fully modular power supply to your PC build with the V1200 1200W 80 PLUS Platinum ATX 12V Power Supply from Cooler Master. This Intel ATX 12V form factor PSU is capable of delivering up to 1200W of power over a single +12V rail, while its modular design lets you optimize cable management by connecting only the cables you need. The V1200 comes with 12 PCI-e connectors, 12 SATA connectors, nine peripheral connectors, and a single floppy connector. A single 135mm fluid dynamic bearing fan is designed to keep temperatures down without generating excessive noise, while the hybrid fan controller lets you switch between always-on and fanless operation. - Fully Modular Cable System

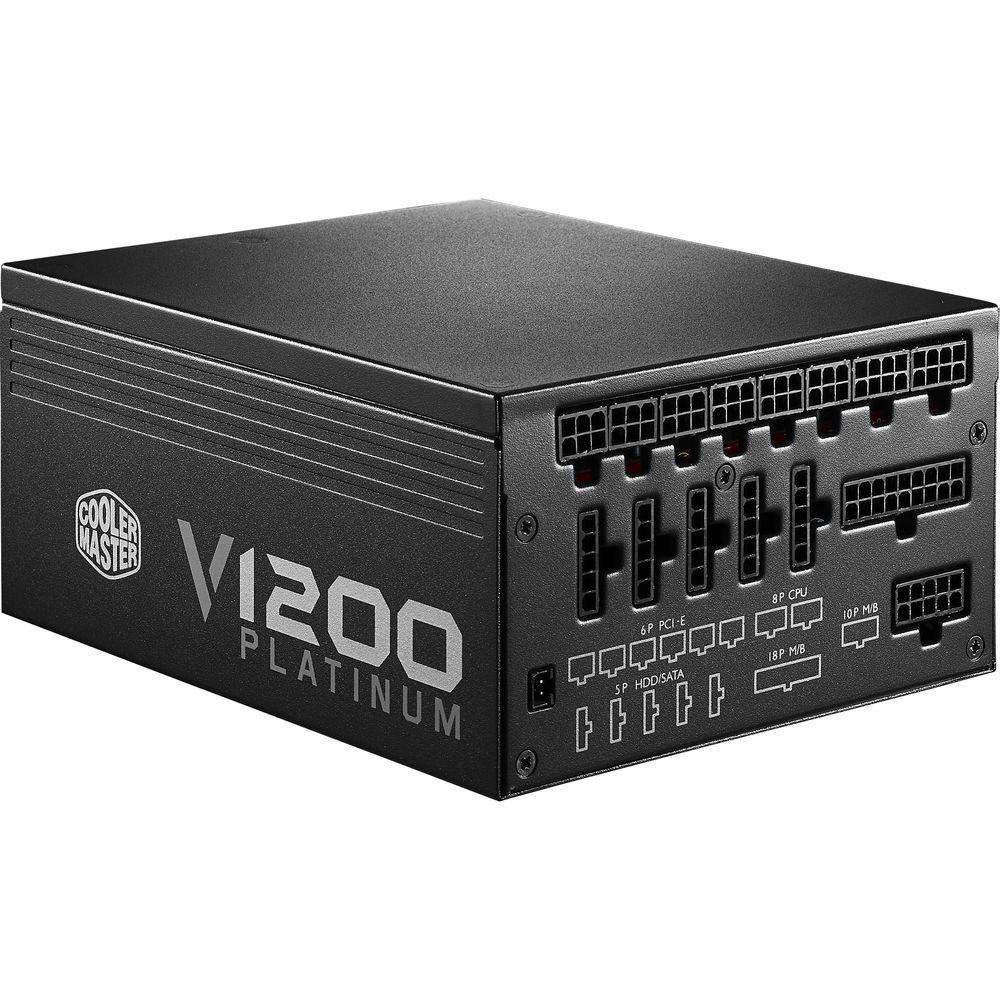

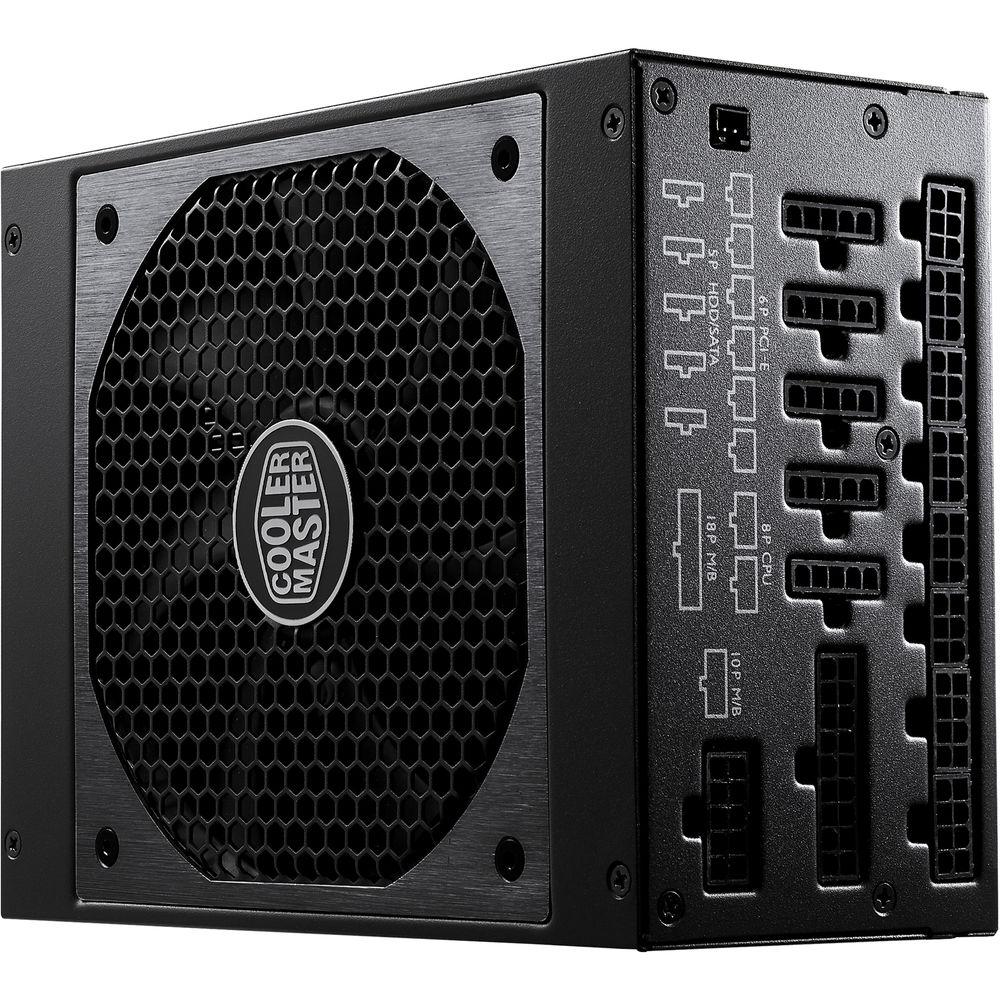

- The V Series uses a fully modular cable system with slim flat-ribbon cables, ideal for building a clean and tidy system with optimal airflow.

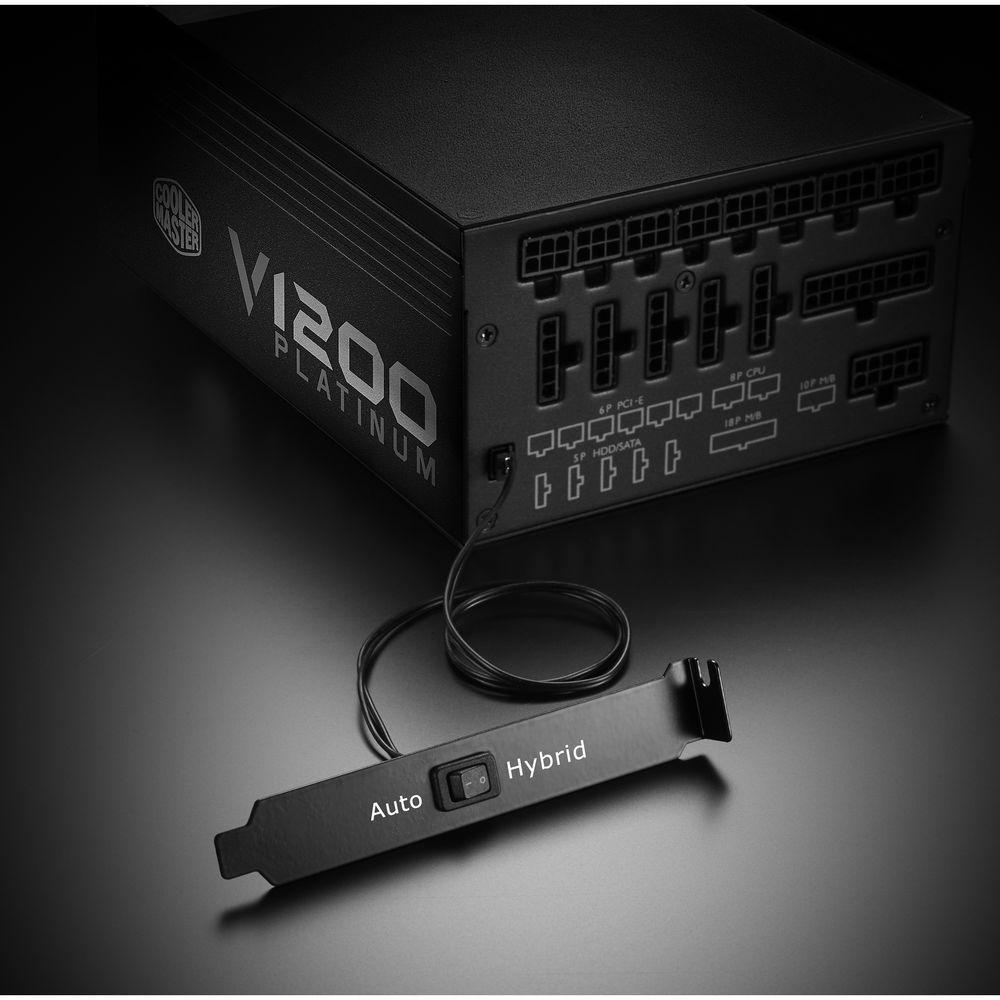

- Hybrid Fan Controller
- Quickly toggle between an always-on fan mode or zero dBA fanless operation under 30% load.

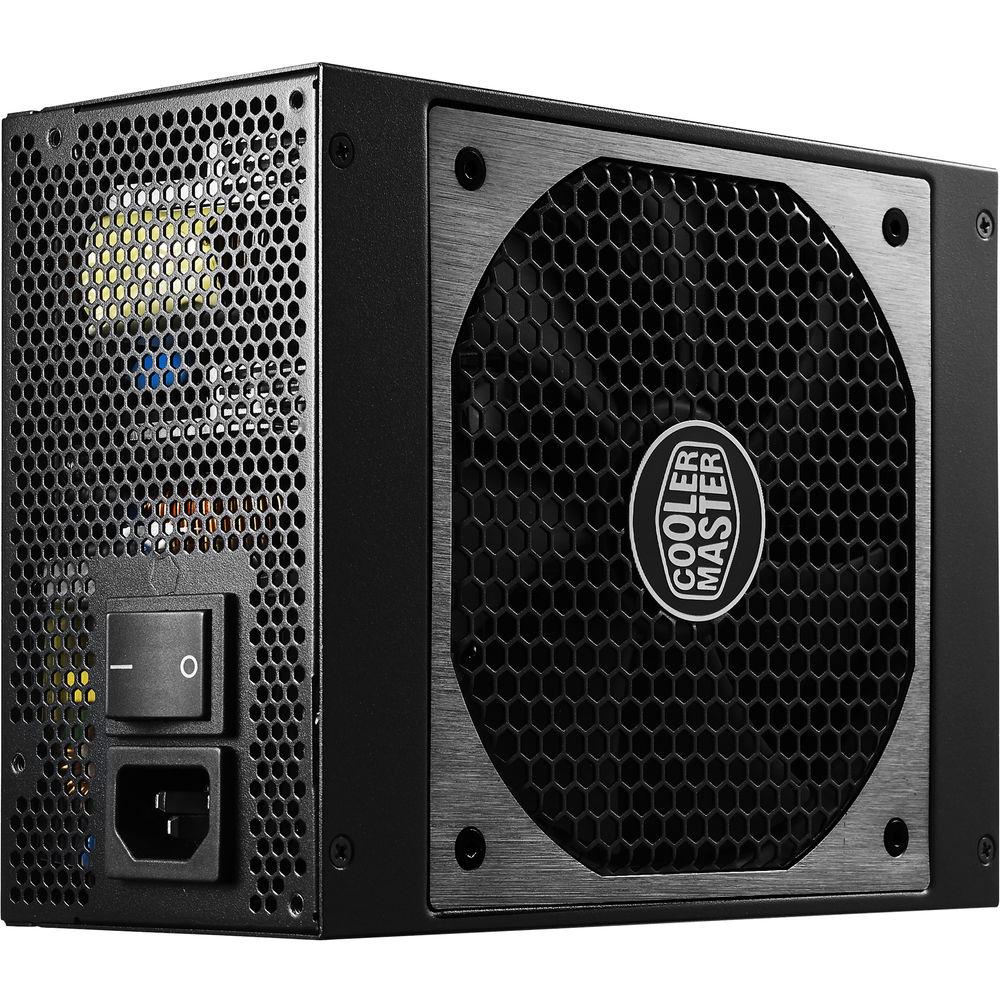

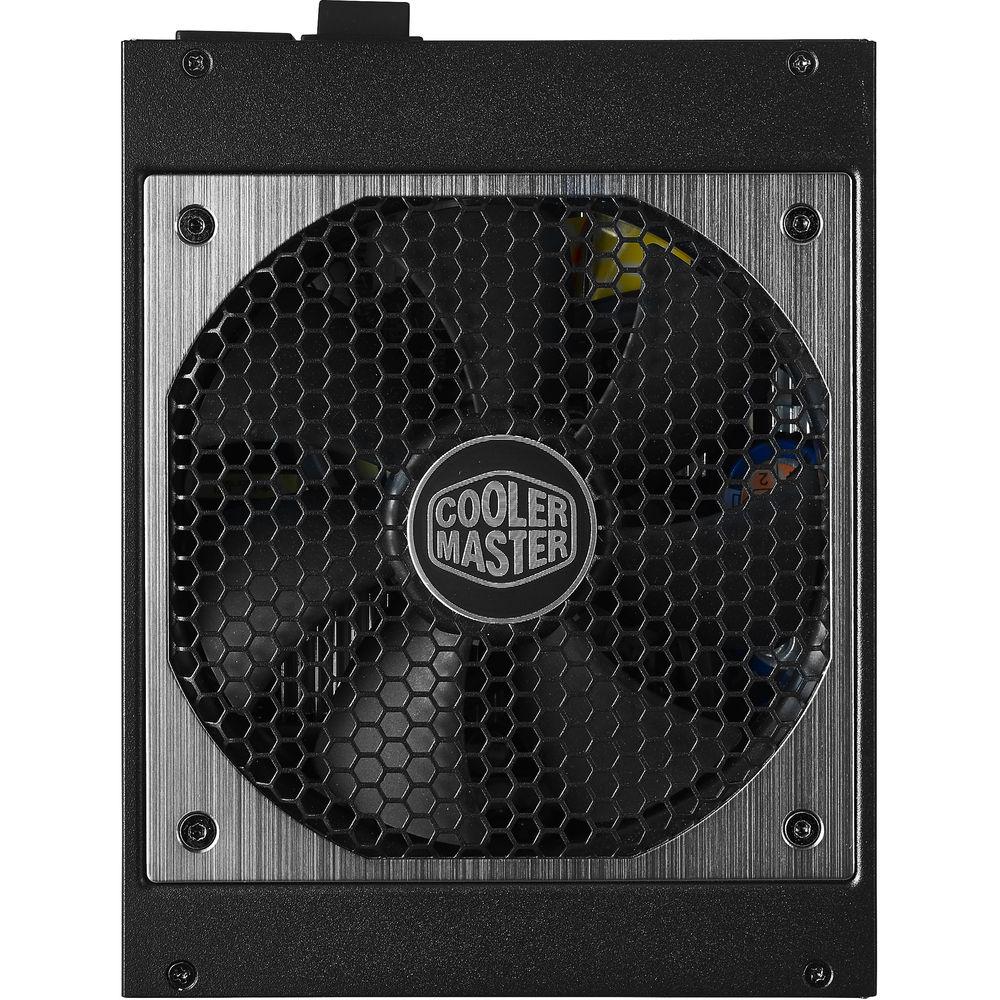

- 135mm Fluid Dynamic Bearing Fan
- Thanks to microscopic tolerances and a detailed channel, the bearing core and inner case are separated by a thin film of oil, preventing the two metal parts from touching. The channels on the bearing core act as a pump, looping the oil back to the center and giving it little chance to leak, helping to ensure quiet operation and long life.
- High-Grade Components

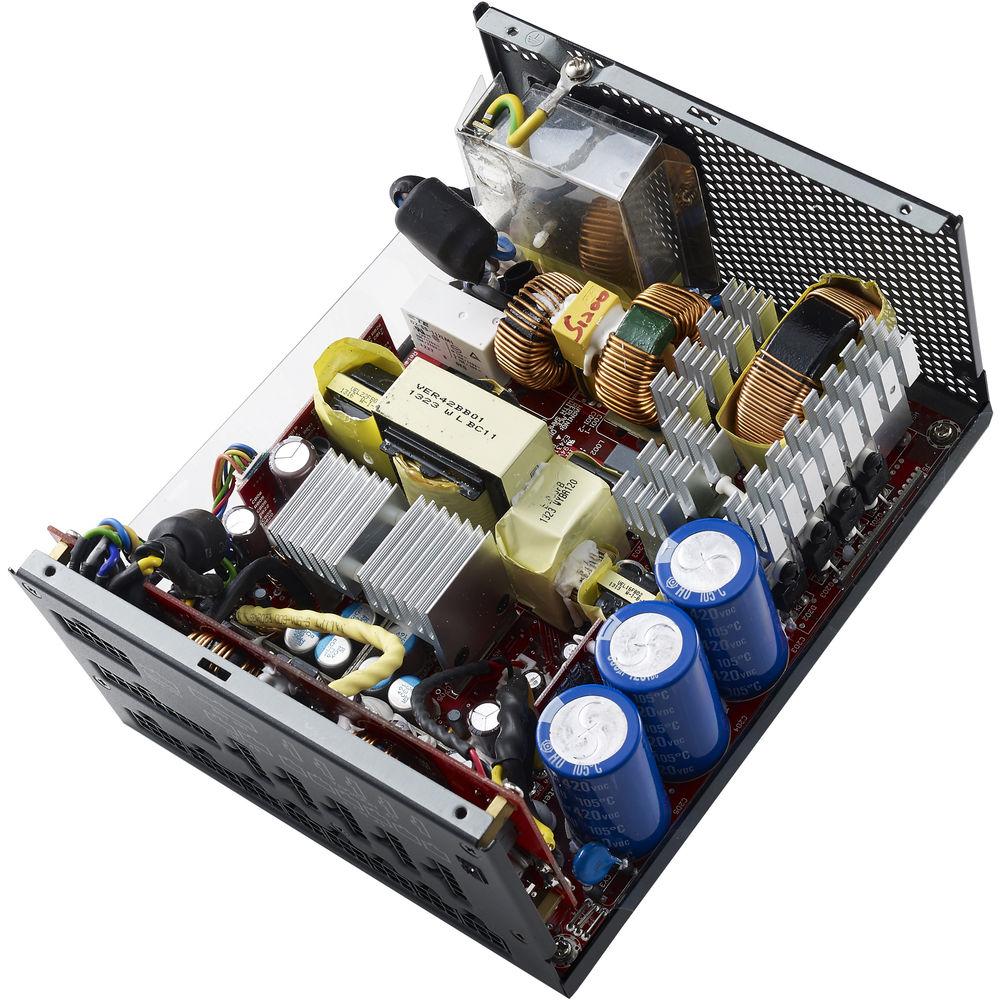

- The V1200 features a high-quality AC socket, a double-EMI filter designed for clean and stable voltages, a full-bridge LLC converter, high-grade capacitors, and an integrated heatsink design to help boost efficiency.
- V Series DC-DC Module Design
- The 12V goes directly through a custom DC-DC module designed to convert to 5V and 3.3V without efficiency loss. The V Series' custom DC-DC module design helps to reduce cross-talk and signal noise, while helping to ensure higher efficiency and voltage stability.
- 80 PLUS Platinum
- Using an 80 PLUS Platinum power supply can save you as much as $450 over five years compared to an 80 PLUS Bronze PSU.
UPC: 884102025518 In the Box Cooler Master V1200 1200W 80 PLUS Platinum ATX 12V Power Supply Motherboard Cable 2 x CPU Cables 6 x PCIe Cables 3 x SATA Cables 3 x Peripherals Cables Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooler Master V1200 1200W 80 PLUS Platinum ATX 12V Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooler Master V1200 Specs | | | Total Connectors | 1 x 24-Pin Motherboard
2 x 4+4-Pin CPU
12 x 6+2-Pin PCIe
12 x (Unspecified Pin Count) SATA
9 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | Cable Design | Modular | | PCIe Connector Distances | 23.6" / 600 mm
28.3" / 720 mm
19.7" / 500 mm
24.4" / 620 mm | | SATA Connector Distances | 17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm
31.9" / 810 mm | | Peripheral Connector Distances | 15.7" / 400 mm
21.7" / 550 mm
27.6" / 700 mm
17.7" / 450 mm
22.4" / 570 mm
27.2" / 690 mm | | Floppy Connector Distances | 31.9" / 810 mm | | ATX Connector Distance | 23.6" / 600 mm | | EPS Connector Distances | 26.8" / 680 mm | | | | Total Wattage | 1200 W | | Number of +12 V Rails | 1 | | Combined Power for +12 V | 1200 W | | Max Load for +12 V | 100 A | | Combined Power for +3.3/+5 V | 125 W | | Max Load for +3.3 V | 25 A | | Max Load for +5 V | 25 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | Peak Power | 1200 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 7.5 to 15 A | | | | Efficiency Rating | 80 PLUS Platinum | | Efficiency | 93% at 50% Load | | Hold up Time | 17 ms | | Power-Good Signal | 100 to 500 ms | | | | Fan Size | 135 mm | | Bearing Type | Fluid Dynamic Bearings (FDB) | | Noise Level | 18 dBA | | Fan Life Expectancy | 40,000 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Form Factor | ATX | | Compliance | ATX 12 V v2.31 | | Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection | | Certifications | BSMI, CCC, CE, EAC, FCC, RCM, TUV, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 5.9 x 7.5 x 3.4" / 150.0 x 190.0 x 86.0 mm |
