User Manual for Cordoba 12 Natural Fusion Series Nylon-String Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Cordoba 12 Natural Fusion Series Nylon-String
- Product category: Acoustic Guitars Cordoba
- Brand: Cordoba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cordoba Acoustic Guitars
 |
User manual for the Cordoba 12 Natural Fusion Series Nylon-String contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cordoba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cordoba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cordoba product will considerably shorten its lifespan!
|
Product description The 12 Natural from Cordoba's Fusion Series is a hybrid model which produces the warm tone and resonance of a traditional Spanish-style classical guitar, but plays and feels more like a steel-string acoustic. The instrument features a soft cutaway body constructed with a solid Canadian cedar top, and mahogany back and sides, using traditional Spanish guitar-building methods like domed soundboards and fan bracing to retain a distinctive classical guitar tone. Its mahogany neck is carved with a thinner, C-shaped profile than a traditional classical guitar, and has a narrow nut width of 48mm, compared to a standard 52mm width. The neck is fitted with a 19-fret rosewood fingerboard which is radiused, instead of flat. These differences allow for greater comfort and ease in playability, especially for those players who are more accustomed to the feel of steel-string and electric guitars.Additional features include a rosewood bridge, as well as a bone nut and saddle, Cordoba Silver tuning machines, Indian rosewood binding, 3-ply maple and ebony top purfling, a natural inlaid wood ring rosette, mother-of-pearl side dot fret markers, and a two-way adjustable truss rod.For electronics, the instrument is equipped with a Fishman Presys Blend preamp system along with an undersaddle piezo pickup and internal microphone. The preamp includes controls for volume, bass, middle, treble, mic blend to adjust the mix between the pickup and microphone, a notch filter and phase switch to suppress feedback, as well as a built-in tuner.The 12 Natural includes Cordoba's deluxe gig bag. - Neck Features
-
- Neck Wood: Mahogany
- Fingerboard: Rosewood
- Profile: Fusion Style, C Shape
- Truss Rod: 0.2" / 4.0mm
- Scale Length: 25.6" / 650mm
- Radius: 16" / 406mm
- String Spacing at Saddle: 2.3" / 59mm
- Nut Width: 1.9" / 48mm
- Nut Material: Bone
- Number of Frets: 12 to body, 19 total
- Fret Marker Inlays: Mother-of-Pearl at 3, 5, 7, 9, 12, 15, 17
- Tuning Machines: Cordoba Silver
- Body Features
-
- Top Wood: Solid Canadian Cedar
- Back and Sides: Mahogany
- Bracing: Spanish Fan
- Build: Cutaway Electric
- Binding: Indian Rosewood
- Purfling: 3-ply Maple and Ebony Top Purfling
- Bridge: Rosewood
- Saddle Material: Bone
- Rosette: Inlaid Wood Rings
- Finish: High-gloss PU
- Body Width x Depth (Upper Bout): 10.8 x 3.5" / 275 x 88mm
- Body Width x Depth (Lower Bout): 14.4 x 3.5" / 365 x 88mm
- Body Length: 19.4" / 492mm
- Overall Length: 38.8" / 984mm
- Electronics
-

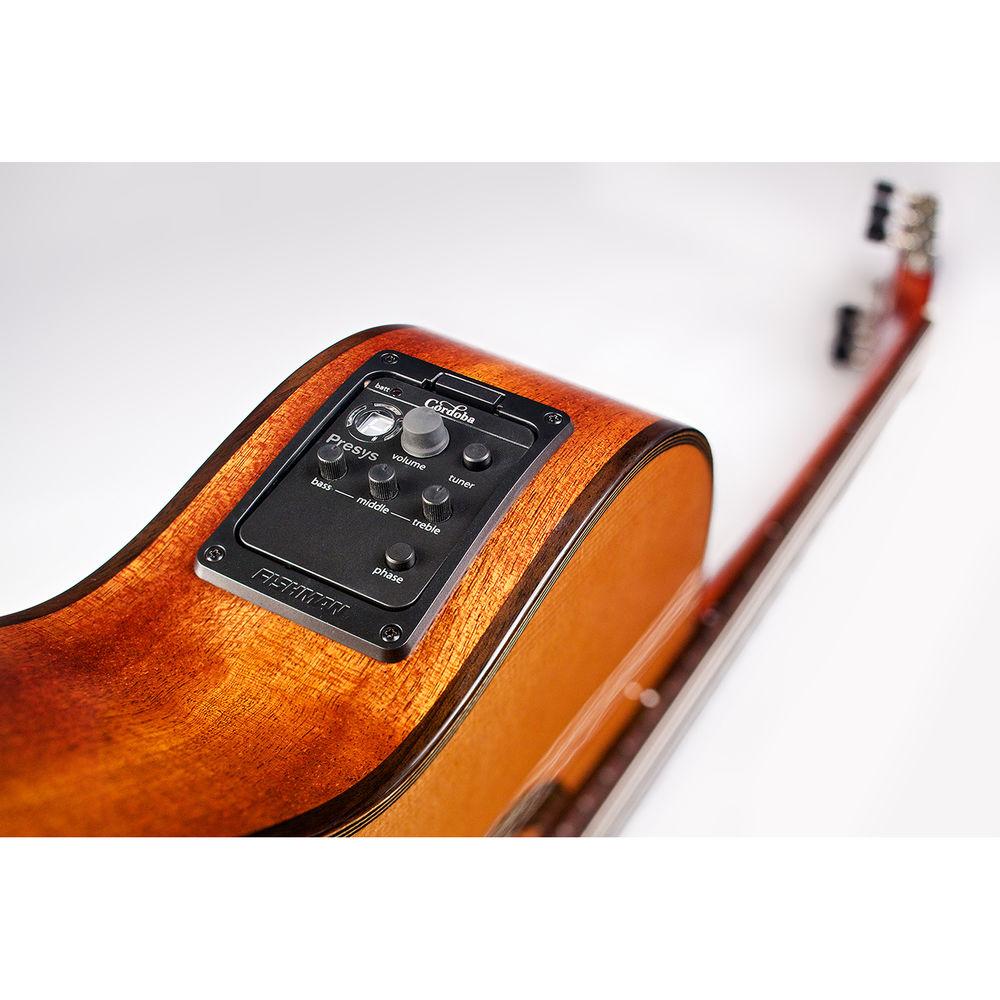

- Preamp: Fishman Presys Blend with EQ and Built-in Tuner
- Pickups: Undersaddle Piezo and Internal Microphone with Blender
UPC: 809870056397 In the Box Cordoba 12 Natural Fusion Series Nylon-String Acoustic/Electric Guitar Deluxe Gig Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cordoba 12 Natural Fusion Series Nylon-String Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCordoba 05639 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Classical | | Cutaway | Single-Cutaway | | Body Wood | Top: Cedar
Back, Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 19 | | Scale Length | 25.6" / | | Radius | 16" OR | | Nut Width | 48 mm | | Bridge Type | Rosewood | | Pickups | Bridge: Body, Piezo, Undersaddle | | Controls | Tone Control: x 3
Volume Control: x 1
Balance Control: x 1 | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 43.0 x 20.0 x 8.0" |
