User Manual for Cordoba C5-CEBK Iberia Series Nylon-String Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Cordoba C5-CEBK Iberia Series Nylon-String Acoustic
- Product category: Acoustic Guitars Cordoba
- Brand: Cordoba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cordoba Acoustic Guitars
 |
User manual for the Cordoba C5-CEBK Iberia Series Nylon-String Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cordoba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cordoba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cordoba product will considerably shorten its lifespan!
|

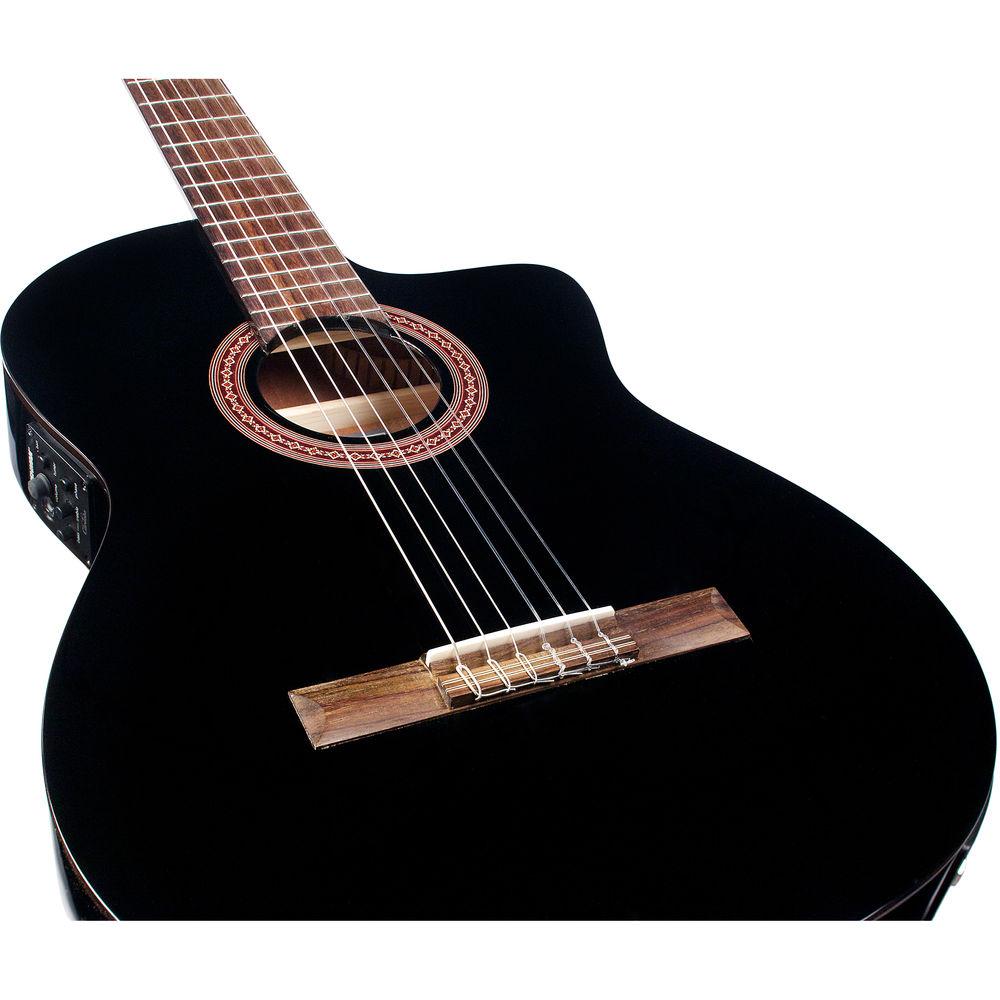

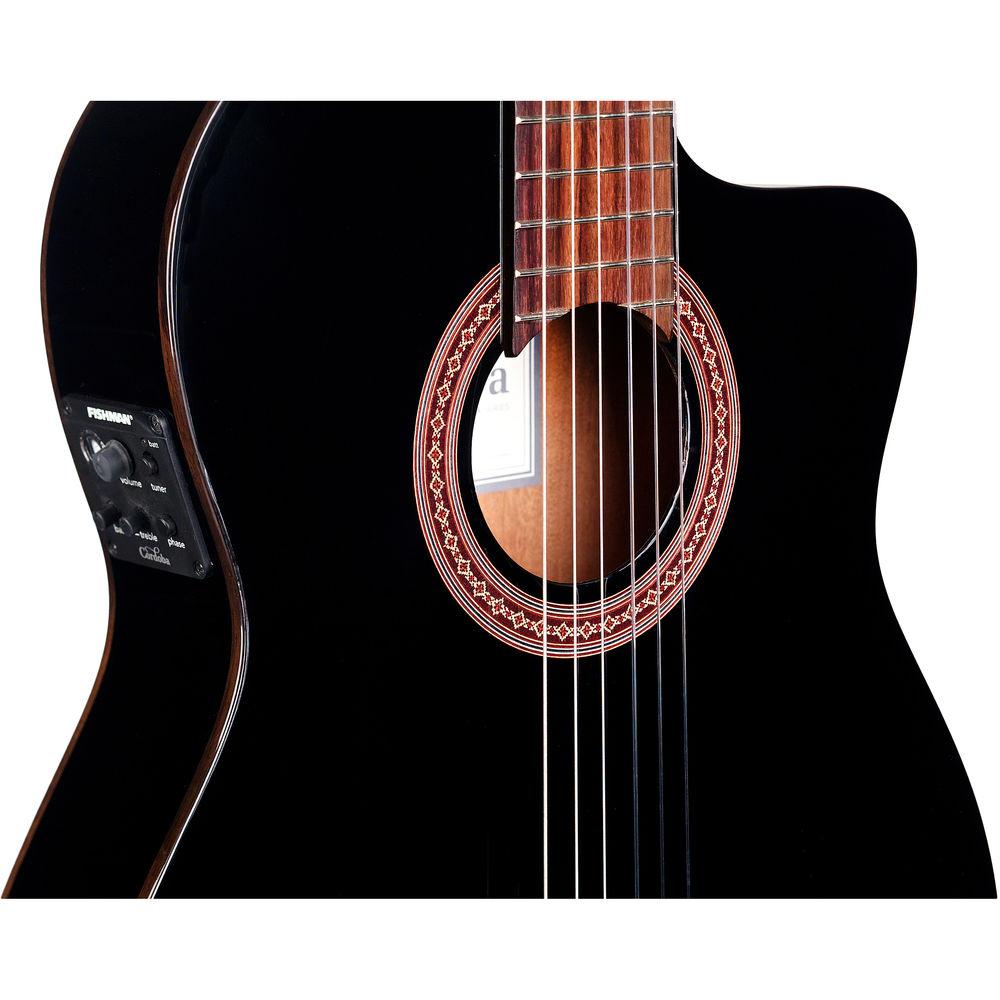

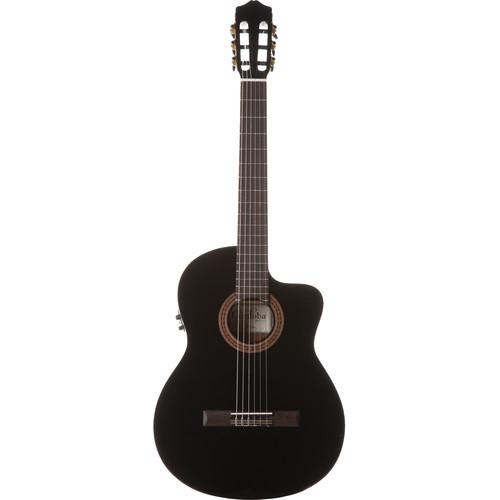

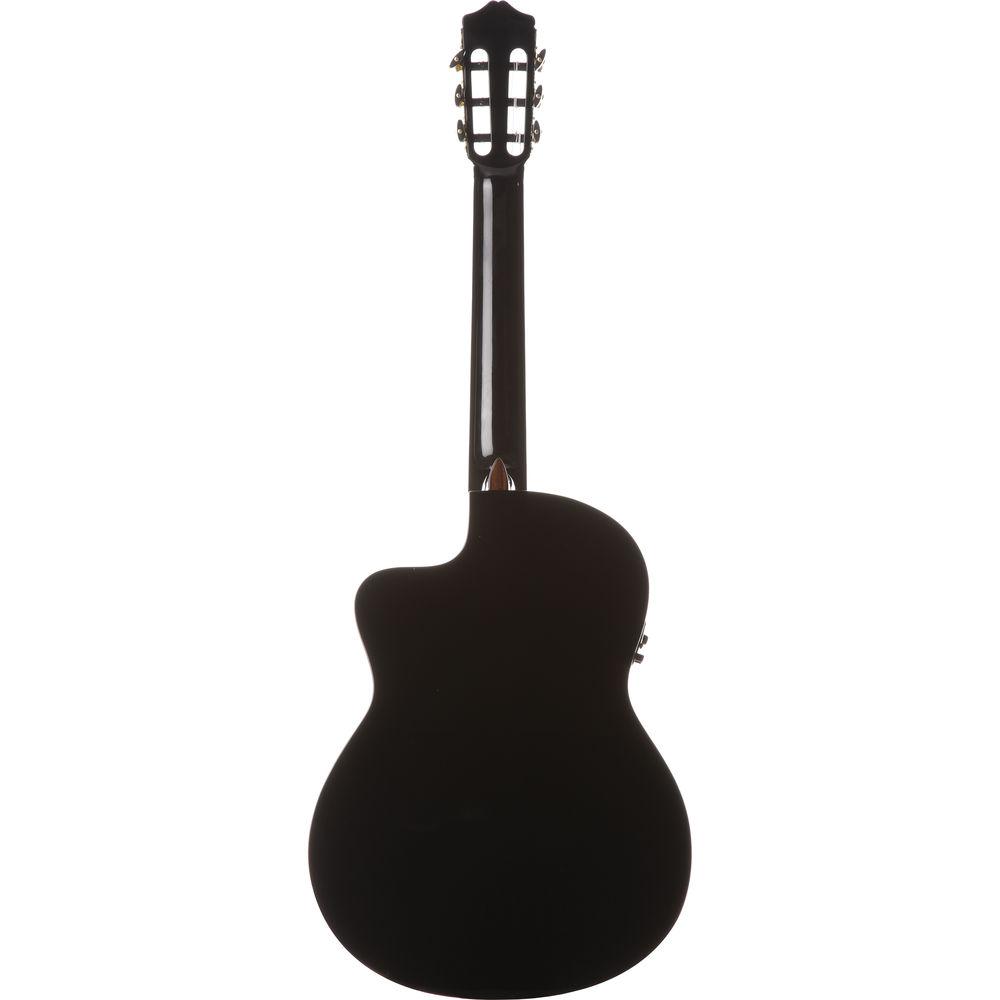

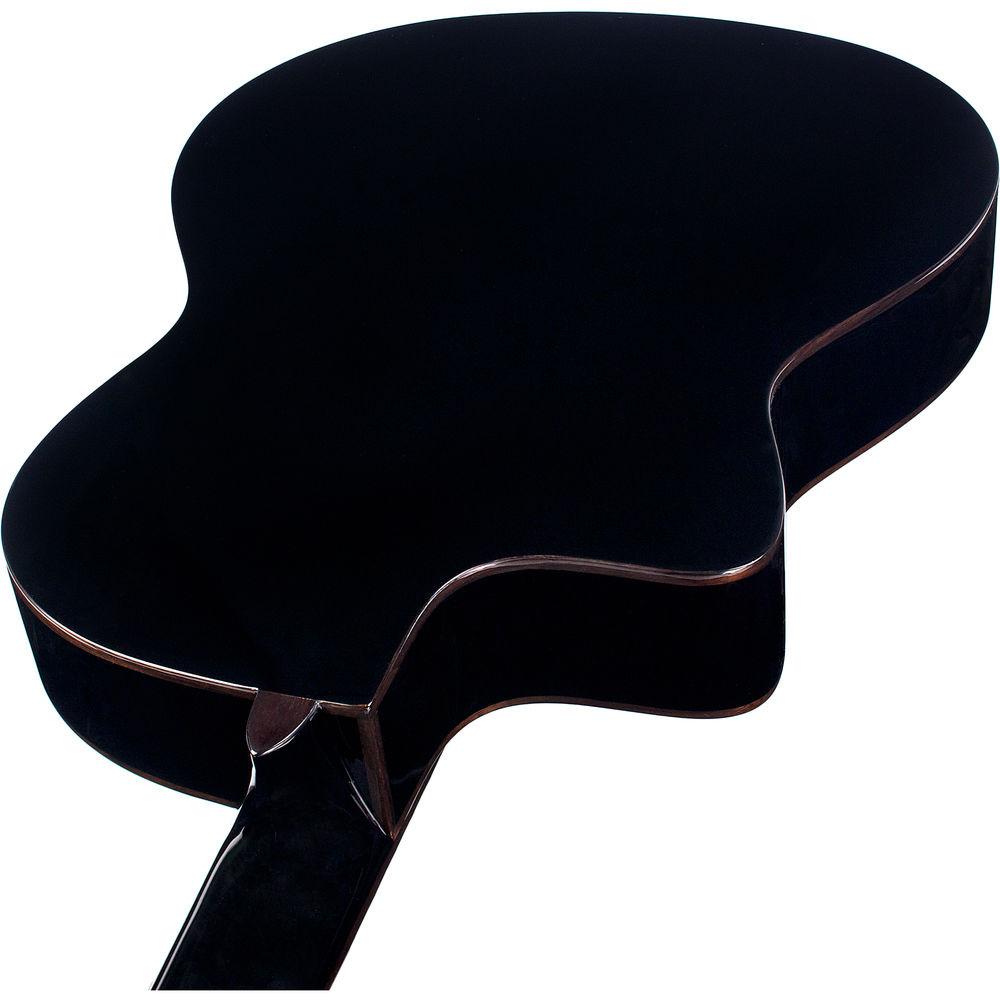

Product description With its single-cutaway design and onboard Fishman Isys+ Preamp System, the C5-CEBK from Cordoba is a nylon-string acoustic/electric guitar styled in a handsome, black high-gloss PU finish. Its top is crafted of solid Canadian cedar, while the back and sides are fashioned from mahogany. A wood mosaic inlay rosette adorns the soundhole, and other appointments, such as Indian rosewood binding, round out the aesthetics of the body.Its neck is slightly thinner than Cordoba’s traditional Spanish Classical guitar models, offering a narrow 50mm nut width. In addition, the neck has a standard scale length of 25.6”, a C-shaped profile, and a rosewood fingerboard complete with 19 frets. Mother-of-pearl side dot marker inlays at the fifth, seventh, and ninth frets help you to navigate your way around the fingerboard. Cordoba black-and-gold tuning machines secure the strings to the headstock, while an Indian rosewood bridge affixes strings to the body, and a bone nut and saddle offer additional resonance and clarity. Finally, by means of a two-way adjustable truss-rod, you can fine-tune the action of the guitar, if needed, to compensate for changes in string tension or climate.For electronics, this guitar is equipped with a Fishman Isys+ Preamp System, which provides two tonal controls for bass and treble, as well as a volume knob and a phase switch for inverting polarity on-stage, thereby fighting feedback. A tuner is also included, and a Sonicore undersaddle pickup rounds out the electronics. - Neck Features
- Neck Wood: Mahogany
Fingerboard: Rosewood
Profile: C Shape
Truss Rod: Two-Way Adjustable, 0.2" / 4.0mm
Scale Length: 25.6" / 650mm
String Spacing at Saddle: 2.4" / 60mm
Nut Width: 2.0" / 50mm
Nut Material: Bone
Fret Marker Inlays: Mother-of-Pearl at Fifth, Seventh, and Ninth Frets
Number of Frets: 12 to Body, 19 Total - Body Features
- Top Wood: Solid Canadian Cedar
Back and Sides: Mahogany
Binding: Indian Rosewood
Bridge: Indian Rosewood
Saddle Material: Bone
Rosette: Inlaid Wood Mosaic
Finish: High-Gloss PU
Bracing: Spanish Fan
Build: Cutaway Electric
Body Width x Depth (Upper Bout): 11.4 x 3.7" / 290.0 x 95.0mm
Body Width x Depth (Lower Bout): 14.6 x 3.9" / 370.0 x 100.0mm
Body Length: 19.1" / 485mm
Overall Length: 39.0" / 990.6mm - Additional Features
- Tuning Machines: Cordoba Black & Gold Floral Tuners
Electronics: Fishman Isys+ with Onboard Tuner UPC: 809870046572 In the Box Cordoba C5-CEBK Iberia Series Nylon-String Acoustic/Electric Guitar (High Gloss Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cordoba C5-CEBK Iberia Series Nylon-String Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCordoba C5-CEBK Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Classical | | Cutaway | Single-Cutaway | | Body Wood | Top: Cedar
Back: Mahogany
Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 19 | | Scale Length | 25.6" / | | Nut Width | 50 mm | | Bridge Type | Rosewood | | Pickguard | No | | Pickups | Bridge: Undersaddle | | Controls | Tone Control: x 2
Volume Control: x 1 |
