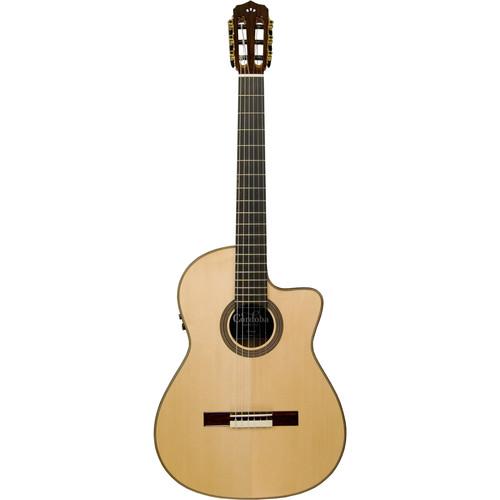

User Manual for Cordoba Fusion Series 14 Maple Hybrid Nylon-String Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Cordoba Fusion Series 14 Maple Hybrid
- Product category: Acoustic Guitars Cordoba
- Brand: Cordoba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cordoba Acoustic Guitars
 |
User manual for the Cordoba Fusion Series 14 Maple Hybrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cordoba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cordoba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cordoba product will considerably shorten its lifespan!
|

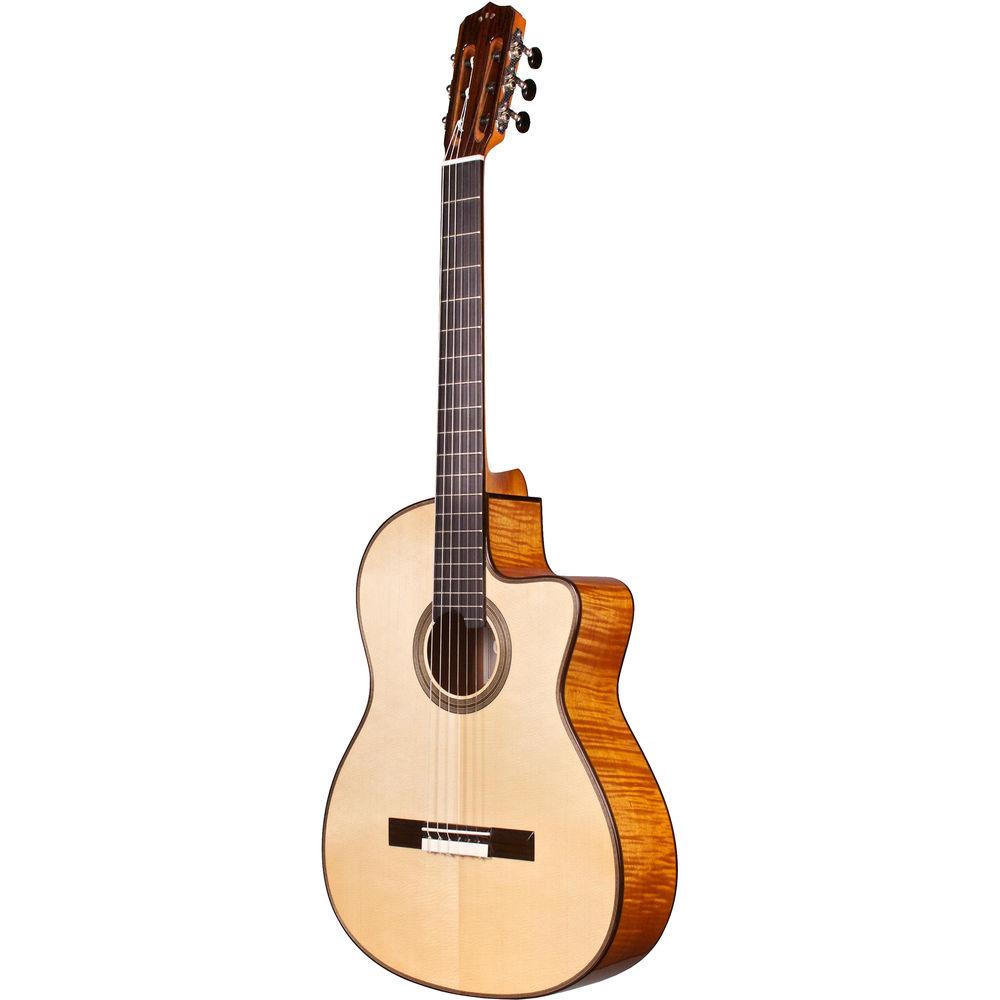

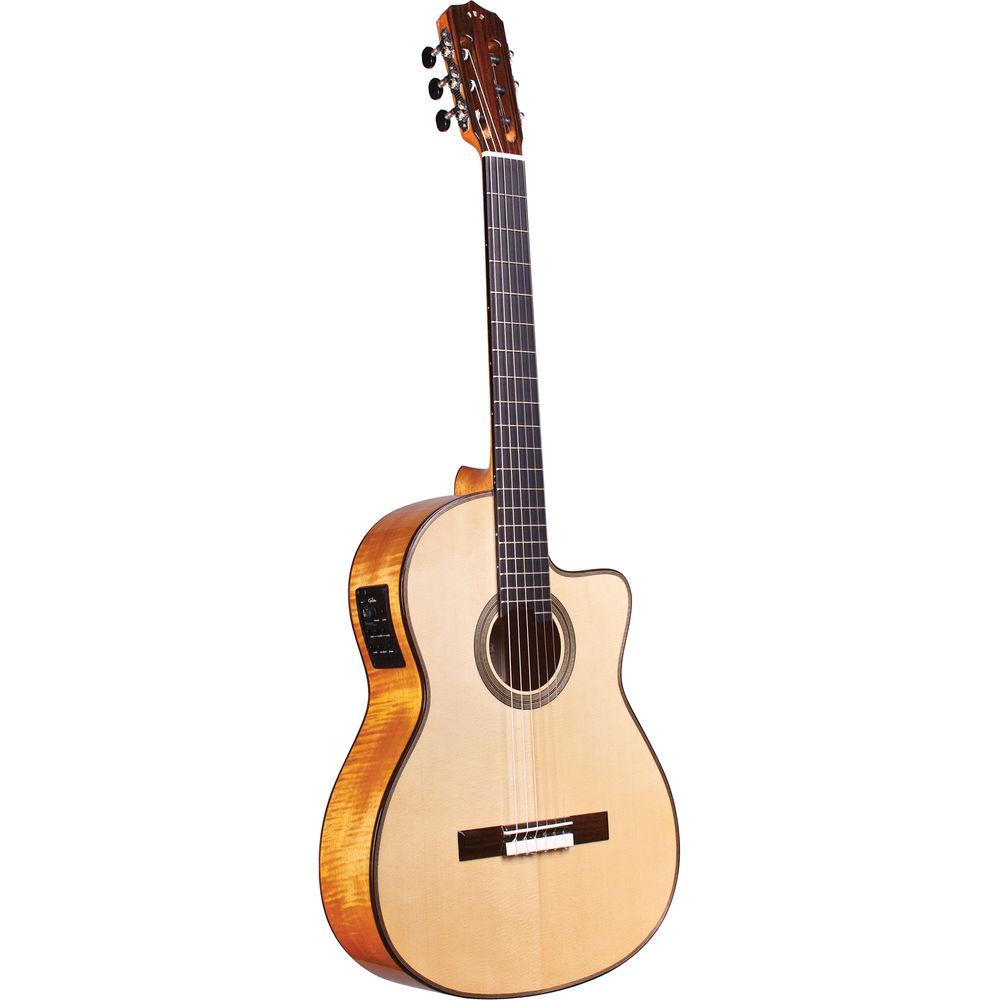

Product description The Fusion Series 14 Maple by Cordoba is a hybrid nylon-string acoustic/electric guitar designed to sound and feel more like a steel-string acoustic. Sporting a European spruce top with flamed-maple back and sides, it delivers a brighter and sweeter tone than an instrument with rosewood or mahogany back and sides, which are woods that are commonly used for classical guitars. Additionally, the 14 Maple features a thinner neck than a traditional Spanish-style classical guitar, using a nut width of 48mm instead of the customary 52mm, and a radiused, ebony fingerboard with 19 frets, joining the body at the 14th fret. Side dot markers at the third, fifth, seventh, ninth, 12th, 15th, and 17th frets make this instrument more comfortable for players accustomed to steel-string or electric guitars. Cordoba Silver Tuning Machines provide a 35mm roller spacing and a gear ratio of 14:1 for precise tuning. At the opposite end, the 14 Maple's rosewood bridge has been placed more forward from the center of the soundboard, which increases the ease-of-play for steel-string and electric players. For electronics, this instrument is outfitted with a Fishman Presys Blend preamp system, an undersaddle piezo pickup, and an internal body microphone. The preamp system provides bass, middle, and treble controls, as well as notch filter and phase controls for eliminating feedback, a mic blend to balance the internal microphone with the pickup, and a volume knob to adjust the system's overall output level. Furthermore, a built-in tuner is provided for your convenience, and an included gig bag protects this handsome instrument while transporting it from gig to gig. - Neck Features
- Neck Wood: Mahogany

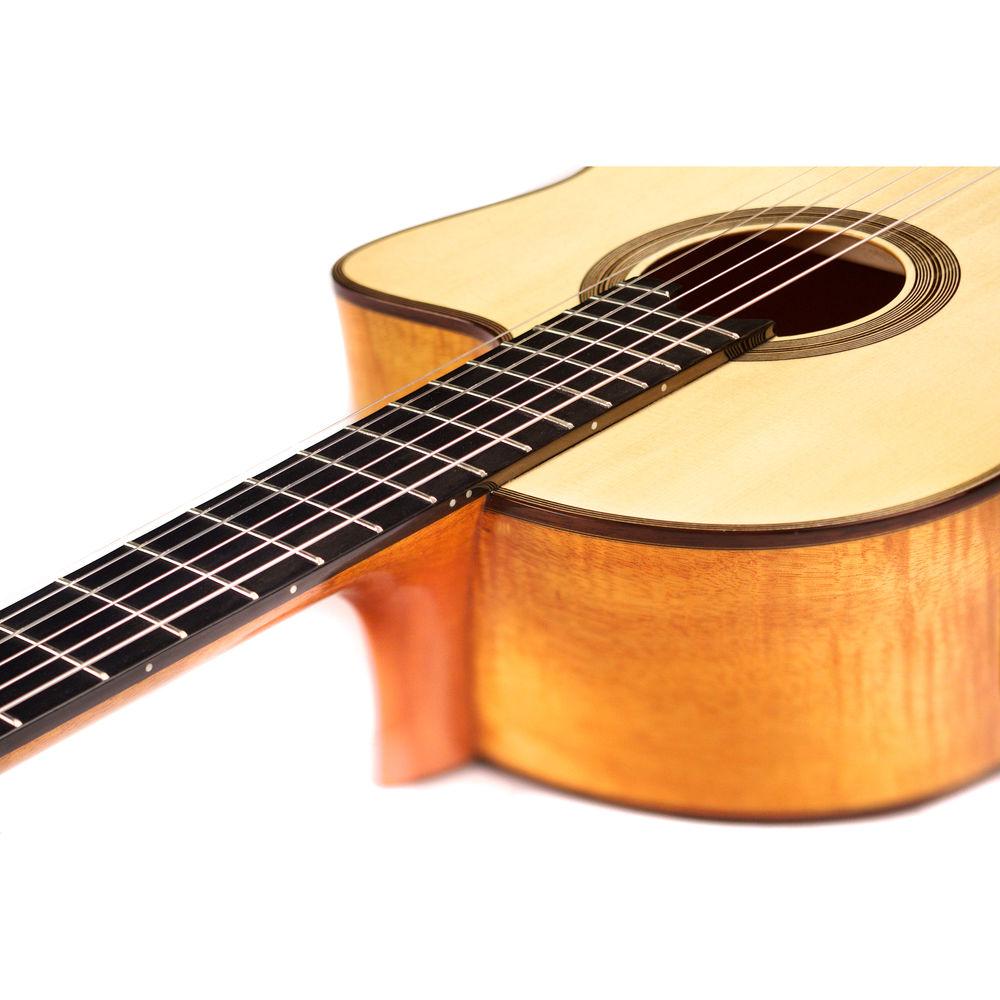

Fingerboard: Ebony, Radiused
Profile: C Shape
Truss Rod: Dual Action
Scale Length: 25.5" / 650mm
String Spacing at Saddle: 2.3" / 59mm
Nut Width: 1.9" / 48mm
Nut Material: Bone
Side-Position Markers: Dot Inlays at Third, Fifth, Seventh, Ninth, 12th, 15th, and 17th Frets
Number of Frets: 14 to Body, 19 Total
Tuning Machines: Cordoba Silver with Black Buttons - Body Features
- Body Style: Single Cutaway
Top Wood: Solid European Spruce

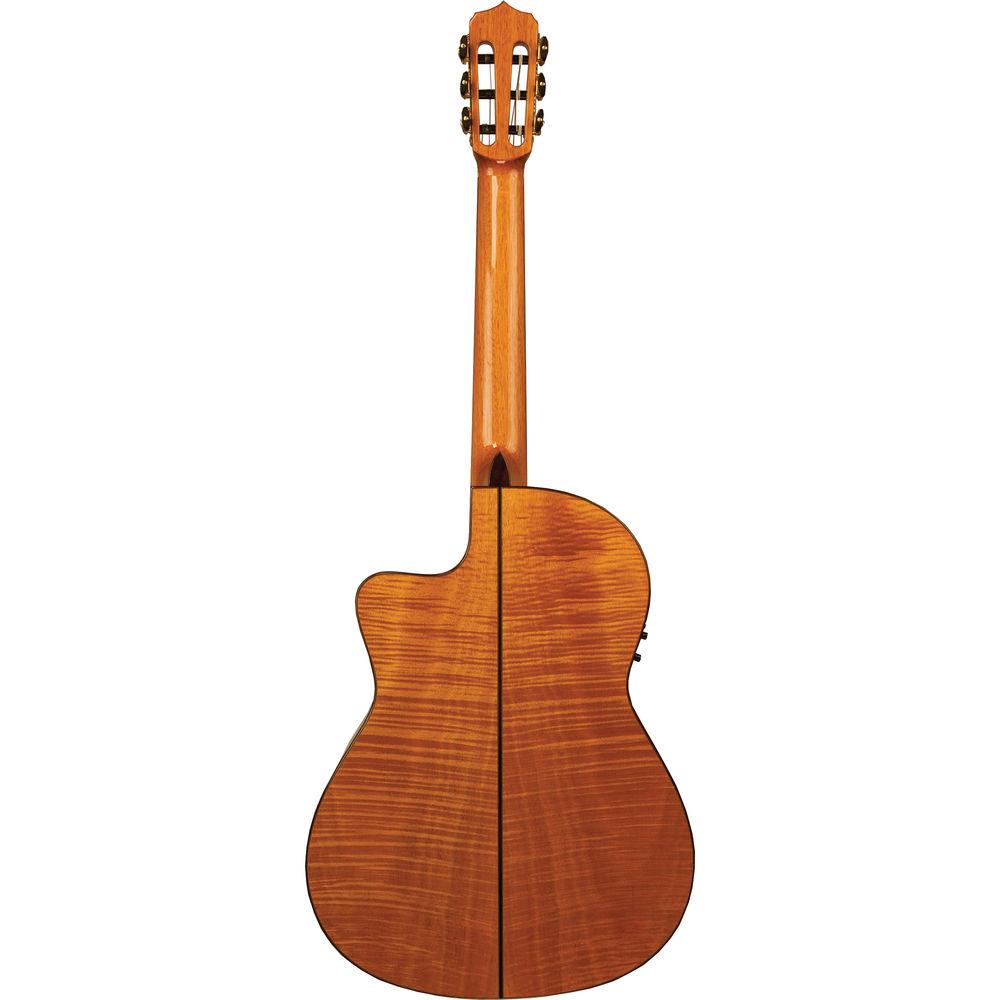

Back and Sides: Flamed Maple
Binding: Rosewood
Purfling Inlay: Maple and Black on Top, Back, Sides

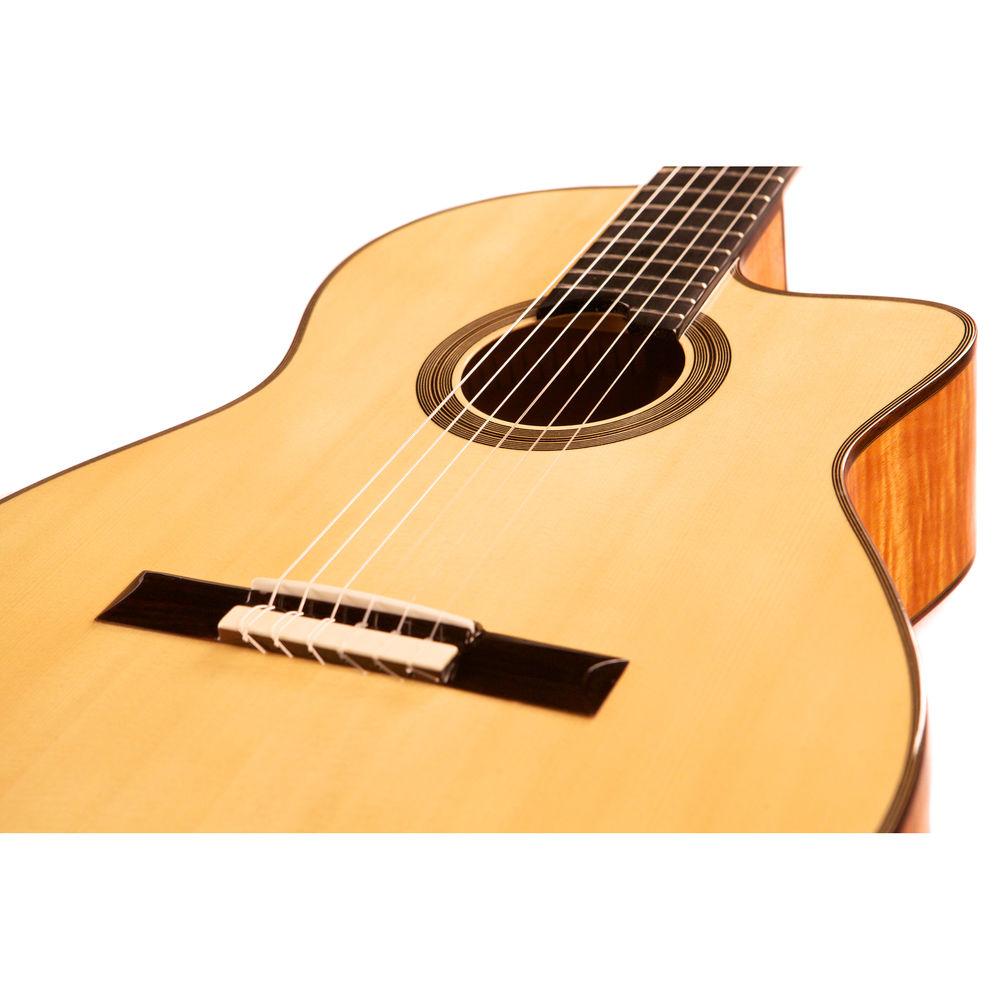

Bridge: Rosewood
Rosette: Maple and Black Rings
Finish: Gloss Polyurethane
Top Bracing: Fan
Body Width x Depth (Upper Bout): 11.0 x 3.75" / 279 x 95mm
Body Width x Depth (Lower Bout): 14.5 x 4.0" / 368 x 100mm
Body Length: 19.0" / 483mm
Overall Length: 38.5" / 978mm

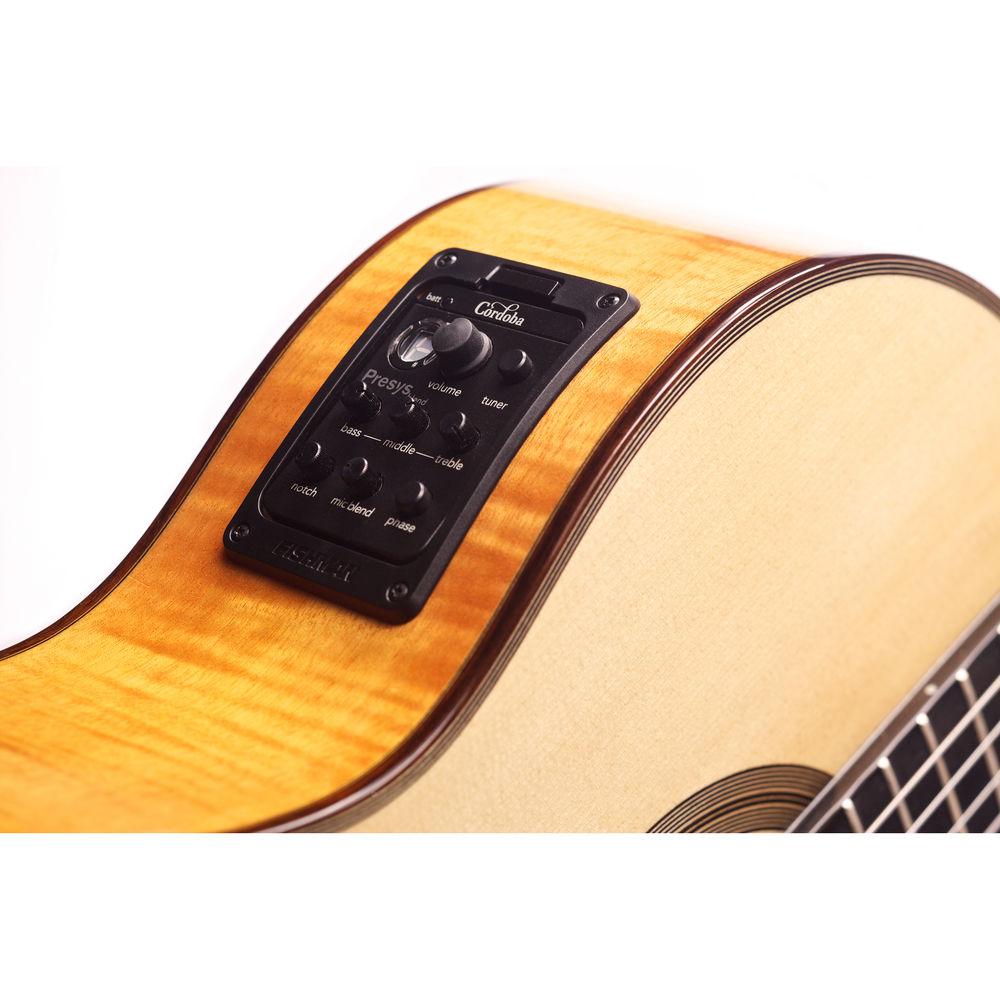

Electronics: Fishman Presys Blend Preamp System with 3-Band EQ, Notch, and Phase Controls, Undersaddle Piezo Pickup and Internal Microphone with Blend Control, and Built-In Digital Tuner UPC: 809870051316 In the Box Cordoba Fusion Series 14 Maple Hybrid Nylon-String Acoustic/Electric Guitar (Natural Gloss) Cordoba Gig Bag Limited 3-Year Warranty on Materials & Workmanship Limited 1-Year Warranty on Hardware, Electronics, & Gig Bag Table of Contents
|
Upload User Manual
Have you got an user manual for the Cordoba Fusion Series 14 Maple Hybrid Nylon-String Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCordoba 05131 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Classical | | Cutaway | Single-Cutaway | | Body Wood | Top: Spruce
Back: Maple
Sides: Maple | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Ebony | | Number of Frets | 19 | | Scale Length | 25.5" / | | Nut Width | 48 mm | | Bridge Type | Rosewood | | Pickguard | No | | Pickups | Bridge: Undersaddle
Body | | Controls | Tone Control: x 3
Volume Control: x 1
Balance Control: x 1 |
