User Manual for Cordoba GK Studio Iberia Series Hybrid Classical Electric Guitar Click to enlarge the picture
Contents of the user manual for the Cordoba GK Studio Iberia Series Hybrid
- Product category: Acoustic Guitars Cordoba
- Brand: Cordoba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cordoba Acoustic Guitars
 |
User manual for the Cordoba GK Studio Iberia Series Hybrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cordoba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cordoba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cordoba product will considerably shorten its lifespan!
|

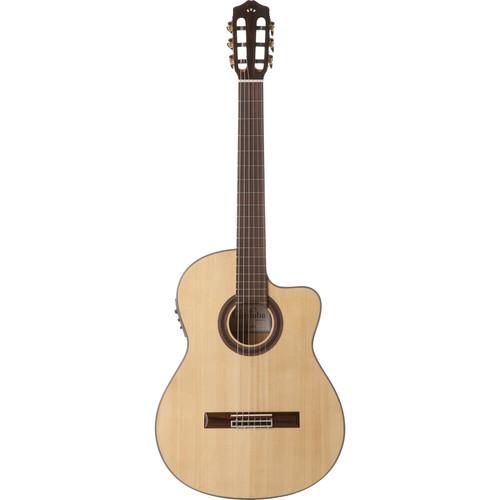

Product description Intended to put the bright, percussive sound of Flamenco at your fingertips and to facilitate amplification and high-fret soloing while doing so, the Iberia Series GK Studio from Cordoba is a nylon-string classical with a solid European spruce top, as well as a cypress back and sides, all in a single-cutaway design intended to promote access to high frets. The mahogany neck provides a 25.6” scale, a rosewood fingerboard, and 19 frets. A 4mm truss rod is accessible for ensuring that the neck stays straight, and a bone nut has been employed to bolster sustain and resonance on open strings.This guitar offers side-position inlays at the fifth, seventh, ninth, and 12th frets. Other aesthetics abound, such as 3-ply maple and ebony top purfling and Indian rosewood binding. An Indian rosewood bridge affixes strings to the body. At the headstock, you’ll find Cordoba Tuning Machines.For electronics, this instrument is outfitted with a Fishman Presys preamp system, an undersaddle piezo pickup, and an internal microphone. The preamp system provides bass, middle, and treble controls, as well as a notch knob for eliminating feedback, and a mic blend control to balance the internal microphone with the pickup. You’ll get an overall volume knob and a mic trim pot to further adjust levels. Also provided is a phase knob for further feedback busting, and a built-in tuner.Since this instrument is primarily intended for Flamenco, a clear tap plate has been pre-installed to prevent you from damaging the top in particularly percussive moments of expression. A gig bag has been included to help you take the instrument from gig to gig in a protected manner. - Neck Features
- Neck Wood: Mahogany
Fingerboard: Rosewood
Profile: C shape
Truss Rod: Two-way adjustable 0.2" / 4mm
Scale Length: 25.6" / 650mm
Fret-Marker Inlays: Mother-of-pearl at the third, fifth, seventh, ninth, and 12th frets
String Spacing at Saddle: 2.4" / 60mm
Nut Width: 2.0" / 50mm
Nut Material: Bone
Number of Frets: 12 to body, 19 total
Tuning Machines: Cordoba tuning machines - Body Features
- Build: Flamenco style
Top Wood: Solid European cedar

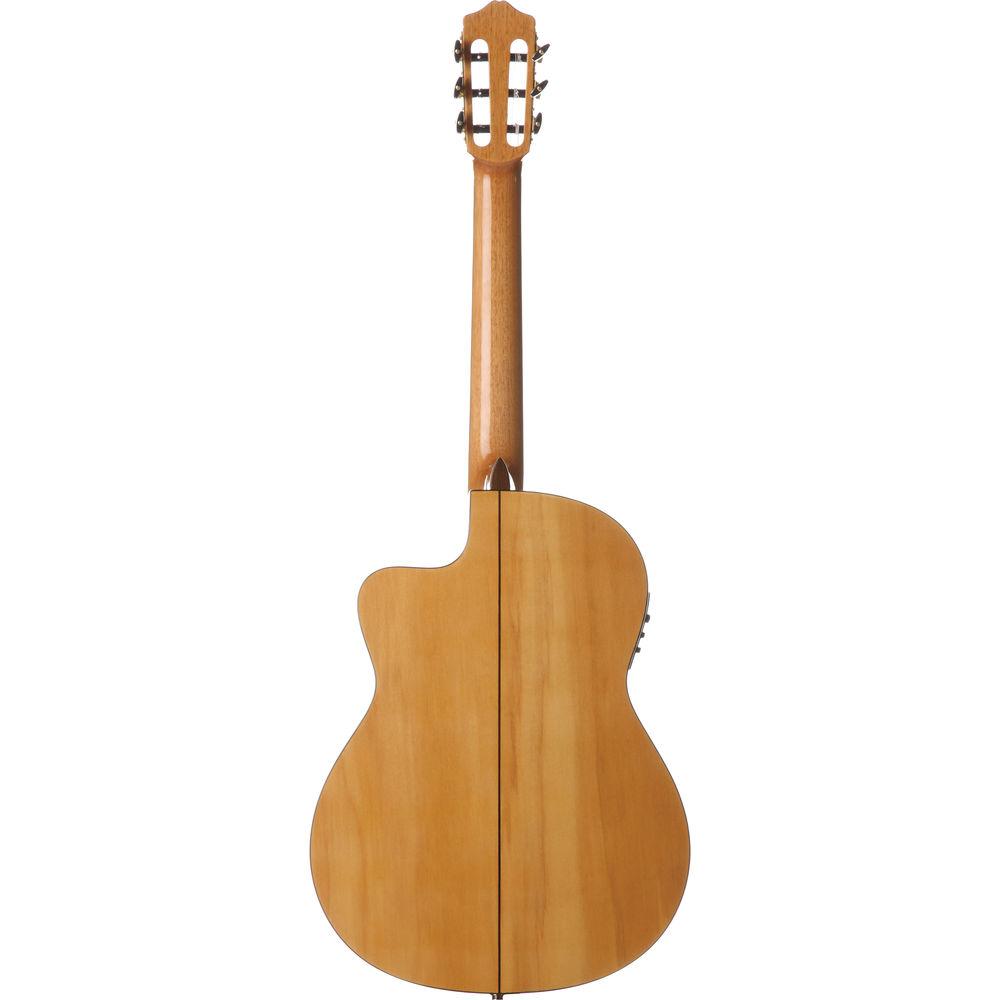

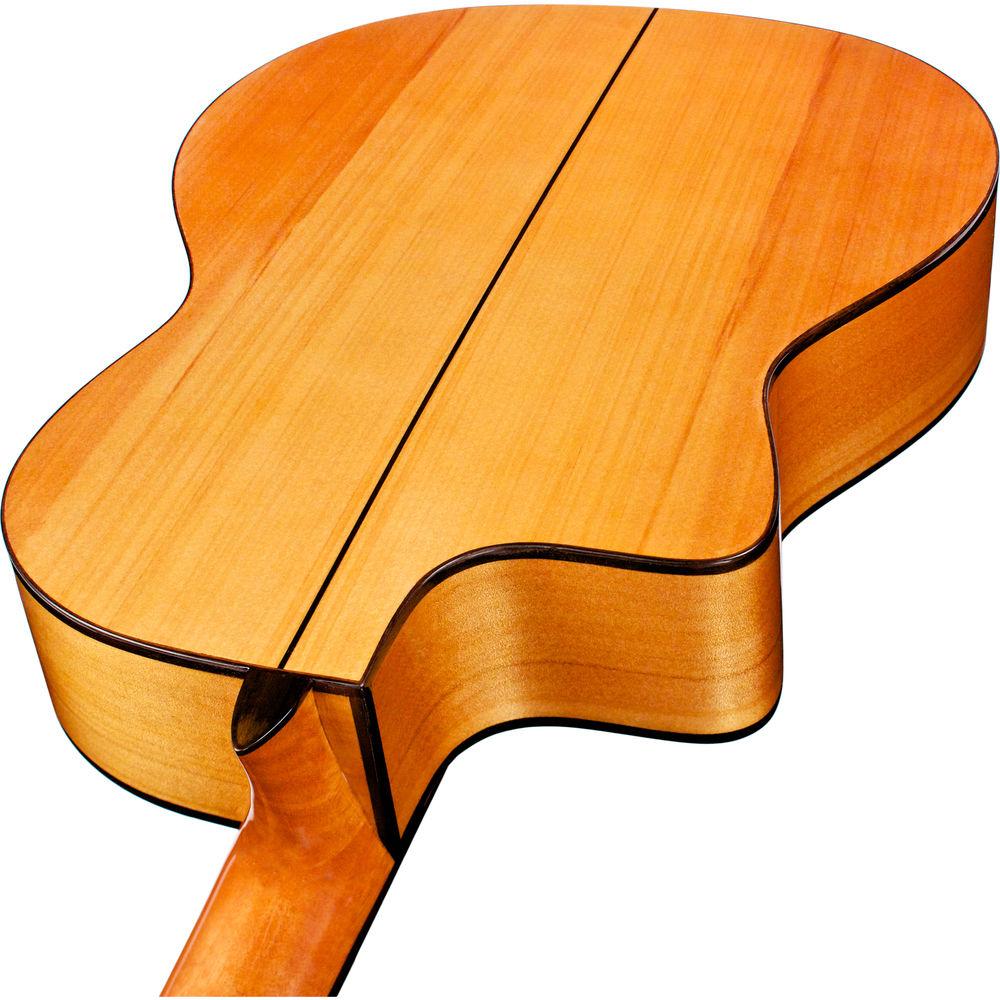

Back and Sides: Cypress
Binding: Indian rosewood
Purfling: 3-ply maple and ebony top-purfling

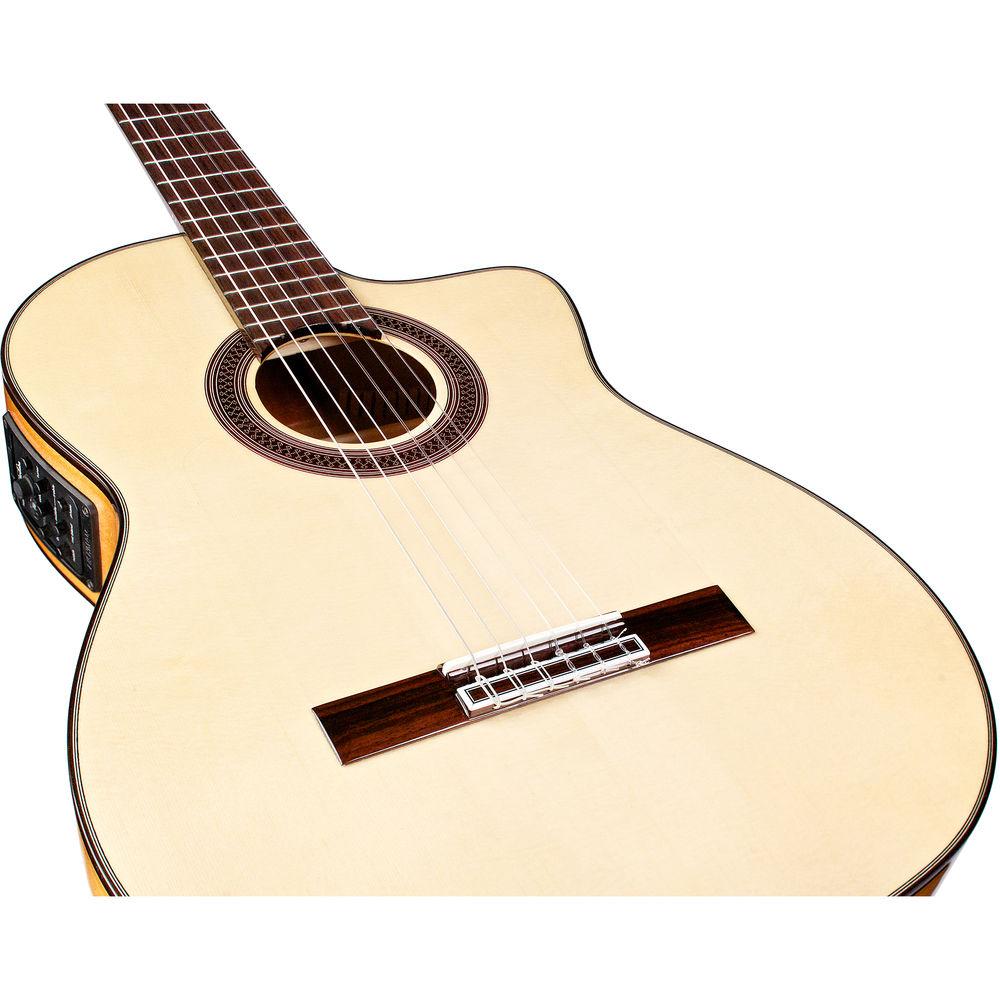

Bridge: Indian rosewood
Rosette: Inlaid-wood mosaic
Finish: High gloss polyurethane, honey-amber tint on back and sides
Bracing: Spanish fan
Body Width x Depth (Upper Bout): 11.4 x 3.7" / 290 x 88mm
Body Width x Depth (Lower Bout): 14.6 x 3.8 / 485 x 89mm
Body Length: 19.1" / 485mm
Overall Length: 39" / 991mm

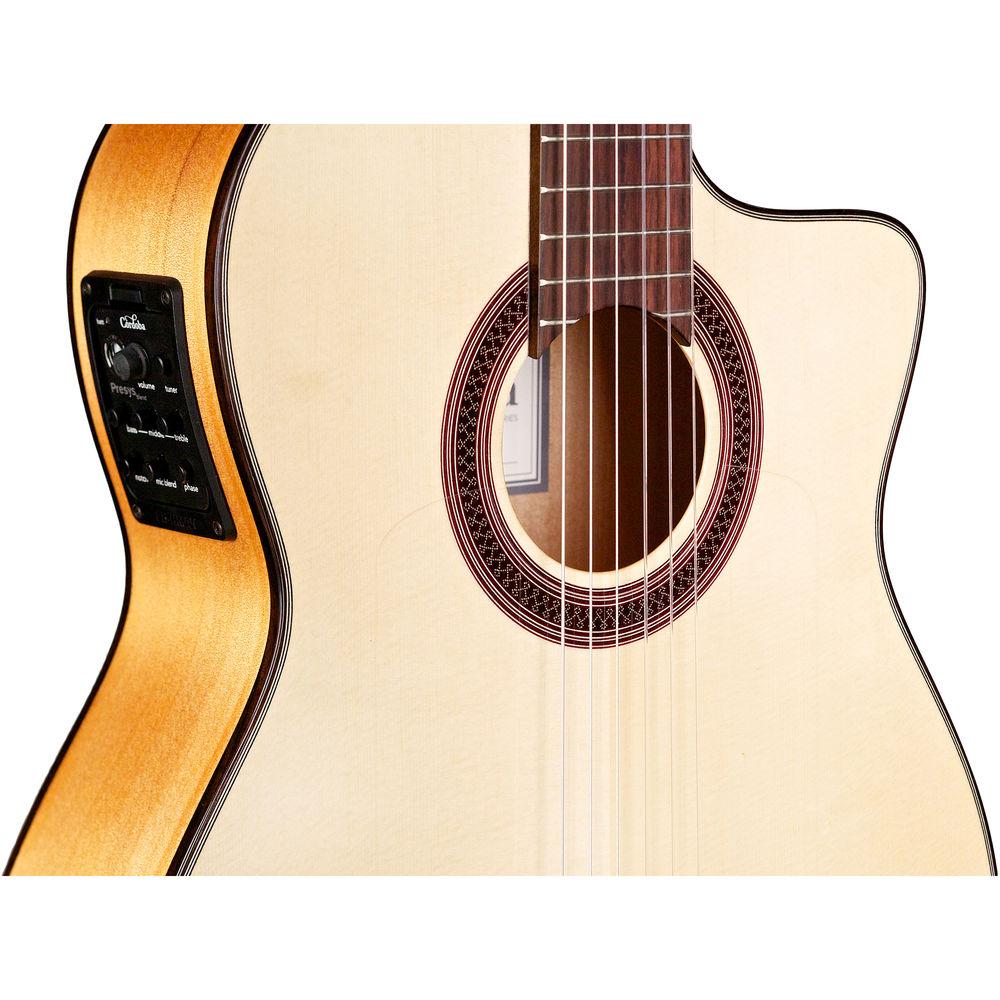

Electronics: Fishman Presys Blend with 4-band EQ and phase
Pickups: Undersaddle piezo and internal microphone with blend
Tuner: Built-in, digital UPC: 809870052085 In the Box Cordoba GK Studio Iberia Series Hybrid Classical/Electric Guitar (High-Gloss, Honey-Amber Tint) Cordoba Gig Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cordoba GK Studio Iberia Series Hybrid Classical Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCordoba 05208 Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Classical | | Cutaway | Single-Cutaway | | Body Wood | Top: Spruce
Back: Cypress
Sides: Cypress | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 19 | | Scale Length | 25.6" / | | Nut Width | 50 mm | | Bridge Type | Rosewood | | Pickups | Middle: Soundhole
Bridge: Piezo, Undersaddle | | Controls | Tone Control: x 4
Volume Control: x 1
Balance Control: x 1 |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
