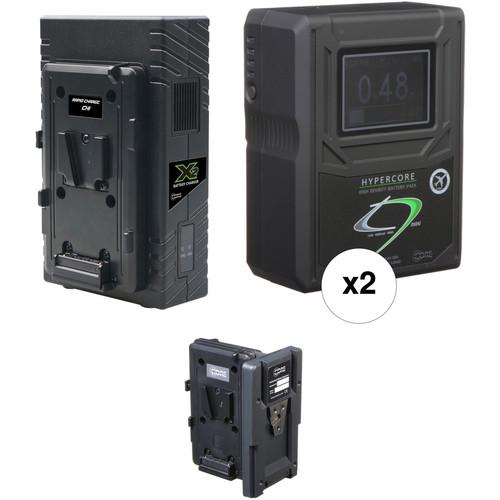

Product description The Core SWX 2 x HC9 Mini Battery Kit with Hotswap Plate (V-Mount) from includes two compact V-Mount, lithium-ion batteries, a hot swap battery plate, and a dual-position charger. Each 14.8V, 98Wh V-Mount battery can support up to a 12A draw, is compatible with Anton Bauer chargers, and is TSA-friendly, enabling you to transport it as a carry-on item. Battery features include backlit LCD and 4-LED power gauges, D-Tap and USB output ports, and integrated safety sensors. This HC9 Mini Battery Kit's V-Mount hot swap plate enables you to conveniently exchange a depleted battery without needing to power down your camera. A dual charger rounds out this kit with features including a slim design, simultaneous charging at 2A, and single charging at 3A. The charger does double-duty as a power supply, providing 90W power for accessories via a 4-pin XLR output. Note: Always check with your carrier for the latest travel regulations. - 2 x Core SWX HyperCore HC9 Mini V-Mount Battery Whether you require low clearance to fit your camera on a gimbal or just don't want the back of your rig to be dominated by a battery, the Core SWX HyperCore HC9 Mini V-Mount Battery can handle 12-amp draws, yet is encased in a small enclosure that matches the form-factor of many popular cinema cameras on the market. This V-mount model communicates using the standard SMBUS protocol (found on most cameras that have a native V-mount), sending battery metrics that can be monitored from the camera itself. In addition to the V-mount power output, the HC9 features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. UPC: 184323003631
- Core SWX X2S 2-Bay Vertical V-Mount Battery Charger Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655
- Core SWX GPTS V-Mount Hot Swap Adapter The Core SWX GPTS is a "hot swap" power adapter that mounts directly to your existing V-plate. Batteries are mounted side by side, so you can easily remove the depleted battery while leaving the other battery connected so there is never any down time. The GP-TS is outfitted with a 2-pin power port so that you are not limited to the cameras' own connector. UPC: 184323000289
In the Box - 2 x HyperCore HC9 Mini V-Mount Battery xstbwtzusuxu
- Limited 2-Year Warranty
- X2S 2-Bay Vertical V-Mount Battery Charger
- GPTS V-Mount Hot Swap Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX 2 x HC9 Mini Battery Kit with Hot Swap Plate & Dual Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Core SWX HyperCore HC9 Mini V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.5 x 4.7 x 1.9" / 8.9 x 11.9 x 4.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 7.1 x 4.45 x 2.7" | - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.3 x 4.9" | - Core SWX GPTS V-Mount Hot Swap Adapter
| | | Box Dimensions (LxWxH) | 6.0 x 5.5 x 3.5" |
