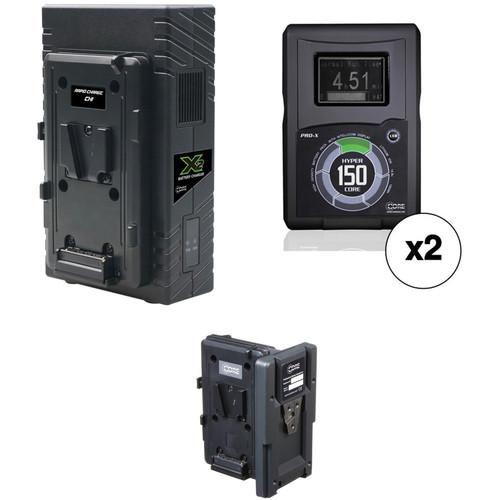

Product description The Core SWX 2 x Hypercore 150Wh Battery Kit with Hot Swap Plate (V-Mount) from includes two V-Mount, lithium-ion batteries, a hot swap battery plate, and a dual-position charger. Each 14.8V, 150Wh V-Mount battery can support up to a 10A draw for extended periods, and is compatible with Anton Bauer chargers. Battery features include a backlit LCD power gauge, a 4-LED gauge, D-Tap and USB output ports, and integrated safety sensors. This Hypercore Battery Kit's hot swap plate enables you to conveniently change a depleted battery without needing to power down your camera. A dual charger rounds out this kit with features including a slim design, simultaneous charging at 2A, and single charging at 3A. The charger does double-duty as a power supply, providing 90W power for accessories via a 4-pin XLR output. - 2 x Core SWX HyperCore 150Wh 14.8V V-Mount Battery
- HyperCore 98 & HyperCore 150
The Core SWX HyperCore 150 14.8V V-Mount Battery is a 150Wh lithium-ion battery featuring high density cells designed to handle high power draws. Supporting more amperage per cell, the cells can withstand up to a 10A draw for extended periods without diminishing service life. Overall service life is rated at 1000 charge/discharge cycles. Run-time is projected at 6 hours at 25W. Safety sensors are built in that detect over/under voltage, over/under current, and above-normal temperature.
A Intellicom backlit LCD and a 4-LED gauge provide operating run-time in hours and minutes, remaining capacity as a bar grid and percentage, and remaining charge time. An on-board fuel computer samples capacity and charge or discharge load and recomputes and refreshes the LCD display every five seconds. The HyperCore 150 works with all Core SWX chargers and dictates the best possible charge routine with regard to maximum life. It's best used with Core SWX XC-2LS and XC-2LA chargers as they'll provide faster charge times.
A PowerTap port and USB port are available on the side for powering accessories and charging various devices. The outer jacket is made of comfortable-to-hold, non-slip rubber. - Key Features
-
- 150Wh lithium-ion V-Mount battery
- High density cells supporting up to a 10A draw for extended periods
- Rated at 1000 charge/discharge cycles
- Run-time projected at 6 hours at 25W
- Built in safety sensors
- Intellicom backlit LCD and 4-LED power gauge
- Displays run-time in hours and minutes, capacity as a grid and %, and remaining charge time
- On-board fuel computer refreshes the LCD display every five seconds
- Dictates the best charge routine possible to the charger
- Compatible with all Core SWX chargers
- PowerTap port and USB port
- Non-slip, rubberized housing
UPC: 184323002849 - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
- HyperCore 98 & HyperCore 150
Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655 - Core SWX GPTS V-Mount Hot Swap Adapter
- HyperCore 98 & HyperCore 150
The Core SWX GPTS is a "hot swap" power adapter that mounts directly to your existing V-plate. Batteries are mounted side by side, so you can easily remove the depleted battery while leaving the other battery connected so there is never any down time. The GP-TS is outfitted with a 2-pin power port so that you are not limited to the cameras' own connector. UPC: 184323000289 In the Box - 2 x HyperCore 150Wh 14.8V V-Mount Battery dyrauytx
- Limited 2-Year Warranty
- X2S 2-Bay Vertical V-Mount Battery Charger
- GPTS V-Mount Hot Swap Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX 2 x Hypercore 150Wh Battery Kit with Hot Swap Plate & Dual Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Core SWX HyperCore 150Wh 14.8V V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 150 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.4" / 97.0 x 150.0 x 60.0 mm | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 8.2 x 7.0 x 4.3" | - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.3 x 4.9" | - Core SWX GPTS V-Mount Hot Swap Adapter
| | | Box Dimensions (LxWxH) | 6.0 x 5.5 x 3.5" |
