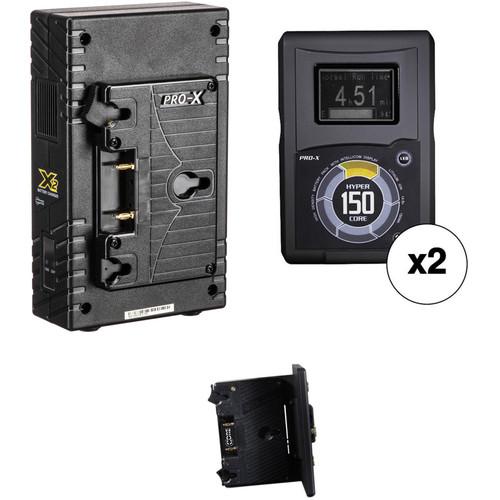

User Manual for Core SWX 2 x HyperCore GOLD Battery Kit with Hotswap Plate & Dual Charger

• Product category: On Camera Batteries Core SWX
• Brand: Core SWX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Core SWX On Camera Batteries

Product description

• 2 x Core SWX HyperCore 150 Gold Mount Battery
  • HyperCore 98 & HyperCore 150
  The Core SWX HyperCore 150 Gold Mount Battery is a 150Wh Lithium-Ion battery featuring high density cells designed to handle high power draws. Supporting more amperage per cell, the cells can withstand up to a 10A draw for extended periods without diminishing service life. Overall service life is rated at 1000 charge/discharge cycles. Runtime is projected at 6 hours at 25W. Safety sensors are built in that detect over/under voltage, over/under current, and above-normal temperature.The HyperCore 150 is compatible with Anton/Bauer Lithium-Ion chargers. An Intellicom backlit LCD and a 4-LED gauge provide operating runtime in hours and minutes, remaining capacity as a bar grid and percentage, and remaining charge time. An on-board fuel computer samples capacity and charge or discharge load and re-computes and refreshes the LCD display every five seconds. A D-tap port and USB port are available on the side for powering accessories and charging various devices. The outer jacket is made of comfortable-to-hold, non-slip rubber. This battery pack will charge on all Core SWX chargers.
  Key Features
  • • 150 lithium-ion Gold mount battery
    • Compatible with all Anton Bauer lithium-ion chargers
    • High density cells supporting up to a 10A draw for extended periods
    • Rated at 1000 charge/discharge cycles
    • Runtime projected at 6 hours at 25W
    • Built-in safety sensors
    • Intellicom backlit LCD and 4-LED power gauge
    • Displays runtime in hours and minutes, capacity as a grid and %, and remaining charge time
    • On-board fuel computer refreshes the LCD display every five seconds
    • D-Tap port and USB port
    • Non-slip, rubberized housing
  UPC: 184323002832
• Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger
  • HyperCore 98 & HyperCore 150
  Charge your Gold Mount batteries while on-the-go with the Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2A takes up less space than traditional chargers. With its 4-pin XLR output, the X2A also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003662
• Core SWX GP-TA Gold-Mount Hotswap Power Plate Adapter
  • HyperCore 98 & HyperCore 150
  The GP-TA Gold-Mount Hotswap Power Plate Adapter from Core SWX mounts directly to the existing Gold-Mount plate on the camera and allows for continuous battery operation. Because the batteries aren't 'stacked' on one another, you can remove the depleted battery while leaving the other battery connected with no down time. It can provide up to 260wh at only 1.6lb. UPC: 184323002801

• 2 x HyperCore 150 Gold Mount Battery dyrauytx
• Limited 2-Year Warranty

• X2A 2-Bay Vertical Gold Mount Battery Charger

• GP-TA Gold-Mount Hotswap Power Plate Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Core SWX HyperCore 150 Gold Mount Battery

  Mount / Series Type	Gold Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	150 Wh
  Output Voltage	14.8 VDC
  Maximum Load	10 A
  Accessory Port	1 x D-Tap 1 x USB Type-A
  Dimensions (W x H x D)	3.8 x 5.9 x 2.4" / 97.0 x 150.0 x 60.0 mm
  Weight	2 lb / 0.9 kg

  Box Dimensions (LxWxH)	8.0 x 7.0 x 4.2"

• Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger

  Maximum Charge Current	1 Bay: 3 A 2 Bays: 2 A (each bay)
  4-Pin XLR DC Output	90 W (15 VDC, 6 A)
  Input Voltage	90-240 VAC, 50/60 Hz
  Dimensions	4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm
  Weight	1.9 lb / 0.9 kg

  Box Dimensions (LxWxH)	8.0 x 5.4 x 4.9"

• Core SWX GP-TA Gold-Mount Hotswap Power Plate Adapter

  Power Input	11 - 17 VDC
  Outputs	Camera: Unregulated paralleled, 11 - 17 VDC P-Tap: Unregulated, 11 - 17 VDC
  Dimensions	4.75 x 5.5 x 3.5" (12.17 x 13.9 x 8.9 cm)
  Weight	1.6 lb (0.7 kg)

  Box Dimensions (LxWxH)	5.8 x 4.5 x 1.4"
