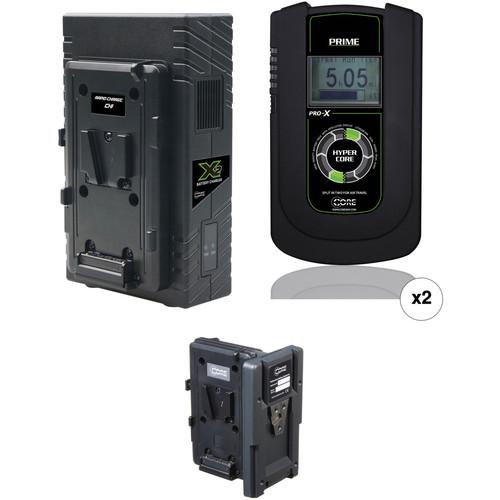

User Manual for Core SWX 2 x Hypercore PRIME 190Wh Battery Kit with Hot Swap Plate & Dual Charger

• Product category: On Camera Batteries Core SWX
• Brand: Core SWX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Core SWX On Camera Batteries

Product description

• 2 x Core SWX HyperCore Prime 190Wh V-Mount Li-Ion Battery Pack
  • Travel Safe with HC PRIME
  The HyperCore Prime 190Wh V-Mount Li-Ion Battery Pack from Core SWX employs a 2-part system to provide a charge capacity of 190 Wh (14.8 V, 13.5 Ah). The battery pack complies with IATA, ICAO, and UN regulations for air transportation without restrictions. It can sustain large power draws to easily handle digital cinema cameras, like ARRI Alexa, Amira, Epic, Sony F65, and Phantom. The battery pack has an integrated D-tap connection on the side, allowing you to power any 12 VDC device from this port. It features an additional USB output that can be used to charge your mobile device. It also features a large backlit runtime LCD and an LED grid on the front that provide the charging status of the battery. Four of the HyperCore Prime batteries can be installed on the HyperCine Block Battery (available separately) providing a total charge capacity of up to 760Wh. Apart from being compatible with the Switronix charger lineup, this V-mount battery can also charge on the IDX, Sony, and RED chargers. UPC: 184323003013
• Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
  • Travel Safe with HC PRIME
  Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655
• Core SWX GPTS V-Mount Hot Swap Adapter
  • Travel Safe with HC PRIME
  The Core SWX GPTS is a "hot swap" power adapter that mounts directly to your existing V-plate. Batteries are mounted side by side, so you can easily remove the depleted battery while leaving the other battery connected so there is never any down time. The GP-TS is outfitted with a 2-pin power port so that you are not limited to the cameras' own connector. UPC: 184323000289

• 2 x HyperCore Prime 190Wh V-Mount Li-Ion Battery Pack dyrauytx
• Limited 2-Year Warranty

• X2S 2-Bay Vertical V-Mount Battery Charger

• GPTS V-Mount Hot Swap Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Core SWX HyperCore Prime 190Wh V-Mount Li-Ion Battery Pack

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	190 Wh
  Capacity per Section (Wh)	95 Wh
  Amp-Hours	13.5 Ah
  Output Voltage	14.8 VDC
  Maximum Load	10 A
  Dimensions (W x H x D)	3.8 x 6.6 x 2.4" / 97.0 x 168.0 x 61.0 mm
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	8.1 x 6.95 x 4.35"

• Core SWX X2S 2-Bay Vertical V-Mount Battery Charger

  Maximum Charge Current	1 Bay: 3 A 2 Bays: 2 A (each bay)
  4-Pin XLR DC Output	90 W (15 VDC, 6 A)
  Input Voltage	90-240 VAC, 50/60 Hz
  Dimensions	4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm
  Weight	1.9 lb / 0.9 kg

  Box Dimensions (LxWxH)	8.0 x 5.3 x 4.9"

• Core SWX GPTS V-Mount Hot Swap Adapter

  Box Dimensions (LxWxH)	6.0 x 5.5 x 3.5"
