User Manual for Core SWX 2 x Hypercore PRIME 190Wh Battery Kit with Hot Swap Plate & Dual Charger Click to enlarge the picture
Contents of the user manual for the Core SWX 2 x Hypercore PRIME
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX 2 x Hypercore PRIME contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|

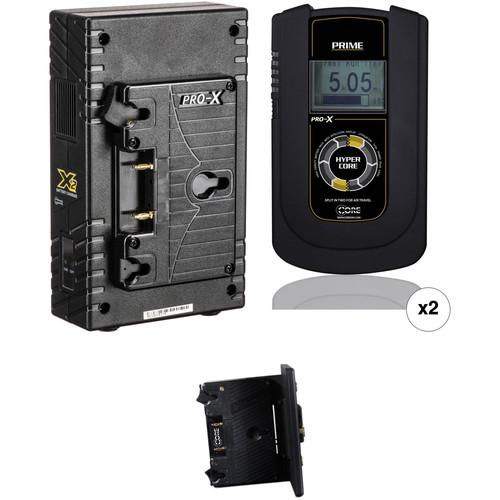

Product description The Core SWX 2 x Hypercore PRIME 190Wh Battery Kit with Hot Swap Plate from (Gold Mount) includes two lithium-ion batteries, a hot swap battery plate, and a dual-position charger. These innovative Hypercore PRIME batteries feature a 2-part design, enabling each battery to be split into two TSA-friendly components for carry-on portability. Each 14.8V, 190Wh Gold Mount battery can support up to a 10A draw, and is compatible with Anton Bauer chargers. Battery features include a backlit LCD power gauge, an LED power gauge, and D-Tap and USB ports. This Hypercore PRIME Battery Kit's hot swap plate enables you to conveniently change a depleted battery without needing to power down your camera. A dual charger rounds out this kit with features including a slim design, simultaneous charging at 2A, and single charging at 3A. The charger does double-duty as a power supply, providing 90W power for accessories via a 4-pin XLR output. Note: Always check with your carrier for the latest travel regulations.
Compatible with firmware V3.6 and up Anton Bauer chargers, and the Switronix line of chargers. - 2 x Core SWX HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack
- Travel Safe with HC PRIME
The HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack from Core SWX employs a 2-part system to provide a charge capacity of 190 Wh (14.8 V, 13.5 Ah). The battery pack complies with IATA, ICAO, and UN regulations for air transportation without restrictions. It can sustain large power draws to easily handle digital cinema cameras, like ARRI Alexa, Amira, Epic, Sony F65, and Phantom. The battery pack has an integrated D-tap connection on the side, allowing you to power any 12 VDC device from this port. It features an additional USB output that can be used to charge your mobile device. It also features a large backlit runtime LCD and an LED grid on the front that provide the charging status of the battery. Four of the HyperCore Prime batteries can be installed on the HyperCine Block Battery (available separately) providing a total charge capacity of up to 760Wh. This Gold mount battery is compatible with the Anton/Bauer (firmware V3.6 and up) chargers, including the Switronix charger lineup. UPC: 184323003020 - Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger
- Travel Safe with HC PRIME
Charge your Gold Mount batteries while on-the-go with the Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2A takes up less space than traditional chargers. With its 4-pin XLR output, the X2A also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003662 - Core SWX GP-TA Gold-Mount Hotswap Power Plate Adapter
- Travel Safe with HC PRIME
The GP-TA Gold-Mount Hotswap Power Plate Adapter from Core SWX mounts directly to the existing Gold-Mount plate on the camera and allows for continuous battery operation. Because the batteries aren't 'stacked' on one another, you can remove the depleted battery while leaving the other battery connected with no down time. It can provide up to 260wh at only 1.6lb. UPC: 184323002801 In the Box - 2 x HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack cbuavcdvezafxz
- Limited 2-Year Warranty
- X2A 2-Bay Vertical Gold Mount Battery Charger
- GP-TA Gold-Mount Hotswap Power Plate Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX 2 x Hypercore PRIME 190Wh Battery Kit with Hot Swap Plate & Dual Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Core SWX HyperCore Prime 190Wh Gold Mount Li-Ion Battery Pack
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 190 Wh | | Capacity per Section (Wh) | 95 Wh | | Amp-Hours | 13.5 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Dimensions (W x H x D) | 3.8 x 6.6 x 2.4" / 97.0 x 168.0 x 61.0 mm | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 8.1 x 6.95 x 4.35" | - Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.4 x 4.9" | - Core SWX GP-TA Gold-Mount Hotswap Power Plate Adapter
| Power Input | 11 - 17 VDC | | Outputs | Camera: Unregulated paralleled, 11 - 17 VDC
P-Tap: Unregulated, 11 - 17 VDC | | Dimensions | 4.75 x 5.5 x 3.5" (12.17 x 13.9 x 8.9 cm) | | Weight | 1.6 lb (0.7 kg) | | | | Box Dimensions (LxWxH) | 5.8 x 4.5 x 1.4" |
