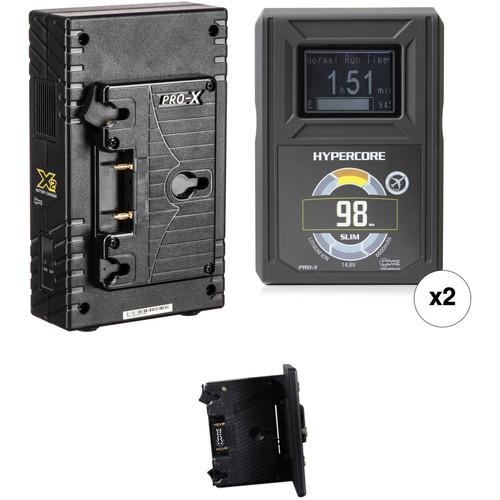

Product description The Core SWX 2 x Hypercore Slim 98Wh Battery Kit with Hot Swap Plate from B&H includes two Gold Mount, lithium-ion batteries, a hot swap battery plate, and a dual-position charger. Each 14.8V, 98Wh Gold Mount battery can support up to a 12A draw for extended periods, and is compatible with Anton Bauer chargers. Battery features include a slim design suited to drones and other compact rigs, a backlit LCD power gauge, a 4-LED gauge, a D-Tap port, and a handy USB output port. These Hypercore Slim batteries are TSA-friendly, enabling you to transport them as carry-on items.This Hypercore Slim Battery Kit's hot swap plate enables you to conveniently change a depleted battery without needing to power down your camera. A dual charger rounds out this kit with features including a slim design, simultaneous charging at 2A, and single charging at 3A. The charger does double-duty as a power supply, providing 90W power for accessories via a 4-pin XLR output. Note: Always check with your carrier for the latest travel regulations. - 2 x Core SWX Hypercore Slim Gold Mount Battery The Core SWX Hypercore Slim Gold Mount Battery is a professional battery designed for modern production workflows involving a wide range of equipment. The slim design means the battery takes up less horizontal space than previous-generation models to better fit gimbal stabilizers and other rigs where space is at a premium. Though the design is less space-consuming, the Hypercore Slim provides the same 98Wh capacity as its predecessors. For power-hungry cinema cameras and lights, the 12-amp maximum continuous draw will keep your equipment powered. This Gold mount model is compatible with Anton Bauer equipment, and will charge on Anton Bauer chargers. In addition to the Gold mount power output, the Hypercore Slim features D-Tap and USB outputs. The D-Tap output can be used to power a light source, a monitor, recorder, or other part of your rig while you can connect your smartphone or other USB accessory for convenient charging. A 25-watt load on this battery will last approximately 3.5 hours. The LCD battery status display screen on the rear of the battery is backlit with a cool white illumination, and updates every few seconds to accurately reflect up-to-the-moment statistics, including runtime. The battery itself is housed in Core SWX's classic over molded casing with a rubberized finish that is resistant to impact and is easily grippable. UPC: 184323003815
- Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger Charge your Gold Mount batteries while on-the-go with the Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2A takes up less space than traditional chargers. With its 4-pin XLR output, the X2A also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003662
- Core SWX GP-TA Gold-Mount Hotswap Power Plate Adapter The GP-TA Gold-Mount Hotswap Power Plate Adapter from Core SWX mounts directly to the existing Gold-Mount plate on the camera and allows for continuous battery operation. Because the batteries aren't 'stacked' on one another, you can remove the depleted battery while leaving the other battery connected with no down time. It can provide up to 260wh at only 1.6lb. UPC: 184323002801
In the Box - 2 x Hypercore Slim Gold Mount Battery xstbwtzusuxu
- Limited 1-Year Warranty
- X2A 2-Bay Vertical Gold Mount Battery Charger
- GP-TA Gold-Mount Hotswap Power Plate Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX 2 x Hypercore Slim 98Wh Battery Kit with Hot Swap Plate & Dual Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Core SWX Hypercore Slim Gold Mount Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 12 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A (Peak) | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 3.0" | - Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.4 x 4.9" | - Core SWX GP-TA Gold-Mount Hotswap Power Plate Adapter
| Power Input | 11 - 17 VDC | | Outputs | Camera: Unregulated paralleled, 11 - 17 VDC
P-Tap: Unregulated, 11 - 17 VDC | | Dimensions | 4.75 x 5.5 x 3.5" (12.17 x 13.9 x 8.9 cm) | | Weight | 1.6 lb (0.7 kg) | | | | Box Dimensions (LxWxH) | 5.8 x 4.5 x 1.4" |
