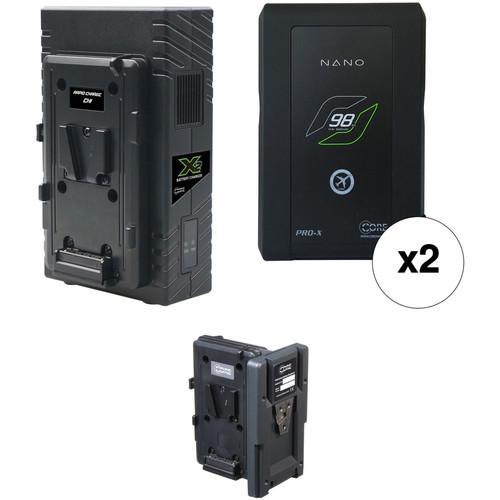

Product description The Core SWX 2 x Nano Battery Kit with Hotswap Plate (V-Mount) from includes two compact V-Mount, lithium-ion batteries, a hotswap V-mount battery plate, and a dual-position charger. Each V-mount battery features a slim, lightweight form factor, D-Tap and USB output ports, compatibility with Anton Bauer chargers, and the ability to display remaining capacity on most camera EVFs (electronic viewfinders). The 14.8V, 98Wh Nano batteries are TSA-friendly, enabling you to transport them as carry-on items. This Nano Battery Kit's hotswap plate enables you to conveniently change out a depleted battery without needing to power down your camera. A dual charger rounds out this kit with features including a slim design, simultaneous charging at 2A, and single charging at 3A. The charger does double-duty as a power supply, providing 90W power for accessories via a 4-pin XLR output. Note: Always check with your carrier for the latest travel regulations. - 2 x Core SWX Nano V-Mount Battery Slimmer than its predecessor, the XPL90, the Core SWX Nano V-Mount Battery is lightweight, reliable, and powerful. While the form-factor may be small, the Nano-series batteries can support up to 8-amp draws at 14.8V. The slim enclosure is great for gimbal balancing, as the camera it's mounted to can use the extra space for fore/aft movement. In classic Core SWX fashion, the exterior of the battery has a rubberized feel for a sure grip. Accessories can be connected to both the USB and D-tap power outputs, allowing the Nano-series batteries to act as a power hub for your entire rig, not just your camera. With the 98Wh capacity, a 25-watt load can be sustained for approximately 3.5 hours. Real-time capacity can be checked using the 4-LED gauge on the side of the casing. This V-mount model communicates using the standard SMBUS protocol (found on most cameras that have a native V-mount, including RED DSMC2 cameras), sending battery metrics that can be monitored from the camera itself. UPC: 184323003600
- Core SWX X2S 2-Bay Vertical V-Mount Battery Charger Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655
- Core SWX GPTS V-Mount Hot Swap Adapter The Core SWX GPTS is a "hot swap" power adapter that mounts directly to your existing V-plate. Batteries are mounted side by side, so you can easily remove the depleted battery while leaving the other battery connected so there is never any down time. The GP-TS is outfitted with a 2-pin power port so that you are not limited to the cameras' own connector. UPC: 184323000289
In the Box - 2 x Nano V-Mount Battery xstbwtzusuxu
- Limited 18-Month Warranty
- X2S 2-Bay Vertical V-Mount Battery Charger
- GPTS V-Mount Hot Swap Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX 2 x Nano Battery Kit with Hotswap Plate & Dual Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Core SWX Nano V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 8 A | | Accessory Port | 1 x D-Tap | | USB Output | 5 V, 3 A | | Dimensions (W x H x D) | 3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 8.05 x 6.95 x 2.85" | - Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
| Maximum Charge Current | 1 Bay: 3 A
2 Bays: 2 A (each bay) | | 4-Pin XLR DC Output | 90 W (15 VDC, 6 A) | | Input Voltage | 90-240 VAC, 50/60 Hz | | Dimensions | 4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm | | Weight | 1.9 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 5.3 x 4.9" | - Core SWX GPTS V-Mount Hot Swap Adapter
| | | Box Dimensions (LxWxH) | 6.0 x 5.5 x 3.5" |
