User manual
Core SWX 2 x Nano Battery

User Manual for Core SWX 2 x Nano Battery Kit with Hotswap Plate & Dual Charger

• Product category: On Camera Batteries Core SWX
• Brand: Core SWX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Core SWX On Camera Batteries

Product description

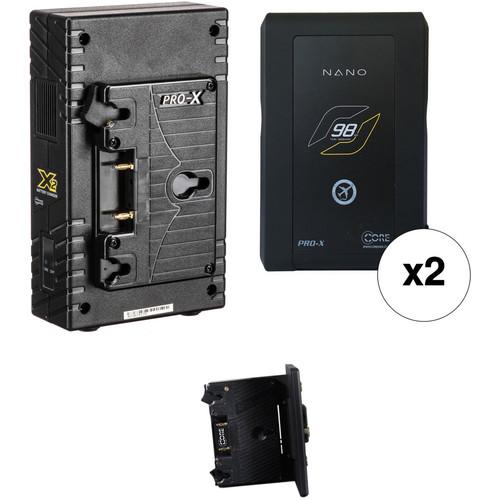

• 2 x Core SWX Nano Gold Mount Battery Slimmer than its predecessor, the XPL90, the Core SWX Nano Gold Mount Battery is lightweight, reliable, and powerful. While the form-factor may be small, the Nano-series batteries can support up to 8-amp draws at 14.8V. The slim enclosure is great for gimbal balancing, as the camera it's mounted to can use the extra space for fore/aft movement. In classic Core SWX fashion, the exterior of the battery has a rubberized feel for a sure grip. Accessories can be connected to both the USB and D-tap power outputs, allowing the Nano-series batteries to act as a power hub for your entire rig, not just your camera. With the 98Wh capacity, a 25-watt load can be sustained for approximately 3.5 hours. Real-time capacity can be checked using the 4-LED gauge on the side of the casing. This Gold mount model is compatible with Anton Bauer equipment, and will charge on Anton Bauer chargers. UPC: 184323003617
• Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger Charge your Gold Mount batteries while on-the-go with the Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2A takes up less space than traditional chargers. With its 4-pin XLR output, the X2A also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003662
• Core SWX GP-TA Gold-Mount Hotswap Power Plate Adapter The GP-TA Gold-Mount Hotswap Power Plate Adapter from Core SWX mounts directly to the existing Gold-Mount plate on the camera and allows for continuous battery operation. Because the batteries aren't 'stacked' on one another, you can remove the depleted battery while leaving the other battery connected with no down time. It can provide up to 260wh at only 1.6lb. UPC: 184323002801

• 2 x Nano Gold Mount Battery xstbwtzusuxu
• Limited 18-Month Warranty

• X2A 2-Bay Vertical Gold Mount Battery Charger

• GP-TA Gold-Mount Hotswap Power Plate Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Core SWX Nano Gold Mount Battery

  Mount / Series Type	Gold Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	6.6 Ah
  Output Voltage	14.8 VDC
  Maximum Load	8 A
  Accessory Port	1 x D-Tap
  USB Output	5 V, 3 A
  Dimensions (W x H x D)	3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.05 x 7.05 x 2.85"

• Core SWX X2A 2-Bay Vertical Gold Mount Battery Charger

  Maximum Charge Current	1 Bay: 3 A 2 Bays: 2 A (each bay)
  4-Pin XLR DC Output	90 W (15 VDC, 6 A)
  Input Voltage	90-240 VAC, 50/60 Hz
  Dimensions	4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm
  Weight	1.9 lb / 0.9 kg

  Box Dimensions (LxWxH)	8.0 x 5.4 x 4.9"

• Core SWX GP-TA Gold-Mount Hotswap Power Plate Adapter

  Power Input	11 - 17 VDC
  Outputs	Camera: Unregulated paralleled, 11 - 17 VDC P-Tap: Unregulated, 11 - 17 VDC
  Dimensions	4.75 x 5.5 x 3.5" (12.17 x 13.9 x 8.9 cm)
  Weight	1.6 lb (0.7 kg)

  Box Dimensions (LxWxH)	5.8 x 4.5 x 1.4"
