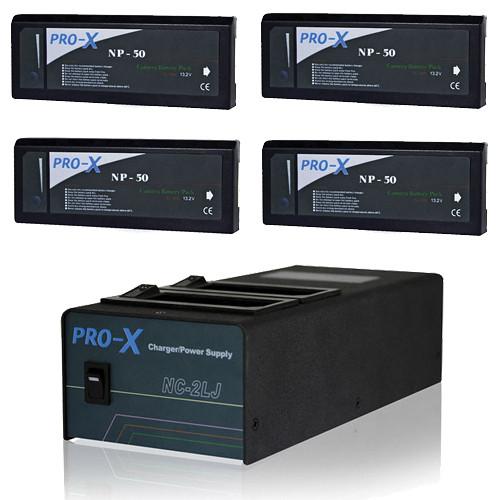

User Manual for Core SWX 4x NP-50 NP-Style Batteries & Two-Position Charger Kit Click to enlarge the picture
Contents of the user manual for the Core SWX 4x NP-50 NP-Style Batteries
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX 4x NP-50 NP-Style Batteries contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description The Core SWX 4x NP-50 NP-Style Batteries & Two-Position Charger Kit from combines four 13.2V, 50Wh, NiMH batteries with a two-battery, 90-240V desktop charger.
The batteries each feature a 4-stage power gauge readout. The charger can simultaneously charge two batteries and provide AC power to 12V equipment. It supports NiMH, lithium-ion, and NiCD batteries at the same time. - 4 x Core SWX NP-50 NiMH NP-1 Style Battery The Core SWX NP-50 is a 13.2v, NP-style Nickel Metal Hydride (NiMH) battery. The NP-50 offers a current NP-style NiCd user an inexpensive way to upgrade to a newer battery technology.
- NIMH - Environmentally Safe
- Nickel Metal Hydride cells are essentially an extension of the prooven sealed Nickel-Cadmium (NiCd) cell technology with the substitution of a hydrogen absorbing negative electrode for the cadmium based electrode. This substitution increases cell capacity and eliminates the toxicity concerns that cadmium based cells produce.
- Power Guage
- A 4 stage power gage is offered for easy capacity checks.
UPC: 184323000012 - Core SWX NC-2LJ 2-Position NP-1 Type Simultaneous Charger The Core SWX NC-2LJ is a two-position simultaneous charger for NP-1 type batteries. It will charge all chemistries and operates as a camera power supply for 12VDC cameras operating up to 50 watts. Note: Will not work with IDX Li-Ion NP batteries, but will work with IDX NiMH NP's.
- DC Power Supply
- The NC-2LJ will operate as an AC adaptor for 12VDC equipment as well as a battery charger.
- Multi-Chemistry
- This device will charge batteries with NiCD, NiMH and Lithium Ion chemistries.
- Simultaneous Charge
- This NP-1 charger features simultaneous charging, enabling the charger to charge two batteries, regardless of chemistry, at the same time.
UPC: 184323000111 In the Box - 4 x NP-50 NiMH NP-1 Style Battery fuqecafcwtarcbbwwtwdyarr
- Limited 1-Year Warranty
- NC-2LJ 2-Position NP-1 Type Simultaneous Charger
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX 4x NP-50 NP-Style Batteries & Two-Position Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x Core SWX NP-50 NiMH NP-1 Style Battery
| Mount / Series Type | NP-1 Mount | | Chemistry | Nickel-Metal Hydride | | Capacity (Wh) | 50 Wh | | Output Voltage | 13.2 VDC | | Dimensions (W x H x D) | 7.3 x 2.8 x 1.0" / 184.9 x 71.9 x 24.9 mm | | Weight | 1.5 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 8.1 x 3.3 x 2.2" | - Core SWX NC-2LJ 2-Position NP-1 Type Simultaneous Charger
| Power Supply | Yes | | Battery Bays | 2 | | Type of Charging | Simultaneous | | Diagnostics | None | | Connections/Interface | NP-1 (x2)
4-Pin XLR (x 1) | | Power Requirements | 90-240 Volts AC, 50 or 60 Hz | | Dimensions (WxHxD) | 4.4 x 9.8 x 2.7"
11.2 x 25 x 6.8cm | | Weight | 2 lbs
907 grams | | | | Box Dimensions (LxWxH) | 10.5 x 9.5 x 4.0" |
