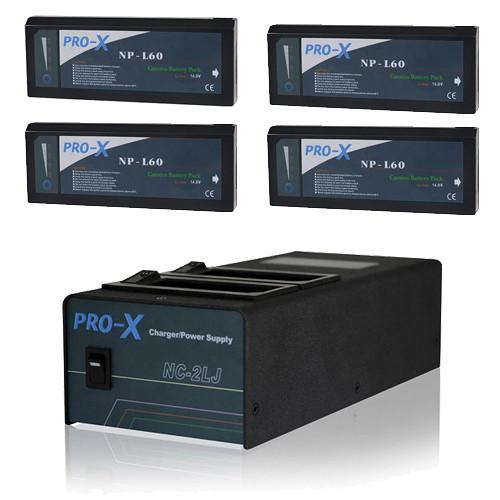

Product description The Core SWX 4x NP-L60 NP-Style Batteries & Two-Position Charger Kit from combines four 14.8V, 60Wh batteries with a two-battery, 90-240V desktop charger.
The batteries each feature a 2-pin P-Tap output, 4-stage power gauge readout, and temperature/current/voltage protection circuitry. The charger can simultaneously charge two batteries and provide AC power to 12V equipment. It supports lithium-ion, NiCD, and NiMH batteries at the same time. - 4 x Core SWX NP-L60 Li-Ion Chemistry NP-1 Style Battery The Core SWX NP-L60 is a 14.8 VDC, NP-style Li-Ion (Lithium-Ion) battery. This NP style battery features a power gauge, a two pin power connector and protection circuitry.Note: This battery will only charge on a Core SWX PRO-X NP type charger.
- High-Grade Cells
- Unlike conventional cells that are damaged by fast charging, Core SWX individually selects and balances each cell for optimum life and performance.
- 14.8 Volts
- Professional camcorders operate on a 12-volt system. As per their design, a majority of camcorders will activate a low voltage warning or even cease to operate when they determine that the battery has fallen below 11-volts. Most equipment manufacturers suggest that a higher voltage battery should be used whenever possible.
- Power Gauge
- A 4 stage LED power gauge is offered to monitor battery power.
- Protection Circuitry
- Temperature, current and voltage protection circuitry is offered in this battery.
- Two Pin Connection
- A two pin external connection is offered to power on camera lights such as Anton Bauer and Frezzolini.
UPC: 184323000029 - Core SWX NC-2LJ 2-Position NP-1 Type Simultaneous Charger The Core SWX NC-2LJ is a two-position simultaneous charger for NP-1 type batteries. It will charge all chemistries and operates as a camera power supply for 12VDC cameras operating up to 50 watts. Note: Will not work with IDX Li-Ion NP batteries, but will work with IDX NiMH NP's.
- DC Power Supply
- The NC-2LJ will operate as an AC adaptor for 12VDC equipment as well as a battery charger.
- Multi-Chemistry
- This device will charge batteries with NiCD, NiMH and Lithium Ion chemistries.
- Simultaneous Charge
- This NP-1 charger features simultaneous charging, enabling the charger to charge two batteries, regardless of chemistry, at the same time.
UPC: 184323000111 In the Box - 4 x NP-L60 Li-Ion Chemistry NP-1 Style Battery - 60 Wh, 14.8-Volts sverebdtfesvuussexe
- Limited 1-Year Warranty
- NC-2LJ 2-Position NP-1 Type Simultaneous Charger
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX 4x NP-L60 NP-Style Batteries & Two-Position Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x Core SWX NP-L60 Li-Ion Chemistry NP-1 Style Battery
| Mount / Series Type | NP-1 Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 60 Wh | | Output Voltage | 14.8 VDC | | Accessory Port | 1 x D-Tap | | Dimensions (W x H x D) | 7.3 x 2.8 x 1.0" / 185.0 x 72.0 x 25.0 mm | | Weight | 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 7.55 x 3.0 x 1.1" | - Core SWX NC-2LJ 2-Position NP-1 Type Simultaneous Charger
| Power Supply | Yes | | Battery Bays | 2 | | Type of Charging | Simultaneous | | Diagnostics | None | | Connections/Interface | NP-1 (x2)
4-Pin XLR (x 1) | | Power Requirements | 90-240 Volts AC, 50 or 60 Hz | | Dimensions (WxHxD) | 4.4 x 9.8 x 2.7"
11.2 x 25 x 6.8cm | | Weight | 2 lbs
907 grams | | | | Box Dimensions (LxWxH) | 10.5 x 9.5 x 4.0" |
