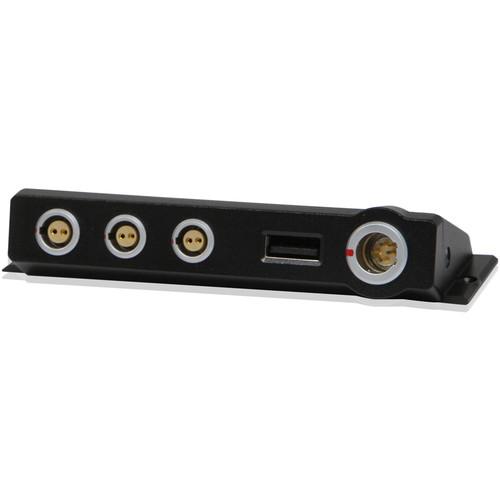

Product description The Core SWX EVO-MOD12 Power Distribution Module for JetPack EVO adds three regulated 12V 2-pin LEMO outputs, a 5V USB output, and a 6-pin LEMO unregulated power input for a RED power supply or block battery to your JetPack EVO. The outputs are physically configured to not block any I/O connections on any DSMC2 modules on the back of a RED cinema camera. UPC: 184323004485 In the Box Core SWX EVO-MOD12 Power Distribution Module for JetPack EVO Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX EVO-MOD12 Power Distribution Module for JetPack EVO in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX EVO-MOD12 Specs | Power Outputs | 3 x 2-pin LEMO, 12 VDC @ 3 A, regulated | | Power Input | 1 x 6-pin LEMO, 11-17 VDC |
