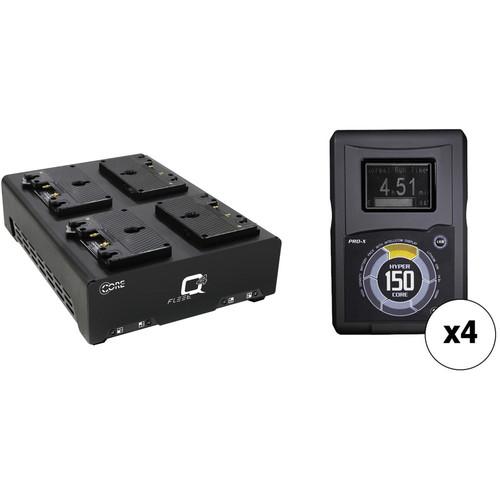

User Manual for Core SWX Four-Battery HyperCore GOLD 150Wh Gold Mount Kit with Fleet Q Quad Charger Click to enlarge the picture
Contents of the user manual for the Core SWX Four-Battery HyperCore GOLD 150Wh
- Product category: On Camera Batteries Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX On Camera Batteries
|
User manual for the Core SWX Four-Battery HyperCore GOLD 150Wh contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description This B&H Kit includes Four HyperCore 150Wh GOLD Gold Mount 14.8V lithium-ion batteries and the Fleet Q Four-Position Simultaneous Charger, from Core SWX. The HyperCore GOLD is a heavy-duty battery built to withstand up to 10A draws for extended periods without diminishing service life. It features a sleep/hibernation/reawaken accelerometer, 1000 charge/discharge cycles, an over-molded and rubberized housing with ergonomic finger grips, D-Tap and USB ports, and a large LCD conveniently positioned on the front. The LCD displays lifespan in hours and minutes, an estimated runtime when in standby mode, and charge details when charging. This battery also intelligently dictates charge routine.
The Fleet Q Charger, weighing 5 lb and measuring approximately 4" thick, is relatively lightweight and slim for a four-battery charger. It also features a recessed carry handle that makes transport further convenient. The housing is made of aluminum, providing for a robust build. - 4 x Core SWX HyperCore 150 Gold Mount Battery
- HyperCore 98 & HyperCore 150
The Core SWX HyperCore 150 Gold Mount Battery is a 150Wh Lithium-Ion battery featuring high density cells designed to handle high power draws. Supporting more amperage per cell, the cells can withstand up to a 10A draw for extended periods without diminishing service life. Overall service life is rated at 1000 charge/discharge cycles. Runtime is projected at 6 hours at 25W. Safety sensors are built in that detect over/under voltage, over/under current, and above-normal temperature.The HyperCore 150 is compatible with Anton/Bauer Lithium-Ion chargers. An Intellicom backlit LCD and a 4-LED gauge provide operating runtime in hours and minutes, remaining capacity as a bar grid and percentage, and remaining charge time. An on-board fuel computer samples capacity and charge or discharge load and re-computes and refreshes the LCD display every five seconds. A D-tap port and USB port are available on the side for powering accessories and charging various devices. The outer jacket is made of comfortable-to-hold, non-slip rubber. This battery pack will charge on all Core SWX chargers. - Key Features
-
- 150 lithium-ion Gold mount battery
- Compatible with all Anton Bauer lithium-ion chargers
- High density cells supporting up to a 10A draw for extended periods
- Rated at 1000 charge/discharge cycles
- Runtime projected at 6 hours at 25W
- Built-in safety sensors
- Intellicom backlit LCD and 4-LED power gauge
- Displays runtime in hours and minutes, capacity as a grid and %, and remaining charge time
- On-board fuel computer refreshes the LCD display every five seconds
- D-Tap port and USB port
- Non-slip, rubberized housing
UPC: 184323002832 - Core SWX Fleet Q Gold Mount Four-Position Charger
- HyperCore 98 & HyperCore 150
Featuring four independent charge bays, the Core SWX Fleet Q Gold Mount Charger is capable of charging four batteries simultaneously by focusing on each individually. Four 98Wh batteries can be charged in approximately 2.5 hours. Red and green LEDs indicate charging/complete status. Supporting 90-240 VAC input voltage, Fleet Q is worldwide compatible if you incorporate the appropriate plug adapter, sold separately.
Weighing five pounds and measuring approximately four inches thick, Fleet Q is relatively lightweight and slim for a four-battery charger. It also features a recessed carry handle that makes transport convenient. The housing is made of aluminum, providing for a robust build. - Key Features
-
- Four independent Gold Mount charge bays
- Simultaneous charging
- Approximately 2.5 hour charge time for four 98Wh batteries
- Red and green status LEDs
- 90-240 VAC worldwide compatible input voltage
- Aluminum build
- Weighs 5 lb
- Approximately 4" thick
- Recessed carry handle
UPC: 184323002917 In the Box - 4 x HyperCore 150 Gold Mount Battery acxwwaxvefab
- Limited 2-Year Warranty
- Fleet Q Gold Mount Four-Position Charger
Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX Four-Battery HyperCore GOLD 150Wh Gold Mount Kit with Fleet Q Quad Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x Core SWX HyperCore 150 Gold Mount Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 150 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 3.8 x 5.9 x 2.4" / 97.0 x 150.0 x 60.0 mm | | Weight | 2 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 4.2" | - Core SWX Fleet Q Gold Mount Four-Position Charger
| Number of Bays | 4 x Gold Mount | | Charging Type | Simultaneous | | Charge Current | 3 A | | Input Voltage | 90-240 VAC, 50/60 Hz | | Material | Aluminum | | Dimensions | 8.9 x 3.4 x 12.4" (22.6 x 8.6 x 31.5) | | Weight | 5 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 17.05 x 12.6 x 4.25" |
