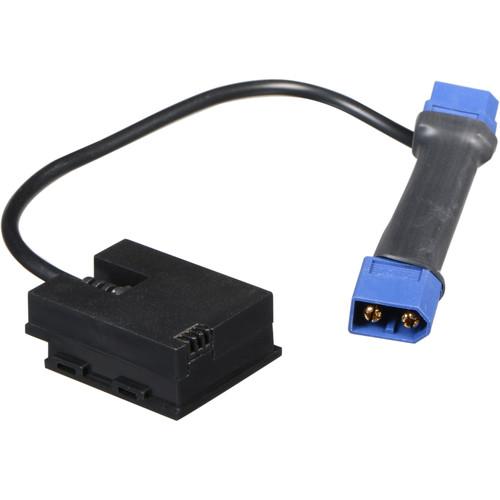

User Manual for Core SWX GoPro Regulator Cable Y with XT60 Connectors Click to enlarge the picture
Contents of the user manual for the Core SWX GoPro Regulator Cable Y
- Product category: Drones & Aerial Imaging Core SWX
- Brand: Core SWX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Core SWX Drones & Aerial Imaging
|
User manual for the Core SWX GoPro Regulator Cable Y contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Core SWX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Core SWX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Core SWX product will considerably shorten its lifespan!
|
Product description The GoPro Regulator Cable Y with XT60 Connectors from Core SWX allows you to power a GoPro HERO3 or HERO3+ from a Quadcopter or Hexcopter battery. This allows you to have a single, unified powering solution for your aerial system, rather than having to rely on a separate GoPro battery that may die at a different time than battery powering the aircraft.
The GoPro Regulator Cable Y features a DC coupler that slots into the battery compartment of the GoPro, lock securely in place unlike solutions that rely on the USB port to supply power. In addition to the naked camera, it can be used with the Skeleton Housing, or even the Underwater housing if the Skeleton back door is used. Note that the Underwater Housing will not be fully watertight in this configuration, but may provide additional water resistance beyond the full Skeleton Housing. - Power GoPro HERO3 or HERO3+ using a 8 to 24V aircraft battery with TX60 connector
- Cable is 12" and features male and female TX60 connectors to allow power pass-through
- Steps down and regulates voltage supplied to GoPro
- DC coupler locks firmly into battery compartment -- no more flimsy USB cable to rely on
- GoPro draws minimal power compared to aircraft capable of flying it
UPC: 184323002061 In the Box Core SWX GoPro Regulator Cable Y with XT60 Connectors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Core SWX GoPro Regulator Cable Y with XT60 Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCore SWX DV-GP3-XT60 Specs | Connectors | 1 x TX60 female
1 x TX60 male
1 x GoPro HERO3 / HERO3+ DC coupler | | Power Requirements | 8 to 24 VDC RC aircraft battery | | Output | Regulated 5 VDC | | Cable Length | 12" / 305 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.9 x 3.4 x 2.4" |
