Product description

• Core SWX GPTS V-Mount Hot Swap Adapter
  • Core Minute: Hot Swaps

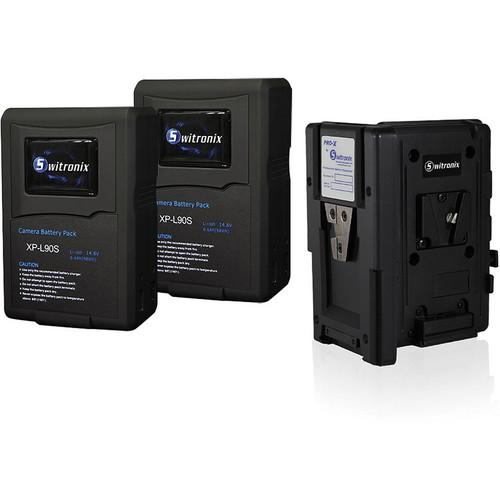

  The Core SWX GPTS is a "hot swap" power adapter that mounts directly to your existing V-plate. Batteries are mounted side by side, so you can easily remove the depleted battery while leaving the other battery connected so there is never any down time. The GP-TS is outfitted with a 2-pin power port so that you are not limited to the cameras' own connector. UPC: 184323000289
• 2 x Core SWX Nano V-Mount Battery
  • Core Minute: Hot Swaps
  Slimmer than its predecessor, the XPL90, the Core SWX Nano V-Mount Battery is lightweight, reliable, and powerful. While the form-factor may be small, the Nano-series batteries can support up to 8-amp draws at 14.8V. The slim enclosure is great for gimbal balancing, as the camera it's mounted to can use the extra space for fore/aft movement. In classic Core SWX fashion, the exterior of the battery has a rubberized feel for a sure grip. Accessories can be connected to both the USB and D-tap power outputs, allowing the Nano-series batteries to act as a power hub for your entire rig, not just your camera. With the 98Wh capacity, a 25-watt load can be sustained for approximately 3.5 hours. Real-time capacity can be checked using the 4-LED gauge on the side of the casing. This V-mount model communicates using the standard SMBUS protocol (found on most cameras that have a native V-mount, including RED DSMC2 cameras), sending battery metrics that can be monitored from the camera itself. UPC: 184323003600
• Core SWX X2S 2-Bay Vertical V-Mount Battery Charger
  • Core Minute: Hot Swaps
  Charge your V-Mount batteries while on-the-go with the Core SWX X2S 2-Bay Vertical V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this slim charger can charge a single battery at a 3-amp rate or batteries in both bays simultaneously at 2 amps. Since it sits vertically with two batteries mounted, the X2S takes up less space than traditional chargers. With its 4-pin XLR output, the X2S also does double duty as a 90W power supply for cameras, lights, or other equipment that can draw from a 4-pin XLR. UPC: 184323003655

• GPTS V-Mount Hot Swap Adapter yqtecdrdeuvbvbbdzbeyxfsdxezzscae
• Limited 1-Year Warranty

• 2 x Nano V-Mount Battery

• X2S 2-Bay Vertical V-Mount Battery Charger

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Core SWX GPTS V-Mount Hot Swap Adapter

  Box Dimensions (LxWxH)	6.0 x 5.5 x 3.5"

• 2 x Core SWX Nano V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	98 Wh
  Amp-Hours	6.6 Ah
  Output Voltage	14.8 VDC
  Maximum Load	8 A
  Accessory Port	1 x D-Tap
  USB Output	5 V, 3 A
  Dimensions (W x H x D)	3.8 x 5.9 x 1.5" / 9.7 x 15.0 x 3.8 cm
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.05 x 6.95 x 2.85"

• Core SWX X2S 2-Bay Vertical V-Mount Battery Charger

  Maximum Charge Current	1 Bay: 3 A 2 Bays: 2 A (each bay)
  4-Pin XLR DC Output	90 W (15 VDC, 6 A)
  Input Voltage	90-240 VAC, 50/60 Hz
  Dimensions	4.5 x 7.1 x 3.4" / 11.4 x 18.0 x 8.6 cm
  Weight	1.9 lb / 0.9 kg

  Box Dimensions (LxWxH)	8.0 x 5.3 x 4.9"
